Zotac ZBOX pico User manual

1 ZOTAC ZBOX pico

ZOTAC ZBOX pico

User’s Manual

No part of this manual, including the products and software described in it, may be

reproduced, transmitted, transcribed, stored in a retrieval system, or translated

into any language in any form or by any means, except by the purchaser for

backup purposes, without the express written permission of ZOTAC.

Products and corporate names mentioned in this manual may be registered

trademarks or copyrights of their respective companies, and are used for

identication purposes only. All trademarks are the property of their respective

owners.

Every effort has been made to ensure the contents of this manual are correct

and up to date. However, the manufacturer makes no guarantee regarding the

accuracy of its contents, and reserves the right to make changes without prior

notice.

ZOTAC ZBOX pico 2

Table of Contents

Product specications ---------------------------------------------------------------------------------- 3

Safety information ---------------------------------------------------------------------------------------- 4

Setting up your system ------------------------------------------------------------------------------- 4

Care during use ---------------------------------------------------------------------------------------- 4

Welcome ----------------------------------------------------------------------------------------------------- 5

Package contents -------------------------------------------------------------------------------------- 5

Port Layout-------------------------------------------------------------------------------------------------- 6

How to disable the ring LED indicator ------------------------------------------------------------- 8

Mounting the ZOTAC ZBOX pico to an LCD monitor---------------------------------------- 10

Getting started with Windows 8.1 with Bing --------------------------------------------------- 12

Using your ZOTAC ZBOX pico---------------------------------------------------------------------- 16

Conguring a wireless connection --------------------------------------------------------------- 16

Conguring an Ethernet connection------------------------------------------------------------- 16

Using a static IP ---------------------------------------------------------------------------------- 16

Using a dynamic IP (PPPoE connection) -------------------------------------------------- 17

Conguring audio output via an HDMI device ------------------------------------------------ 18

Conguring Windows 8.1 micro SD/SDHC/SDXC Support-------------------------------- 19

Recovering Windows 8.1 (from internal system image) ----------------------------------- 21

Recovering Windows 8.1 (from external recovery DVD)----------------------------------- 22

3 ZOTAC ZBOX pico

Product specications

Product Dimensions

• 115.5mm x 66mm x 19.2mm

Processor

• Intel Atom Z3735F (quad-core, 1.33 GHz)

• Burst speed up to 1.83 GHz

Graphics processor

• Intel HD graphics

Memory

• 2GB DDR3L-1333 memory

USB ports

• Three USB 2.0 ports

Storage

• 32GB/64GB eMMC

• Expandable via micro SD/SDHC/SDXC

Networking

• 10/100Mbps Ethernet

Wireless networking

• 802.11n Wi-Fi

• Bluetooth 4.0

Operating System

• Windows 8.1 with Bing, 32-bit

ZOTAC ZBOX pico 4

Safety information

Your ZOTAC ZBOX pico is designed and tested to meet the latest standards of safety for

information technology equipment. However, to ensure your safety, it is important that you read

the following safety instructions.

Setting up your system

Read and follow all instructions in the documentation before you operate your system.

Do not use this product near water or a heat source such as a radiator.

Set up the system on a stable surface with the provided stand. Never use the system

alone without the stand.

Openings on the chassis are for ventilation. Do not block or cover these openings. Make

sure you leave plenty of space around the system for ventilation. Never insert objects of

any kind into the ventilation openings.

Use this product in environments with ambient temperatures between 0℃ and 35℃.

Care during use

Do not walk on the power cord or allow anything to rest on it.

Do not spill water or any other liquids on your system.

When the system is turned off, a small amount of electrical current still ows. Always

unplug all power, modem, and network cables from the power outlets before cleaning the

system.

If you encounter the following technical problems with the product, unplug the power cord

and contact a qualied service technician or your retailer.

¾The power cord or plug is damaged.

¾Liquid has been spilled into the system.

¾The system does not function properly even if you follow the operating instructions.

¾The system was dropped or the cabinet is damaged.

¾The system performance changes.

5 ZOTAC ZBOX pico

Welcome

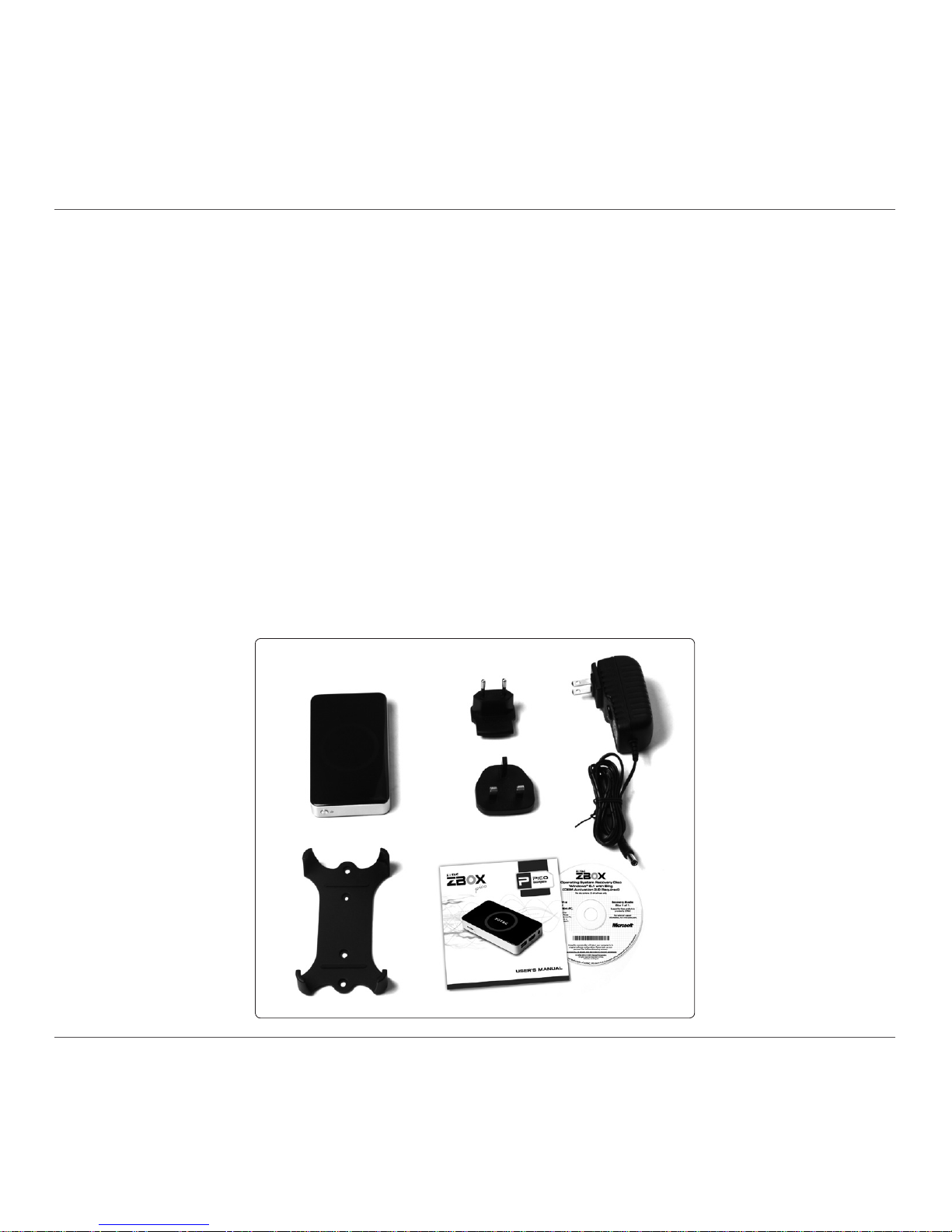

Congratulations on your purchase of the ZOTAC ZBOX pico. The following illustration displays

the package contents of your new ZOTAC ZBOX pico. Please contact your retailer If any of the

below items are damaged or missed.

Package contents

• 1 x ZOTAC ZBOX pico

• 1 x Mounting bracket

• 2 x Mount screws

• 1 x AC adapter

• 1 x OS Recovery DVD (optional)

• 1 x Warranty Card

• 1 x User Manual

• 1 x Quick Start Guide

ZOTAC ZBOX pico 6

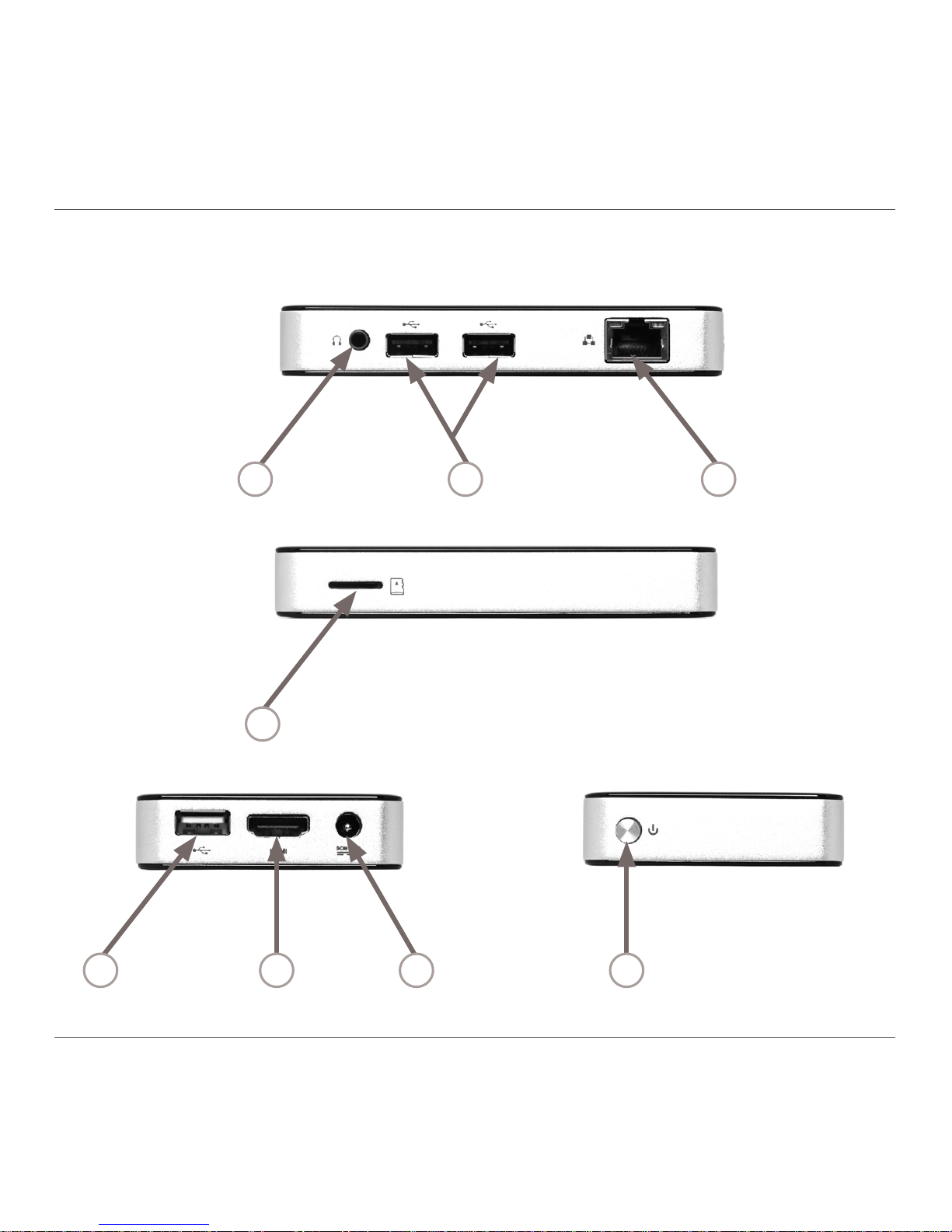

Port Layout

12 3

526

Power button

7 ZOTAC ZBOX pico

1. Headphone/analog audio output (3.5mm)

The stereo headphone jack (3.5mm) is used to connect the system’s audio out signal

to amplied speakers or headphones.

2. USB 2.0 ports

The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards,

mice, cameras and external hard disk drives.

3. Ethernet port

The eight-pin RJ-45 LAN port supports standard Ethernet cable for connection to a

local network.

4. MicroSD memory card slot

The built-in memory card reader supports Micro SD/SDHC/SDXC cards to expand the

storage capabilities of the ZOTAC ZBOX pico.

5. HDMI output

The HDMI (High Denition Multimedia Interface) output supports a Full HD 1080p

displays such as an HDTV or monitor.

6. Power input (DC 5V, 3A)

The supplied power adapter converts AC power to DC power for use with this jack.

Power supplied through this jack supplies power to the mini-PC. To prevent damage to

the mini-PC, always use the supplied power adapter.

7. Power button

The power button turns the system ON and OFF.

Note 1: The power adapter may get warm or hot when in use. Do not cover the adapter and keep it away from your body.

Note 2: Due to the unique design, some connectors are placed upside down.

ZOTAC ZBOX pico 8

How to disable the ring LED indicator

1. Turn on the ZBOX pico mini-PC, then press <Delete> to enter the BIOS SETUP

UTILITY.

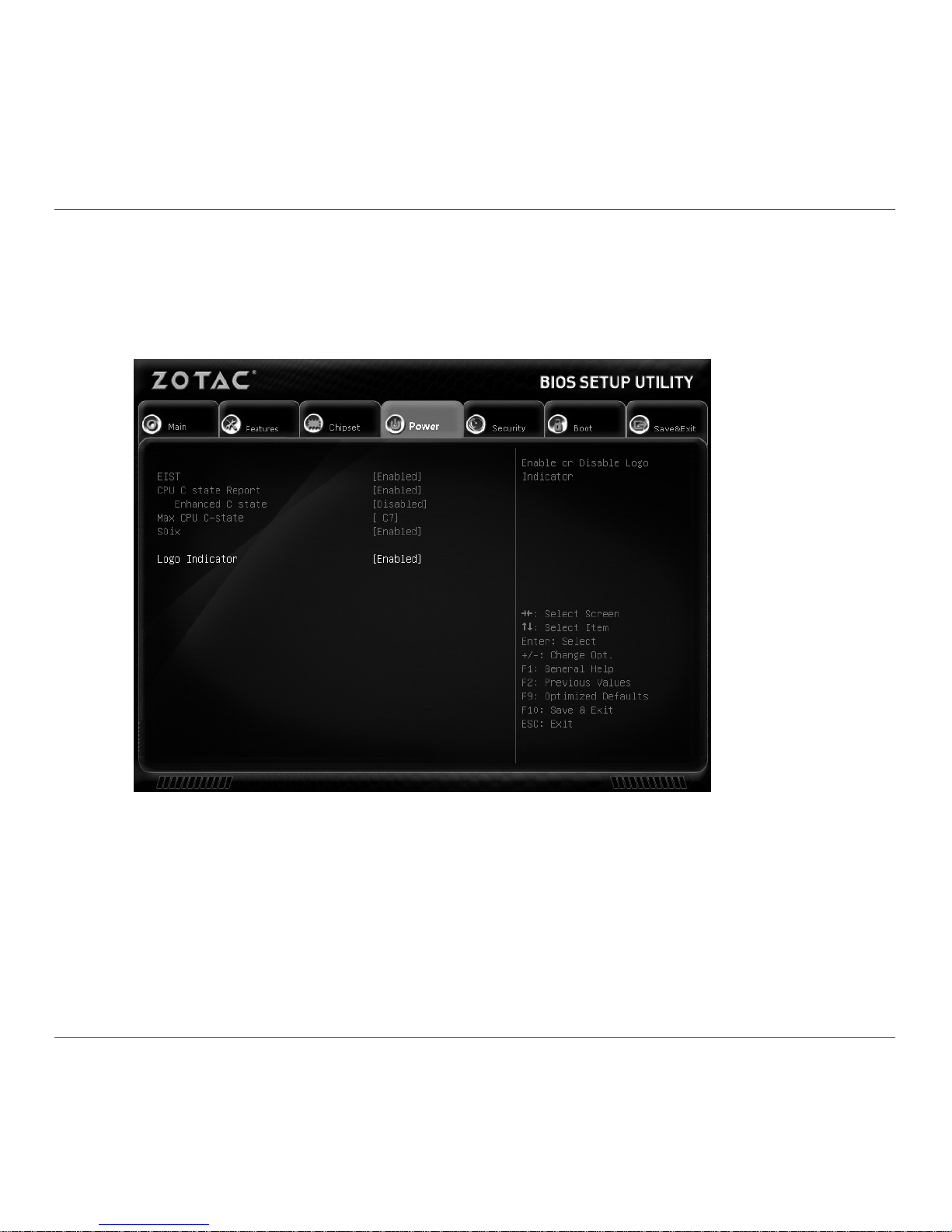

2. Use the arrow keys to navigate to the Power menu and select Logo Indicator.

9 ZOTAC ZBOX pico

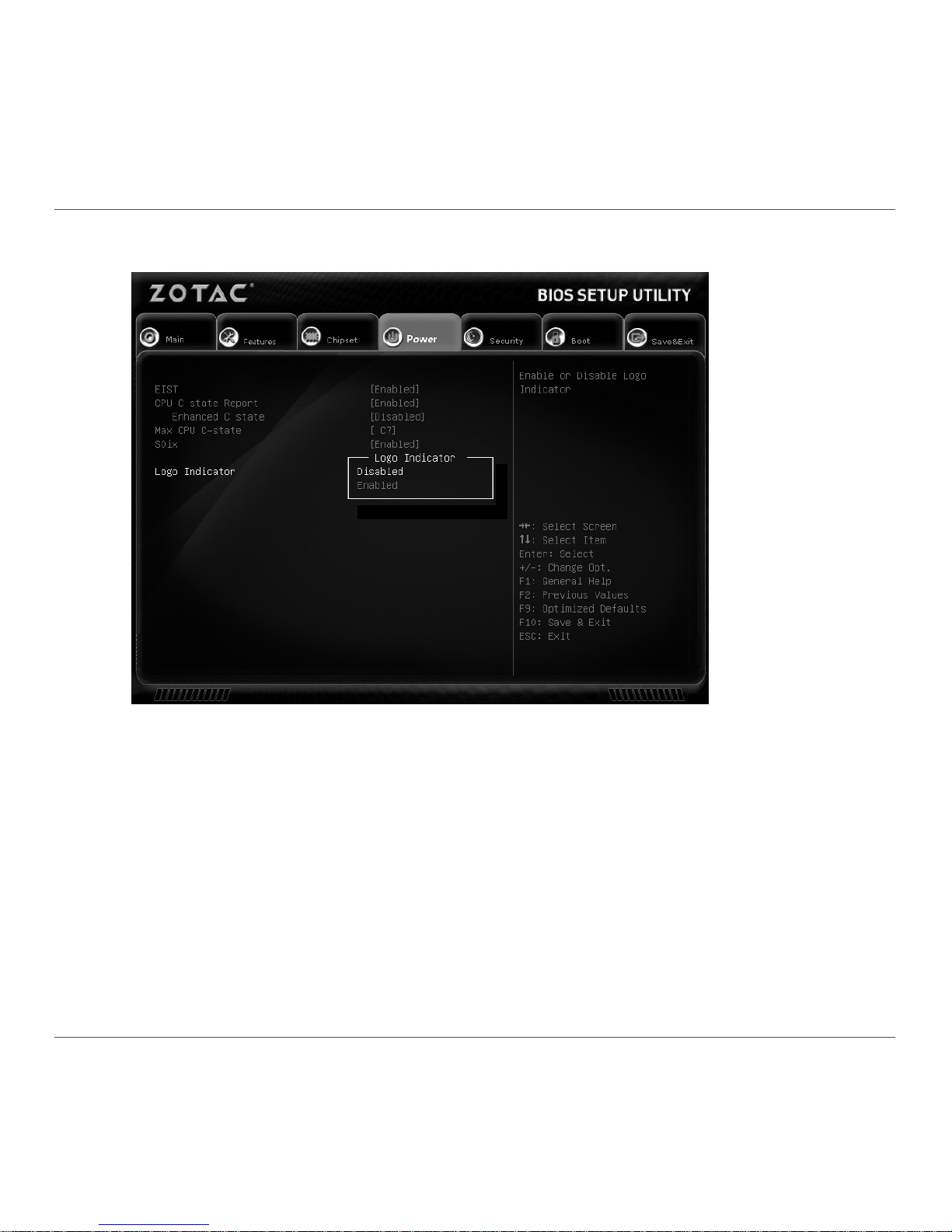

3. Press <Enter> and select Disabled.

4. Press F10 to save the conguration and exit. The PC will reboot.
