Zanussi ZTE7101PZ User manual

GETTING

STARTED?

EASY.

User Manual

ZTE7101PZ

EN User Manual

Tumble Dryer

SAFETY INFORMATION

Before beginning the installation and use of this appliance,

carefully read the supplied instructions. The manufacturer is not

responsible for any injuries or damages that are the result of

incorrect installation or usage. Always keep the instructions in a

safe and accessible location for future reference.

CHILDREN AND VULNERABLE PEOPLE SAFETY

WARNING!

Risk of suffocation, injury or permanent disability.

•This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning the use of the

appliance in a safe way and understand the hazards involved.

•Children between 3 and 8 years of age and persons with very

extensive and complex disabilities shall be kept away from the

appliance unless continuously supervised.

•Children of less than 3 years of age should be kept away from

the appliance unless continuously supervised.

•Do not let children play with the appliance.

•Keep all packaging away from children and dispose of it

appropriately.

•Keep detergents away from children.

•Keep children and pets away from the appliance when the door

is open.

•If the appliance has a child safety device, it should be activated.

•Children shall not carry out cleaning and user maintenance of

the appliance without supervision.

GENERAL SAFETY

•Do not change the specification of this appliance.

•If the tumble dryer is put on top of a washing machine, use the

stacking kit. The stacking kit, available from your authorized

vendor, can be used only with the appliance specified in the

instructions supplied with the accessory. Read it carefully

before installation (refer to the Installation leaflet).

•Do not install the appliance behind a lockable door, a sliding

door or a door with a hinge on the opposite side, that would

prevent the appliance door from being fully open.

•The ventilation opening in the base must not be covered by a

carpet, mat, or any floor covering.

•WARNING: The appliance must not be supplied through an

external switching device, such as a timer, or connected to a

circuit that is regularly switched on and off by a utility.

•Connect the mains plug to the mains socket only at the end of

the installation process. Make sure that the mains plug is

accessible after installation.

•Ensure good air ventilation in the room where the appliance is

installed to avoid the backflow of unwanted gases into the room

from appliances burning gas or other fuels, including open fires.

•Exhaust air must not be discharged into a flue which is used for

exhausting fumes from any appliances burning gas or other

fuels.

•If the mains power supply cable is damaged, it must be

replaced by the manufacturer, its Authorised Service Centre or

similarly qualified persons to avoid an electrical hazard.

•Do not exceed the maximum load of 7 kg (refer to the

"Programme chart" chapter).

•Do not use the appliance if items have been soiled with

industrial chemicals.

•Wipe away lint or packaging debris that has accumulated

around the appliance.

•Do not run the appliance without a filter. Clean the lint filter

before or after each use.

•Do not dry unwashed items in the tumble dryer.

•Items that have been soiled with substances such as cooking

oil, acetone, alcohol, petrol, kerosene, spot removers,

turpentine, waxes and wax removers should be washed in hot

water with an extra amount of detergent before being dried in

the tumble dryer.

•Items such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber backed articles and clothes or

pillows fitted with foam rubber pads should not be dried in the

tumble dryer.

•Fabric softeners, or similar products, should only be used as

specified by the product manufacturer’s instructions.

•Remove all objects from items that could be a source of fire

ignition such as lighters or matches.

•WARNING: Never stop a tumble dryer before the end of the

drying cycle unless all items are quickly removed and spread

out so that the heat is dissipated.

•Before any maintenance operation, deactivate the appliance

and disconnect the mains plug from the socket.

SAFETY INSTRUCTIONS

INSTALLATION

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Follow the installation instructions supplied with

the appliance.

• Always take care when moving the appliance as

it is heavy. Always use safety gloves and

enclosed footwear.

• Do not install or use the appliance where the

temperature can be lower than 5°C or higher

than 35°C.

• The floor area on which the appliance is to be

installed must be flat, stable, heat resistant and

clean.

• Make sure that there is air circulation between

the appliance and the floor.

• Always keep the appliance vertical when it is

being moved.

• The rear surface of the appliance must be put

against a wall.

• When the appliance is in its permanent position,

check if it is levelled correctly with the aid of a

spirit level. If it is not, adjust the feet accordingly.

ELECTRICAL CONNECTION

WARNING! Risk of fire and electric

shock.

• The appliance must be earthed.

• Make sure that the parameters on the rating

plate are compatible with the electrical ratings

of the mains power supply.

• Always use a correctly installed shockproof

socket.

• Do not use multi-plug adapters and extension

cables.

• Do not pull the mains cable to disconnect the

appliance. Always pull the mains plug.

• Do not touch the mains cable or the mains plug

with wet hands.

• This appliance complies with the E.E.C.

Directives.

USE

WARNING! Risk of injury, electric

shock, fire, burns or damage to the

appliance.

• This appliance is for household use only.

• Do not dry damaged (torn, frayed) items that

contain padding or fillings.

• Only dry fabrics which are suitable for drying in

a tumble dryer. Follow the instructions on the

fabric label.

• If you have washed your laundry with a stain

remover start an extra rinse cycle before you

start the dryer.

• Do not drink or prepare food with the

condensed water/distilled water. It can cause

health problems to people and pets.

• Do not sit or stand on the open door of the

appliance.

• Do not dry dripping wet clothes in a tumble

dryer.

CARE AND CLEANING

WARNING! Risk of injury or damage

to the appliance.

• Do not use water spray and steam to clean the

appliance.

• Clean the appliance with a moist soft cloth. Only

use neutral detergents. Do not use any abrasive

products, abrasive cleaning pads, solvents or

metal objects.

DISPOSAL

WARNING! Risk of injury or

suffocation.

• Disconnect the appliance from the mains

electrical and water supplies.

• Cut off the mains electrical cable close to the

appliance and dispose of it.

• Remove the door catch to prevent children or

pets from becoming trapped in the drum.

• Dispose of the appliance in accordance with

local requirements for the disposal of Waste

Electrical and Electronic Equipment (WEEE).

INSTALLATION

UNPACKING

CAUTION! Before use all parts of the

transport packaging must be removed.

1 2 3

Open loading door.1

Pull off adhesive strips from inside machine on top of drum.2

Remove foil hose and polystyrene padding from the machine.3

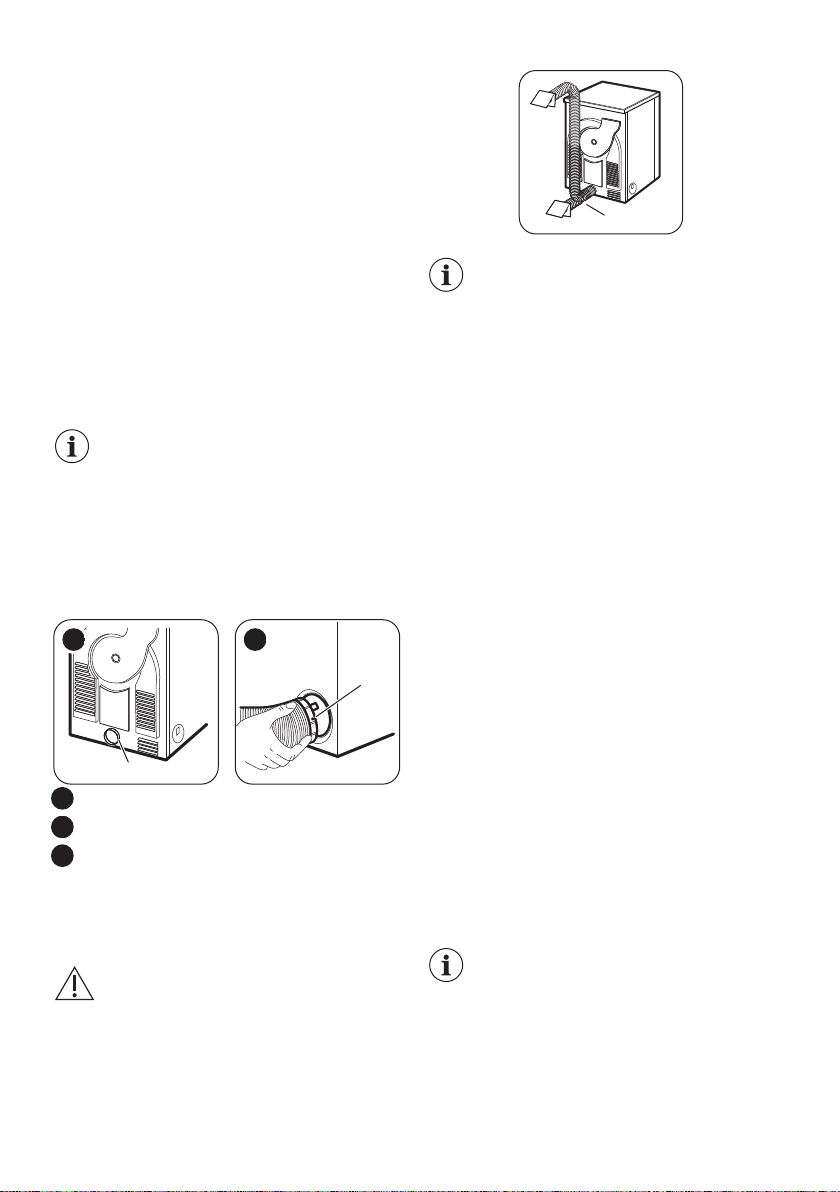

VENT HOSE

As to the outlet itself, if you have

decided on a install wall/window grille,

a good local builder’s merchant can

supply you with the necessary fittings

and installation advice.

Make sure that the vent hose length is

less than 2 m, and that it contains no

more than 2 bends.

WARNING! It is important not to

connect the vent hose to, for example,

a cooker hood, or a chimney or flue

pipe designed to transmit the exhaust

from a fuel burning appliance.

Note that to prevent condensation problems, it is

essential that the dryer be installed with the flexible

hose to transmit its “exhaust” at least beyond the

kitchen units; preferable outside the kitchen. In

order to prevent the appliance from overheating, it

is important that the steam exhaust is unobstructed.

Thus, if a permanent hose installed to an external

wall or ceiling, it must be ensured an exhaust

capacity of minimum 150 m3/h. If the dryer is

installed adjacent to kitchen units, make sure that

the vent hose is not squashed. If the hose is not

fully squashed, drying efficiency will be decreased ,

resulting in longer drying times and higher energy

consumption. If the hose is fully squashed, the

automatic cut-outs with which the appliance is

fitted can operate. When operating the tumble

dryer, the room temperature must not be lower than

+5°C and higher than +35°C, as it can affect the

performance of the appliance.

If the hose is long and the room

temperature low, the moisture might

condense to water inside the hose.

This is an usual occurrence. To

prevent this water from the hose, it is

recommend to drill a small hole (via. 3

mm) in the lowest point of the hose

and to put a small container below it.

(See picture, point B).

There are 3 vent outlets: on the left,

right side and at the rear.

Pull the ring nut Afrom the vent outlet at the rear.1

Screw on the ring nut to the hose and push it into position.2

The not used vents must be sealed with supplied covers.3

DOOR REVERSAL

To make it easier to load or unload the laundry, the

door can be reversed.

WARNING! The door must only be

reversed by an authorised service

engineer.

Please contact your Authorised Service Centre.

The engineer will carry out the door reversal at your

cost.

SPECIAL ACCESSORIES

•stack kit

Available from your Authorised

Service Centre or your specialist

dealer

To enable the mounting of the dyer on top of a

front loading washing machine with cover’s

depth between 48 and 60 cm.

Read carefully the instructions supplied with the

kit.

EASY START

PRODUCT DESCRIPTION

1Control panel

2Appliance door

3Fluff filter

4Rating plate

5Adjustable feet

6Sideways vent outlets / back vent outlet

7Ring nut

CONTROL PANEL

1 2 3 4 65

1Programme knob and OFF switch

2Delicate button

3Anti-crease button

4Alarm button

5Indicators: Drying , End/Anti-crease ,

Filter

6Start/Pause button

PROGRAMME TABLE

Programmes Type of load Load (max.)1) /

Fabric mark

Cottons

Extra Dry Drying level: extra dry. 7kg/

Strong Dry Drying level: strong dry. 7kg/

Cupboard

Dry2)3) Drying level: cupboard dry. 7kg/

Damp Drying level: textiles which are still to be ironed. 7kg/

Iron Dry 3) Drying level: suitable for ironing. 7kg/

Synthetics

Extra Dry Drying level: extra dry. 3kg/

Cupboard Dry 3) Drying level: cupboard dry. 3kg/

Programmes Type of load Load (max.)1) /

Fabric mark

Iron Dry Drying level: suitable for ironing. 3kg/

Specials

Quick 30' Time programme to dry individual items of laundry. 1kg/

Easy Iron

Easy care fabrics for which a minimum of ironing is

necessary. The drying results can be different from

one type of fabric to another. Shake the items before

putting them in the appliance. When the programme

has ended, immediately remove the items and put

them on a hanger.

1kg (or 5

shirts)/

Mix Cotton and synthetic fabrics. Low temperature pro-

gramme. Delicate programme with warm air. 3kg/

Baby Baby cycle is a special programme for jumpers to be

dried “ready to wear”. 2kg/

Jeans Leisure clothing such as jeans, sweat-shirts of differ-

ent material thicknesses (e.g. at the neck, cuffs and

seams). 7kg/

Cooling Refreshing textiles that were in storage. 1kg

1) The maximum weight refers to dry items.

2) The Cottons Cupboard Dry ECO programme is the “Standard cotton programme” according to

Commission Regulation EU No. 392/2012. It is suitable for drying normal wet cotton laundry and it is the

most efficient programme in terms of energy consumption for drying wet cotton laundry.

3) For test institutes only: Standard programmes for tests are specified in the EN 61121 document.

OPTIONS

DELICATE

With this option you can set a delicate drying

programme that has a low temperature. Use this

option with a fabrics that have the symbol on

the fabric label (e.g. acrylic, viscose).

ANTI-CREASE

Extends the anti-crease phase by 60 minutes at the

end of the drying cycle. This function reduces

creases. The laundry can be removed during the

anti-crease phase.

ALARM

The buzzer sounds at the:

• cycle end

• start and end of the anti-crease phase

• cycle interruption

The buzzer function is by default always on. You

can use this function to activate or deactivate the

sound.

You can activate the Alarm option with

all programmes.

OPTIONS TABLE

Programmes1) Delicate Anti-crease Alarm

Cottons

Extra Dry ■ ■ ■

Strong Dry ■ ■ ■

Cupboard Dry ■ ■ ■

Damp ■ ■ ■

Iron Dry ■ ■ ■

Synthetics

Extra Dry ■ ■ ■

Cupboard Dry ■ ■ ■

Iron Dry ■ ■ ■

Specials

Quick 30' ■ ■ ■

Easy Iron ■ ■ ■

Mix ■ ■ ■

Baby ■ ■ ■

Jeans ■ ■ ■

Cooling ■

1) Together with the programme you can set 1 or more options. To activate or deactivate them, press the

related touch button.

SETTINGS

A B C D

A. Delicate button

B. Anti-crease button

C. Alarm button

D. Start/Pause button

BUZZER ON/OFF

To deactivate or activate the acoustic signals, press

and hold for approximately 2 seconds touch

buttons (A) and (B) at the same time.

ADJUSTMENT OF THE REMAINING LAUNDRY

MOISTURE DEGREE

To change the default degree of the remaining

moisture of the laundry:

1. Use the programme knob to set any

programme.

2. Wait approximately 8 seconds.

3. Press and hold buttons (B) and (D) at the same

time.

One of the these indicators comes on:

Other manuals for ZTE7101PZ

Table of contents

Other Zanussi Dryer manuals

Zanussi

Zanussi SD 2801 Installation instructions

Zanussi

Zanussi TC 480 User manual

Zanussi

Zanussi THE8080S User manual

Zanussi

Zanussi ZTE285 User manual

Zanussi

Zanussi ZTEB285 User manual

Zanussi

Zanussi TDS333E User manual

Zanussi

Zanussi TD4110 User manual

Zanussi

Zanussi ZDC 46130 S User manual

Zanussi

Zanussi TCE7245 User manual

Zanussi

Zanussi TDS 383 W User manual

Zanussi

Zanussi TD4100 User manual

Zanussi

Zanussi TCS 675 EW User manual

Zanussi

Zanussi TD260 User manual

Zanussi

Zanussi TDE 4224 W User manual

Zanussi

Zanussi ZDC46130S User manual

Zanussi

Zanussi LINDO300 ZDC8203W User manual

Zanussi

Zanussi TD530 User manual

Zanussi

Zanussi ZDP7206PZ User manual

Zanussi

Zanussi ZTE 273 User manual

Zanussi

Zanussi ZDEB 47209W User manual

Zanussi

Zanussi ZDPB274B User manual

Zanussi

Zanussi TD164 User manual

Zanussi

Zanussi ZDC37202W User manual

Zanussi

Zanussi TD 100 Assembly instructions

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
