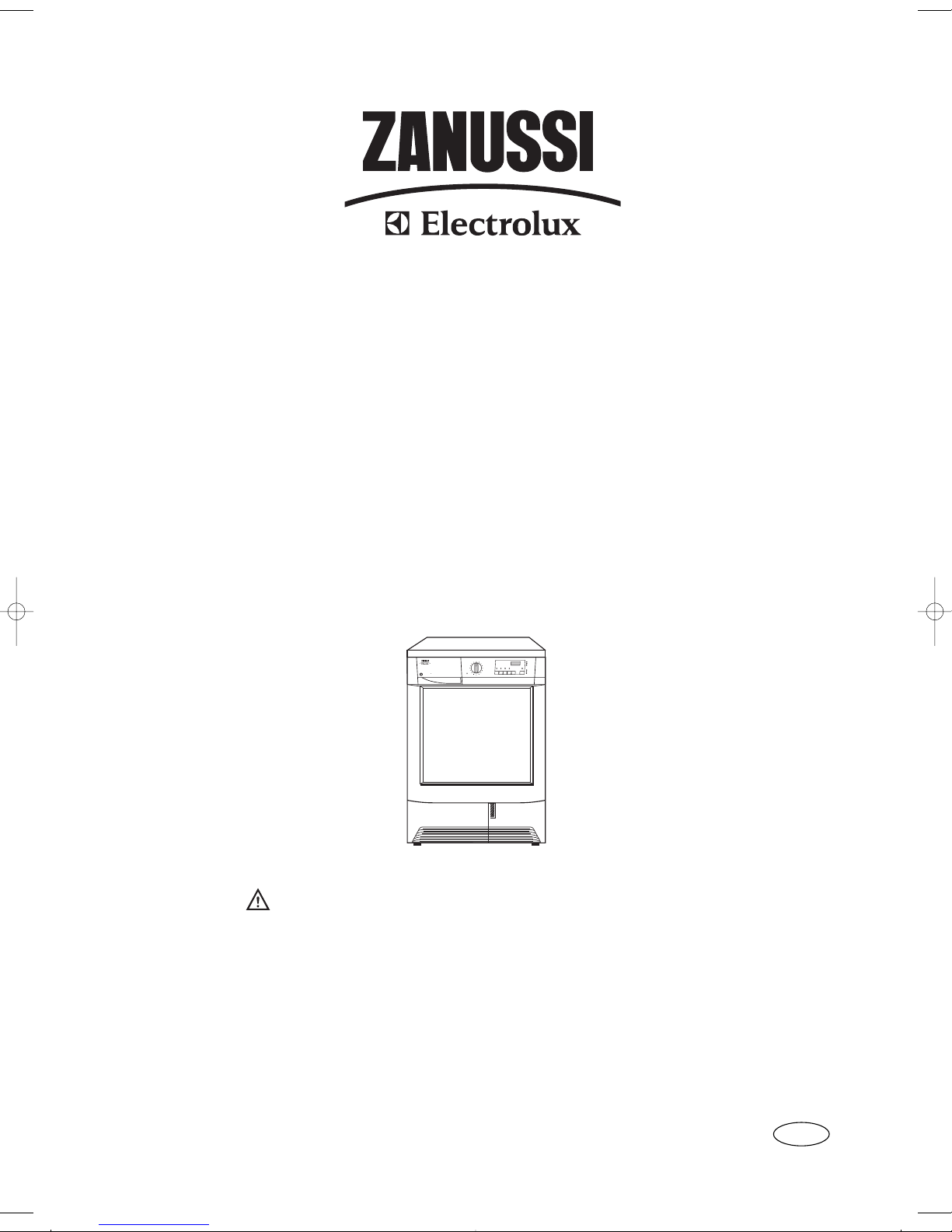

Zanussi ZDC 5350 W User manual

TUMBLE DRYER

ZDC 5350 W

6kg

TIMELINE

START ZDC 5350W

PROGRAMME

COTTON

Extra dry

Ready to wear

Iron dry

Slightly dam

Store dry

Wring dry

Store

dry

Extra dry

Iron dry

EXTRA

PROGRAMME

Start/

Pause

Buzzer

DoorDelay

Start

Clogged

Condenser

Drying

Cooling

End

Clogged Filters

Full Tank

RESET/

OFF

Quick

Dry

Low

Temerature

60 min

Cooling

SYNTHETIC

Easy iron

90 min

30 min

TIMED

PROGRAMME

Baby dry

FUNCTION

INSTRUCTION BOOKLET

125992691

Unpacking: see page 18

125992691.qxd 26/05/2004 11:12 Pagina 1

Installation

•This appliance is heavy. Care should be taken when

moving it.

•It is dangerous to alter the specifications or attempt

to modify this product in any way.

•Any electrical work required to install this

appliance should be carried out by a qualified

electrician or competent person.

•Care must be taken to ensure that the appliance

does not stand on the electrical supply cable.

•If the machine is situated on a carpeted floor,

please adjust the feet in order to allow air to

circulate freely.

•If the tumble dryer is placed on top of a washing

machine, it is compulsory to use the stacking kit

(optional accessory).

Child Safety

•This appliance is designed to be operated by adults.

Children should not be allowed to tamper with the

controls or play with the product.

•Pets and children have been known to climb into

tumble dryers. Please check your drum before use.

•Keep all packaging well away for children.

Use

•Do not overload the appliance (see programme

chart).

•Clothes which are dripping wet should not be

placed in the dryer.

•As some bulky items such as duvets and

eiderdowns should be dried in large commercial

machines because of their bulk, check with the

manufacturer of the item if it is suitable for drying

in a domestic machine, even if the dry weight of

the item is within the limit advised.

•Please make sure that no gas lighters have

accidentally been left in pockets of garments to be

loaded into appliance.

•Danger of explosion: Never tumble dry items that

have been in contact with inflammable solvents

(petrol, methylated spirits, dry cleaning fluid and

the like). As these substance are volatile, they

could cause an explosion. Only tumble dry items

washed with water.

•In order to avoid danger of fires caused by

excessive drying, do not use appliance to dry the

following items:

Cushions, quilts and the like (these items

accumulate heat).

Items containing rubber foam or materials similar

to rubber foam.

•Leave the door slightly ajar when the appliance is

not being used. This will allow the seal to be

preserved.

•Clean fluff filters after using tumble dryer. To

prevent fire risks, do not use the appliance if the

fluff filters are damaged.

•Do not allow fluff to accumulate around the dryer.

•Under no circumstances should you attempt to

repair the machine yourself. Repairs carried out by

inexperienced persons may cause injury or serious

malfunctioning. Contact your local Service Force

Centre. Always insist on genuine Zanussi/

Electrolux spare parts.

Important Safety Information

It is most important that this instruction book should be retained with the appliance for

future reference. Should the appliance be sold or transferred to another owner, or should

you move house and leave the appliance, always ensure that the book is supplied with the

appliance in order that the new owner can get to know the functioning of the appliance

and the relevant warnings.

These warnings have been provided in the interest of safety. You MUST read them carefully

before installing or using the appliance.

125992691.qxd 26/05/2004 11:12 Pagina 2

For the User

Important Safety Information

•Installation

•Child Safety

•Use

Your New Tumble Dryer

Description of the Appliance

The Control Panel

•Programme/Time Selector Dial 5

•Door Release Button 5

•No Buzzer Button 5

•Quick Dry Button 5

•Low Temperature Button 5

•Delay Start Button 6

•Display 6-7

•Start/Pause Button 7

•Indicator Lights 7

Programme Chart

Operating Sequence

Hints & Tips on Drying

Maintenance and Cleaning

•External cleaning 11

•Cleaning the door 11

•Cleaning the filters 11

•Cleaning the condenser unit 11-12

•Emptying the water reservoir 12

•Cleaning the drum 12

•Cleaning the air intake grill 12

Something Not Working

Service and Spare Parts

Customer Care

Guarantee Conditions

For the Installer

Installation Instructions

Technical Specifications

Adjusting the level of conductivity

•Unpacking 18

•Positioning 18

•Stacking kit (optional accessory) 18

•Door reversal 18

•Electrical connection 18-19

Contents

Guide to use the Instruction Book

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions

Hints and tips

Environmental information

125992691.qxd 26/05/2004 11:12 Pagina 3

Description of the Appliance

01 Control panel

02 Water reservoir

03 Drum light

04 Fluff filters

05 Rating Plate

06 Condenser unit

07 Adjustable feet

6kg

TIMELINE

STARTZDC 5350W

PROGRAMME

COTTON

Extra dry

Ready to wear

Iron dry

Slightly dam

Store dry

Wring dry

Store

dry

Extra dry

Iron dry

EXTRA

PROGRAMME

Start/

Pause

Buzzer

DoorDelay

Start

Clogged

Condenser

Drying

Cooling

End

Clogged Filters

Full Tank

RESET/

OFF

Quick

Dry

Low

Temerature

60 min

Cooling

SYNTHETIC

Easy iron

90 min

30 min

TIMED

PROGRAMME

Baby dry

FUNCTION

This tumble dryer will give your wash that soft, relaxed feel whatever

the weather.

Extremely high quality standards both during development and

manufacturing guarantee a long service life for your appliance.

Maximum economy in the operation of your dryer is achieved through

very economical electricity consumption and short drying times.

Your New Tumble Dryer

In the interest

of the environment

•Materials marked with the symbol are

recyclable.

•Check with your local Council or Environmental

Health Office to see if there are facilities in your

area for re-cycling this appliance.

•When the appliance is to be scrapped, cut off the

power supply cable and make the door closing

device unusable to prevent young children from

being trapped inside.

•Help to keep your country tidy - use authorised

disposal sites for your old appliance.

How do we help to protect the

environment? We use recycled paper!

Energy saving tips

To save energy we recommend that you follow these

hints:

•Try to load to the maximum capacity of the

machine as small loads are uneconomical.

•Always load well spun laundry. The higher the spin

speed, the lower the electricity consumption and

the shorter the drying times.

•Do not over-dry laundry, this avoids creasing and

saves energy.

•Clean the filters regularly to avoid excessive drying

times and high electricity consumption.

•Ventilate the room well. The room temperature

should not exceed +35°C during drying.

125992691.qxd 26/05/2004 11:12 Pagina 4

The Control Panel

Programme/Time

Selector Dial

Allows you to select electronically controlled or time

controlled drying.

Turn the dial to the required programme or time.

Electronically controlled drying (automatic)

The appliance runs these programmes with the help

of probes which detect the degree of dampness of the

laundry.

Simply select the programme according to the type of

laundry and degree of drying required.

Time controlled drying

This can be used to finish off drying if necessary.

Select the 90 or 60 minute programme for cottons or

the 30 minute programme for synthetics.

To cancel a programme which is running, turn the

programme selector dial to “RESET/OFF”.

At the end of drying, turn the selector dial to

“RESET/OFF” to switch the machine off before

removing the laundry.

DOOR RELEASE Button

Press this button to open the door. The light above

the button will illuminate.

Opening the door by means of this button is

possible only if the tumble dryer is on

(programme selector dial set to a programme or

drying time).

If you open the door during a programme, in order to

restart the programme you must press the

START/PAUSE button again after having closed the

door.

3 NO BUZZER Button

A buzzer sounds

• when selecting the programme

• when depressing the buttons

• when an incorrect option selection is made

• when the programme selector dial is turned to

another position during the programme or when

you depress an option button during the cycle

• at the end of the programme and during the

anticrease phase

• when the water reservoir is full

• if the machine is not working correctly

• when the small door at the bottom is open.

By depressing the button the acoustic signal is

switched off.

The corresponding light comes on.

4 QUICK DRY Button

By depressing this button the drying time is reduced

in the following COTTON programmes:

•EXTRA DRY

•READY TO WEAR

•STORE DRY

The corresponding pilot light comes on.

This option cannot be selected with LOW

TEMPERATURE function.

5 LOW TEMPERATURE

Button

Pressing this button allows drying to be performed at

a lower temperature, for delicate items.

The corresponding pilot light comes on.

This option can also be used for time controlled

drying.

This option cannot be selected with QUICK DRY.

6kgTIMELINE

PROGRAMME

COTTON

Extra dry

Ready to wear

Iron dry

Slightly dam

Store dry

Wring dry

Store

dry

Extra dry

Iron dry

EXTRA

PROGRAMME

Start/

Pause

Buzzer

Door Delay

Start

Clogged

Condenser

Drying

Cooling

End

Clogged Filters

Full Tank

RESET/

OFF

Quick

Dry

Low

Tem erature

60 min

Cooling

SYNTHETIC

Easy iron

90 min

30 min

TIMED

PROGRAMME

Baby dry

123456789

FUNCTION START ZDC 5350W

125992691.qxd 26/05/2004 11:12 Pagina 5

6 DELAY START button

This button allows you to delay the starting of the

programme by 12 hours max.

This option must be selected after having selected

the programme and before pressing START/PAUSE

to start the programme.

Every time the button is pressed, the time is

increased by 30 minutes, until the display shows a

delay of “2 hours”. After this, the delay is displayed

hour by hour.

The minutes or hours of delay that have been

selected are displayed for 2 seconds, then the display

shows the duration of the previously selected

programme.

The countdown begins after you have pressed the

START/PAUSE button.

To cancel the delay time press the START/PAUSE

button and after press the DELAY START button

until the display indicates 0’. Then press the

START/PAUSE button again.

When the delay is cancelled, the display shows 0’ and

after the duration of the programme.

During the delayed start, it is not possible to change

the programme or the delay time that have been

selected. To do this, you must first switch off the

machine by setting the programme selector dial to

“RESET/OFF”. Select the new programme, the

options and the delayed start, then press the

START/PAUSE button.

To cancel or change options that have been selected,

simply set the appliance to PAUSE. Once you

perform the desired operation, press once again the

START/PAUSE button.

If you wish to add more laundry while the machine is

performing the countdown, simply open the door.

When you close the door, press the START/PAUSE

button again to resume the countdown.

7 DISPLAY

The display shows the following information:

• duration of selected programme

• delayed start

• end of programme

• incorrect option selection

• alarm code

•Duration of selected programme

After you have selected the programme, its

duration (in hours and minutes) appears on the

display. It is calculated automatically on the basis

of the maximum load accepted for each type of

fabric and of the required degree of drying.

When the programme starts, the remaining time is

displayed every 5 minutes.

•Delayed start

If you have selected a delay time by means of the

relevant button, the display shows it for 2 seconds;

then it shows the duration of the previously

selected programme.

The countdown is displayed every 30 minutes until it

displays “90 minutes” and then hour by hour.

•End of programme

A flashing zero indicates the end of the

programme and it is displayed after the “anti-

creasing” phase.

1.20

125992691.qxd 26/05/2004 11:12 Pagina 6

•Incorrect option selection

If you select an option that is not compatible with

the programme you have selected, the display

shows Err (error).

This code will reappear during the execution of the

programme if you press one of the option buttons or

turn the programme selector.

If you press the Start/Pause button and the door or

the small door, situated at the lower part of the

cabinet, is opened, the «Err» code will reappear

again on the display.

•Alarm code

In the case of a functional problem, the display

shows an alarm code (e.g. E21). See page 13 for

more detailed information.

E21

8 START/PAUSE button

Press this button to start the dryer after having

selected the programme and the options.

The relevant light will stop flashing. If you have

chosen a delayed start, the machine will begin the

countdown.

If the door of the appliance or the small door at

the bottom is opened while the programme is

running, this button must be pressed again after

closing the door in order to restart the

programme from the point at which it was

interrupted.

This button must also be depressed after a power

failure and after having re-inserted the water

reservoir, if it has been emptied in the middle of a

programme, after the “FULL TANK” has

illuminated.

In both cases the light of the Start/Pause button

flashes to remind you that the start button needs to be

pressed again.

9 Indicator Lights

These lights indicate the following functions:

“DRYING” light

This light indicates that the appliance is in the drying

phase.

“COOLING” light

This light indicates that the appliance is in the

cooling phase. At the end of drying, there is a 10

minute cooling phase to cool the laundry.

“END” light

This light is on at the end of the cooling phase,

during the anti-creasing phase and at the end of the

programme.

“CLOGGED FILTERS” light

This light illuminates at the end of the programme to

remind you that the filters must be cleaned.

“FULL TANK” light

This light comes on at the end of the programme to

remind you that the water reservoir must be emptied.

If this light illuminates during a programme this

means that the water reservoir is full. The buzzer

sounds, the programme stops, the light of the

Start/Pause button flashes.

“CLOGGED CONDENSER” light

It comes on every 80 cycles to remind you that the

condenser must be cleaned.

125992691.qxd 26/05/2004 17:51 Pagina 7

Programme Chart

Automatic drying (electronic programmes)

(*) According to IEC 61121 Standards.

Type of laundry Degree of drying

required Max-load (1) Programme

COTTON

Extra dry

Ready to wear

Store dry

Slightly damp

Iron dry

Wring dry

6 kg

EXTRA DRY

READY TO WEAR

STORE DRY(*)

SLIGHTLY DAMP

IRON DRY(*)

WRING DRY

Time controlled drying

(1) Never overfill the drum (do not load large quilts, for example).

Drying times vary according to:

• The type of laundry

• The size of the load

• The degree of spinning prior to drying.

• The degree of dryness required

Cooling

This position on the programme selector dial can be used to freshen the laundry (e.g. to remove a persistent

odour of moth-balls).

Load

It is often difficult to estimate the weight of items to be dried. We therefore recommend that you adopt the

following guidelines:

•cotton, linen: drum full but not too tightly packed;

•synthetics: drum no more than half full;

•delicate fabrics: drum no more than one third full.

Type of laundry Drying time Max-load (1) Programme

selector dial position

COTTON

SYNTHETICS

90’

60’

30’

6,5 kg

2.5 kg

90 min

60 min

30 min

SYNTHETICS

Extra dry

Store dry

Iron dry

2.5 kg

EXTRA DRY

STORE DRY(*)

IRON DRY

JUMPERS Baby dry 1 kg

(10 jumpers) BABY DRY

Jackets, shirts, blouses. Easy iron 1 kg EASY IRON

• Baby Dry cycle is a special programme for jumpers to be dried “READY TO WEAR”.

125992691.qxd 26/05/2004 11:12 Pagina 8

Operating Sequence

Before using your tumble dryer for the first time, we

recommend to place a few damp cloths inside the

appliance and dry for 30 minutes.

There may be dust inside a brand new tumble dryer.

Drying

1. Connect the appliance.

2. Open the door (see picture).

3. Load the items one at a time, shaking them out

loosely.

4. Close the door. Please check the laundry does not

get caught between the door and filter.

5. Select the drying programme or time. The lights

DRYING, COOLING and END come on. The

light of the START/PAUSE button flashes and the

display shows the duration of the programme.

6. If required, press the LOW TEMPERATURE

button and/or the NO BUZZER button or the

QUICK DRY button.

7. Select the DELAY START if required. The

selected delay appears on the display for 2

seconds, then the duration of the selected

programme is displayed.

8. Press the START/PAUSE button: the

corresponding light stops flashing and drying

starts. Only the DRYING light stays lit. If you

have selected the DELAY START, the machine

begins its countdown.

If the programme selector dial is turned to another

position, when the machine is running, the buzzer

will sound, the programme phase indicator lights

will flash and Err appears on the display.

The drum turns alternately in both directions

during drying.

All drying programmes end with a 10 minute

cooling phase (light COOLING is on).

You may remove the laundry after this phase.

The END, CLOGGED FILTERS and FULL

TANK lights illuminate. The display shows a

static zero and the buzzer sounds to indicate the

end of the cycle.

P1108

P1149

9. If the laundry is not removed at the end of the

cycle, the dryer performs an anti-creasing phase

(duration: 30 minutes maximum).

If you do not remove the laundry, the dryer will

stop automatically at the end of the anti-creasing

phase.

The END, CLOGGED FILTERS and FULL

TANK lights remain lit and the buzzer sounds for

2 minutes.

The START/PAUSE button goes off and a

flashing zero appears on the display.

10.Turn the programme selector dial to “RESET/

OFF”; all the lights go out. The appliance is

switched off.

Remove the laundry.

If you open and then close the door before

turning the programme selector dial to

“RESET/OFF”, all the lights corresponding to

the phases making up the performed

programme come on and the display shows the

duration of the programme.

After each use

• Clean the filters (see page 11).

• Empty the water reservoir (see page 12).

Important!

If the drying programme has to be stopped before it

reaches the end, we recommend that you turn the

programme selector dial to position “Cooling” and

wait until the end of this phase before removing the

laundry. This will avoid a build-up of heat inside the

appliance. To do this first turn the dial to “RESET/

OFF” and then to “Cooling” and depress

START/PAUSE Button.

Modifying the programme

To change a programme which is running, first cancel

it by turning the programme selector dial to “RESET/

OFF”. Select the new programme and press the

START/PAUSE Button.

125992691.qxd 26/05/2004 11:12 Pagina 9

Before placing articles of laundry in your tumble

dryer, check the care labels to ensure they are

recommended for tumble drying.

Care Labels you may find on your laundry

may be tumble dried

normal drying (high temperature)

delicate drying (low temperature)

do not tumble dry

Do not overload the appliance.

Here is a list of the approximate weight of some

common laundry items.

Sheet 700 to 1000 g

Pillowcase 100 to 200 g

Tablecloth 400 to 500 g

Table Napkin 50 to 100 g

Kitchen Towel 70 to 120 g

Linen Hand Towel 100 to 150 g

Hand Towel 150 to 250 g

Bath Towel 700 to 1000 g

Bathrobe 1000 to 1500 g

Shirt 200 to 300 g

Apron 150 to 200 g

•Always load well spun laundry. The higher the spin

speed the lower the electricity consumption and the

shorter the drying time.

•DO NOT load dripping wet laundry into the dryer.

Roll the article in a towel or spin to remove excess

water.

•Close poppers and zips and fasten any buttons.

•Sort the laundry. Separate synthetics from

cotton/linens, and dry separately.

•Remove the laundry immediately after the

programme has finished.

•Use a fabric conditioning sheet to reduce static. We

recommend the sheet is pinned to an article of

laundry (using a safety pin).

•Mix the load i.e. large and small articles.

•When drying large items such as sheets, we

recommend you periodically stop the dryer to

redistribute the load.

DO NOT use the tumble dryer to dry the following:

•Articles contaminated with inflammable substances

e.g. petrol, cleaning solvents, cooking oil, fats or

hair lacquer.

•Woollen and synthetic/wool mixtures unless the

item is labelled as suitable for tumble drying.

•Very delicate articles such as silk.

•Very large and bulky items such as duvets or

sleeping bags.

Hints & Tips on Drying

125992691.qxd 26/05/2004 11:12 Pagina 10

Table of contents

Other Zanussi Dryer manuals

Zanussi

Zanussi TC 480 User manual

Zanussi

Zanussi ZDC 67550W User manual

Zanussi

Zanussi TD163 User manual

Zanussi

Zanussi TC 485 W User manual

Zanussi

Zanussi ZDP7202PZ User manual

Zanussi

Zanussi TD 300 Assembly instructions

Zanussi

Zanussi TDE 4234 W User manual

Zanussi

Zanussi TD183 User manual

Zanussi

Zanussi ZDH87A2PW User manual

Zanussi

Zanussi TDS 473E User manual

Zanussi

Zanussi ZDC8203P User manual

Zanussi

Zanussi ZTE 273 User manual

Zanussi

Zanussi ZTH 488 User manual

Zanussi

Zanussi TD 201/A Operating and safety instructions

Zanussi

Zanussi TD260 User manual

Zanussi

Zanussi TD530 User manual

Zanussi

Zanussi TDS 362 T User manual

Zanussi

Zanussi ZDC82B4SW User manual

Zanussi

Zanussi ZI 935 Operating and safety instructions

Zanussi

Zanussi TCE7145 User manual

Zanussi

Zanussi ZDH87A2DG User manual

Zanussi

Zanussi TCS 683 W User manual

Zanussi

Zanussi ZDE67560W User manual

Zanussi

Zanussi THE7050 User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
