Zanussi TC 7124 User manual

Unpacking: see page 5

Desembalaje: ver página 17

Desembalagem: ver página 29

INSTRUCTION BOOKLET

INSTRUCCIONES PARA EL USO

INSTRUÇÕES DE UTILISAÇÃO

TUMBLE DRYER

SECADORA

SECADOR

TC 7124

kg 5

kg 2,5

800 / 900

75'- 95'

45'- 60'

1000 / 1200

65'- 90'

40'- 55'

800 / 900

90'- 110'

60'- 75'

1000 / 1200

85'-105'

55'- 70'

650

65'- 75'

30'-40'

kg 2,5

kg 1

CONDENSER DRYER

DUAL TEMPERATURE

TC 7114

AUTOREVERSE

90

60

30

125993341 P

125993341.qxd 23/01/2003 14:17 Pagina 1

Contents

Important safety information ......................3

Disposal ..............................................................3

Tips for environmental protection ............4

Technical specifications................................4

Description of the appliance ......................4

Installation ..........................................................5

• Unpacking ............................................................5

• Positioning ............................................................5

• Electrical connection ............................................5

• Stacking kit............................................................5

• Door reversal ........................................................5

• Connecting a drain hose ......................................6

Use ........................................................................7

• The control panel ..................................................7

• Programme Chart ................................................8

• Operating sequence..............................................9

• Useful hints ........................................................10

Maintenance and Cleaning ........................11

• External cleaning ................................................11

• Cleaning the door................................................11

• Cleaning the filters ..............................................11

• Cleaning the condenser unit ..............................11

• Emptying the water reservoir ..............................12

• Cleaning the air intake grille................................12

Something not working? ............................13

Dear customer,

Please read these operating instructions carefully and pay particular attention to the safety notes indicated in

the first pages.

We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

Transport damages

After unpacking the machine please check it is not damaged. If in doubt, do not start it but contact your local

Service Centre.

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle emphasize information that is particularly important for your safety or correct

functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of

the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the

environment: we use recycled paper.

125993341.qxd 23/01/2003 14:17 Pagina 2

ENGLISH

Important safety information

Installation

• Any electrical work required to install this appliance

should be carried out by a qualified electrician or

competent person.

• Care must be taken to ensure that the appliance

does not stand on the electrical supply cable.

• If the machine is situated on a carpeted floor,

please adjust the feet in order to allow air to

circulate freely.

Use

• This appliance is designed for domestic use only. If

the machine is used for any other purposes or is

not used correctly, the manufacturer accepts no

responsibility for any damage that might occur.

• Always unplug the appliance after use.

• Clothes which are dripping wet should not be

placed in the dryer.

•Danger of explosion: Never tumble dry items that

have been in contact with inflammable solvents

(petrol, methylated spirits, dry cleaning fluid and

the like). As these substances are volatile, they

could cause an explosion. Tumble dry only items

washed with water.

• Please make sure that no gas lighters have

accidentally been left in pockets of garments to be

loaded into appliance.

• Do not dry canvas shoes or sports shoes, as they

could get stuck between the door and the drum,

thus blocking this latter.

• Leave the door slightly ajar when the appliance is

not being used. This will allow the seal to be

preserved.

• Clean fluff filters after using the tumble dryer. To

prevent fire risks, do not use the appliance if the

fluff filters are damaged or without filters.

• Do not allow fluff to accumulate around the dryer.

General safety

• It is dangerous to alter the specifications or attempt

to modify this product in any way.

• Under no circumstances should you attempt to

repair the machine yourself. Repairs carried out by

inexperienced persons may cause injury or serious

malfunctioning. Contact your local Service Centre.

Always insist on genuine spare parts.

Child safety

• Children are often not aware of how dangerous

electrical appliances can be. When the machine is

working, children should be carefully supervised

and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film,

polystyrene) can be dangerous to children - danger

of suffocation! Keep them out of children’s reach.

• Make sure that children or pets do not climb into

the drum.

• When the appliance is to be scrapped, cut off the

electrical supply cable and destroy the plug with

the remaining cable. Disable the door catch in

order to prevent children from becoming trapped

inside while playing.

These warnings have been provided in the interest of safety. You MUST read them carefully before installing or

using the appliance.

• Packaging materials

The materials marked with the symbol are

recyclable.

This means that they can be recycled by disposing of

them properly in appropriate collection containers.

• Machine

Use authorised disposal sites for your old appliance.

Help to keep your country tidy!

Disposal

125993341.qxd 23/01/2003 14:17 Pagina 3

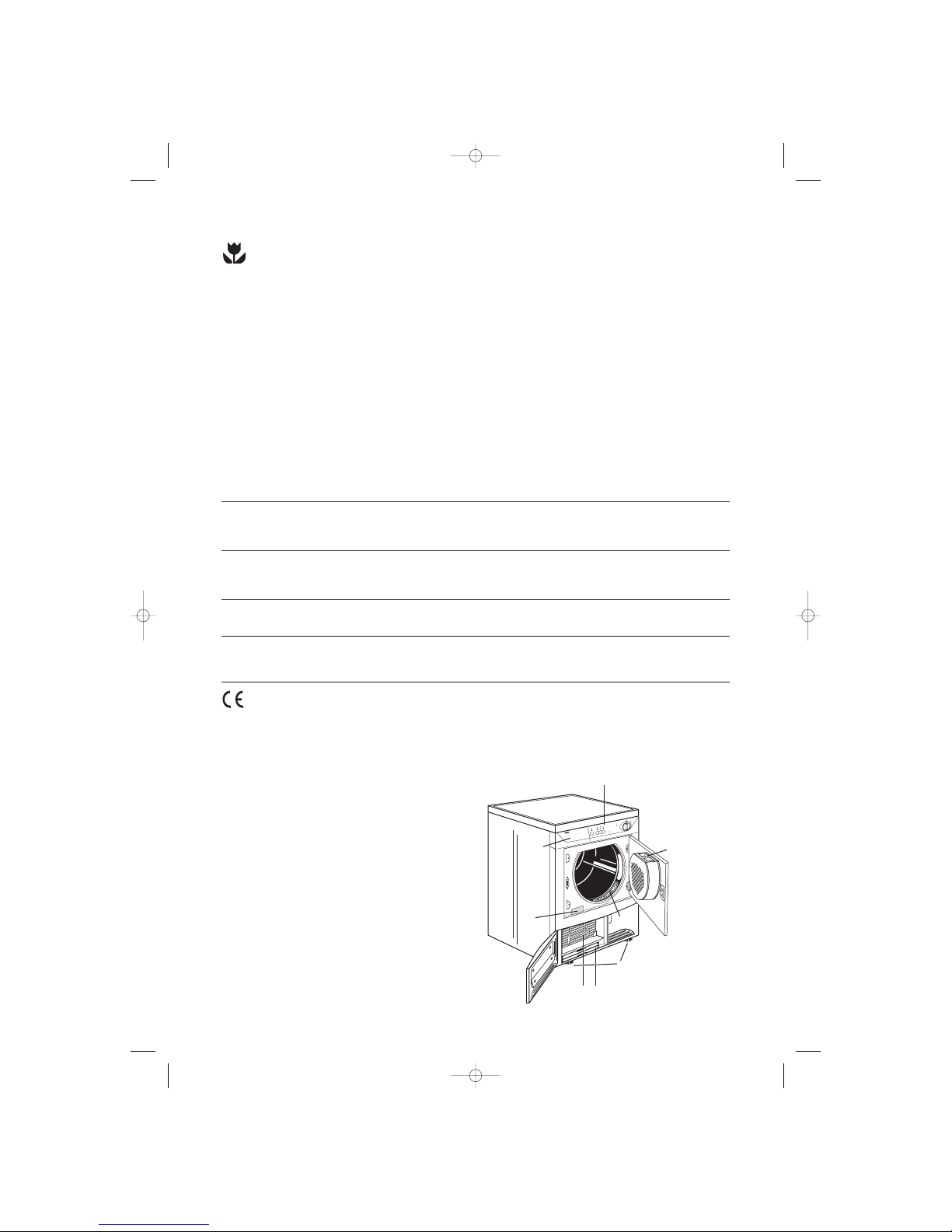

Description of the appliance

01 Control panel

02 Programme guide

03 Fluff filters

04 Rating Plate

05 Consenser Unit

06 Water reservoir

07 Adjustable feet

DRYING TIME

TC 7114 W

CONDENSER DRYER

DUAL TEMPERATURE

TRA

APACITY

AUTOREVERSE

800 / 900

95'-1

15'

45'-6

1000 / 1200

85'-105'

40'-5

800 / 900

120'-140'

60'-75'

1000 / 1200

95'-1

15'

55'-7

650

65'-7

30'-4

COTTONSYNTHETICS

STORE DRY

Spun at rpm

kg 6

kg 2.5

IRON DRY

Spun at rpm

kg 2.5

kg 1

STORE DRY

LOW

TEMP.

COOLSTART

ON/OFF

To save energy and to help protect the environment,

we recommend that you follow these hints:

• Try to load the maximum capacity of the machine

as small loads are uneconomical.

• Always load well spun laundry. The higher the spin

speed, the lower the electricity consumption and

the shorter the drying times.

• Do not over-dry laundry, this avoids creasing and

saves energy.

Select the drying time/section according to the type

of laundry and the required degree of dryness.

• To utilize the maximum load, laundry which is to be

dried ready to put away (store dry) can be dried

together with items to be ironed. To do this, select

the time for iron-dry, remove the iron-dry items at

the end of the programme and then finish-dry the

rest of the load.

• Clean the filters regularly to avoid excessive drying

times and high electricity consumption.

• Ventilate the room well. The room temperature

should not exceed +35°C during drying.

Tips for environmental protection

Technical specifications

DIMENSIONS: Height 85 cm

Width 60 cm

Depth 58 cm

ELECTRICAL CONNECTION: 220/230 V/50 Hz

MAX. POWER ABSORBED: 2200 W

MIN. FUSE RATING: 10 A

MAX. DRYING CAPACITY: Cotton, linen 6 kg

Synthetics 2.5 kg

CONSUMPTION: Cotton, linen 3.64 kWh (5.5 kg store dry)

Cotton, linen 3.64 kWh (5.5 kg iron dry)

Synthetics 1.40kWh (2.5 kg store dry)

This appliance complies with the following E.E.C. Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

125993341.qxd 23/01/2003 14:17 Pagina 4

ENGLISH

Installation

Warning!

Unpacking

Slide out the polythene bag with the

polystyrene stuffing before using the appliance.

Should the appliance be moved, it must be

transported vertically.

Positioning

It is recommended that, for your convenience, the

machine is positioned close to your washing

machine.

The tumble dryer must be installed in a clean place,

where dirt does not build up.

Air must be able to circulate freely all round the

appliance. Do not obstruct the front ventilation grille

or the air intake grilles at the back of the machine.

To keep vibration and noise to a minimum when the

dryer is in use, it should be placed on a firm, level

surface.

Once in its permanent operating position, check that

the dryer is absolutely level with the aid of a spirit

level. If it is not, raise or lower the feet until it is.

The feet must never be removed.

Do not restrict the floor clearance through deep-

pile carpets, strips of wood or similar. This might

cause heat build-up which would interfere with

the operation of the appliance.

Important

The hot air emitted by the tumble dryer can reach

temperatures of up to 60°C. The appliance must

therefore not be installed on floors which are not

resistant to high temperatures.

When operating the tumble dryer, the room

temperature must not be lower than +5°C and higher

than +35°C, as it may affect the performance of the

appliance.

P1106

Electrical connection

This machine is designed to operate on a 220-230 V,

single-phase, 50 Hz supply.

Check that your domestic electrical installation can

take the maximum load required (2.6 kW), also

taking into account any other appliances in use.

Connect the machine to an earthed socket, in

accordance with current wiring regulations.

The manufacturer declines any

responsibility for damage or injury

through failure to comply with the

above safety precaution.

Should the appliance power supply

cable need to be replaced, this must

be carried out by our Service

Centre.

Important!

The power supply cable must be accessible after

installing the machine.

Stacking kit

A special stacking kit is available through your

dealer, to enable the mounting of the dryer on top of

a front loading washing machine with cover’s depth

between 48 and 60 cm.

Read carefully the instructions supplied with the kit

before installing the dryer.

Door reversal

To make it easier to load or unload the laundry the

door can be reversed.

This operation must be carried out by qualified

personnel.

Please contact the nearest Service Centre.

P1148

125993341.qxd 23/01/2003 14:17 Pagina 5

Connecting a drain hose

If there is a sink or drain near the appliance, the

condensed water can be discharged directly through

a hose that is available on the market.

In order to connect the hose to the appliance

proceed as follows:

• Remove the clamp (A);

• Pull out the plug (B);

• Insert the drain hose (C);

• Fasten the hose (C) to the appliance using the

clamp (A).

If the appliance is stacked on the washing machine,

the condensed water can be discharged through the

hose Cas shown in figure, but take into account that

the hose must be pointed downwards.

P1161

P1160

125993341.qxd 23/01/2003 14:17 Pagina 6

ENGLISH

Use

The control panel

1 2 3 4 5 6 7 8

TC 71 4

CONDENSER DRYER

DUAL TEMPERATURE

kg 6

kg 2,5

800 / 900

105' - 125'

45' - 60'

1000 / 1200

95' - 115'

40' - 55'

800 / 900

130'- 150'

60' - 75'

650

65' - 75'

30' - 40'

kg 2,5

kg 1

1000 / 1200

110' -130'

55' - 70' 6

XTRACAPACITY

AUTOREVERSE

100

120

150

1 Programme Guide

This will help you to select the correct time for drying.

2 Mains-ON Light

Comes on when the appliance is switched on

(ON/OFF button pressed down) and goes out when

this button is released.

3 ON/OFF Button

This button is used to switch the dryer on. At the end

of the programme, release this button by pressing it

again to switch the dryer off.

4 Low Temperature Button

Press this button to reduce the temperature when

drying particularly delicate cotton or linen items.

In this case you should select a longer drying time.

5 Cool Tumble Button

By depressing this button the heat is cut off. This is

particularly useful to freshen the laundry (e.g. to

remove a persistent odour of moth balls) or to dry

extremely delicate items.

6 Start Button

Press this button to start the dryer after having

selected the programme.

If the door of the appliance is opened while the

programme is running, this button must be

pressed again after closing the door in order to

restart the programme from the point at which it

was interrupted.

7 Water Full Indicator Light

This light illuminates when the reservoir is full or

improperly fitted.

8 Time Selector Dial

The selector dial incorporates two drying cycles, one

of up to 150 minutes at a high temperature for cotton

and linen, and one of up to 100 minutes at a low

temperature for synthetic fabrics. To set the machine

to the selected time, turn the dial clockwise until the

time you want coincides exactly with the pointer.

NEVER attempt to turn the dial in an

anticlockwise direction.

When selecting the drying time you should

remember that it includes a 10 minute cooling phase

(position on the dial).

This phase should not be shortened, stopped or

avoided, as this could cause skin burns or damages

to the laundry.

125993341.qxd 23/01/2003 14:17 Pagina 7

Programme Chart

Attention! Please follow the instructions on labels when drying mixed fabrics.

Drying times are given as a guide only and vary according to the size of the load, the type of laundry, the

degree of spinning prior to drying and the degree of drying required.

Start by selecting a short drying time. If necessary, perform an additional drying cycle afterwards.

Experience will soon enable you to estimate the drying time needed for your usual laundry loads. It is advisable

to take note of them.

Size of load

It is not necessary to weigh the laundry, if these instructions are followed:

• Cottons, linen: full drum, but not overloaded.

• Synthetics: half drum.

For a mixed load (cotton and synthetics, for example) select the drying time suitable for the most delicate

fabrics and then increase it by approx 10 mins.

Cottons and linens

Selector dial up to 150 minutes (high temperature section)

Type of laundry

Cotton

Towelling

Shirts

Sheets

Hand towels

Tablecloths

Table napkins

Degree of drying

Store dry

(wardrobe dry)

6 kg 130-150 110-130

2.5 kg 60-75 55-70

6 kg 105-125 95-115

2.5 kg 45-60 40-55

Iron dry

(not completely dry;

suitable for ironing)

Amount

of laundry

Drying time in minutes for

laundry spun at

800/900 rpm 1000/1200 rpm

Synthetics

Selector dial up to 100 minutes (low temperature section)

Type of laundry

Synthetics or mixed fabrics

which do not require

ironing.

Degree of drying

Store dry

2.5 kg 65-75

30-401 kg

Amount of laundry Drying time in minutes for laundry

spun at a minimum speed of 650 rpm

125993341.qxd 23/01/2003 14:17 Pagina 8

ENGLISH

Operating sequence

Before using your tumble dryer for the first time, we

recommend to place a few damp cloths inside the

appliance and dry for 20 minutes.

There may be dust inside a brand new tumble dryer.

Drying

1. Connect the appliance.

2. Open the door.

3. Load the items one at a time, shaking them out

loosely.

4. Close the door. Please check the laundry does

not get caught between the door and filter.

5. Press the ON/OFF button : the mains-ON light

comes on.

6. Select the drying time.

7. If required, press the Low Temperature button

or the Cool Tumble button .

8. Press the Start button , the machine starts

operating.

The drum turns alternately in both directions

during drying.

All drying programmes end with a 10 minute

cooling phase (position on selector dial).

The machine stops automatically at the end of

this phase.

9. Release the ON/OFF button (the mains-ON light

goes out) and immediately remove the laundry.

P1108

P1149

After each use

• Switch the appliance off by releasing the ON/OFF

button . The mains-ON light goes out.

• Clean the filters (see page 11).

• Empty the water reservoir (see page 12).

Important!

If the drying programme has to be stopped before it

reaches the end, we recommend that you turn the

time selector dial to position (cooling) and wait

until the end of this phase

before removing the laundry. This will avoid a build-

up of heat inside the appliance.

Modifying the programme

To change a programme which is running without

opening the door, first depress the ON/OFF button

and then turn the time selector dial to the

required time. Press the ON/OFF button again.

125993341.qxd 23/01/2003 14:17 Pagina 9

Useful hints

• Try to load to the maximum capacity of the

machine as small loads are uneconomical.

For information, here is a list of the average

weights of some common laundry items.

Sheet 700 - 1000 g

Tablecloth 400 - 500 g

Kitchen towel 70 - 120 g

Table napkin 50 - 100 g

Towelling hand towel 150 - 250 g

Bathrobe 1000 - 1500 g

Man’s shirt 200 - 300 g

Pillowcase 100 - 200 g

Man’s pyjamas 400 - 500 g

Ladies’ nightdress 200 - 250 g

• Never tumble dry the following:

Particularly delicate items such as net curtains,

woollen, silk, fabrics with metal trim, nylon tights,

bulky materials such as anoraks, blankets,

eiderdowns, sleeping bags, feather quilts and any

items containing rubber foam or materials similar

to rubber foam.

• Always follow the instructions on garment labels:

may be tumble dried

normal drying (high temperature)

delicate drying (low temperature)

do not tumble dry

• Close pillowcases and covers with fasteners to

prevent small laundry items getting tangled inside

them. Close press studs, zips and hooks and tie

belts and apron strings.

• Sort laundry according to type and degree of

drying required.

• Do not over-dry laundry, this avoids creasing and

saves energy.

• Avoid drying dark clothes with light coloured fluffy

items such as towels as they could attract the fluff.

• The laundry must be thoroughly spun before

tumble drying.

•Easy-care items, too, e.g. shirts, should be briefly

pre-spun before drying (depending on crease

resistance approx. 30 seconds or using the special

brief spin programme of your washing machine).

• Knitted textiles (knitted underwear) may shrink a

little during drying. Please do not overdry items of

this type. It is advisable to allow for shrinkage

when choosing the size of new purchases.

• You can also put starched items into your dryer.

However, to achieve the desired starched effect,

choose the programme “iron dry”. To remove any

starch residues, wipe out the internal drum after

drying with a moist cloth and then rub it dry.

• To avoid a static charge when drying is completed,

use either a fabric softener when you are washing

the laundry or a fabric conditioner specifically for

tumble dryers.

• Remove the laundry when the dryer has finished

drying.

• If individual items are still damp after drying, set a

brief post-drying time, but at least 20 minutes.

This will be necessary particularly for multilayered

items (e.g. collars, pockets, etc.).

125993341.qxd 23/01/2003 14:17 Pagina 10

Table of contents

Other Zanussi Dryer manuals

Zanussi

Zanussi ZTK123 User manual

Zanussi

Zanussi ZTE 171 User manual

Zanussi

Zanussi ZTK 120 User manual

Zanussi

Zanussi ZDC37100W User manual

Zanussi

Zanussi TC 491 D User manual

Zanussi

Zanussi TD 510 User manual

Zanussi

Zanussi ZTE7102PZ User manual

Zanussi

Zanussi ZTE 273 User manual

Zanussi

Zanussi ZTE170 User manual

Zanussi

Zanussi TCS 673 T User manual

Zanussi

Zanussi TC 7114 S User manual

Zanussi

Zanussi TD 523 User manual

Zanussi

Zanussi TDE 4224 W User manual

Zanussi

Zanussi TDS370T User manual

Zanussi

Zanussi 864512 Instruction manual

Zanussi

Zanussi TC 7122 User manual

Zanussi

Zanussi ZTH485 User manual

Zanussi

Zanussi TE350 User manual

Zanussi

Zanussi TCE 7227 W User manual

Zanussi

Zanussi Z930 Operating and safety instructions

Zanussi

Zanussi TC 450 User manual

Zanussi

Zanussi TCS 65W User manual

Zanussi

Zanussi ZDC8202P User manual

Zanussi

Zanussi ZTA 110 User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
