YESOUL M1 User manual
M1
YESOUL BIKE
Product model: YS-002
Before using this product,
carefully read and
properly keep this manual.
YESOUL BIKE
M1 Product Manual
YESOUL BIKE M1
Product Parameters
Tablet (mobile phone) holder size
Supporting software version
Resistance system
Drive mode
Power supply
Sensing system connection
Height limit
Rated maximum load
Net weight
Gross weight
Overall dimensions
Maximum tablet width: 260mm
iOS 10.0 or higher, Android 5.0 or higher
Magnetron resistance system
Belt drive
Button battery (model: CR2477)
Bluetooth
150-195cm
120kg
33kg
36kg
(length) 1000mm × (width) 510mm× height 1250 mm
Important Safety Instructions
Please read them carefully. Improper use may result in
personal injury or death!
1. Make sure that the saddle height adjustment knob is secured correctly, and will not affect motion
during exercise.
2. Keep children and pets away from this product. This product is for those over 16 years old only.
3. Never stretch any object or body part into the openings of the bike.
4. The weight of the user must not exceed the maximum load.
5. Get off the bike until flywheel and pedals stop rotating. Otherwise, severe injuries may be caused
due to control failure.
6. If you feel any discomfort, such as dizziness or breathing difficulty, stop riding the bike and
carefully get off.
7. Never turn pedals by hand or touch any rotating mechanical part; otherwise, personal injury may
be caused.
8. Keep the body hydrated as needed during riding.
9. Use this product according to the instructions in this manual. Warm up fully before exercise.
10. Without the preliminary determination of baseline fitness level and medical certificate signed by
a doctor, never be engaged in high-speed or high-intensity sports. Before attempting any high-in-
tensity short sprints, pay attention to the body state and posture, and apply a controllable speed.
11. Wear professional cycling clothes or tight-fitting sportswear and sports shoes, and tighten foot
straps to avoid injury caused by pulling or entanglement by this product.
12. Never use this product with inappropriate shoes or barefoot.
13. Incorrect or excessive training may cause injury.
14. Check whether the bike for loosening or damage before each use.
15. Never refit this bike or use non-original accessories without permission. The casing must be
opened by professionals, in order to avoid damage.
16. Those pregnant or with high blood pressure, heart disease, lumbar spondylosis or reduced
mobility must not use this product without the permission of doctors.
17. In case of any discomfort such as dizziness or chest pain during exercise, stop exercising
immediately and go to a hospital for examination.
18. If the product fails, immediately stop using it.
19. This product must not be used for medical rehabilitation.
20. Use this product on a flat and clean ground.
21. Carry out preventive maintenance regularly.
22. Never expose this product in a humid place. This product must not be used outdoor or in any
humid place.
L-type cross head hex wrench
4×hexagon socket cap
screw M6×12
4×hexagon socket button head
screw M8×45
4× flat gasket
2×hexagon socket cap screw
M6×12
2 × Spring washer
2× hexagon socket cap screw
M6×12
Hexagon socket cap screw M6×35
Hex wrench
Open-ended wrench
NameNO. NO. Name
Frame Mobile phone (tablet) holder
Front tube Bottle holder
Handlebar cover
Ziplock bag (manual, tools)
Rear tube
Pedal (left: L; right: R)
Handlebar
Dual-purpose bracket
List of Parts
Installation Guide --------- List of Parts
Manual
STEP1: Check of parts
Installation Guide - List of Parts
Accessories List (Tools List)
L-type cross head
hex wrench
Hex wrench
Hexagon socket
cap screw M6X35
Open-ended
wrench
NO. Name Quantity Picture
A
B
C
D
1
1
35
1
STEP 2: Installation of bottom tube
3. Align the hole of the front and rear tubes with the bottom holes of the frame①, manually screw the
front and rear tubes into frame, and tighten it via the L-type cross head hex wrench (A)
Installation Guide
Washer
1. Take L-type cross head hex wrench (A) out of the ziplock bag.
2. Remove four screws (M8×45) and washers of the front tube ② and rear tube ③ via the wrench.
3. Insert the bottle holder ⑧ along the slot into the dual-purpose bracket. Align the hole of the
bottle holder with that of the bracket ⑥, manually install two screws (M6×12) into holes, and
tighten them via the hex wrench (B).
Installation Guide
STEP 3: Installation of bottle holder
1. Take the hex wrench (B) out of the ziplock bag.
2. Remove two screws (M6×12) of the dual-purpose bracket ⑥ via the wrench.
2. Align the holes of the handlebar ⑤ with those of the riser, manually install screws into two rear
holes (without tightening), and insert the dual-purpose bracket ⑥ into the round hole of the
handlebar ⑤ as indicated by the arrow. Then manually install the other two screws and one long
hexagon socket cap screw (C, in the ziplock bag) into three corresponding holes (without tighten-
ing). Finally, vertically tighten five screws down via the hex wrench (B), and press down the
decorative cover ⑨ of the handlebar. Thus, the handlebar installation is completed.
First install two screws here
Hexagon socket cap screw
(C, in the ziplock bag)
Installation Guide
STEP 4: Installation of handlebar and dual-purpose bracket
1. Remove four screws (M6×12) of the riser via the hex wrench (B).

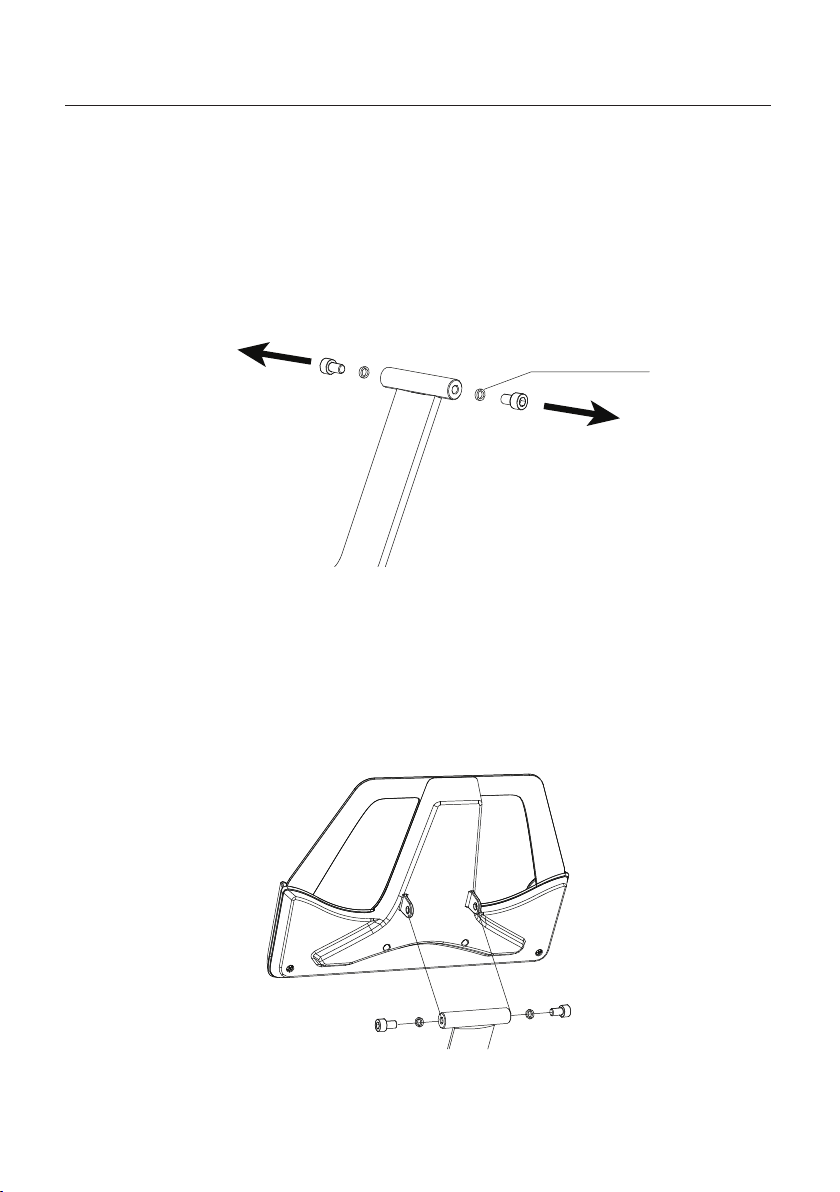

2. Align the holes of the tablet holder ⑦ with those of the dual-purpose bracket ⑥, manually install
screws (M6×12) and tighten them via the hex wrench (B).
Spring washer
Installation Guide
STEP 5: Installation of tablet (mobile phone) holder
1. Remove two screws (M6×12) and elastic washers of the dual-purpose bracket ⑥ via the hex
wrench (B).
STEP 6: Pedal installation
1. Take out the pedal assemblies L and R④.
2. Separate the pedal assemblies L and R④.
3. Lock the pedal assembly L④ into the left crank, and tighten with the box-ended
wrench (D) along the direction indicated by the arrow.
4. Lock the pedal assembly R④ into the right crank, and tighten with the
box-ended wrench (D) along the direction indicated by the arrow.
Open-ended wrench(D)
Safety tips:
Reverse riding is not recommended, as it is likely to loosen pedals. After
reverse riding, check whether the pedals are locked, in order to avoid
safety issues arising from loose pedals.。
Installation Guide
Pedal
assembly R④
Pedal
assembly L④
Screw the pedal into the crank manually
first, and then tighten the pedal assemblies
L and R ④with the box-ended wrench (D).
(Note: The tightening directions for both
the left pedal and the right pedal are
towards the head direction.)
This manual suits for next models
1
