Whispbar K753W Fitting Kit User manual

K753W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema

de transporte

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de

transporte.

RU Установочные Инструкции для

Поперечных Балок

x 1 x 1 x 1 x 1

x 4

Revision No: 1A 1

Fitting Kit K753W

MAX kgs (lbs)

W/P WHD

Ford

B-Max, 5dr MPV 12-+ EU 60 kgs (132 lbs) 60 kgs (132 lbs)

B-Max, 5dr MPV 12-+ CN 60 kgs (132 lbs) 60 kgs (132 lbs)

Fitting Kit K753W

A B C 1 2 3

B-Max, 5dr MPV 12-+ (EU) -63mm 632mm - 895mm 855mm -

-2 -1/2ths" 24 7/8ths" - 35 1/4ths" 33 11/16ths" -

B-Max, 5dr MPV 12-+ (CN) -63mm 632mm - 895mm 855mm -

-2 -1/2ths" 24 7/8ths" - 35 1/4ths" 33 11/16ths" -

Fitting Kit EN

K753W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K753W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K753W

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●A = Clear

B = Grey

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 159A

B = 160A

C = 161A

D = 162A

Fitting Kit EN

K753W

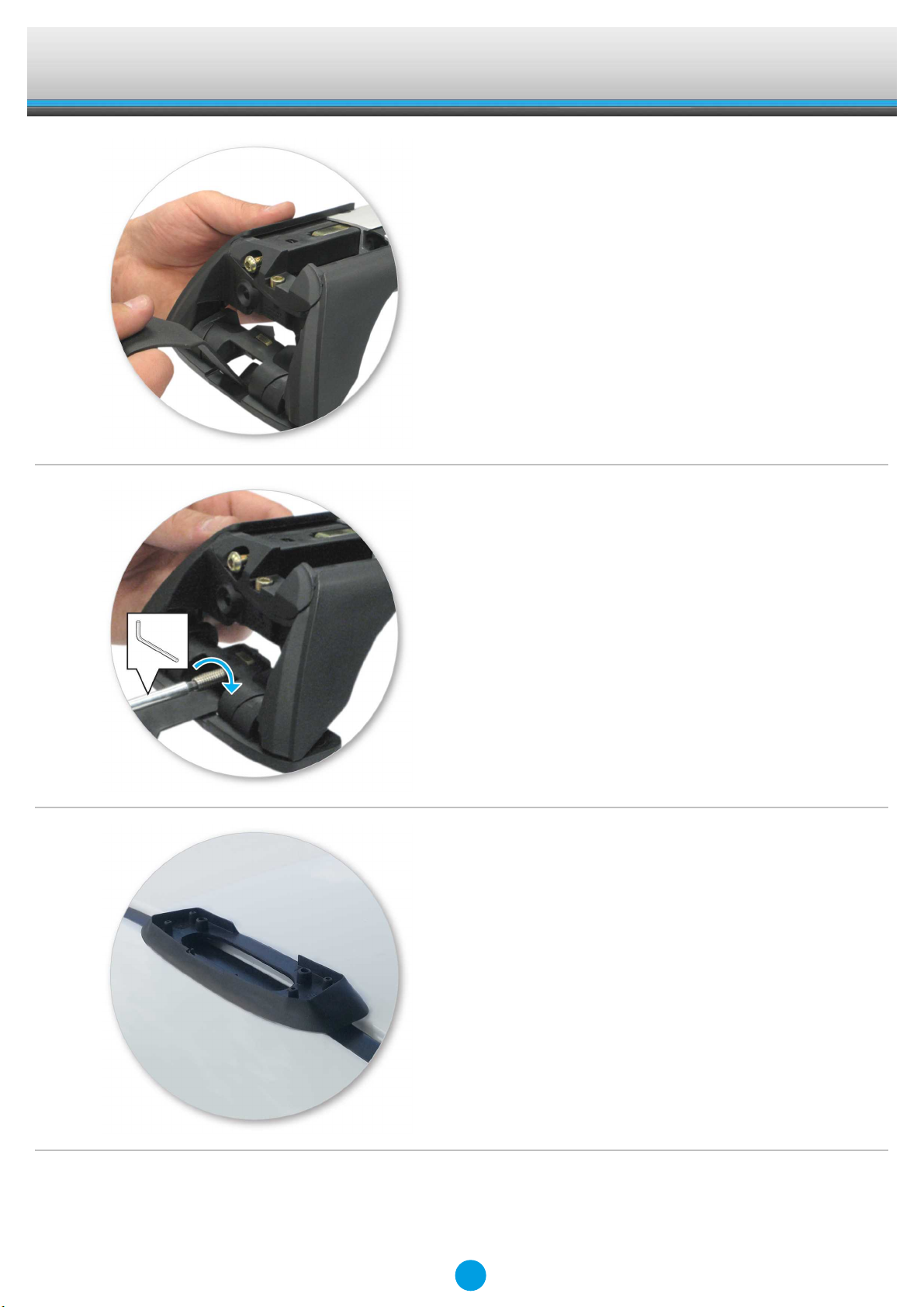

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Put rubber pads (supplied with crossbar)

on the vehicle.

Fitting Kit EN

K753W

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Peel rubber strip open a little bit to insert

clamp, see photo for reference. Do this for

2 rear clamps.

Fitting Kit EN

K753W

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Tighten locking screw on both legs evenly.

Fitting Kit EN

K753W

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
