Whispbar K649W User manual
K649W
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 1 x 1 x 1 x 1
x 1 x 1 x 1 x 1
Revision No: 6F 1

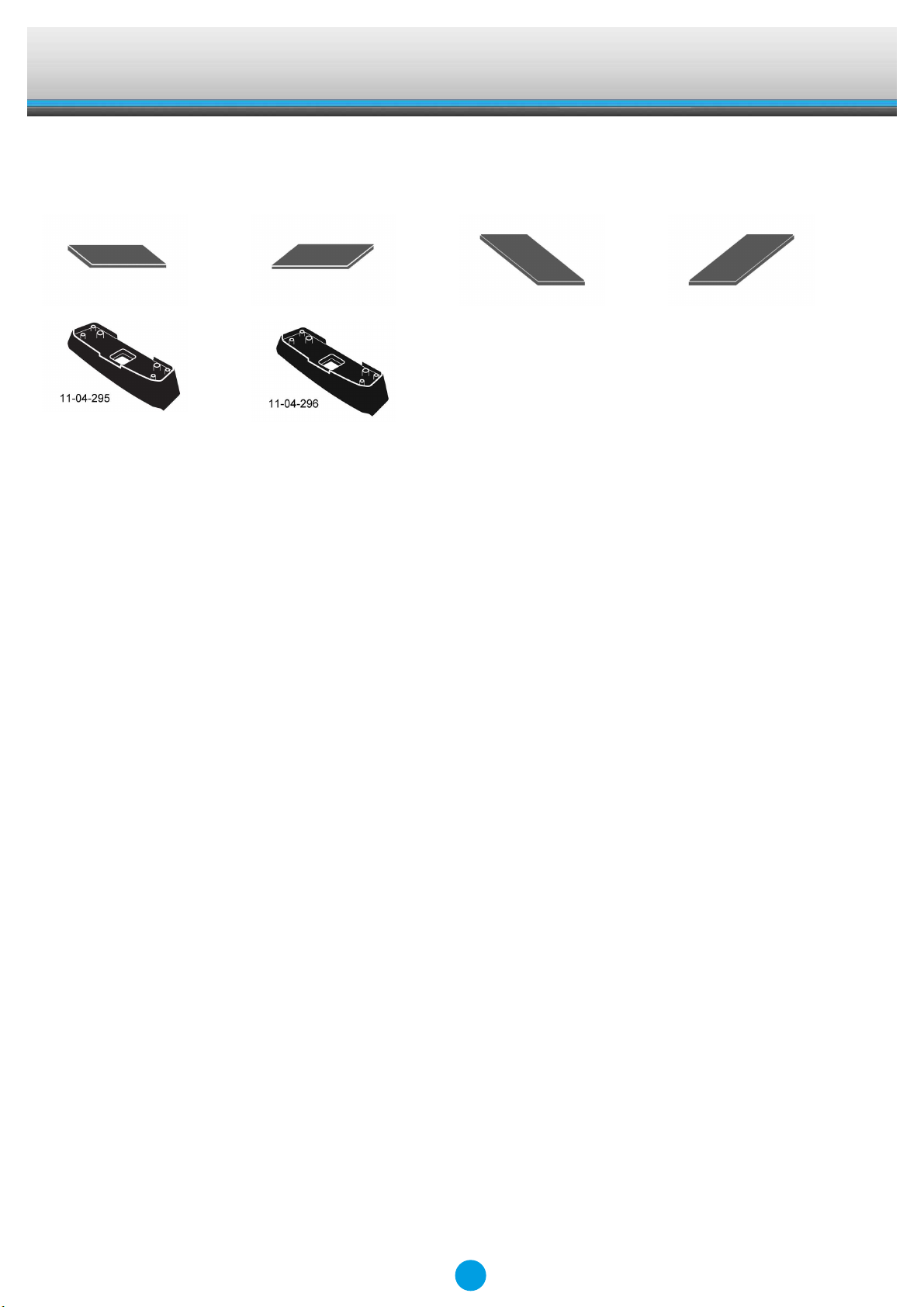

Fitting Kit K649W
x 1 x 1 x 1 x 1
x 2 x 2
2
Fitting Kit K649W
MAX kgs (lbs)
W/P WHD
Hyundai
Elantra, 4dr Sedan 11-15 ZA 65 kgs (143 lbs) 65 kgs (143 lbs)
Elantra, 4dr Sedan 11-15 EU 65 kgs (143 lbs) 65 kgs (143 lbs)
Elantra, 4dr Sedan 11-15 US 65 kgs (143 lbs) 65 kgs (143 lbs)
Elantra, 4dr Sedan 12-+ CN 65 kgs (143 lbs) 65 kgs (143 lbs)
Elantra, 4dr Sedan 15-16 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Elantra, 4dr Sedan 15-16 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
Elantra, 4dr Sedan 15-16 US 75 kgs (165 lbs) 75 kgs (165 lbs)
Elantra, 4dr Sedan Jan 14-Jan 16 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Elantra, 4dr Sedan Jan 14-Jan 16 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Elantra, 4dr Sedan Jul 11-Dec 13 AU 65 kgs (143 lbs) 65 kgs (143 lbs)
Elantra, 4dr Sedan Jul 11-Dec 13 NZ 65 kgs (143 lbs) 65 kgs (143 lbs)
3
Fitting Kit K649W

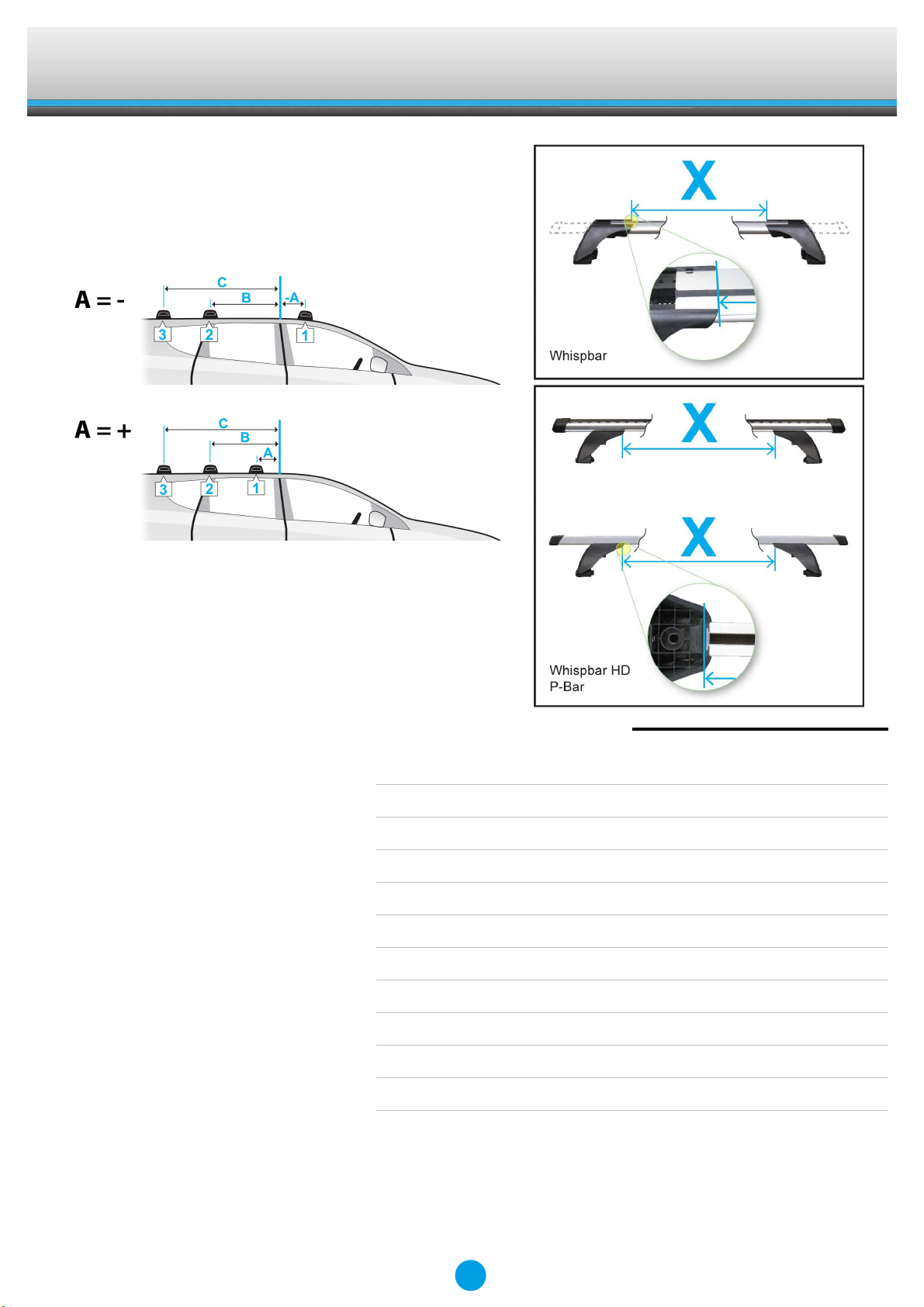

X
A B C 1 2 3
Elantra, 4dr Sedan 11-15 (ZA) -310mm 340mm - 930mm 905mm -
-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -
Elantra, 4dr Sedan 11-15 (EU) -310mm 340mm - 930mm 905mm -
-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -
Elantra, 4dr Sedan 11-15 (US) -310mm 340mm - 930mm 905mm -
-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -
Elantra, 4dr Sedan 12-+ (CN) -310mm 340mm - 930mm 905mm -
-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -
Elantra, 4dr Sedan 15-16 (EU) -310mm 340mm - 930mm 905mm -
-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -
Elantra, 4dr Sedan 15-16 (ZA) -310mm 340mm - 930mm 905mm -
-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -
Elantra, 4dr Sedan 15-16 (US) -310mm 340mm - 930mm 905mm -
-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -
Elantra, 4dr Sedan Jan 14-Jan 16 (AU) -310mm 340mm - 930mm 905mm -
-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -
Elantra, 4dr Sedan Jan 14-Jan 16 (NZ) -310mm 340mm - 930mm 905mm -
-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -
Elantra, 4dr Sedan Jul 11-Dec 13 (AU) -310mm 340mm - 930mm 905mm -
-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -
Elantra, 4dr Sedan Jul 11-Dec 13 (NZ) -310mm 340mm - 930mm 905mm -
-12 -3/16ths" 13 3/8ths" - 36 5/8ths" 35 5/8ths" -
4
Fitting Kit EN
K649W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
5
Fitting Kit EN
K649W
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
6
Fitting Kit EN
K649W

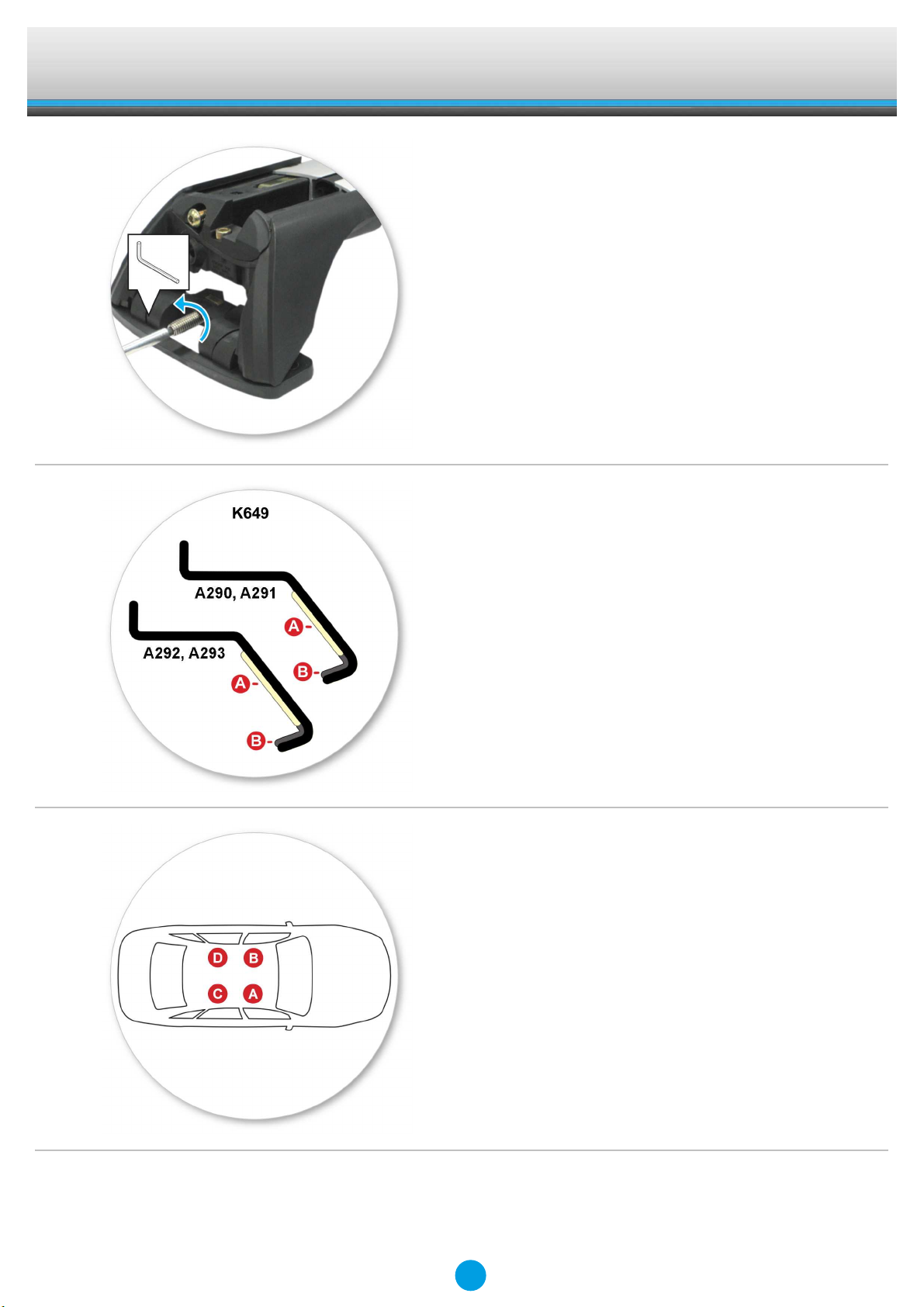

●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●A = Clear
B = Grey
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = A290
B = A291
C = A292
D = A293
7
Fitting Kit EN
K649W

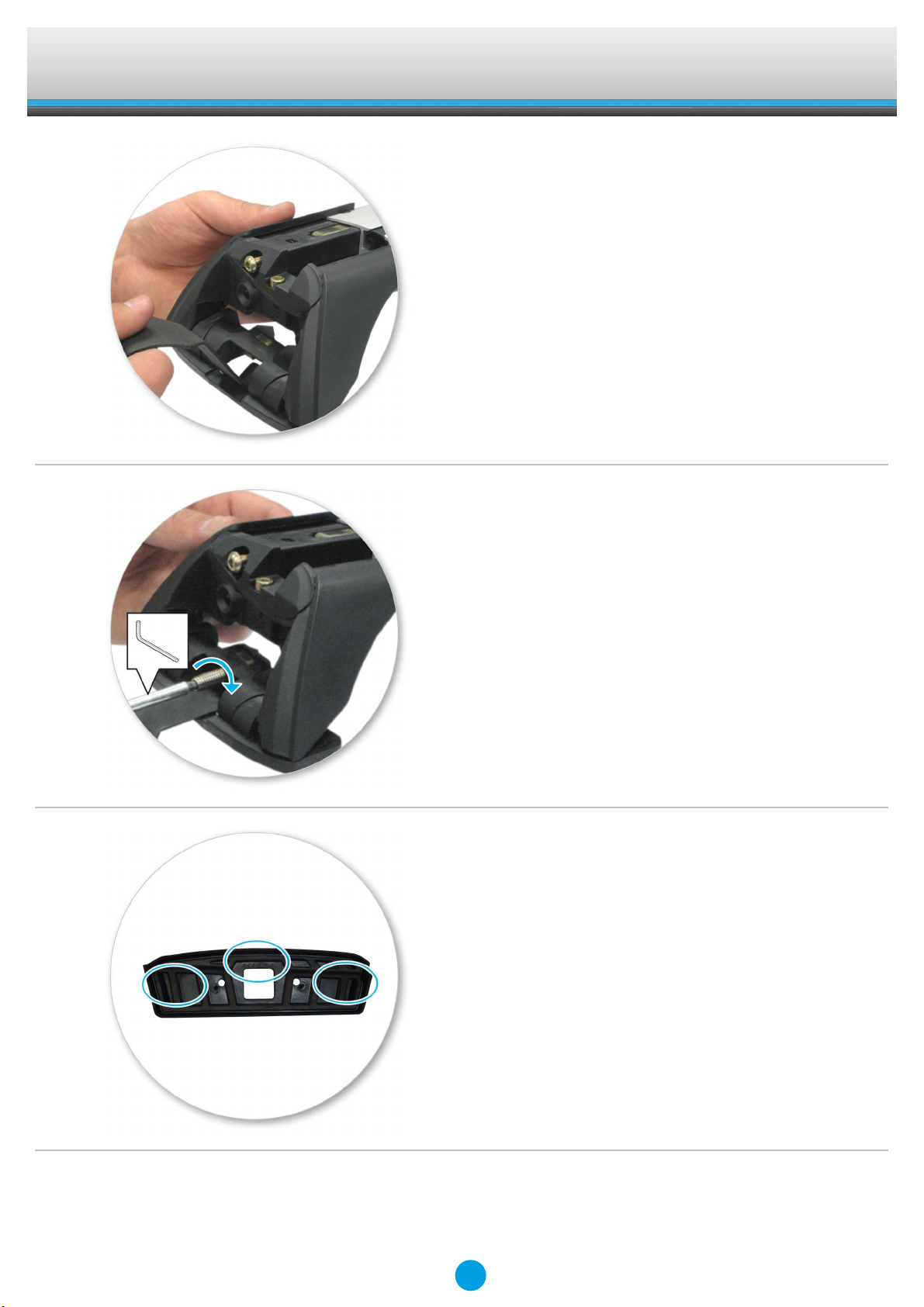

●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Refer to the underside of the pad for the
part number.
8
Fitting Kit EN
K649W

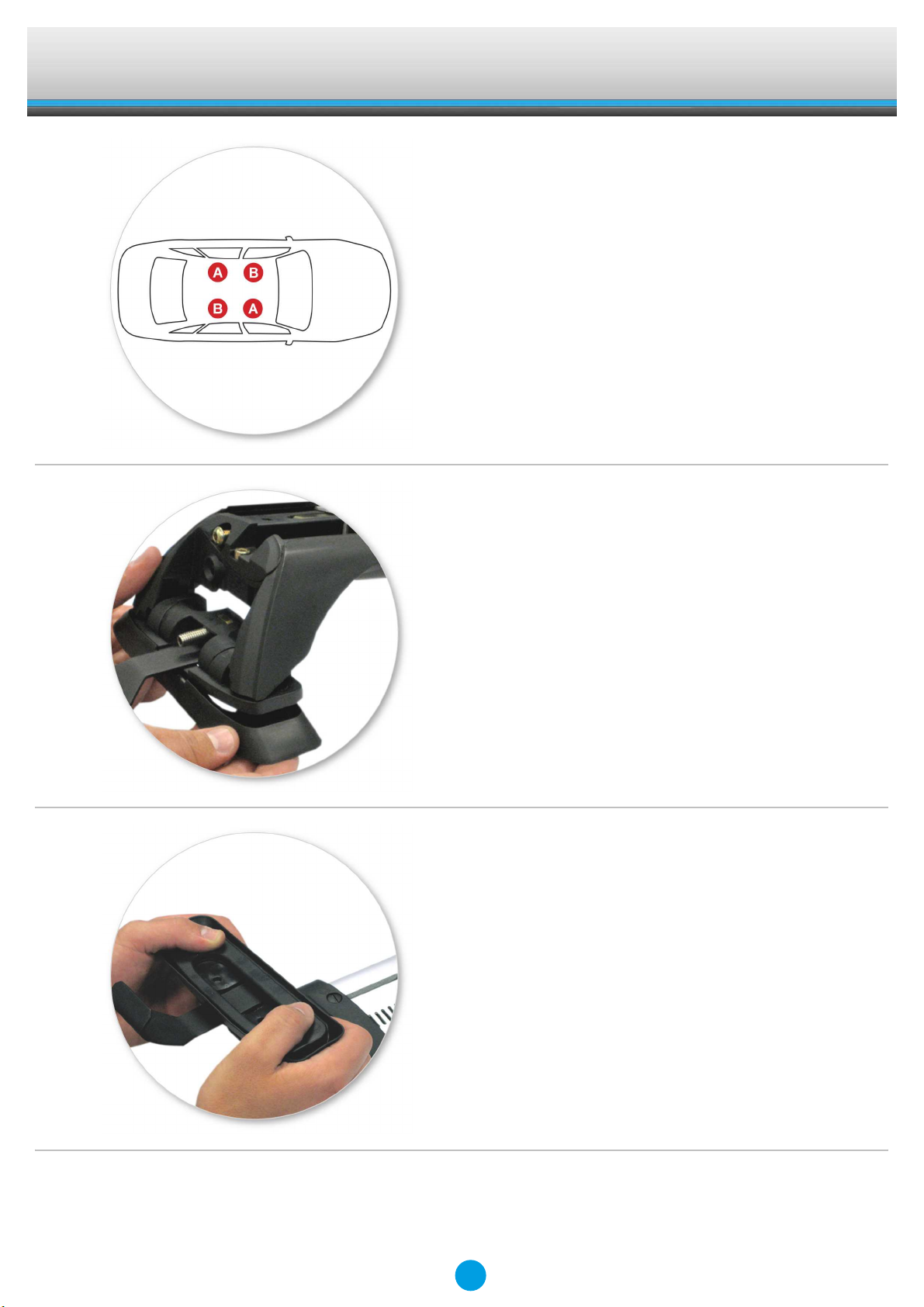

●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 295A
B = 296A
●Fit rubber pads (supplied with fitting kit) to
foot. Pad may vary in shape to that shown.
●Make sure the pad fits into the holes
underneath the foot.
9
Fitting Kit EN
K649W
Fitment
●Clamps directly to edge of roof under the
doors
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Tighten adjusting screw to 2 Nm (1.5 ft lb)
hand tight.
