K676W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 2 x 2

x 4 x 4 x 8 x 4

x 4 x 4 x 4 x 1

Revision No: 3C 1

Fitting Kit K676W

MAX kgs (lbs)

W/P WHD

Honda

CR-V N/Sport N, 5dr SUV 12-15 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

CR-V SR/EX, 5dr SUV 12-15 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

CR-V SR/EX, 5dr SUV 12-15 CN 75 kgs (165 lbs) 75 kgs (165 lbs)

CR-V, 5dr SUV 12-15 US 75 kgs (165 lbs) 75 kgs (165 lbs)

CR-V, 5dr SUV 12-15 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

CR-V, 5dr SUV 12-15 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

CR-V, 5dr SUV 15-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

CR-V, 5dr SUV 15-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)

CR-V, 5dr SUV 15-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

CR-V, 5dr SUV 15-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

CR-V, 5dr SUV 15-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

CR-V, 5dr SUV 15-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

2

Fitting Kit K676W

X

A B C 1 2 3

CR-V N/Sport N, 5dr SUV 12-15 (NZ) 80mm 885mm - 885mm 825mm -

3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -

CR-V SR/EX, 5dr SUV 12-15 (EU) 80mm 885mm - 885mm 825mm -

3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -

CR-V SR/EX, 5dr SUV 12-15 (CN) 80mm 885mm - 885mm 825mm -

3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -

CR-V, 5dr SUV 12-15 (US) 80mm 885mm - 885mm 825mm -

3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -

CR-V, 5dr SUV 12-15 (AU) 80mm 885mm - 885mm 825mm -

3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -

CR-V, 5dr SUV 12-15 (ZA) 80mm 885mm - 885mm 825mm -

3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -

CR-V, 5dr SUV 15-+ (AU) 80mm 885mm - 885mm 825mm -

3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -

CR-V, 5dr SUV 15-+ (CN) 80mm 885mm - 885mm 825mm -

3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -

CR-V, 5dr SUV 15-+ (EU) 80mm 885mm - 885mm 825mm -

3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -

CR-V, 5dr SUV 15-+ (NZ) 80mm 885mm - 885mm 825mm -

3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -

CR-V, 5dr SUV 15-+ (ZA) 80mm 885mm - 885mm 825mm -

3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -

CR-V, 5dr SUV 15-+ (US) 80mm 885mm - 885mm 825mm -

3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -

3

Fitting Kit EN

K676W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

4

Fitting Kit EN

K676W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Clamps onto flush roof rail.

5

Fitting Kit EN

K676W

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Remove both pins from each leg. Use

tapered end of spanner located inside left

hand cover to assist.

6

Fitting Kit EN

K676W

●Detach foot from leg. Store loose parts in a

safe place.

●Repeat for all legs.

●Select four feet assemblies and match the

left and right assemblies to the left and

right roof rack legs.

●Assemble foot from kit into leg by pressing

it down.

●Ensure foot interlocks with leg.

●Using short capscrew and washer, secure

assembly onto leg (use Hex Screwdriver

supplied with crossbar to assist)

●Do not over tighten.

●Repeat for all legs.

7

Fitting Kit EN

K676W

●Use two M5 x 12 mm self tapping screws to

secure the assembly onto the leg.

●Do not over tighten.

Fitment

●Apply protective strip as shown.

Trim if required.

●Open or remove fixed-point covers.

●Place crossbar foot over fixed-point mount.

●Ensure back edge of foot sits flush with the

back edge of vehicle roof rail.

8

Fitting Kit EN

K676W

●Slide clamp through opening in leg.

●Using the Hex Key and the capscrews,

secure the clamps to the vehicle.

●Ensure spring washer is between clamp

and the head of the screw.

●Thread the coach bolt through the clamp

and the leg.

9

Fitting Kit EN

K676W

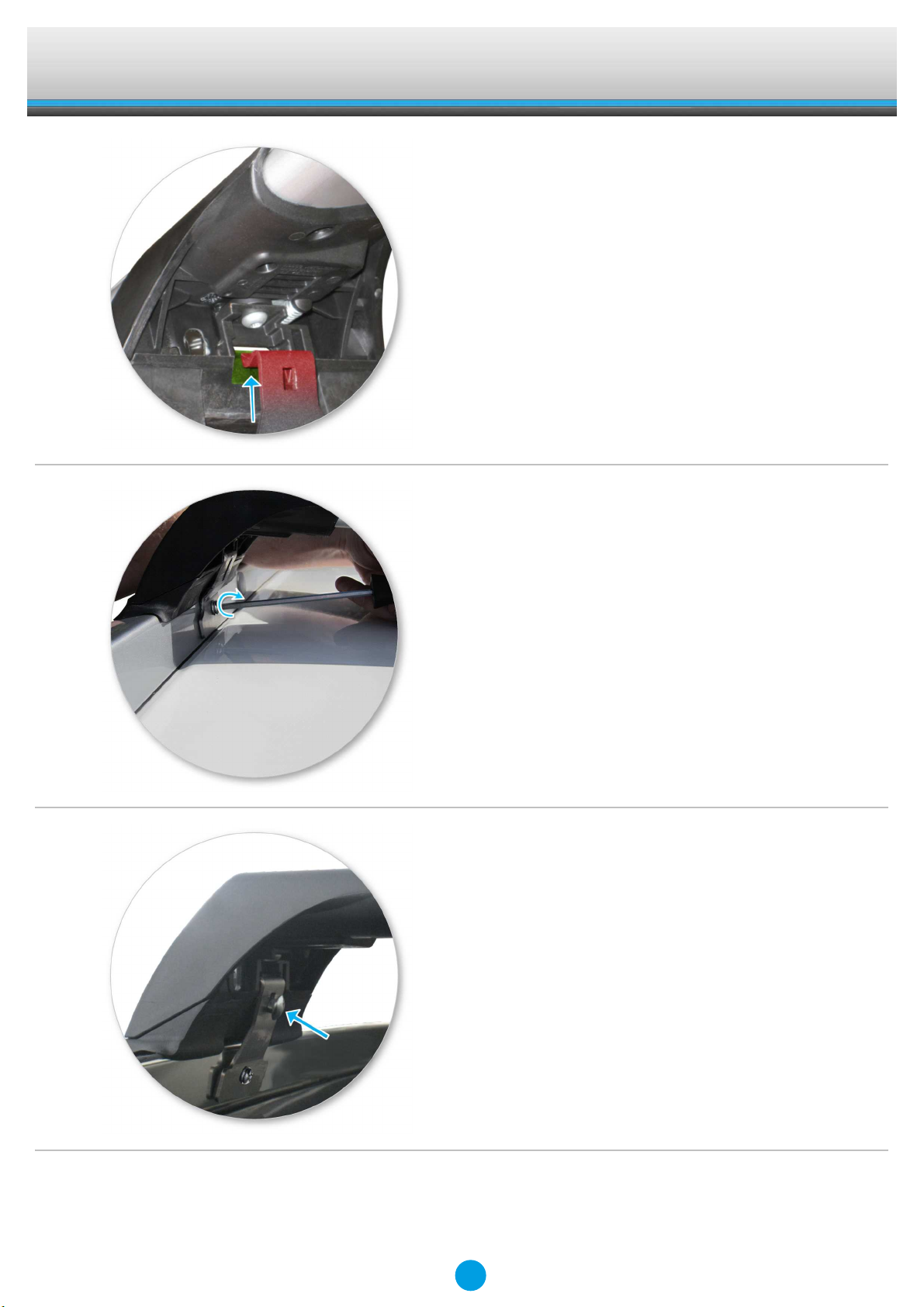

●Tighten the plastic knob.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Do not over tighten.

●Repeat for all four positions.

●Use keys to fit and lock covers

●Check crossbar is securely attached to the

vehicle.

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.

10
