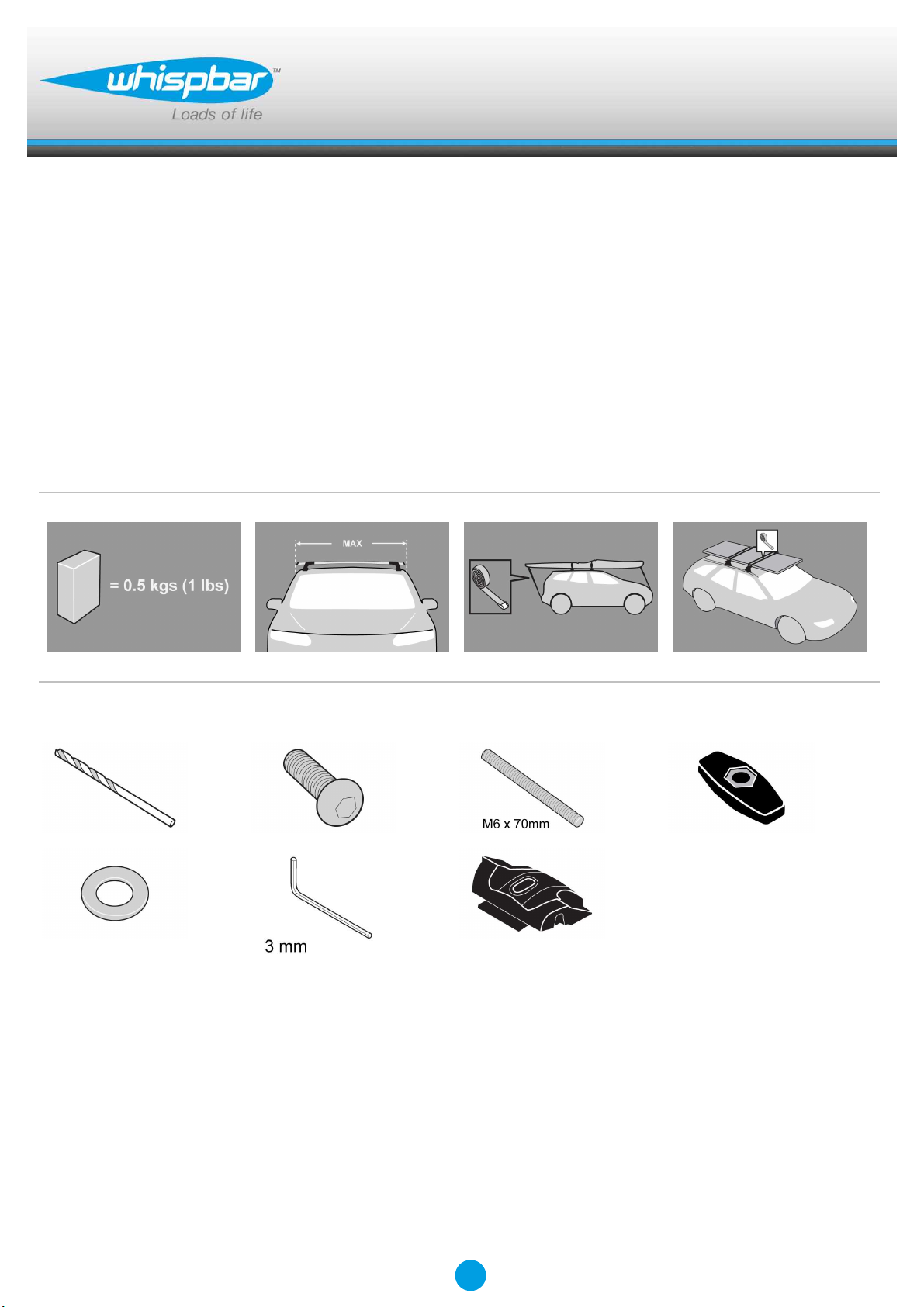

Whispbar K631W User manual

K631W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema

de transporte

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de

transporte.

RU Установочные Инструкции для

Поперечных Балок

x 1 x 4 x 4 x 4

x 4 x 1 x 4

Revision No: 2A 1

Fitting Kit K631W

MAX kgs (lbs)

W/P WHD

Land Rover

Freelander 2 , 5dr SUV 07-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Freelander 2 , 5dr SUV 07-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Freelander 2 , 5dr SUV 07-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Freelander 2 , 5dr SUV 07-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

LR2 , 5dr SUV 07-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K631W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●This kit fits type A, B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K631W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Attaches to factory-fitted mounting points

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

Fitting Kit EN

K631W

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

Fitment

●Locate ditch mouldings on roof.

●Carefully remove centre section of ditch

mould with flat-head screwdriver.

Fitting Kit EN

K631W

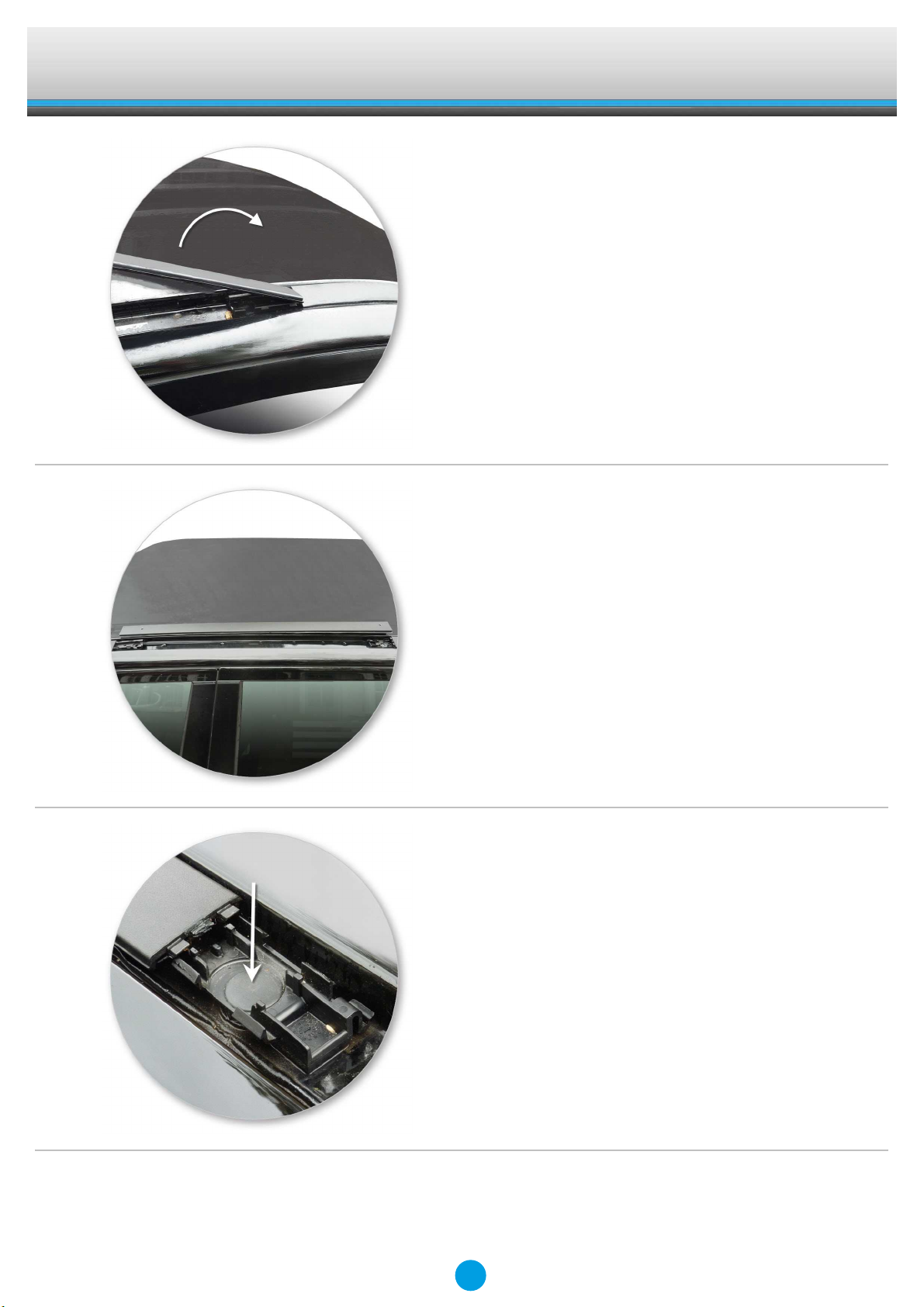

●Pull ditch moulding back towards you.

●Remove centre section.

●Remove as shown.

●Locate vehicle's fixed points.

Fitting Kit EN

K631W

●Remove plastic bungs as shown.

●Rotate as shown.

●Mark reference point with a pen onto

removed section of ditch mould.

●Mark reference point with a pen onto

removed section of ditch mould.

Fitting Kit EN

K631W

●Mark as shown.

●Use drill bit supplied, to drill holes in

marked positions.

●Re-install ditch mould in roof channel.

●Align holes.

Fitting Kit EN

K631W

●Select grubscrews and screw into the

vehicle's fixed points.

●Do not over tighten.

●Repeat for all four positions.

●Place crossbars on pads ensuring the pads

fit into the holes underneath the foot and

the grubscrew pass through the hole in the

foot.

●Repeat for all four positions.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

Fitting Kit EN

K631W

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all legs.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers
