1

SERVICE MANUAL Automatic Washer

WVIID1058BKG

WVWD1050BKG

WVWD950BKG

WVWD850BKG

SPECIFICATION

Power source

Overall dimension(Net dimension)

Net weight

Power consumption

Motor output

Marked capacity of washing/spinning

Washing method

Water capacity

Pulsator speed

Spinner tub speed

AC 230V, 60Hz

540mmX568mmX955mm

34kg

400W/1500W

140W

10.5kg/9.5kg/8.5kg

Automatic reverse turn

65 Liters

60-190 rpm

700 rpm

Specification: Subject to change without notice.

2

ABNORMALCONDITION

When the washer is abnormal, the washer stops as the every actions turns off, beep tone

sounds ON-0.1 second and OFF-0.1 second for 6 seconds and number window LED display

abnormal code. The washer judges the following six conditions as abnormal condition.

1) Abnormal condition of water supply

In supplying with water, the water level does not reach extra low level within 10 minutes or

does not reach your chosen water level within 20 minutes.

The number window LED display abnormal code: and the electric buzzer sounds to

indicate a problem at the same time.

2) Abnormal condition of drain

In draining, the water level does not go down below the reset level of the water level sensor

within 8 minutes.

The number window LED display abnormal code: and the electric buzzer sounds to

indicate a problem at the same time.

3) Abnormal condition of spin-dry

•The safety switch works 3 times continuously during the program of rinse-spin or works 1

time in the single program of spin-dry.

The number window LED display abnormal code: and the electric buzzer sounds to

indicate a problem at the same time.

•The washer lid is opened.

The number window LED display abnormal code: and the electric buzzer sounds to

indicate a problem at the same time.

4) Abnormal condition of child lock.

Running in setting child lock, the washer lid is opened beyond 4 seconds.

The number window LED display abnormal code: and the electric buzzer sounds to

indicate a problem at the same time.

5) Abnormal condition of water level sensor.

The water level sensor malfunctions or the water level is overrunning the alert level when the

water does not stop.

The number window LED display abnormal code: and the electric buzzer sounds to

indicate a problem at the same time.

6) Computer board failure

The digital tube displays the fault code " ", accompanied by a whistle sound.

•Chip data abnormal

7) Abnormal failure of main control and frequency conversion communication

3

The digital tube displays the fault code "Ed2", accompanied by a whistle sound.

•First check whether the reactor is in good contact

•Replace the computer main control board

8) The display board cannot receive the main control signal.

The digital tube displays the fault code " " or "Ed1"。

•First check whether the connection between the main control board and the display board is

good。

•Replace the display board to test whether the function is normal。

9) High current fault

The digital tube displays the fault code " ", accompanied by a whistle sound

• First determine if there is too much foam

• Then check whether the inner barrel is operating normally

• Check whether the computer board functions normally.

10)Over-voltage fault

The digital tube displays the fault code " ", accompanied by a whistle sound

• First detect whether the user's home voltage is too high

• Check whether the computer board function is normal

11)Low voltage fault

The digital tube displays the fault code " ", accompanied by a whistle sound

• First check whether the user's home voltage is too low

• Check whether the computer board function is normal

12) Abnormal motor operation failure

The digital tube displays the fault code " ", accompanied by a whistle sound

• Check whether the motor wiring harness is good

• Check whether the computer main control board function is normal

13)Excessive leakage current detection fault

The digital tube displays the fault code " ", accompanied by a whistle sound。

• Replace the computer main control board

14)IPM hardware abnormal failure

The digital tube displays the fault code " ", accompanied by a whistle sound

• Replace the computer main control board

15) Water temperature sensor failure EC2

The digital tube displays the fault code "EC2"

• First check whether the connection between the main control board and the water temperature

sensor is good

• Replace the heating tube or the computer main control board to test whether the function is

normal

16)Heating pipe failure E6C or E7C

The digital tube displays the fault code "E6C" or "E7C"

• First check whether the connection between the main control board and the heating tube is

good，Measure whether the heating tube resistance is in the normal range

• Replace the heating tube to test whether the function is normal

17) Door lock failure U4

The digital tube displays the fault code "U4"

• First check whether the connection between the main control board and the door lock is good

Is the door sensor in the normal position

• Replace the door lock to test whether the function is normal

18)High temperature alarm H

Digital tube display code "H"

• The temperature in the barrel is too high and the lid cannot be opened for safety，please wait

patiently。

5

CIRCUIT DIAGRAM

WVIID1058BKG

WVWD1050&950&850BKG

THOUBLESHOOTING

a. Power Source

Yes

No

COLOR SYMBOL

Gr

Bl

G

B

LB

Br

O

P

R

W

Y

V

GRAY

BLUE

GREEN

BLACK

LIGHT BLUE

BROWN

ORANGE

PINK

RED

WHITE

YELLOW

VIOLET

TROUBLE

INSPECTION

CAUSES

REMEDY

Any indications

and beep do not

work when

power switch is

on and the start

button is pressed

INSPECTION

Is fuse blown?

Deterioration of fuse.

Motor is defective.

Capacitor is defective.

Replace.

Replace.

Replace.

Poor connect of

connectors

Control circuit board is

defective

Repair or replace.

Replace.

6

Hose joint assembly

Cushion

Filter

Does water stop

when the plug

is removed or

power switch is

OFF?

b. Water Supply

Yes

No

Low

High

Note: When removing the flow sheet, reinstate the filter in place correctly.

Yes

No

TROUBLE

INSPECTION

CAUSES

REMEDY

INSPECTION

Water does not

flow when the

power switch is

on and start

button is pressed.

Does humming

noise come on

from water

valve？

Something on the filter of

the water valve or hose

joint assembly.

Clean the filter.

Poor connect of

connectors.

Water valve is defective.

Water level sensor is

defective.

Control circuit board is

defective.

Repair or replace.

Replace.

Replace.

Replace.

Water is not

supplied normally.

Check water

pressure.

Remove the flow

sheet of the water

valve.

Replace the water

valve.

Clean the filter on

the water valve or

hose joint

assembly.

Replace the water

valve.

Water does not stop

Something in the air trap

hose or air leaks from a

part related water level

sensor system.

Water level sensor is

defective.

Control circuit board is

defective.

Something on the

diaphragm on the water

valve.

Diaphragm is deformed

Clean or replace.

Replace .

Replace.

Replace or

disassemble the

valve and clean

the diaphragm

Replace

Replace .

Replace

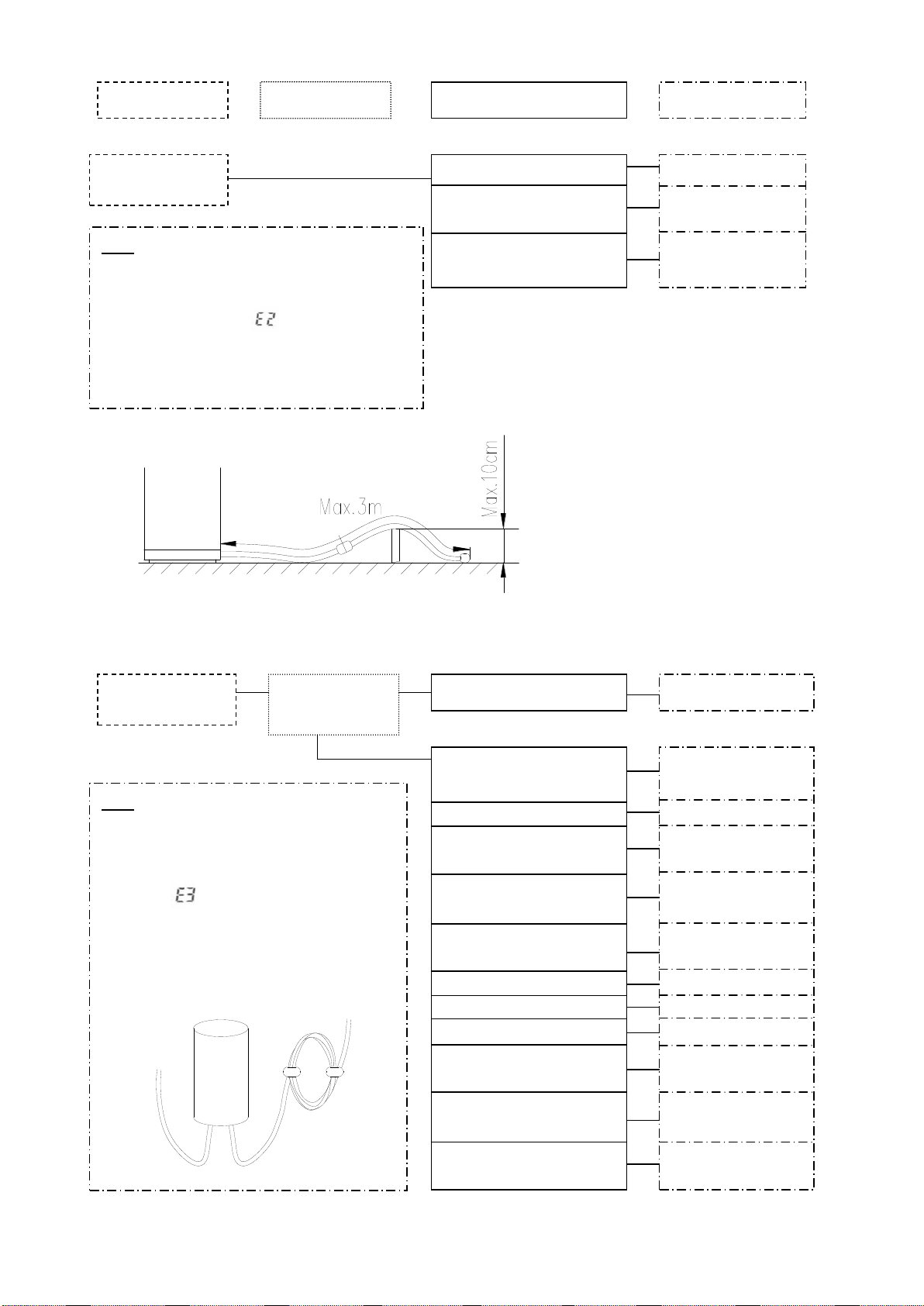

The height of drain hose is

less than 0.7m.

Make the height of

drain hose is not less

than 0.7m.

7

Bearing ass’y is defective.

Replace.

Motor wires are

dis-connected.

Capacitor wires are

dis-connected.

Capacitor is defective.

Motor coil shorten.

Brake lining on bearing ass’y

is worn out.

Brake lever ass’y is defective.

Torque motor is broken.

Brake lining is worn out.

Brake lever ass’y is defective.

Foreign matter in drain hose.

Valve bellow is deformed.

Pump lead wire is

disconnected.

Control circuit board is

defective.

c. Wash/Rinse

No

Yes

No

Yes

No

Yes

Yes

No

No

d. Drain

Yes

No

TROUBLE

INSPECTION

CAUSES

REMEDY

Washing cycle does

not start even if

water keeps the

selected water level.

INSPECTION

Does the spin tub

rotated normally

when the

COURSE button

is set to SPIN?

Bearing ass’y is defective.

Poor connect of

connectors

Thermostat on motor is

opened.

Control circuit board is

defective.

Replace.

Replace.

Repair or replace

after cooling down.

Replace.

Does the pulsator

rotate by hand?

Does humming

noise come on

from motor?

Replace or repair.

Replace or repair.

Replace.

Replace.

The spin tub rotates

together with the

pulsator during

washing or rinsing

cycle.

Is the torque motor

working normally?

Replace bearing ass’y.

Replace bearing ass’y.

Replace.

Note:

Brake-work is

normal when spin

tub stops within 10

sec. under no-load.

Does brake-work

normally?

Replace bearing ass’y.

Replace bearing ass’y.

Water does not

drain out.

Is the built-in

pump working

normally？

Clean drain hose

inside.

Repair or replace.

Replace.

8

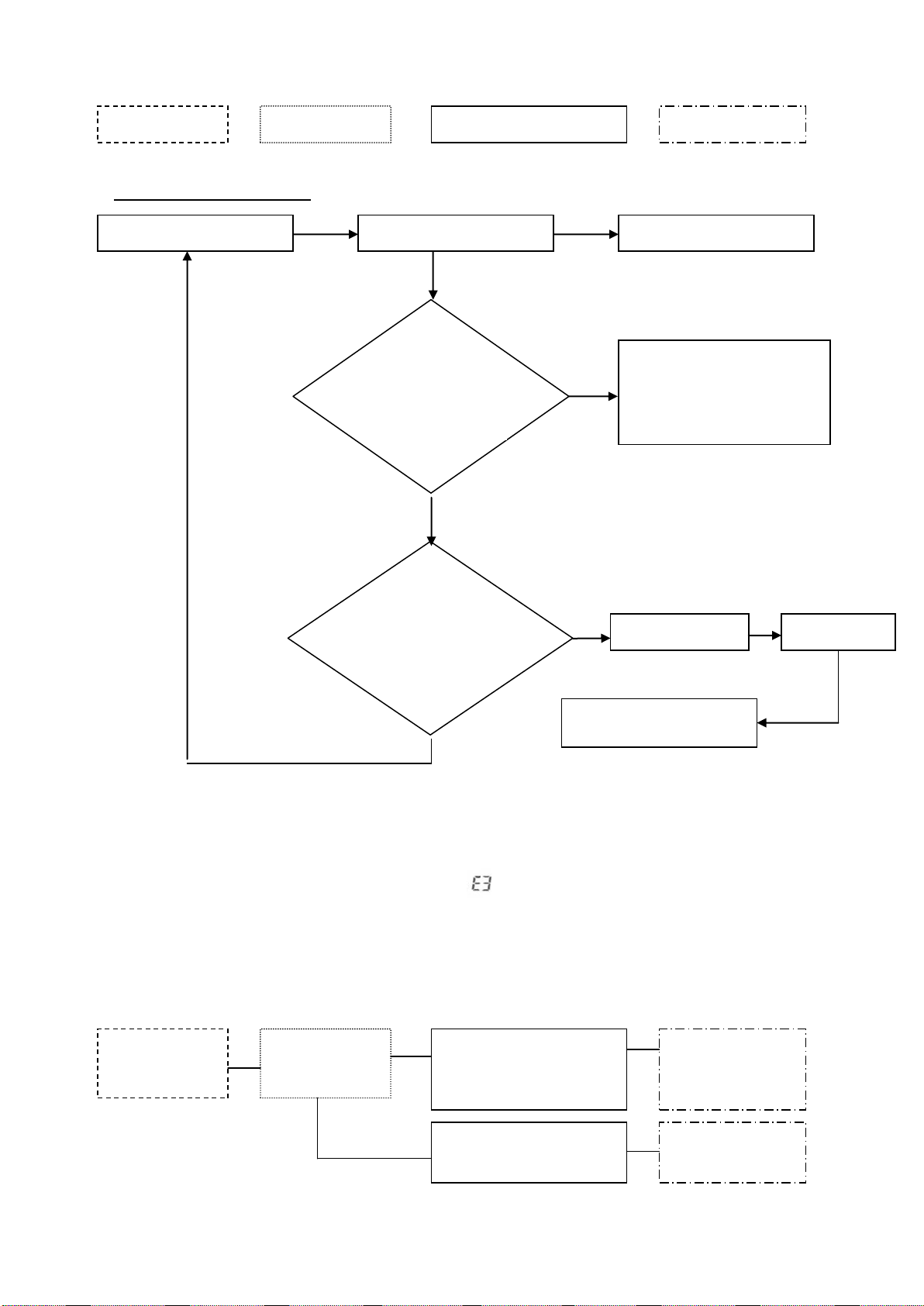

e. Spin Drying

Yes

No

TROUBLE

INSPECTION

CAUSES

REMEDY

INSPECTION

Drain takes time too

long.

Drain hose ass’y is deformed.

Hose is connected in the

wrong way.

Hose is too long or position of

hose is too high.

Repair or replace.

Repair.

Repair.

Note: In draining, the water lever sensor can

not reset in 8minutes.

The number window LED display

abnormal code: and begin blinking

on and off at the same time and the

electric buzzer sounds to indicate a

problem.

Note: In draining, the water level sensor can

not reset in 8 minutes.

The number window LED display

abnormal code: and begin blinking

on and off at the same time and the

electric buzzer sounds to indicate a

problem.

Spin drying cycle

does not work.

INSPECTION

Does safety

device work?

Machine inclines.

Replace with level.

The V-belt is slipping.

The V-belt is snapped.

Small pulley mounting

screw is loosed.

Motor is disconnected or

burnt.

Capacitor is broken or

disconnected.

Bearing ass’y is defective.

Torque motor is defective.

Brake lever is defective.

Thermostat on motor is

opened.

Poor contact of

connectors.

Control circuit board is

defective.

Adjust the motor

position.

Replace.

Tighten up.

Replace.

Replace.

Replace.

Replace.

Repair or replace.

Repair or replace

after cooling down.

Repair or replace.

Replace.

Note:

1. The safety switch works 3 times

continuously or works 1 time in the

single program of spin-dry.The

number window LED display abnormal

code: and begin blinking on and off

at the same time and the electric buzzer

sounds to indicate a problem.

2. Do not disconnect the wire from the

capacitor, because this wire acts as

de-pressing noise from outside to the

micro-computer.

9

Operation of safety device

When the safety device works by abnormal swing of spin drum, machine works automatically to

stop Spin-Dry cycle and operates water supply valve to pour water into the Wash/Spin Tub and

then starts washing cycle for replacing washing clothes evenly.

After above operation has down twice, if safety device works again, machine will stop, and the

number window LED display abnormal code: and begin blinking on and off at the same time

and the electric buzzer sounds to indicate a problem.

•Open the Wash Lid and rearrange the clothes evenly around the Wash/Spin Tub.

•Close the Wash Lid and press the START/PAUSE button again.

f. Buzzing and rattling

Low

High

TROUBLE

INSPECTION

CAUSES

REMEDY

INSPECTIONINSPECTION

Start of spin-drying.

Normal spin.

Safety device work.

Electric circuit

counts operation

of safety device.

Electric circuit works to stop

spin when safety device

detects continuously three

times of abnormal swing of

spin drum.

Automatic

adjustment or

load.

Buzzing/rattling

during water

supply.

INSPECTION

Something in water valve.

Replace.

INSPECTION

Is high water

pressure (more

than 4kg/cm2)?

Faucet open too far

Adjust faucet

turning.

Stop of Spin-Dry

Agitation of load (Rinsing

for 2 minutes).

Water supply

10

Yes

No

TROUBLE

INSPECTION

CAUSES

REMEDY

INSPECTION

Buzzing/rattling

during washing

or rinsing.

Does some noise

sound during

spin drying?

Belt is slipping.

Pulley is loose.

Some part touch motor

Adjust.

Tighten.

Repair or replace

Something underneath

pulsator.

Pulsator is rubbing.

Pulsator shaft is burnt.

Remove.

Adjust bearing ass’y.

Replace bearing ass’y.

Buzzing/rattling

during spin-dry.

Is sound in

low-pitched

monotone?

Bearings of bearing ass’y

is defective.

Replace.

Is variable sound

happened by

vibration?

Does noise sound

when the washer

begins to work?

Is clattering on

maximum

rotation?

Is flapping?

Machine is in unbalance.

Suspension rod ass’y is

worn out.

Belt is slipping

Motor pulley is loose.

Wire and/or air trap hose

is loose.

Place machine

evenly on base.

Replace.

Adjust.

Tighten up.

Tighten.
