Whirlpool LA7800XM User manual

AUTOMATIC

WASHER

!Suore;Capacity

LA7800XM

iwave Ovens Trash Compactors Room Air Condltloners Oehumldlllers Automatic Washers Clothes Dryers Freezers Refrlgeratar-Freezers

Parts and features

LAUNDRY

LOAD INFORMATION TEMPERAT”“C

SIZE CENTER SELECTC

SELECTOR

\ L

VnL

>R CYCLE MAGIC CLEAN

/ CONTROL LINT FILTER

, KNOB (not shown)

FABRIC SOFTENER

LIQUID BLEACH

MODEL AND SERIAL

NUMBER PLATE

(not shown)

AGITATOR

‘I

BASKEl

TUB

F-

Remove the Consumer

r i Buy Guide label. It will be

- easier to remove before

the washer is used.

Copy your Model and Serial Numbers here

When you need service or call with a --

question, have this information ready:

Modei Number

I. Complete Model and Serial Num-

bers(from plate underthe lid neorthe G- UumbeF

hinge). --

2. Purchase date from sales slip

Copy thus information In these spaces. Purchcse Date

Keep this book in the Laundry Informa-

tion Center with your”Laundry Guide,”

sales slip and warranty

Service Company

Phone Number

There

no warranty registration to return. Proof-of-purchase IS all

that

required for in-warranty service.

Your responsibilities

Read this “Use and Care Guide”

and your “Laundry Guide” care-

fully for important use and safety

information

You are personally responsible

for making sure that yourwasher...

is installed by a qualifiedinstaller.

is properly installed and

leveled on a floor that can

support the weight:

is connected to the right krnd

of outlet, electric supply, water

supply and drain.’

. is properly grounded.

used only for jobs normally

expected of home automatic

washers

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing

. is not run by children or anyone

unable to operate it properly

‘See the”lnstallation Instructions”

for complete Information.

Contents

PARTS AND FEATURES 2

YOUR RESPONSIBILITIES 3

SAFETY FIRST 3

STARTING YOUR WASHER 4

WHAT HAPPENS

IN EACH CYCLE 5

OTHER OPERATING

INSTRUCllONS 10

For a ?inse 376 SDln 10

For :.1Iroln and Spin 10

For

50~~ or Pre-Wash 10

tlqu!.i

Bleach Dispenser 11

Fabric SoRener Dispenser 11

MAGIC CLEAN Lint Filter 11

CARING FOR YOUR WASHER 12

IF YOU NEED SERVICE OR

ASSISTANCE 14

1 Before Calling for

AssIstonce 14

2 If ‘You Need Assistance

3 If Y:;ru Need Service 15

4 If V:IU Have a Problem 15

ClY84 Whirlpool Corporation

-SAVE THESE INSTRUCTIONS - 3

Starting your washer

Select a

1. LOAD SIZE Select WATER

TEMPERATURES

To change the setting on the LOAD

SIZESELECTOR, turn the knob to RESET.

Then turn the knob to point at a

setting that describes the size of the

load you want to wash.

Set the knob anywhere on or be-

tween HAND WASHABLE [a few small

items] and EX LARGE (a full load]

See your “Laundry Guide” for details

on load sizes.

Select wash and rinse water tem-

peratures by pushing a button

This drawing shows a warm wash

(top temperature] and cold rinse

(bottom temperature) selectron.

Recommended wash temperatures

can be found in your “Laundry Guide”

and printed under the washer lid.

LOAD SIZES AND WATER LEVELS

Use less than a full tub of water For best cleaning results, the

when you have less than a full load load must be able to move freely

to wash. inthewater.Toobigaloadortoo

little water can tear items.

I I

bAJ

EX-LARGE (20.5 galsi77.6 L)’

: MEDIUM (13.9 gals.152.6 L)’

HAND WASHABLE (7.8 gals.129.5 L)’

‘Approximate fill with load.

3. Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed in and turned only

clockwise

Stop on a number in the cycle

You want. The numbers are

minutes of wash time. The

drawing shows 8 minutes of

agitation in the REGULAR HEAVY

Cycle.

Start the washer by pulling out

the Control Knob. The washer

will fill to the level You set with

wash water of the selected

temperature. After filling, the

washer will agitate for the

selected number of minutes

To stop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

To set the controls for a rinse and

spin, a drain and spin, or a soak

or pre-wash, see page 10

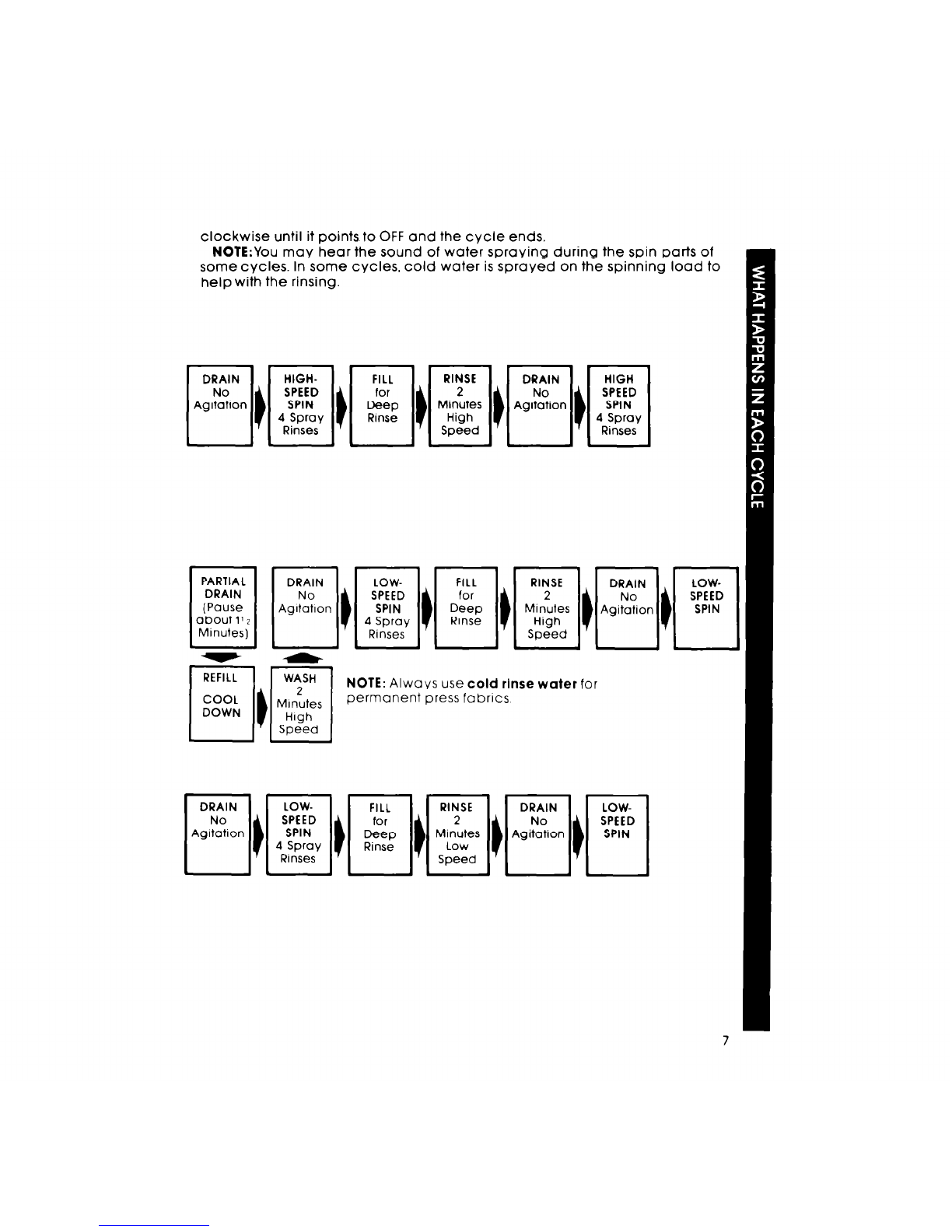

What happens in each cycle

Each cycle has different agitatron and spin speeds designed for different

krnds of fabrics Numbers on the dial In each cycle are the minutes of WASH

agitation time

When the Cycle Control Knob

set to a number and pulled out, the washer

fills before agitation and tlmlng start After agitation starts, the knob turns

REGL‘LAR HE,4\% Cycle

High agitation and

spin speeds help remove

heavy sotls and spin

water from heavy or

sturdy cotton fabrics

PERhl.4NENT PRESS C’s cle

Low-speed spins and

coolrng of the wash water

before the spin helps

keep wrinkles from setting

into permanent press

fabrics

KNITS/GENTLE Cyzle

Low agrtatron and sprn

speeds and shorter wash

time gently wash delicate

items and washable

- synthetic knits

clockwise until it points to OFF and the cycle ends.

NOTE:You may hear the sound of water spraying during the spin parts of

some cycles. In some cycles, cold water is sprayed on the spinning load to

help with the rinsing

PARTIAL

DRAIN

(Pause

about 1’ 2

Minutes)

HIGH-

SPEED

, SPIN

4 Spray

Rinses

DRAIN

ICI

Agltatlon

REFILL

coot

DOWN

WASH

NOTE:

Always use

cold rlnse water

for

2 permanent press fabrics

Minutes

High

Saeed

SO.Ui AND PRE-M’4Sli CJ cles

Periods of agitation and

soaking time clean

stained, yellowed, gray

or heavily soiled laundry.

Use recommended

amount of detergent.

SUPER WASH Cycle

Use for washing heavily

soiled or stained load that

needs extra agitation. Use

twice the recommended

amount of detergent when

using Super Wash.

WASH

Minutes

Low

Speed

+ Pre-wash setting begins here

(see pagelO)

Special care is needed when soaking or pre-washing laundry.

See your “Laundry Guide” for proper use of this cycle.

The washer will proceed to

the Regular/Heavy Cycle. If

you want a different cycle to

follow Super Wash, push in

the cycle control knob, turn

to the cycle and time you

want, pull knob out to start.

Other operating instructions

For a rinse and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent. (Extra de-

tergent can require an extra rinse.)

Push Control Knob in

Turn clockwlse to anY.on the dial

See above drawing.

Pull Control Knob out

The washer WIII fill to selected level

with cold water, agitate 2 minutes

drain and spin.

For a drain and spin

Your washer can be set to drain

and spin out water

Push Control Knob in

Turn clockwise to the bar just before

OFF in any cycle. See above

drawing.

Pull Control Knob out.

The washer WIII dram and sprn.

For agitation and spin speeds In each cycle,see pages 6 and 9

For a soak or pre-wash

For best results, use warm water

for soaking or pre-washing stained

laundry.

Use enough detergent or presoak

product for a single load.

Push Control Knob in.

Turn clockwise to point at a number

in the SOAK Cycle

Pull Control Knob out.

When the cycle is over, add de-

tergent for the next selected wash

cycle. Important: See additlonal

care information on page 7 of your

“Laundry Guide.”

. Set the washer and start the next

selected wash cycle.

To start the soak or pre-wash with agitation, the Cycle Control

Knob must point to a number in the SOAK Cvcle.
