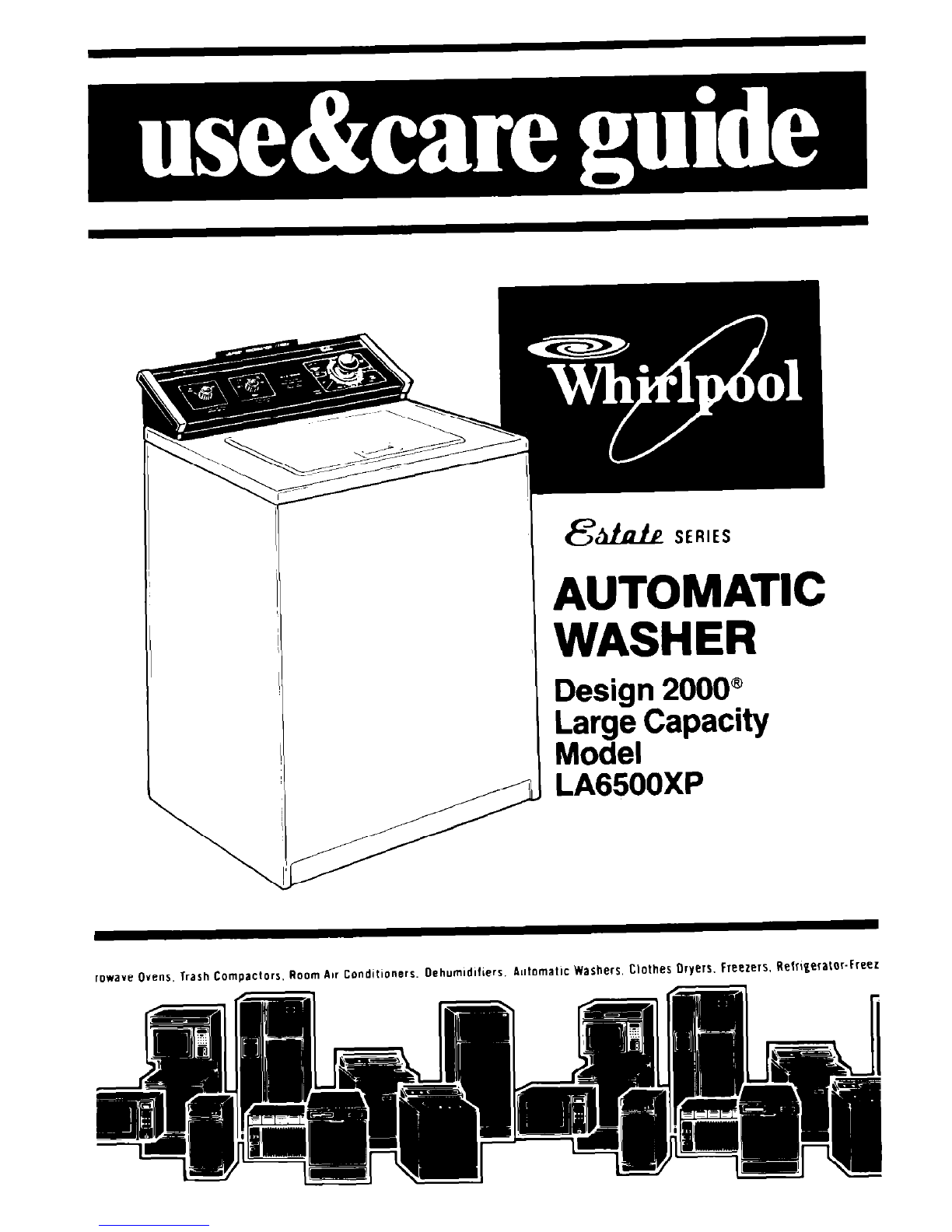

Whirlpool LA6500XP User manual

&&!LZh SERIES

AUTOMATIC

WASHER

Design 2000”

$;y;,Capacity

LA6500XP

rowaye Ovens. Trash Compaclors. Room AH Condltloners. Oehumldlflers. Automallc Washers. Clothes Dryers. Freezers. Reffl%efator-free1

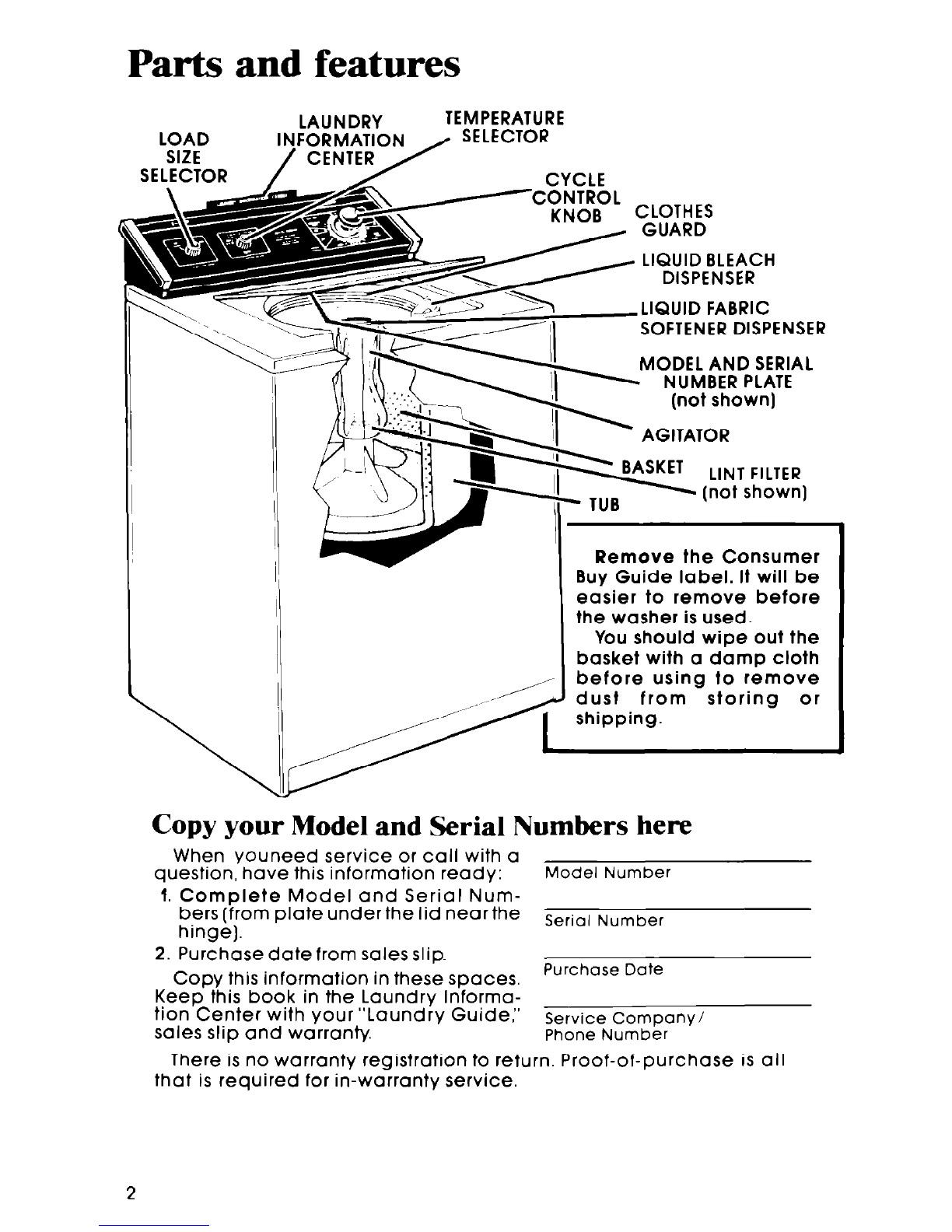

Parts and features

LIQUID FABRIC

SOFTENER DISPENSER

LAUNDRY TEMPERATURE

1 MODEL AND SERIAL

NUMBER PLATE

(not shown)

’ AGITATOR

Remove the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

basket with a damp cloth

before using to remove

dust from storing or

shipping.

Copy your Model and Serial Numbers here

When youneed service or call with a

question, have this information ready: Model Number

1. Complete Model and Serial Num-

bers (from plate under the lid near the

hinge]. Serio, Number

2. Purchase date from sales slip.

Copy this information in these spaces. Purchase Date

Keep this book in the Laundry Informa-

tion Center with your “Laundry Guide,”

sales slip and warranty Service

Company/

Phone Number

There is no warranty registration to return. Proof-of-purchase is all

that is required for in-warranty service.

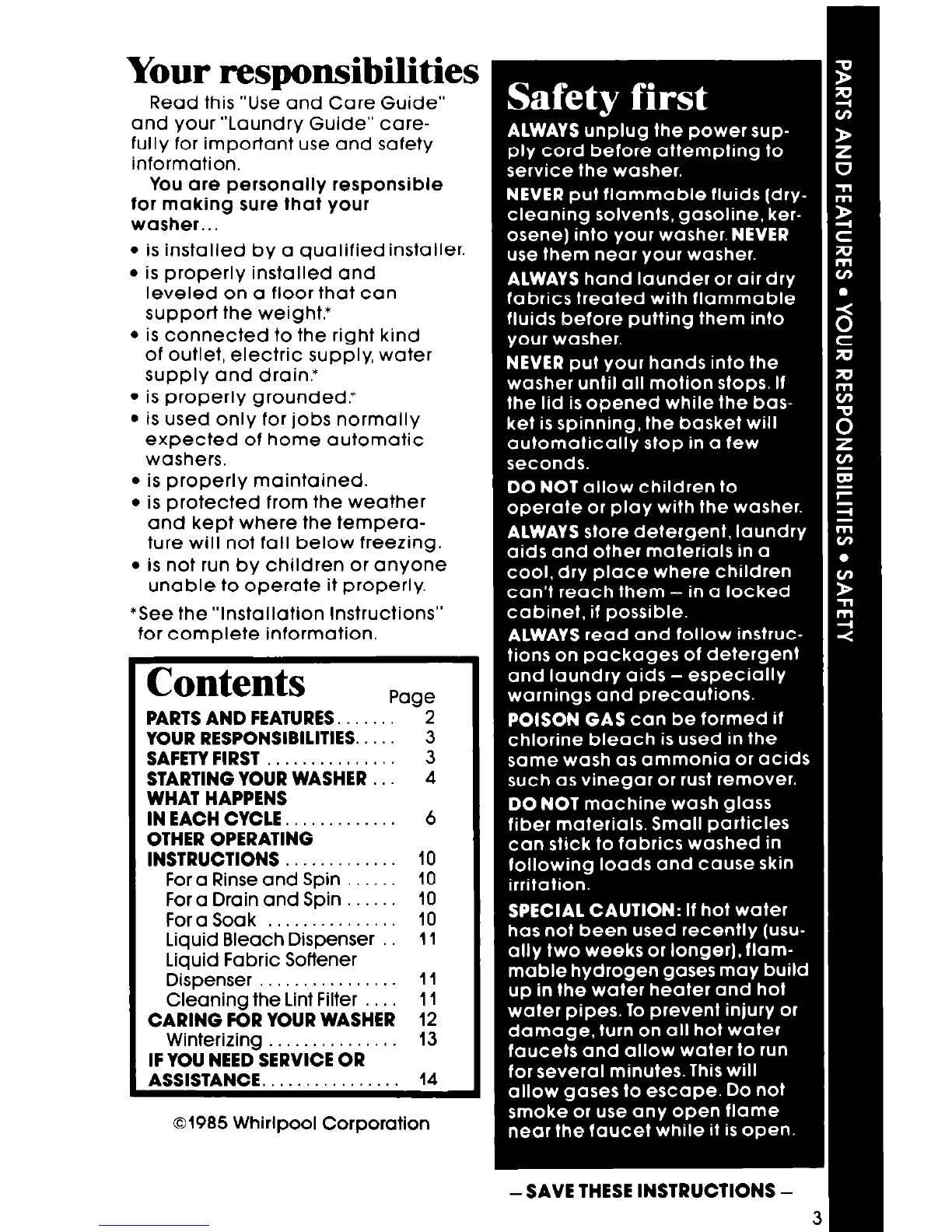

Your responsibilities

Read this “Use and Care Guide”

and your “Laundry Guide” care-

fully for important use and safety

information.

You are personally responsible

for making sure that your

washer...

is installed by a qualifiedinstaller.

is properly installed and

leveled on a floor that can

support the weight.

is connected to the right kind

of outlet, electric supply, water

supply and drain.*

is properly grounded.*

is used only for jobs normally

expected of home automatic

washers.

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

is not run by children or anyone

unable to operate it properly.

*See the “Installation Instructions”

for complete information.

Contents

Page

PARTS AND FEATURES. 2

YOUR RESPONSIBILITIES. 3

SAFETY FIRST . 3

STARTING YOUR WASHER 4

WHAT HAPPENS

IN EACH CYCLE. . . 6

OTHER OPERATING

INSTRUCTIONS . . . . IO

For a Rinse and Spin 10

For a Drain and Spin 10

Fora Soak 10

Liquid Bleach Dispenser 11

Liquid Fabric Softener

Dispenser 11

Cleaning the Lint Filter 11

CARING FOR YOUR WASHER 12

Winterizing . 13

IF YOU NEED SERVICE OR

ASSISTANCE.. . . . 14

01985 Whirlpool Corporation

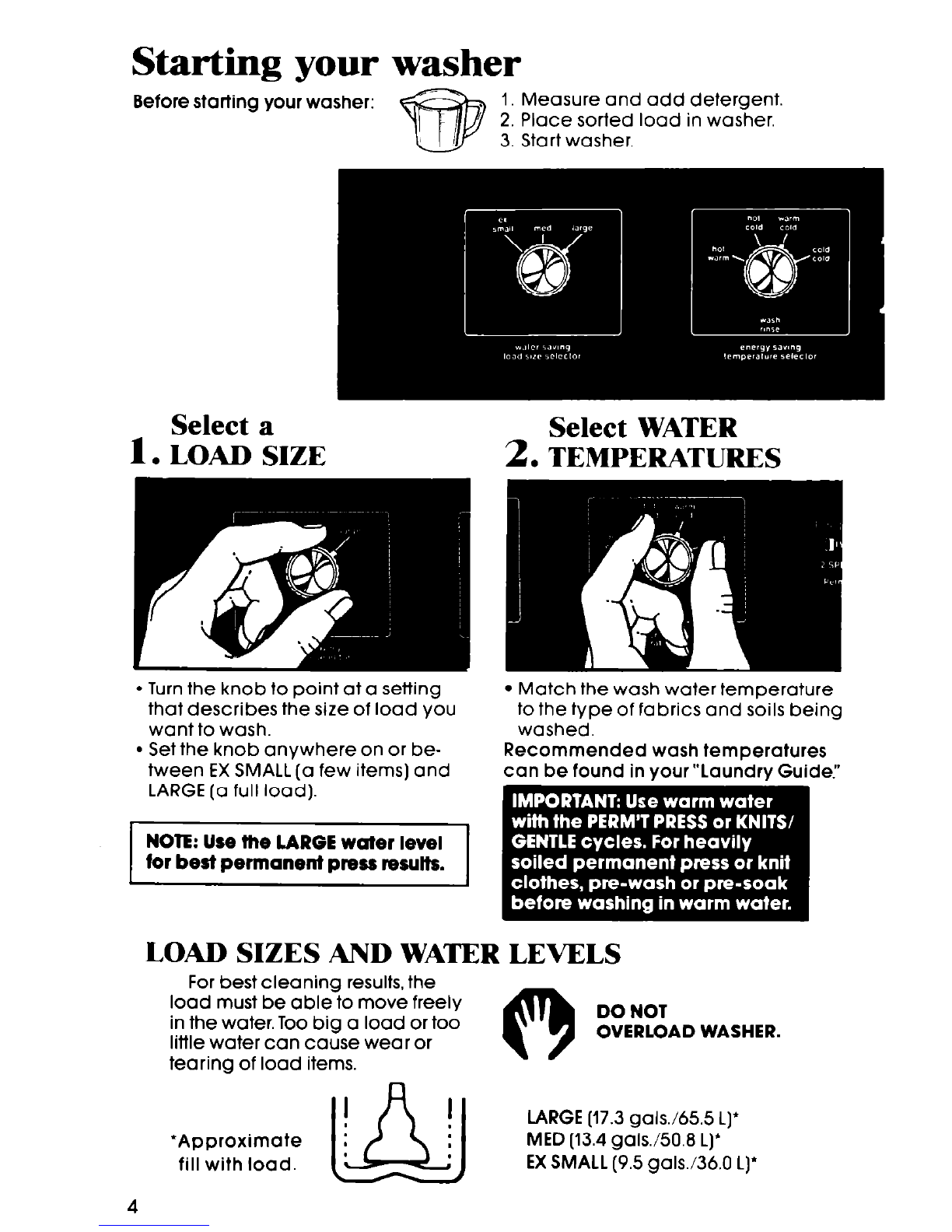

Starting your washer

Before starting your washer: 1. Measure and add detergent.

2. Place sorted load in washer.

3. Start washer.

Select a

1. LOAD SIZE Select WATER

TEMPERATURES

Turn the knob to point at a setting

Match the wash water temperature

that describes the size of load you to the type of fabrics and soils being

want to wash. washed.

Recommended wash temperatures

can be found in your “Laundry Guide.”

Set the knob anywhere on or be-

tween EX SMALL (a few items] and

LARGE (a full load).

NOTE: Use the LARGE water level

for best permanent press resutts.

LOAD SIZES AND WATER LEVELS

For best cleaning results, the

load must be able to move freely

in the water. Too big a load or too

little water can cause wear or

tearing of load items.

DO NOT

OVERLOAD WASHER.

‘Approximate

fill with load.

LARGE (17.3 gals./655 L)’

MED (13.4 gaW50.8 L)’

EX SMALL (9.5 galsJ36.0 L)’

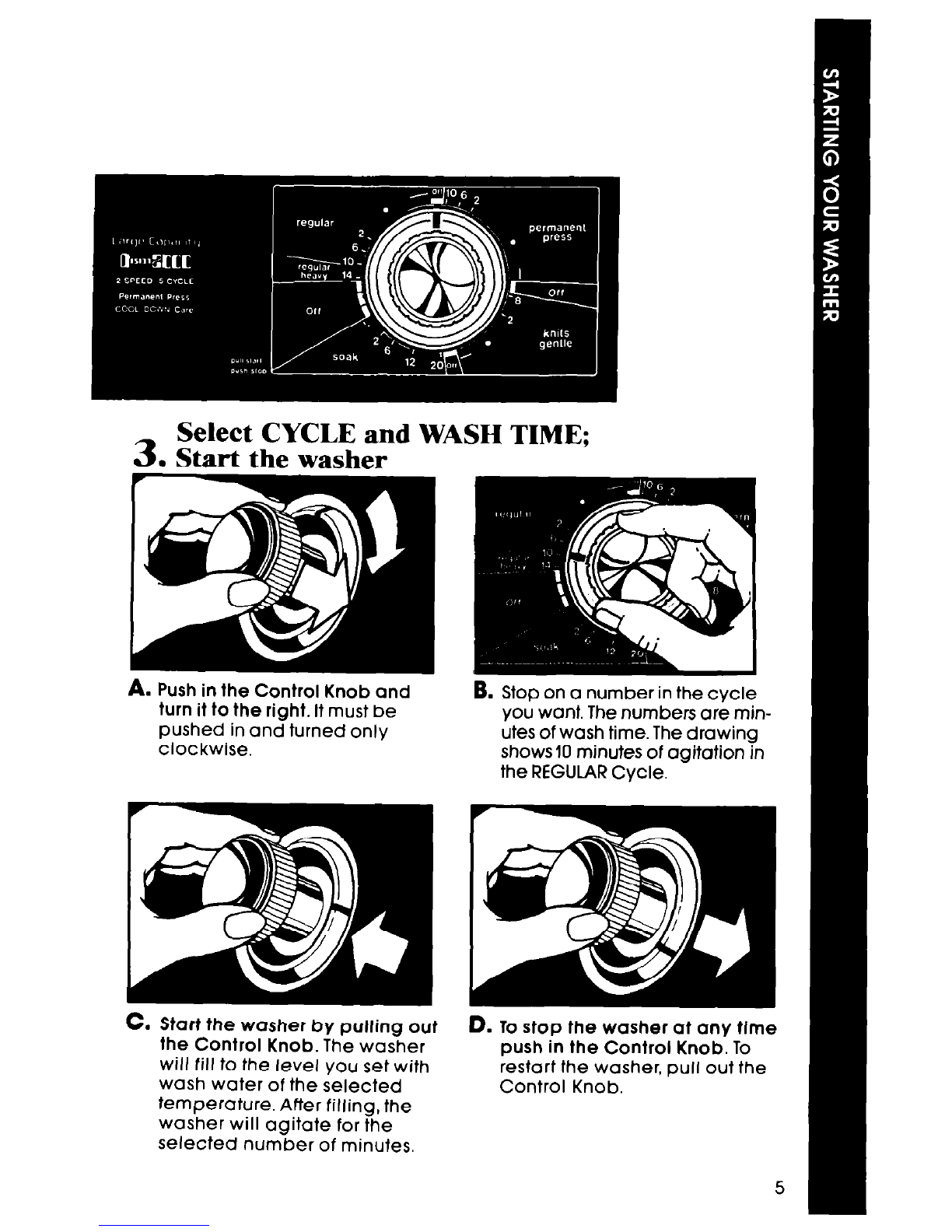

3. Start the washer

A. Push in the Control Knob and

turn it to the right, It must be

pushed in and turned only

clockwise.

B. Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows IO minutes of agitation in

the REGULAR Cycle.

C. Start the washer by pulling out

the Control Knob. The washer

will fill to the level you set with

wash water of the selected

temperature. After filling, the

washer will agitate for the

selected number of minutes.

D. To stop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

What happens in each cycle*

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer

fills before agitation and timing starts. After agitation starts, the knob turns clock-

wise until it points to OFF and the cycle ends

REGULAR HEAVY Cycle

REGULAR Cycle

A cycle for sturdily con-

structed fabrics that are

heavily soiled.

A cycle for regular loads of

fabrics that are moderately

soiled.

PERMANENT PRESS Cycle

A special cycle with the

necessary cool down rinse

which helps keep wrinkles

from setting into Permanent

Press and some synthetic

fabrics.

FILL

Selected

Level

WASH

Minutes

High

Speed

WASH

Selected

Time;

High

Speed

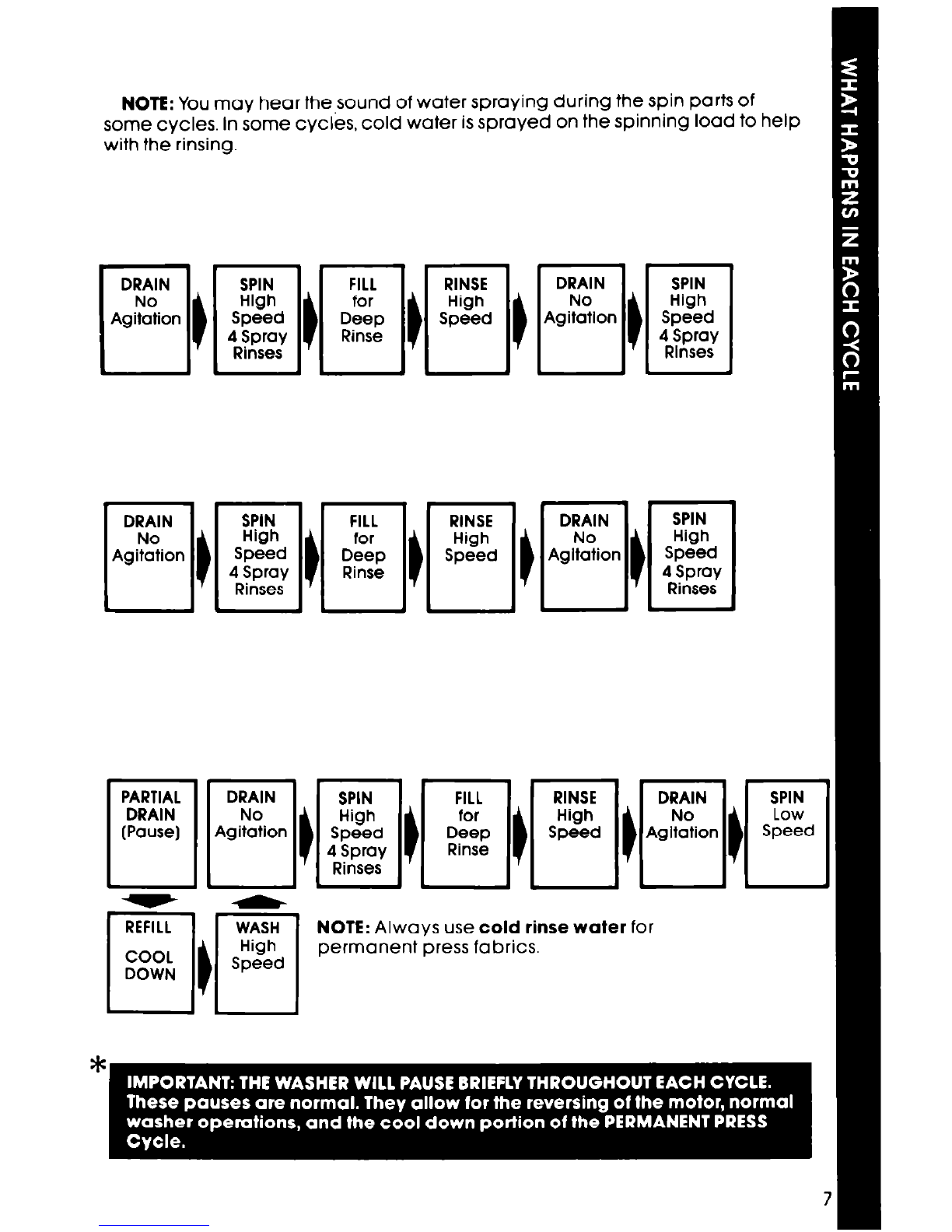

NOTE: You may hear the sound of water spraying during the spin parts of

some cycles. In some cycks. cold water is sprayed on the spinning load to help

with the rinsing.

DRAIN

Agitation

DRAIN SPIN FILL

Agikon ) g ) iii[ )

RINSE

High

Speed

NOTE: Always use cold rinse water for

permanent press fabrics.

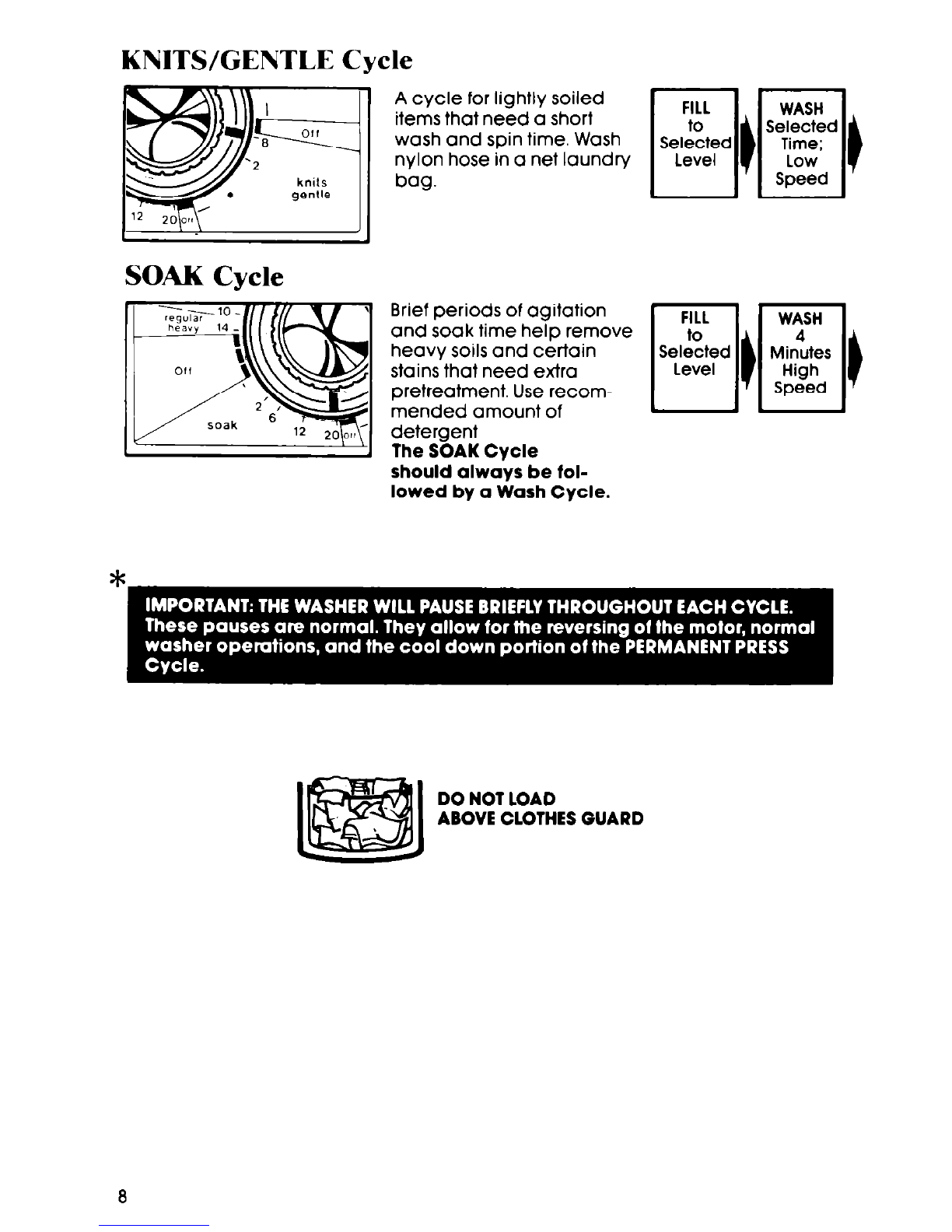

KNITS/GENTLE Cycle

SOAK Cycle

A cycle for lightly soiled

items that need a short

wash and spin time. Wash

nylon hose in a net laundry

bag.

Brief periods of agitation

and soak time help remove

heavy soils and certain

stains that need extra

pretreatment. Use recom-

mended amount of

detergent

The SOAK Cycle

should always be fol-

lowed by a Wash Cycle.

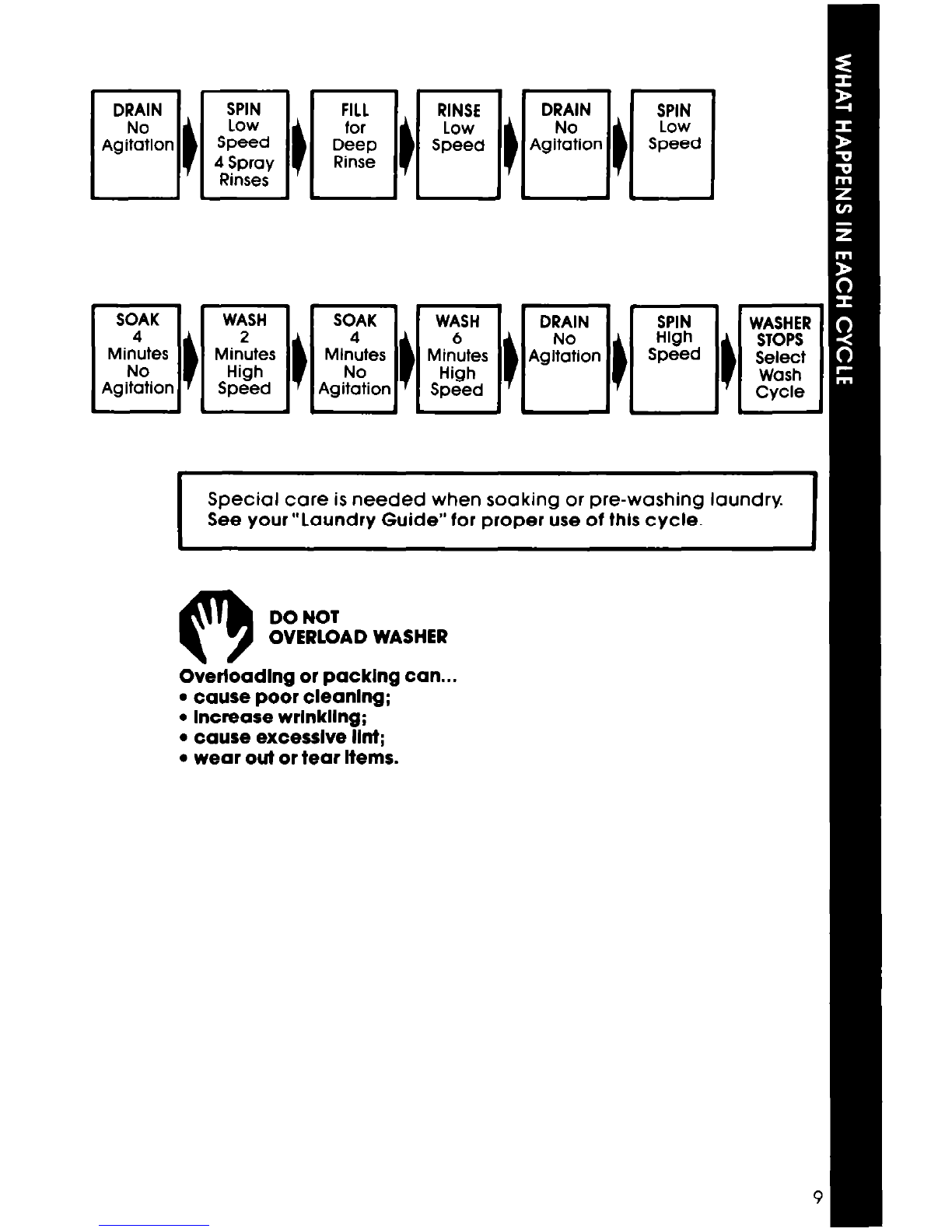

WASH

Selected

I Time;

Low

Speed

WASH

, Minttes

High

Speed

DO NOT LOAD

ABOVE CLOTHES GUARD

SOAK

Minutes

Agitation

WASH 1 1 SOAK -1 1 WASti

Minutes

High 1

Speed

Special care is needed when soaking or pre-washing laundry.

See your “Laundry Guide” for proper use of this cycle. I

DO NOT

OVERLOAD WASHER

Overloadlng or packing can...

cause poor cleaning;

Increase wrlnkllng;

0 cause excessive hit;

wear out or tear Items.

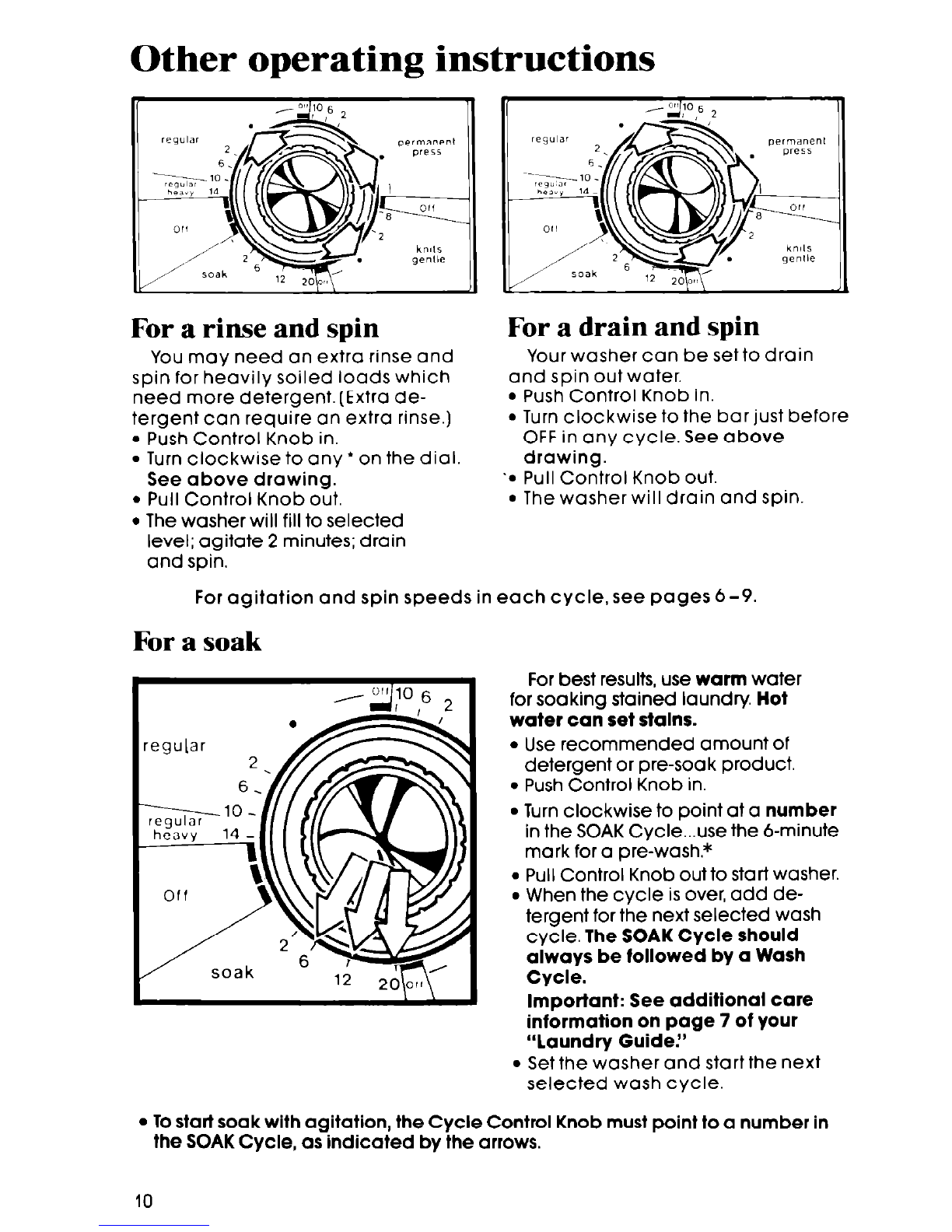

Other operating instructions

For a rinse and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent. [Extra de-

tergent can require an extra rinse.)

Push Control Knob in.

Turn clockwise to any

on the dial.

See above drawing.

Pull Control Knob out.

The washer will fill to selected

level; agitate 2 minutes; drain

and spin.

For a drain and spin

Your washer can be set to drain

and spin out water.

Push Control Knob in.

Turn clockwise to the bar just before

OFF in any cycle. See above

drawing.

‘0 Pull Control Knob out.

The washer will drain and spin.

For agitation and spin speeds in each cycle, see pages 6 -9.

For a soak

For best results, use warm water

for soaking stained laundry. Hot

water can set stalns.

Use recommended amount of

detergent or pre-soak product.

Push Control Knob in.

Turn clockwise to point at a number

in the SOAK Cycleuse the &minute

mark for a pre-wash.*

Pull Control Knob out to start washer.

When the cycle is over, add de-

tergent for the next selected wash

cycle. The SOAK Cycle should

always be followed by a Wash

Cycle.

Important: See additional care

information on page 7 of your

“Laundry Guide!’

Set the washer and start the next

selected wash cycle.

start soak with agitation, the Cycle Control Knob must point to a number in

the SOAK Cycle, as indicated by the arrows.

Other manuals for LA6500XP

This manual suits for next models
