Whirlpool WFW9500TC01 User manual

TOP AND CABINET PARTS

For Models: WFW9500TW01, WFW9500TC01

(White/Chrome) (Chestnut/Gold)

2−08 Printed in U.S.A. (drd) Part No. W10188973 Rev. A

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Models: WFW9500TW01, WFW9500TC01

(White/Chrome) (Chestnut/Gold)

W10188973

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10158196

Use & Care Guide

W10133490

Tech Sheet

W10133489

Quick Start Guide

W10162664

Energy Guide

2 Top

8181799 White

W10166926

Chestnut

3 Cabinet

8183144 White

W10166960

Chestnut

4 Panel, Front

8183151 White

W10166924

Chestnut

5 Toe Panel

8181643 White

W10166925

Chestnut

6 Trim Ring,

Teardrop Assembly

W10160029

White

W10180781

Chestnut

7 8183208 Bracket, Trim

Fixation (Left)

8 8183209 Bracket, Trim

Fixation (Right)

9 8183210 Clip, Trim

W10189679

Harness, Wiring

(Lower Main)

(Includes Items

18, 19 & 23)

11 8181636 Foot, Leveling

12 Bolt, Shipping

8182797 Upper

8182798 Lower

13 8182661 Brace, Transport

14 8182698 Panel, Rear

15 8181635 Pan, Bottom

W10138248

Brace, Rear

17 8181756 Screw

W10121609

Channel, Harness

(Side)

W10121610

Channel, Harness

(Bottom)

W10156252

Switch, Analog

Pressure Sensor

21 8181739 Hose, Pressure

Switch

22 8181763 Bracket, Spring

W10189678

Microswitch

24 8181752 Clamp, Hose

25 8181738 Connector,

Drain Hose

26 8181737 Hose, Drain

(Outer)

27 8181690 Strain Relief

28 8183009 Cord, Power

29 8182702 Clip, Outer

Hose Holder

30 8181768 Storage, Hose

31 8182699 Sleeve,

Cord Support (2)

32 8182201 Screw, 3 x 8 mm

33 8182700 Cover, Transport

34 8182701 Clip, Outer

Hose Holder

35 8181828 Screw

36 Hose, Water Inlet

8182795 Blue Coupler

8182792 Red Coupler

37 8183019 Filter,

Interference

38 8183030 Grid, Ventilation

W10138249

Spacer, Top (2)

W10156258

Control Board,

Expansion

W10157885

Screw, 4.2 x 14

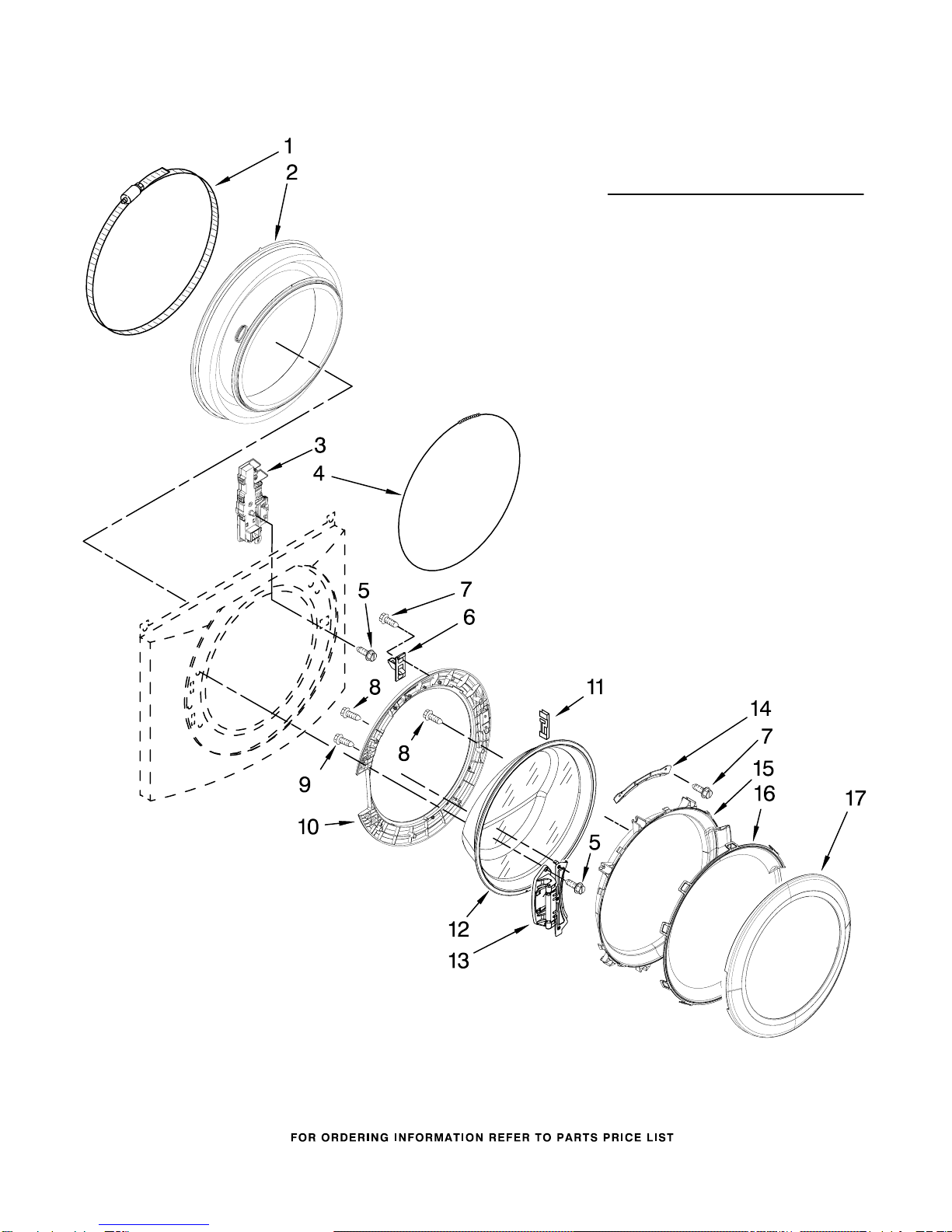

DOOR AND LATCH PARTS

For Models: WFW9500TW01, WFW9500TC01

(White/Chrome) (Chestnut/Gold)

W10188973

Illus. Part

No. No. DESCRIPTION

1 8182210 Clamp, Bellow

To Tub

2 8182119 Bellow

3 8183270 Lock, Door

4 8182211 Clamp, Bellow

To Front Panel

5 8181760 Screw

6 8183198 Hook, Door

7 8181758 Screw

8 8181661 Screw

9 8181660 Screw

10 8183195 Frame, Door

Back Support

11 8181659 Clamp, Glass

Support

12 8181655 Glass, Door

13 8183202 Hinge, Door

14 8183199 Clamp, Glass (2)

15 8183256 Frame, Door

Front Support

16 8183255 Screen, Door

17 Trim Ring,

Outer Door

W10189784

Chrome

W10189786

Gold

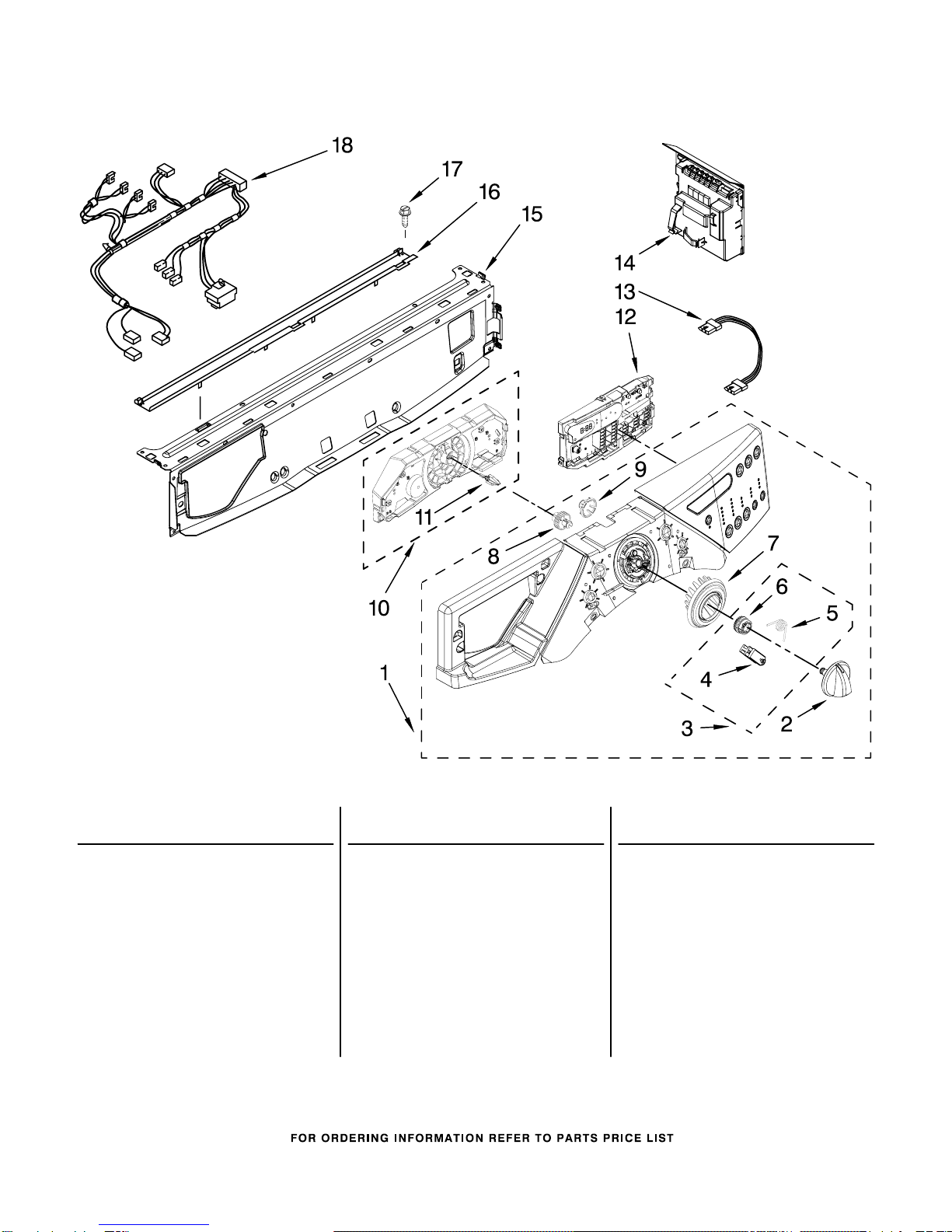

CONTROL PANEL PARTS

For Models: WFW9500TW01, WFW9500TC01

(White/Chrome) (Chestnut/Gold)

W10188973

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Panel, Control

W10180778

White

W10180779

Chestnut

2 Knob, Control

(Includes Item 9)

W10131369

White

W10166990

Chestnut

W10133927

Wheel, Detent Kit

(Includes Item 9)

W10131661

Wheel, Rast (2)

(Service In

Kit Only)

W10131377

Spring, Knob (2)

(Service In

Kit Only)

W10131378

Wheel, Detent

(Service In

Kit Only)

W10131376

Ring, Knob Light

(Includes Item 9)

W10131381

Wheel, Encoder

W10131382

Retainer, Snap

W10164402

User Interface,

Center

11 8183177 Adapter,

Encoder Wheel

W10180777

User Interface,

Right

W10157884

Harness, Wiring

(User Interface)

W10180782

Microcomputer,

Machine Control

15 8183203 Brace, Front Top

16 8183204 Channel, Water

17 8181756 Screw

W10157883

Harness, Wiring

(Upper Main)

DISPENSER PARTS

For Models: WFW9500TW01, WFW9500TC01

(White/Chrome) (Chestnut/Gold)

W10188973

DISPENSER PARTS

For Models: WFW9500TW01, WFW9500TC01

(White/Chrome) (Chestnut/Gold)

W10188973

Illus. Part

No. No. DESCRIPTION

W10156253

Valve, Inlet

2 8183182 Hose, Flowmeter

(L−Shaped)

3 8181751 Clamp

4 8181696 Flowmeter

W10156255

Hose, Duckbill/

Inlet Nozzle

6 8183181 Nozzle, Inlet

7 8183183 Lever, Water

Distribution

8 8183184 Cam, Actuator

W10161052

Lever, Connection

10 8183186 Actuator

11 8181661 Screw, Actuator

W10164400

Plate,

Distribution

13 8181712 Nozzle,

Distribution

14 8181721 Hook, Drawer

W10121596

Separator, With

Selection Slider

W10121598

Siphon,

Bleach/Softener

17 8183179 Cover,

Detergent Drawer

18 8183173 Drawer, Detergent

(Complete)

W10156617

Bracket,

Handle Fixation

20 Handle, Drawer

(Includes Items

19 & 21)

W10156618

White

W10156622

Chestnut

21 8183253 Medallion

22 8182214 Screw

23 8181747 Seal

24 8181718 Tube, Dispenser

To Bellow

W10157886

Dispenser,

Complete

(Includes Item 9)

W10156256

Check Valve,

Duckbill

W10156064

Clamp, Hose

28 8181754 Clamp, Hose

W10156130

Hose, Inlet Valve

To Steamer Siphon

TUB AND BASKET PARTS

For Models: WFW9500TW01, WFW9500TC01

(White/Chrome) (Chestnut/Gold)

W10188973

TUB AND BASKET PARTS

For Models: WFW9500TW01, WFW9500TC01

(White/Chrome) (Chestnut/Gold)

W10188973

Illus. Part

No. No. DESCRIPTION

1 8181672 Nut, Pulley

2 8182650 Pulley

3 8181670 Belt

4 8181645 Counterweight,

Front (2)

5 8181744 Pipe, Ventilation

6 8181746 Clamp

7 8181743 Hose, Exhaust

W10157909

Tub, Rear

(Includes Items

10, 22, 23 & 24)

9 8181913 Counterweight,

Rear

10 8181673 Gasket, Tub

11 8182232 Basket

12 8182233 Baffle, Tub

13 8181748 O−Ring

14 8181731 Airtrap

15 8181785 Screw

16 8182814 Spring,

Suspension

17 8181647 Bolt

18 8181742 Clamp, Hose

W10156130

Hose, Exhaust

W10156249

Connector,

Overflow Hose

21 8181667 Clamp, Tub

22 8182512 Nut, Push−In

23 8182214 Screw

24 8181686 Clamp,

Heating Element

25 8182312 Tub, Front

(Includes Items

10 & 22)

26 8182666 Element, Heating

27 8181705 NTC

28 8182812 Shock Absorber

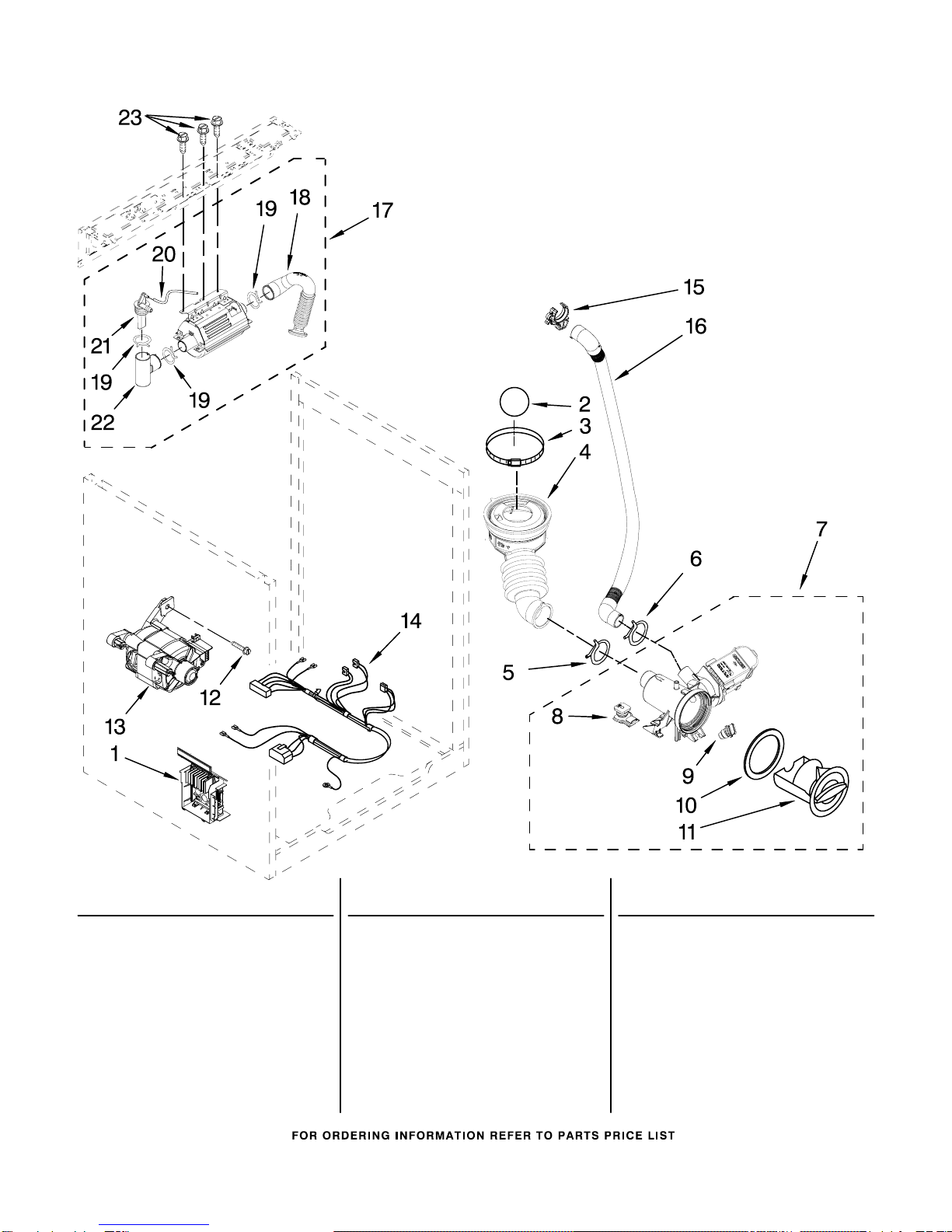

STEAMER, PUMP AND MOTOR PARTS

For Models: WFW9500TW01, WFW9500TC01

(White/Chrome) (Chestnut/Gold)

W10188973

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8183196 Motor Control Unit

W10121657

Ball

3 8181734 Clamp

4 8181732 Hose,

Tub to Pump

5 8181753 Clamp

6 8181752 Clamp

7 8182821 Pump (Complete)

8 8182820 Grommet, Damper

(Rear)

9 8182816 Grommet, Damper

(Front)

10 8181736 Seal, Filter Cap

11 8183027 Cap, Filter

W10128585

Bolt, Motor

13 8182793 Motor

W10189680

Harness, Motor

(Includes Item

23 On Page 1)

15 8182209 Retainer,

Drain Hose

16 8181740 Drain Hose

(Inner)

W10157910

Steamer, Complete

Assembly

(Includes Item

20 On Page 7)

W10156132

Hose, Steamer/Tub

W10156063

Clamp, Hose (3)

W10156133

Hose, Overflow

W10156250

Cap, Siphon

W10156251

Tank, Siphon

23 8181828 Screw, 4.2 x 11

OPTIONAL PARTS (NOT INCLUDED)

For Models: WFW9500TW01, WFW9500TC01

(White/Chrome) (Chestnut/Gold)

W10188973

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

W10162090

Chestnut

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORY PARTS

285863 Drain Extension

4396899 Rear Guard

38005 Stack Kit
