SERVICE MANUAL forLite

WFRB1054BHG

WFRB954 BHG

WFRB852BHG

WFRB752BHW

front load drum washer

Models：

WFRB1054BHG

WFRB954 BHG

WFRB852BHG

WFRB752BHW

Appearance, Color, Functions, Parameters of the Washing Machines

[键入文字]

WFRB1054BHG

WFRB954BHG

WFRB802BHG

WFRB752BHW

Cabinet color

Gold body+

Black door

Gold body+

Black door

Gold body+

Black door

White body+

White door

Product picture

AC motor

√

Air wash eradicate odors

LCD display

LED display

√

Digital control

Support the liquid detergent

√

Drum self-clean program

√

Multistage heating wash

√

Changeable spin revolving speed

√

Mirror surface STS inner tub

√

Drain left water function

Drain with pump

Drain without pump

√

Child lock function

√

All-pole outage

Auto outage

√

Voltage specification

220-240V～

60Hz

220-240V～

60Hz

220-240V～

60Hz

220-240V～

60Hz

Water heating power（W）

1700

Product size(W*D*H)

600*635*850

600*580*850

Packed product size (W*D*H)

694*710*930

635*693*910

Inner tubDiameter（mm）

Ф504

Inner tubvolume（L）

Net weight /Gross weight (kg)

70/76

70/66

67/63

Wash capacity (kg)

10.5

9.5

8.5

7.5

Spin capacity

10.5

9.5

8.5

7.5

Rated heat power

1800

Wash water temperature（℃）

Cold/30-80

Spin speed

600/800/1000/

1200/1400

600/800/1000/

1200/1400

600/800/1000/

1200

600/800/1000/

1200

[键入文字]

Contents

1. Product Specification

2. Structure

3. Functions setting and display

4. Explosive decomposition diagram

5. The machine decomposition step

6. Use precautions

[键入文字]

1.Product specification

Specifications of major components

Part name

Specification

Part name

Specification

Out tub （total

length of front and

back）

Material：PP+GF30

Back cover

SGCC, T1.0

Front cover

Material：PCM board，

Buzzer

Electric buzzer

Leg

The four legs are

adjustable.

Temperature

Sensor（for wash

heating）

Resistance R(50°C)＝19.73 kΩB

Parameter（25/85°C）= 3992K

Power On/Off

Light touch

Option switch

Knob type

Start/Pause

touch

Door lock

Strong open electromagnetic door

lock, double pulse unlock.

Water level Sensor

Diaphragm Water

Sensor

Valve Assembly

(two heads)

1). water pressure

：0.02~1.0Mpa

2). Maximum flow：

Main water inlet:8 L/min

Washing, spinning

motor

Universal motor：

220V-240V 50Hz

Washer heater

1800W

Water supply hose

PVC Hose about 1.0m

Drain pump

220-240V~,50Hz

0.25A

Class 155(F)

[键入文字]

2.Structure

1. Structure diagram（Detailed assembly drawings）

2 Waterway system

Water inlet ：Water inlet pipe―→Valve Assembly―→water inlet hose―→Pour Inlet―→Feed

Hose―→Out Tub

Drainage：Spin tub out tub―→Drain pump―→Drain hose inside―→Drain hose

Defoaming：Water inlet pipe―→Valve Assembly―→water inlet hose―→Pour Inlet（Water inlet for pre-wash）―

→Defoaming export―→Out Tub

[键入文字]

3.The buttons and functions setting and displaying

1、Control panel

[键入文字]

2、Specs label

[键入文字]

3、Various Functions

[键入文字]

4、No Trouble Conditions

[键入文字]

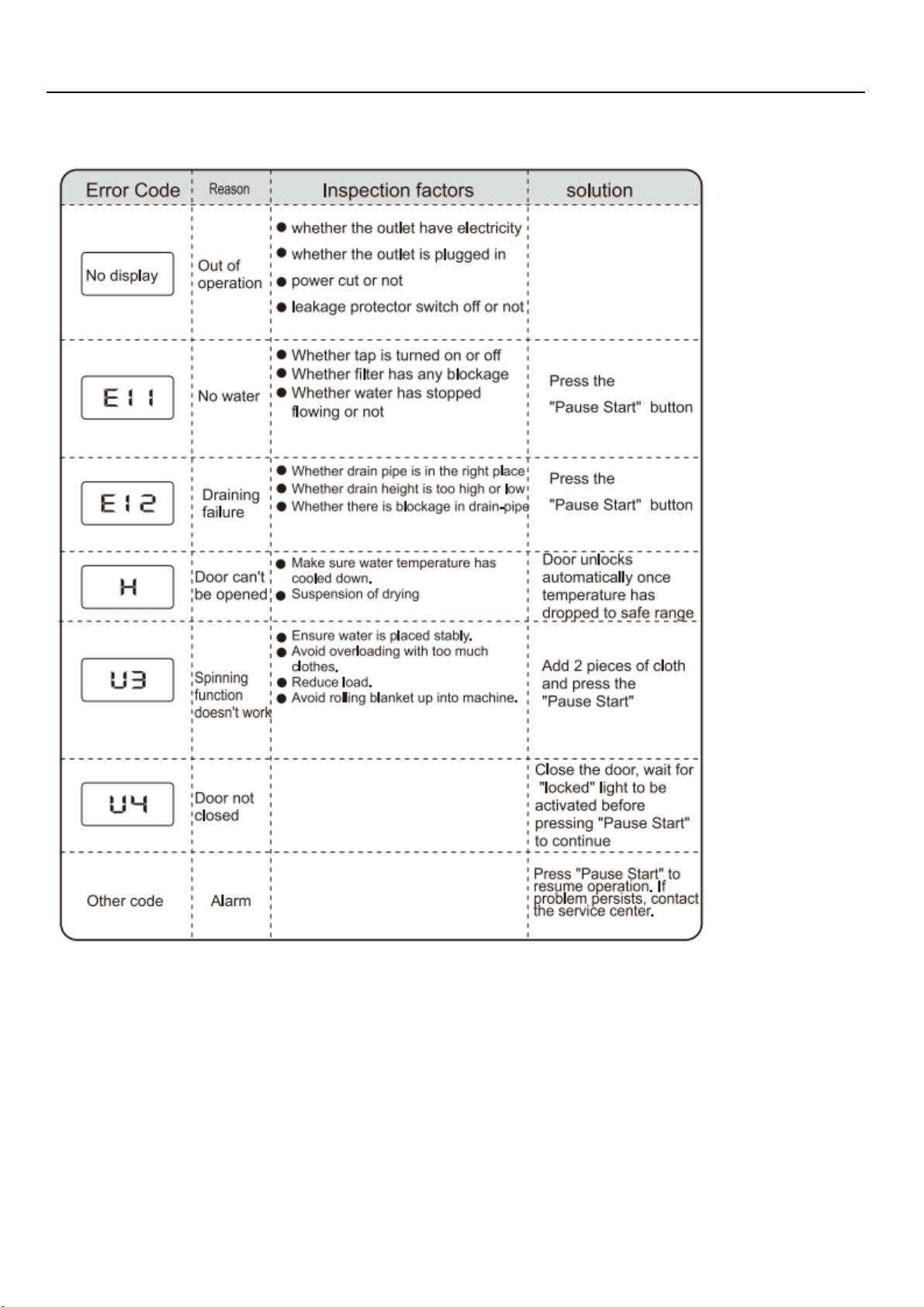

5、Trouble Shooting Guide

This manual suits for next models
