Whirlpool LSR6334LQ1 User manual

TOP AND CABINET PARTS

For Model: LSR6334LQ1

(Designer White)

1−04 Litho in U.S.A. (drd) Part No. 8180203

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Model: LSR6334LQ1

(Designer White)

8180203

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT3956025

Installation

Instructions

LIT3955901

Feature Sheet

LIT3955869

Use & Care Guide

LIT3955498

Wiring Diagram

LIT3956913

Energy Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT4313896

Manual, Do−It

Yourself (Washer)

2 8271378 Top

3 62750 Spacer, Cabinet To

Top (4)

4 357213 Nut, Push−In (2)

5 63424 Cabinet

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

7 3357011 Screw, 10−16 x 1/2

8 3356311 Screw & Washer,

Lid Switch (2)

9 3362952 Dispenser, Bleach

11 3949237 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

15 54584 Hinge, Lid (L.H.)

16 91770 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 3954489 Lid

20 358684 Strike, Lid Switch

22 9724509 Bumper, Lid (2)

28 3390631 Screw, 10−16 x 3/8

31 90016 Clip, Harness

CONTROLS AND REAR PANEL PARTS

For Model: LSR6334LQ1

(Designer White)

8180203

CONTROLS AND REAR PANEL PARTS

For Model: LSR6334LQ1

(Designer White)

8180203

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 9740848 Screw, 8−18 x 1/2

3 Hose, Water

Inlet (2)

3949374 Blue Coupler

3949375 Red Coupler

4 3400073 Screw, Ground

5 8318255 Strap, Console (2)

6 3357978 Panel, Rear

7 62747 Pad, Rear Panel

8 3951609 Hose, Drain

(4 ft.)

661577 Hose, Drain

(9 ft.)

(Not Included)

3357090 Extension

Drain−Hose

(21 Inches)

(Not Included)

9 3955489 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 3351614 Screw, Ground

11 90767 Screw, 8−18 x 3/8

12 3366847 Switch, Water Level

13 3948608 Bracket, Control

14 661661 Cord, Power

(Includes Item 15)

15 3952821 Strain Relief,

Power Cord

16 8271365 Cap, End (L.H.)

18 3952164 Valve, Water

Mixing

19 3976395 Clamp, Hose

20 8318201 Clip, Capacitor

21 301958 Clamp, Hose

22 8541607 Hose, Vacuum

Break

23 370450 Clamp, Hose

24 387606 Break, Vacuum

25 303294 Edge Protector

26 8317940 Drain Hose

Assembly

27 3366912 Clamp, Hose

28 661606 Capacitor,

Motor Start

29 3347812 Clip, Harness

30 3363366 Clamp, Hose

31 8317496 Clamp, Hose

32 3951449 Hose, Pump To Tub

33 8055003 Clip, Harness

& Pressure Hose

35 661612 Switch, Water

Temperature

36 3400818 Screw, Timer

Mounting

39 3955402 Panel, Console

44 8271345 Knob, Timer

45 8271351 Dial, Timer

47 8271339 Knob, Control

49 388326 Screw, 8−18 x 1.25

(Panel to Top)

50 62863 Screw, 10−16 x 3/8

51 8271359 Cap, End (R.H.)

55 3976286 Shield, Capacitor

58 3366913 Clamp, Drain

Hose

59 8539874 Shield, Suds

60 3357027 Nozzle−Drain

Hose

61 3955491 Wiring Harness

(For Detail See

Pages 9 & 10)

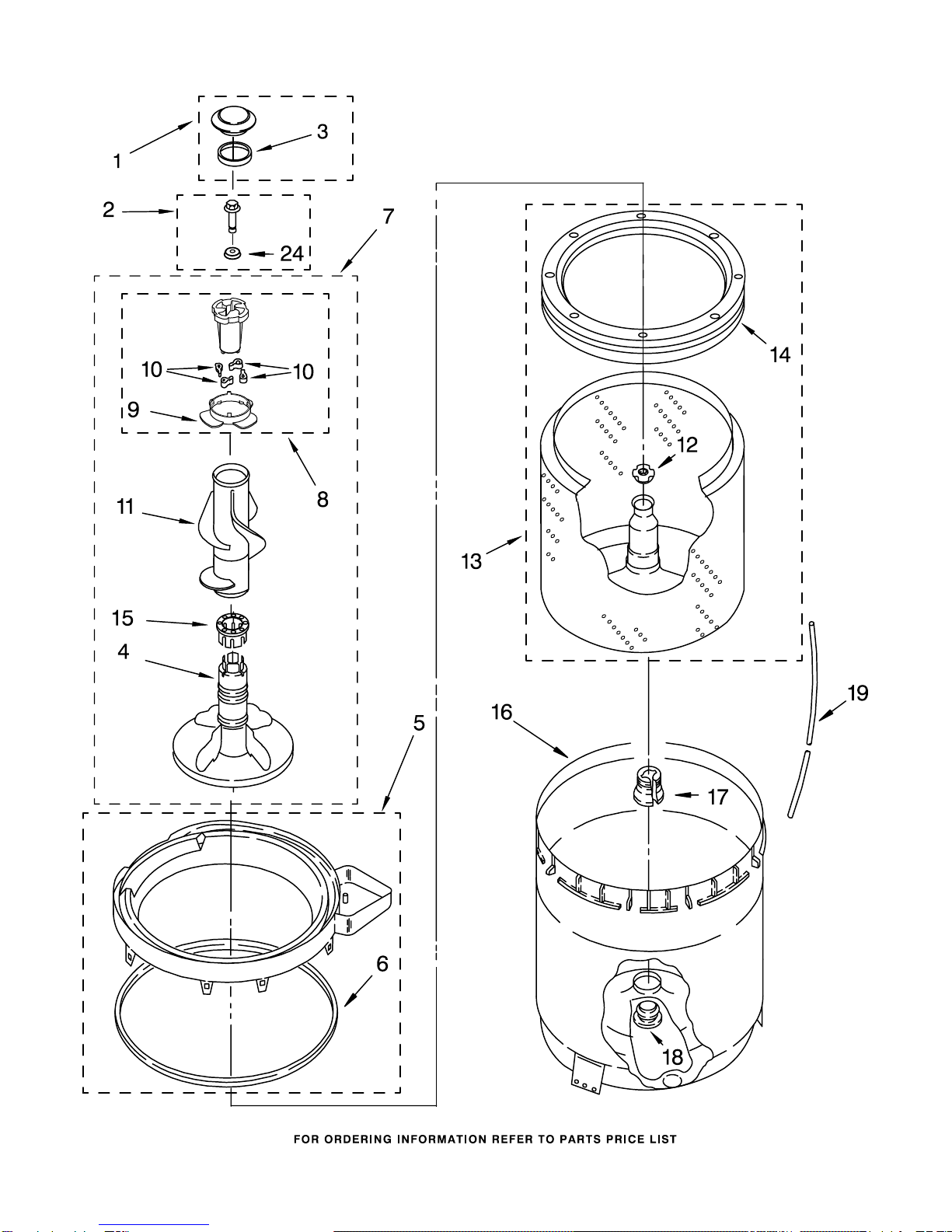

AGITATOR, BASKET AND TUB PARTS

For Model: LSR6334LQ1

(Designer White)

8180203

AGITATOR, BASKET AND TUB PARTS

For Model: LSR6334LQ1

(Designer White)

8180203

Illus. Part

No. No. DESCRIPTION

1 63973 Cap, Agitator

2 358237 Screw & Washer

(5/16−24 x 1)

3 358912 Seal−Cap

4 389386 Agitator

5 8528150 Tub Ring & Gasket

6 3976308 Gasket, Tub Ring

7 3347674 Agitator Assembly

(Complete)

8 3363662 Cam−Driven

9 3363661 Bearing−Driven Cam

10 3366877 Dog−Agitator

11 389141 Auger−Agitator

12 21366 Nut, Spanner

13 8526017 Basket & Balance

Ring

14 8519788 Balance Ring

15 3350389 Spacer−Thrust

16 63849 Tub

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

24 3949550 Washer

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Model: LSR6334LQ1

(Designer White)

8180203

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 285753 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 8528157 Motor, Main

Drive

20 3952056 Switch, Main

Drive Motor

21 8546127 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3946532 Shield, Motor

MACHINE BASE PARTS

For Model: LSR6334LQ1

(Designer White)

8180203

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 3362087 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 3946509 Plate, Suspension

(Includes Illus. 16)

18 3363660 Pad, Base

19 3946512 Base Assembly

(Includes Illus, 6,

7, 8, 9, 16, 17

18 & 26)

21 3359452 Nut, Lock

(3/8−16) (2)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

WIRING HARNESS PARTS

For Model: LSR6334LQ1

(Designer White)

8180203

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 3948614 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term.94613)

Or 94614.)

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term.94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term.352088)

13 3347243 Block, Disconnect

(Use Term. 352088)

14 63523 Protector

15 717252 Connector

(2−Way)

(Use Term.94614)

16 3352944 Clip, Harness

17 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

18 3347730 Receptacle

(6−Way)

(Use Term. 94613)

19 3349494 Connector, Etc

20 3407125 E.T.C. Control

21 3948617 Connector (T.P.A.)

(3−Circuit)

(Lid Switch)

22 3360056 Connector (T.P.A)

(3−Circuit)

(Pressure Switch)

23 3354925 Block, Connector

(Cold Valve)

24 3354926 Block, Connector

(Hot Valve)

For Model: LSR6334LQ1

(Designer White)

8180203
