Whirlpool CAM2752TQ0 User manual

c2008 WHIRLPOOL CORPORATION

COMMERCIAL

AUTOMATIC WASHER

MODEL

CAM2752TQ0

8−08 Litho In U.S.A. (slc) (eeb) Part No. W10114744 Rev. B

CAM2752TQ2

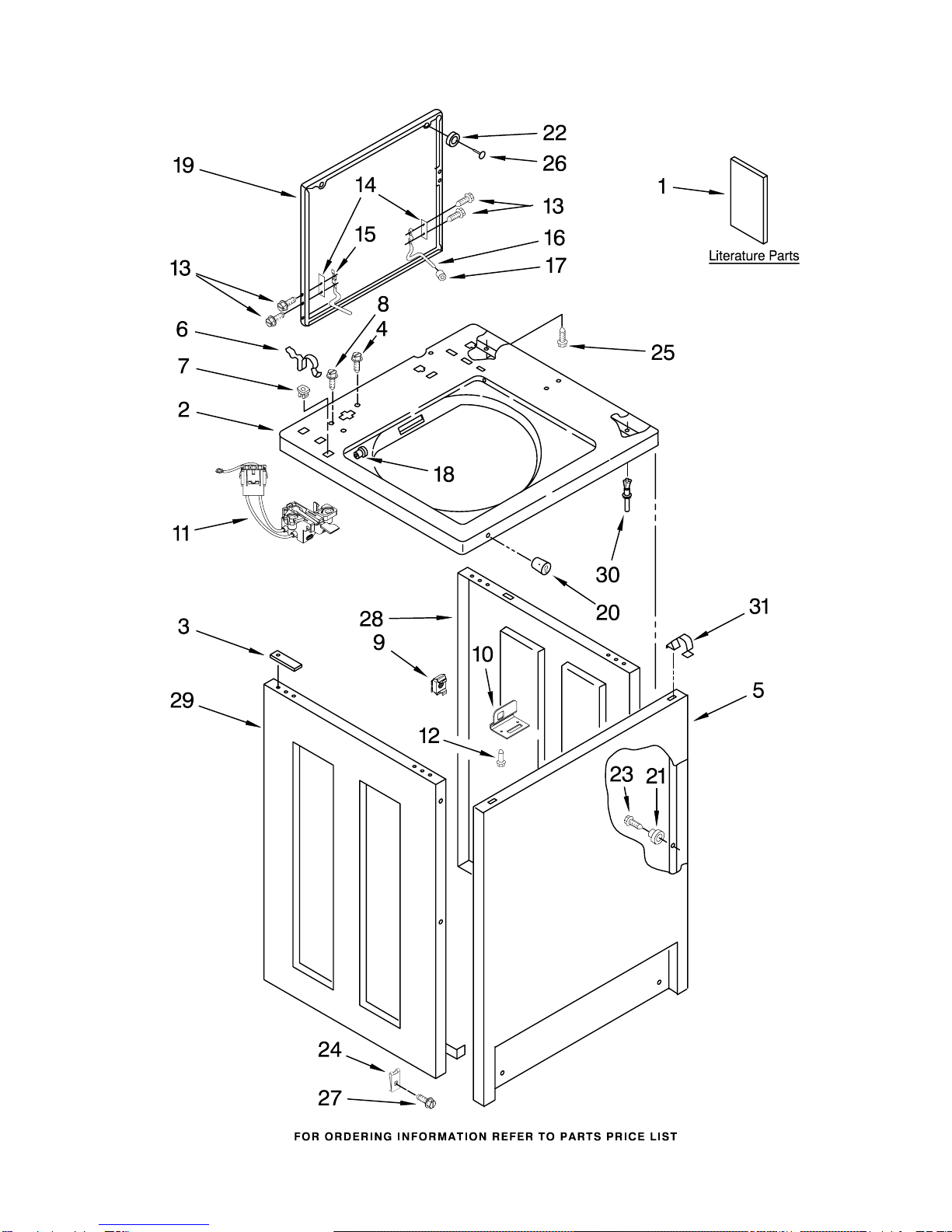

TOP AND CABINET PARTS

W10114744

For Models: CAM2752TQ0, CAM2752TQ2

(White) (White)

TOP AND CABINET PARTS

3W10114744

For Models: CAM2752TQ0, CAM2752TQ2

(White) (White)

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8316532 Instructions,

Coin Kit

W10135801

Wiring Diagram

W10172194

Energy Guide

W10114744

Repair Parts List

2 8524688 Top

3 3353950 Spacer, Cabinet To

Top (4)

4 3351614 Screw, Ground

5 3358500 Panel, Front

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

7 358473 Nut, Push−In (2)

8 3400611 Screw,

Lid Switch

9 90406 Cage Nut

10 3353948 Bracket, Lock

11 8054980 Switch, Lid

12 63554 Rivet (2)

W10119828

Screw, Lid Hinge

Mounting (4)

14 21097 Pad, Lid Hinge (2)

15 8524784 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

W10171146

Lid

20 387371 Plug Lock

21 3353812 Locator (4)

22 356908 Bumper, Lid

23 718258 Screw (4)

24 98234 Clip, U−Bend (2)

25 3353993 Screw (2)

26 356907 Rivet, Plastic

27 3393258 Screw, Panel

Mtg. (2)

28 3976380 Side Panel (RH)

29 3976382 Side Panel (LH)

30 3353949 Pin, Locator (2)

31 18776 Lock (2)

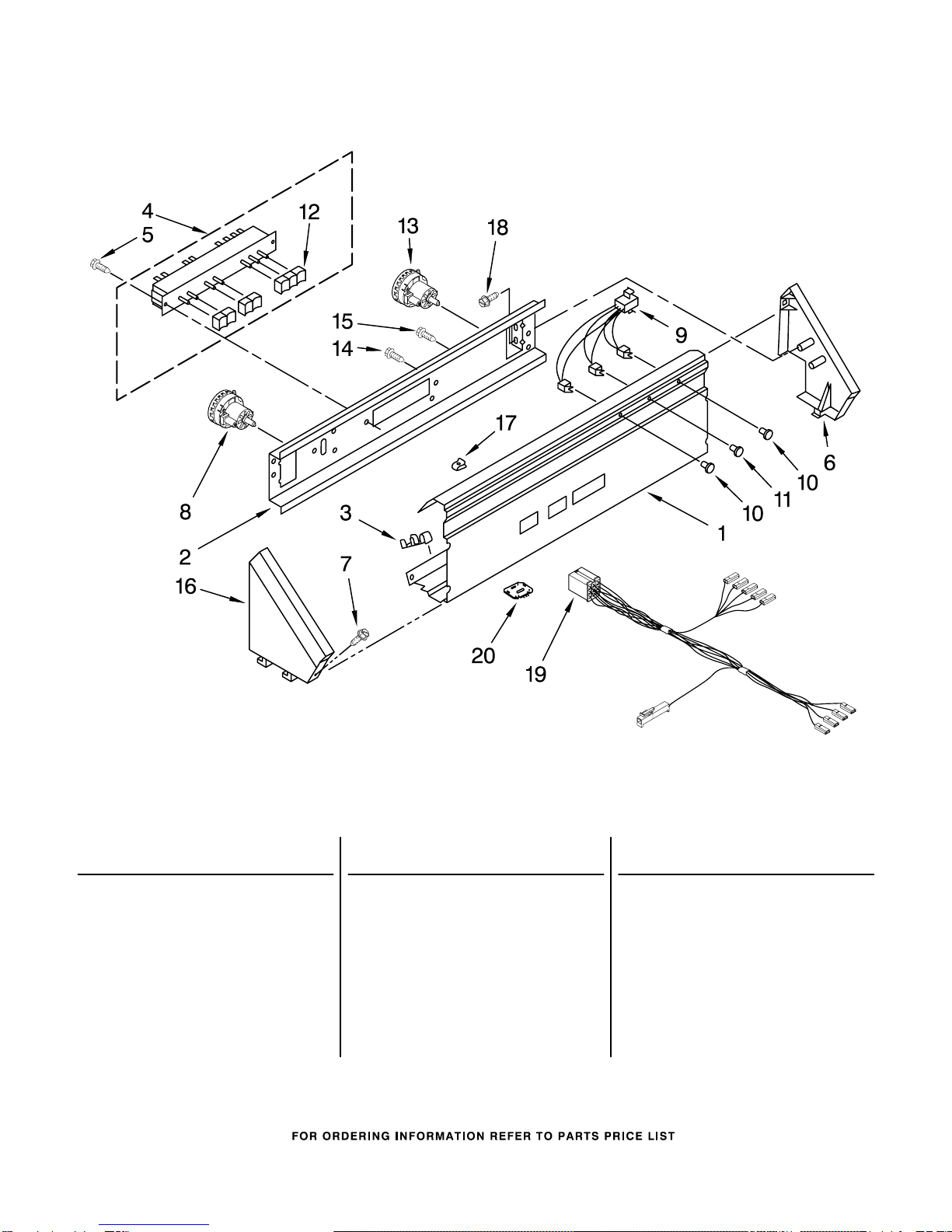

CONTROL PANEL PARTS

For Models: CAM2752TQ0, CAM2752TQ2

(White) (White)

W10114744

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8577883 Panel, Console

2 3978858 Bracket, Control

3 357572 Clip, Grounding

4 8577359 Switch, Cycle

Selector

(Includes Item 12)

5 3390646 Screw, 8−18 X 5/16

6 3949740 End Cap (R.H.)

7 8281182 Screw (2)

8 8573825 Pressure Switch,

High Water Level

(Includes "T"

Fitting−Not Shown)

9 3352457 Lights, Indicator

10 3348109 Lens, Amber (2)

11 3348110 Lens, Yellow (1)

12 8316433 Pushbutton (7)

13 8524802 Pressure Switch,

Low Water Level

14 3400073 Screw, 10−24 x 3/8

15 90767 Screw,

8−18 x 3/8 (2)

16 3949734 End Cap (L.H.)

17 689559 Nut, Push−In (2)

18 97787 Screw, End Cap

To Bracket (4)

W10138030

Harness, Console

Wiring

20 8578168 Control,

Automatic Temp.

(ATC)

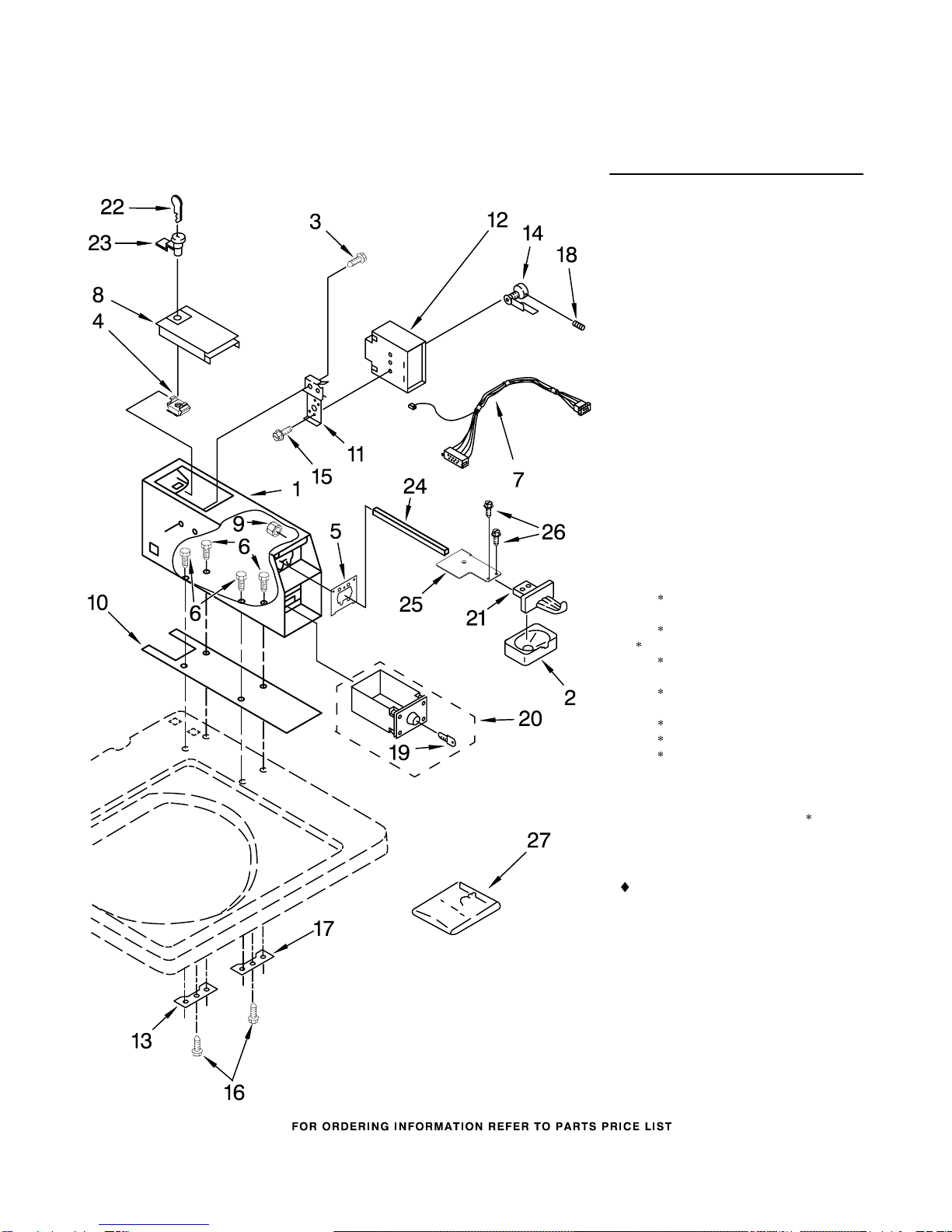

METER CASE PARTS

5W10114744

For Models: CAM2752TQ0, CAM2752TQ2

(White) (White)

Illus. Part

No. No. DESCRIPTION

1 3406994 Meter Case

2 385421 Funnel, Coin

3 339805 Screw,

10−32 X 3/16

4 90406 Nut, Cage

5 3954761 Plate, Adapter

(Includes Item 2)

6 Bolt, Meter Case

3353994 5/16−18 x 2.5 (1)

3349065 5/16−24 x 1 (3)

W10138351

Wire Harness,

Timer

8 3351136 Door, Service

9 3400029 Nut, Adapter

Plate (3)

10 3954812 Cushion, Case

11 385575 Bracket, Timer

W10112081

Timer, 60 Hz.

13 3353813 Plate, Mounting

14 385571 Clutch, Timer

354987 E−Ring

15 3400064 Screw, Timer

16 98445 Screw, 10−16 x 3/4

17 3347825 Plate, Mounting

18 98654 Screw, Set (2)

19 Key, Money Box

20 8316525 Money Box

(Includes Item 19)

21 8316520 Coin Chute

22 W10114740 Key, Service Door

23 8316526 Security Lock &

Cam Assembly

24 8318517 Bolt,

Coin Chute

25 8316522 Extension

26 3400086 Screw, 10−32 x 3/8

27 8316524 Kit,

Chute Decal

Coin Mechanism Parts May Be

Ordered From Whirlpool ( )

Or Vendor(s) Listed Below

ESD

270 New Jersey Dr.

Fort Washington, PA

19034

1−800−523−1510

info esdcoin.com

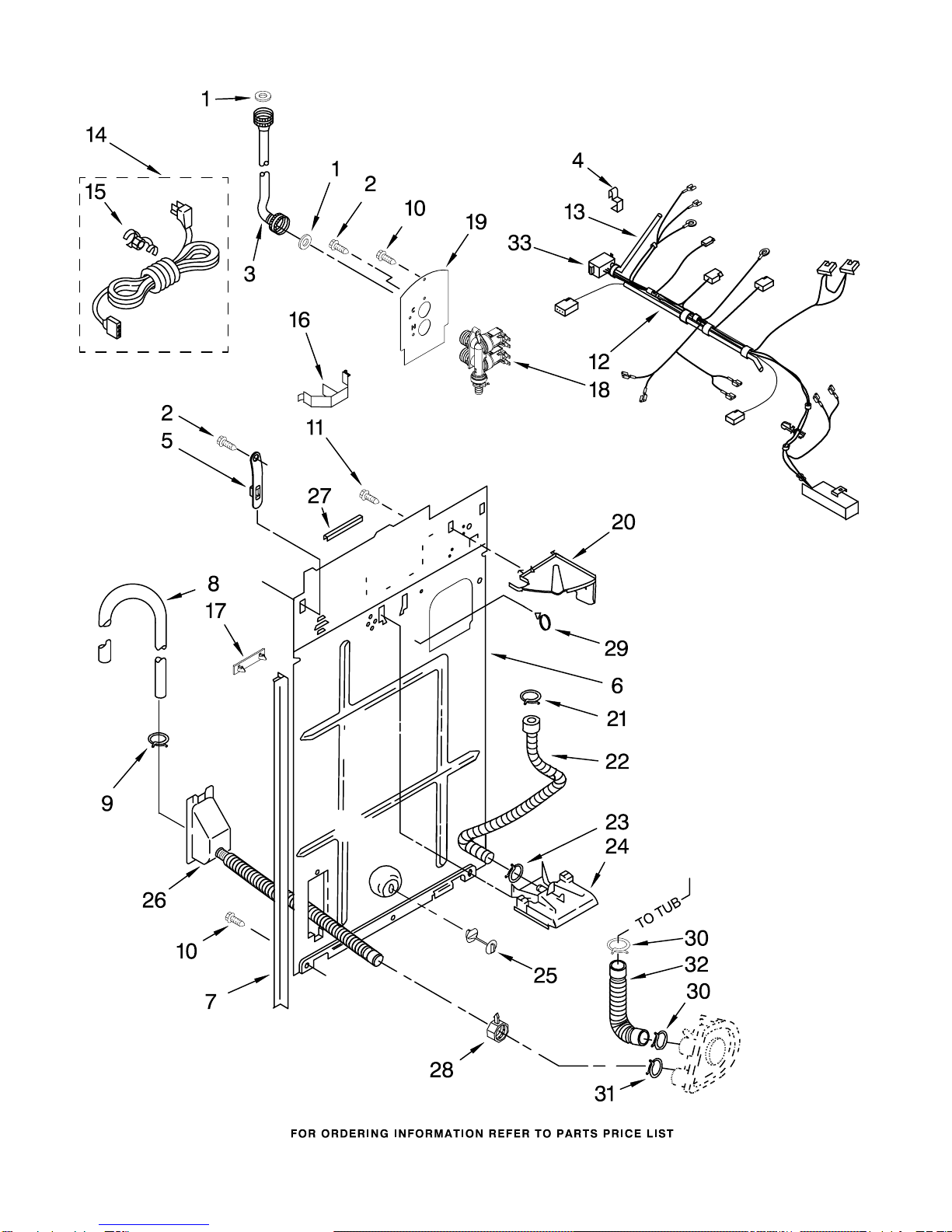

REAR PANEL PARTS

For Models: CAM2752TQ0, CAM2752TQ2

(White) (White)

W10114744

REAR PANEL PARTS

7W10114744

For Models: CAM2752TQ0, CAM2752TQ2

(White) (White)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 9740848 Screw, 8−18 x 1/2

3 Hose, Water

Inlet

3949380 Blue Coupler

3949381 Red Coupler

4 8282518 Clip, Harness

5 8568314 Strap, Console (2)

6 8541649 Panel, Rear

(Includes

Items, 5,15 & 35)

7 3354204 Pad,

Rear Panel (2)

8 96743 Hose, Drain

(4’)

9 371507 Clamp, Hose

10 62863 Screw, 10−16 x 3/8

11 3351614 Screw, 10−24 X 3/8

12 8524801 Hose, Pressure

Switch To Air Dome

13 8524791 Hose, Pressure

Switch Link

14 3976231 Cord, Power

15 3952821 Strain Relief,

Power Cord

To Rear Panel

16 8055003 Clip, Harness

& Pressure Hose

17 389379 Retainer (2)

Side/Feature Panel

18 3979347 Valve, Water Inlet

& Thermistor Assy.

19 8541624 Plate, Mixing

Valve

20 8539874 Shield, Suds

21 301958 Clamp, Hose

22 8317974 Hose, Vacuum

Break

23 370450 Clamp, Hose

24 387606 Break, Vacuum

25 8519200 Support, Rear

Panel

26 8317940 Drain Hose

Assembly

(Includes

Item 28)

W10096784

Edge Protector

28 3976395 Restraint, Hose

29 8559320 Restraint, Hose

30 3363366 Clamp, Hose

31 3366912 Clamp, Hose

32 3951449 Hose, Pump To Tub

(Includes

Item 30)

W10114216

Harness, Wiring

(Includes

Items 12 & 13)

(For Detail See

Pages 12 & 13)

FOLLOWING PARTS

NOT ILLUSTRATED

3954579 Miscellaneous

Parts Bag

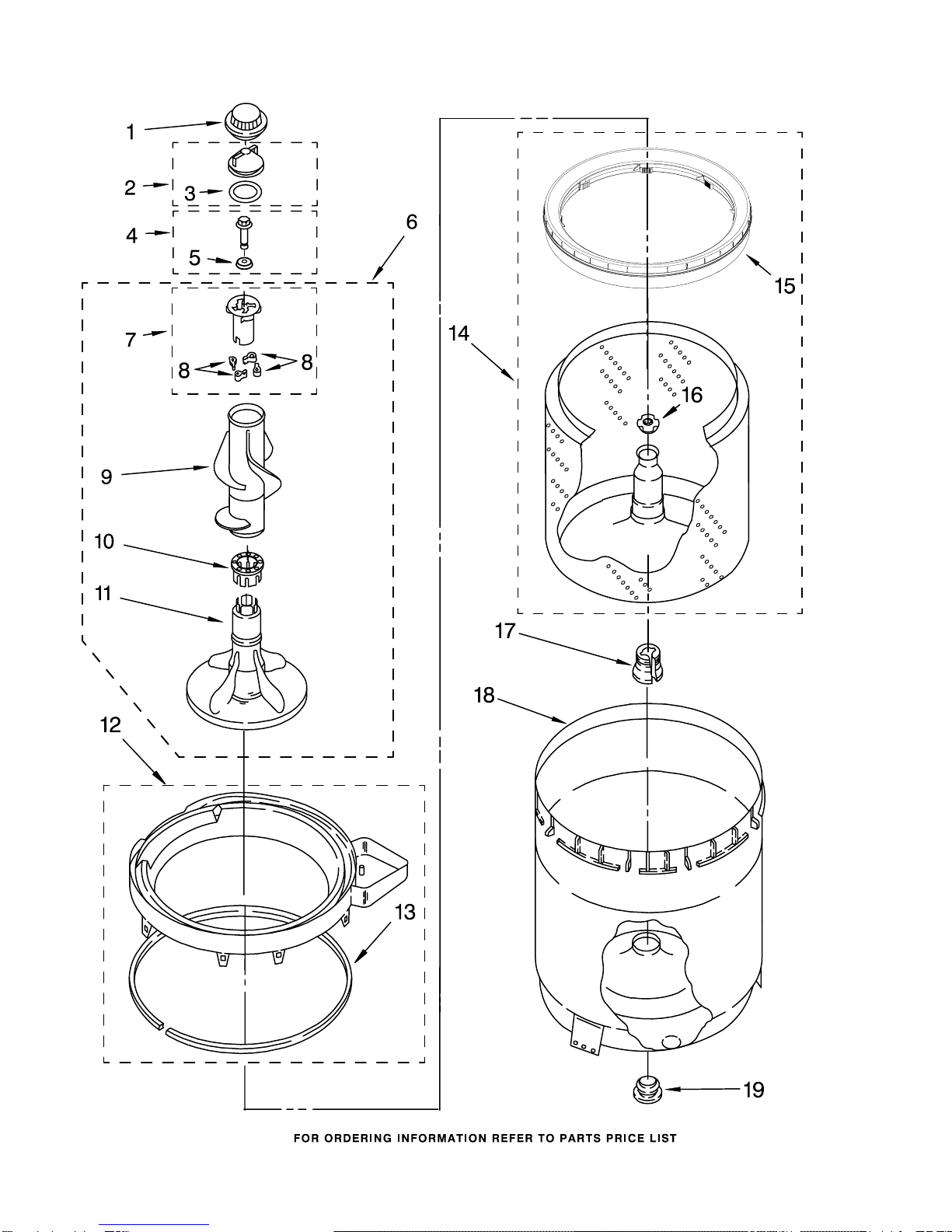

AGITATOR, BASKET AND TUB PARTS

W10114744

For Models: CAM2752TQ0, CAM2752TQ2

(White) (White)

AGITATOR, BASKET AND TUB PARTS

9W10114744

For Models: CAM2752TQ0, CAM2752TQ2

(White) (White)

Illus. Part

No. No. DESCRIPTION

1 3355758 Cap, Agitator

2 387094 Cap, Barrier

W10072840

Seal, Inner Cap

4 358237 Screw & Washer

(5/16−24 X 1)

5 3949550 Washer

6 3349743 Agitator

(Complete)

7 3947410 Cam, Driven

8 3366877 Dog, Agitator

Clutch (4)

9 3349610 Clothes Mover

10 3351014 Spacer, Thrust

11 3349578 Agitator

12 8528150 Tub Ring & Gasket

13 3976308 Gasket, Tub Ring

14 8526017 Basket & Balance

Ring

15 387240 Balance Ring

16 21366 Nut, Spanner

17 389140 Block, Basket

Drive

W10135425

Tub

19 383727 Gasket, Centerpost

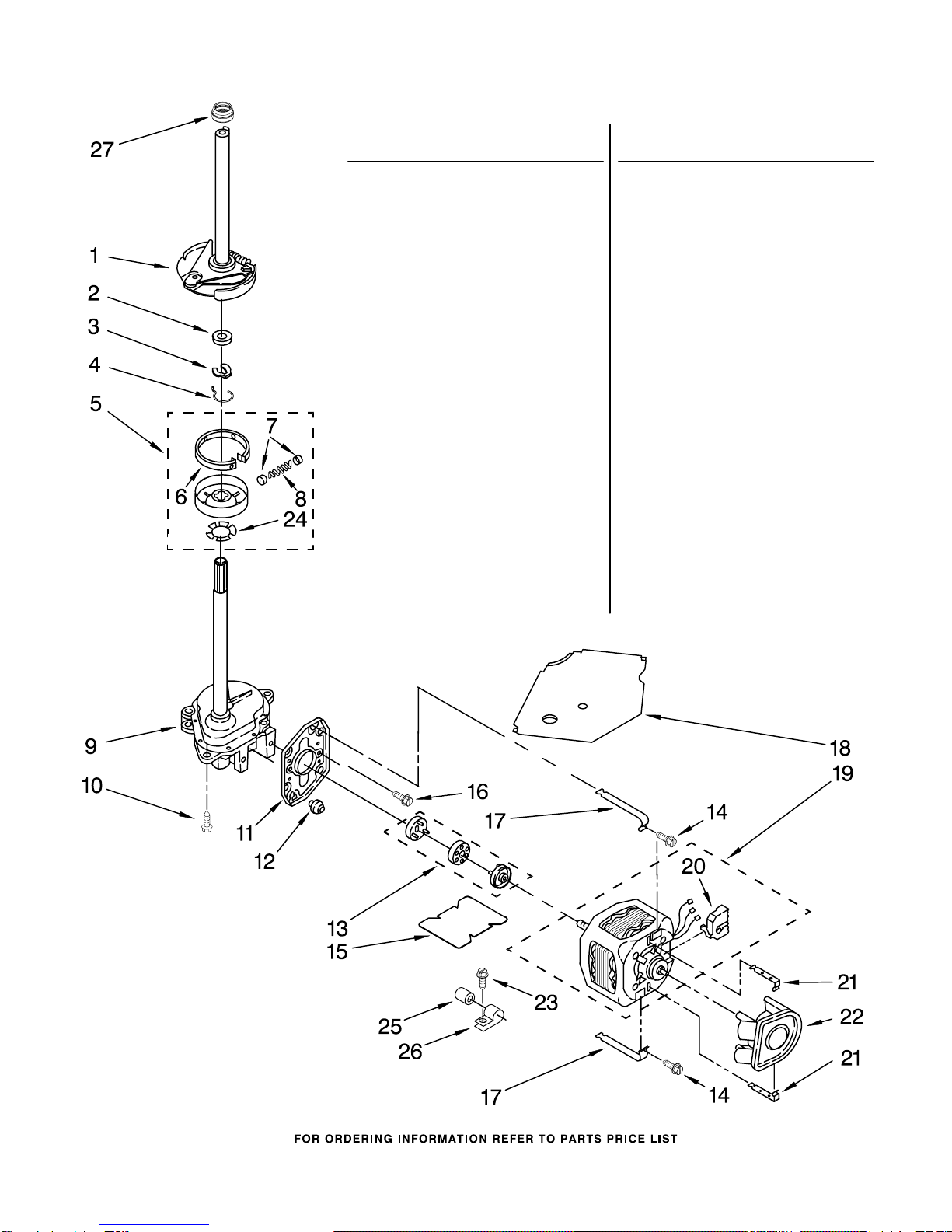

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

W10114744

For Models: CAM2752TQ0, CAM2752TQ2

(White) (White)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 14

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 E−Clip,

Clutch Retainer

5 8299642 Clutch (Complete)

6 3951993 Band & Lining,

Clutch (Includes

Items 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 8559387 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page

15 For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 3978849 Coupling, Motor

And Isolation

14 3387485 Screw (2)

#10−16 x 5/8

15 3946532 Shield, Motor

16 3400516 Bolt,

Motor Plate

W10086010

Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 661600 Motor, Main

Drive

20 62850 Switch, Main

Drive Motor

21 8546127 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 62863 Screw,

10−16 x 3/8

24 3355454 Clip, Anti−

Rattle

25 8572717 Capacitor

26 3949496 Clamp, Capacitor

27 8577374 Seal, Shaft
