Whirlpool LA6300XP User manual

AUTOMATIC

WASHER

Design 2000”

koWE,CaPacity

LA6300XP

rowave Ovens. Trash Compactors, Room Air Condltloners. Oehumldlfws. Automatic Washers. Clothes Oryers, Freezers, Relrlgerator-Free1

Parts and features

LAUNDRY TEMPERATURE

LOAD

SIZE CENTER

SELECTOR I /

MODEL

AND SERIAL

NUMBER PLATE

‘UtL

iERlAL

R PLATE

Iown)

LIQUID FABRIC

- SOFTENER DISPENSER

-AGITATOR

- BASKET

- LINT FILTER

(Not Shown)

- TUB

Remove the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

basket with a damp cloth

before using to remove

dust from storing or

shipping.

Copy your Model and Serial Numbers here

When youneed service or call with a ___-~-

questlon, have this informatlon ready

M:c,del K lrnbei

1. Complete Model and Serial Nun-

bers (from plate underthe IId near the -~

hinge).

Serial Nl.,?lber

2. Purchase date from sales

slip

Copy this Information in these spaces

Purchase Date

Keep this book in the Laundry Informa-

tion Center with your “Laundry Guide.”

sales

slip

and warranty

Service Company

Phone Number

There IS no warranty regtstratton to return Proof-of-purchase IS all

that

required for in-warranty service

Your responsibilities

Read this “Use and Care Guide”

and your “Laundry Guide” care-

fully for important use and safety

rnformation

You are personally responsible

for making sure that your

washer...

is installed by a qualifred Installer

is properly Installed and

leveled on a floor that con

support the weight’

connected to the right kind

of outlet, electric supply, water

supply and drain

properly grounded

used only for jobs normally

expected of home automatic

washers

IS properly maintarned

IS protected from the weather

and kept where the tempera-

ture will not fall below freezing

IS not run by children or anyone

unable to operate it properly

‘See the “Installation Instructions”

for complete information.

Contents

Page

PARTS AND FEATURES.

YOUR RESPONSIBILITIES

SAFETY FIRST

STARTING YOUR WASHER

WHAT HAPPENS IN EACH

CYCLE.

OTHER OPERATING

INSTRUCTIONS

For a Rinse and Spin

For a Drain and Spin

For q Soak or Pre-Wash

Liqurd Bleach Dispenser

Fabric Softener Dispenser.

Cleaning the Lint Filter

CARING FOR YOUR WASHER

Winterizing

IF YOU NEED SERVICE OR

ASSISTANCE.

1. Before Calling for

Assistance

2. If You Need Assistance

3. If You Need Service

4. If You Have a Problem

-2

XQ1985Whirlpool Corporation

Starting your washer

1 Measure and add detergent

2 Place sorted load In washer

3 Start washer

Select a Select WATER

1. LOAD SIZE

TEMPERATURES

Turn the knob to point at a setting

that describes the size of load you

want to wash

Set the knob anywhere on or

between EX SMALL (a few items)

and LARGE (a full load].

Match the wash water temperature

to the type of fabrics and soils being

washed

Recommended wash temperatures

can be found in vour “Laundrv Guide’:

DO NOT LOAD

ABOVE CLOTHES GUARD

NOTE: Use the LARGE water level

for best permanent press results.

LOAD SIZES AND WATER LEVELS

for best cleaning results, the

load must be able to move freely

in the water. Too big a load or too

little wafer can cause wear or

tearing of load items. ”

CAUTION :

DO NOT

OVERLOAD WASHER.

‘Approximate

fill with load.

(17.3 gals./655 L]’

(14.7 galsJ55.7 L)’

(12.1galsJ45.8 L)’

EXSMALL (9.5 gaW36.0 L)’

3. Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed in and turned only

clockwise.

6. Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows10 minutes of agitation in

the REGULAR Cycle.

Start the washer by pulling out

the ‘Control Knob. The washer

will fill to the level you set with

wash water of the selected

temperature. After filling, the

washer will agitate for the

selected number of minutes

To stop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

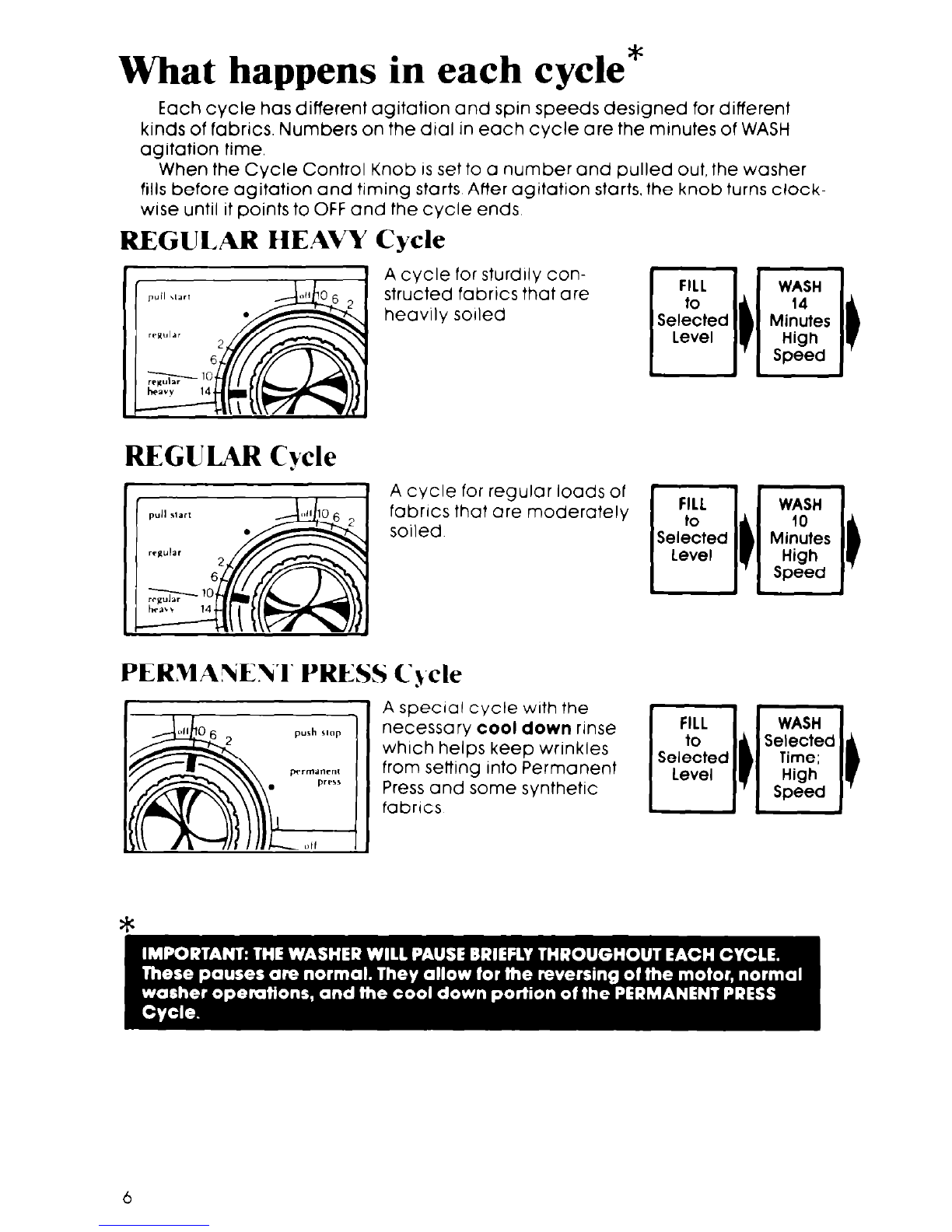

What happens in each cycle”

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob ISset to a number and pulled out, the washer

fills before aaitation and timina starts After aqitation starts, the knob turns clock-

wise until it points to OFF and the cycle ends -

REGULAR HEAVY Cycle

REIGULAR Cycle

A cycle for sturdily con-

structed fabrics that are

heavily solled

A cycle for regular loads of

fabrics that are moderately

soiled

PERMANENT PRESS Cl,cle

A special cycle with the

necessary cool down rinse

which helps keep wrinkles

from setting into Permanent

Press and some synthetic

fabrics

FILL WASH

rlrl

S$$d 1 h$~&s )

NOTE: You may hear the sound of water spraying during the spin parts of

some cycles. In some cycles, cold water ISsprayed on the spinning load to help

with the rinsing I

DRAIN-

[Pause) No

,gitation

-. ...

Low

Speed

4 Spray

Dincac

for

Deep

Rinse

High

Speed

SPIN

LOW

Speed

COOL

DOWN High

Speed

““U,

ent F

_I “Ob “Y

xess fat

KNITS/GENTLE Cycle

A cycle that gently washes

and spins delicate items

and washable knits.

SOAK AND PRE-WiSH Cycles

Brief periods of agitatton

and soak time help remove

heavy soils and certain

stains that need extra

pretreatment. Use recom-

mended amount of

detergent or pre-soa k

additive. The SOAK Cycle

should always be fol-

lowed by a Wash Cycle.

+Pre-wash setting begins here, (see pagelo).

Special care is needed when soaking or pre-washing laundry.

See your “Laundry Guide” for proper use of this cycle.

Other operating instructions

I I \

For a rime and spin

You may need an extra rinse and

sprn for heavily sorted loads which

need more detergent [Extra de-

tergent can require an extra rinse )

Push Control Knob In

Turnclockwlsetoany*onthedlal

See above drawing.

Pull Control Knob out

The washer will fill to selected

level, agitate 2 minutes, drain

and spin.

For a drain and spin

Your washer can be set to drain

and spin out water

. Push Control Knob In

. Turn clockwlse to the bar just before

OFF in any cycle See above

drawing.

Pull Control Knob out

The washer WIII drain and spin

For agitation and spin speeds In each cycle, see

Pages 6-9

For a soak or prewash

pm-warh /soak- L”

For best results, use warm water

for soaking or pre-washing stained

laundry Hot water can set stains.

Use recommended amount of

detergent or pre-soa k product

Push Control Knob in

Turn clockwise to point at a number

in the SOAK Cycle...use the 6-minutes

mark for a pre-wash.’

. Pull Control Knob out to start washer.

When the cycle ISover, add de-

tergent for the nexf selected wash

cycle The SOAK Cycle should

always be followed by a Wash

Cycle.

9 Set the washer and start the next

selected wash cycle

Important: See additional care information on page 7 of your

“Laundry Guide!’

* To start soak or pre-wash with agitation, the Cycle Control Knob must point to

a number in the SOAK Cycle, as indicated by the arrows.
