Whirlpool WGD7990XG0 User manual

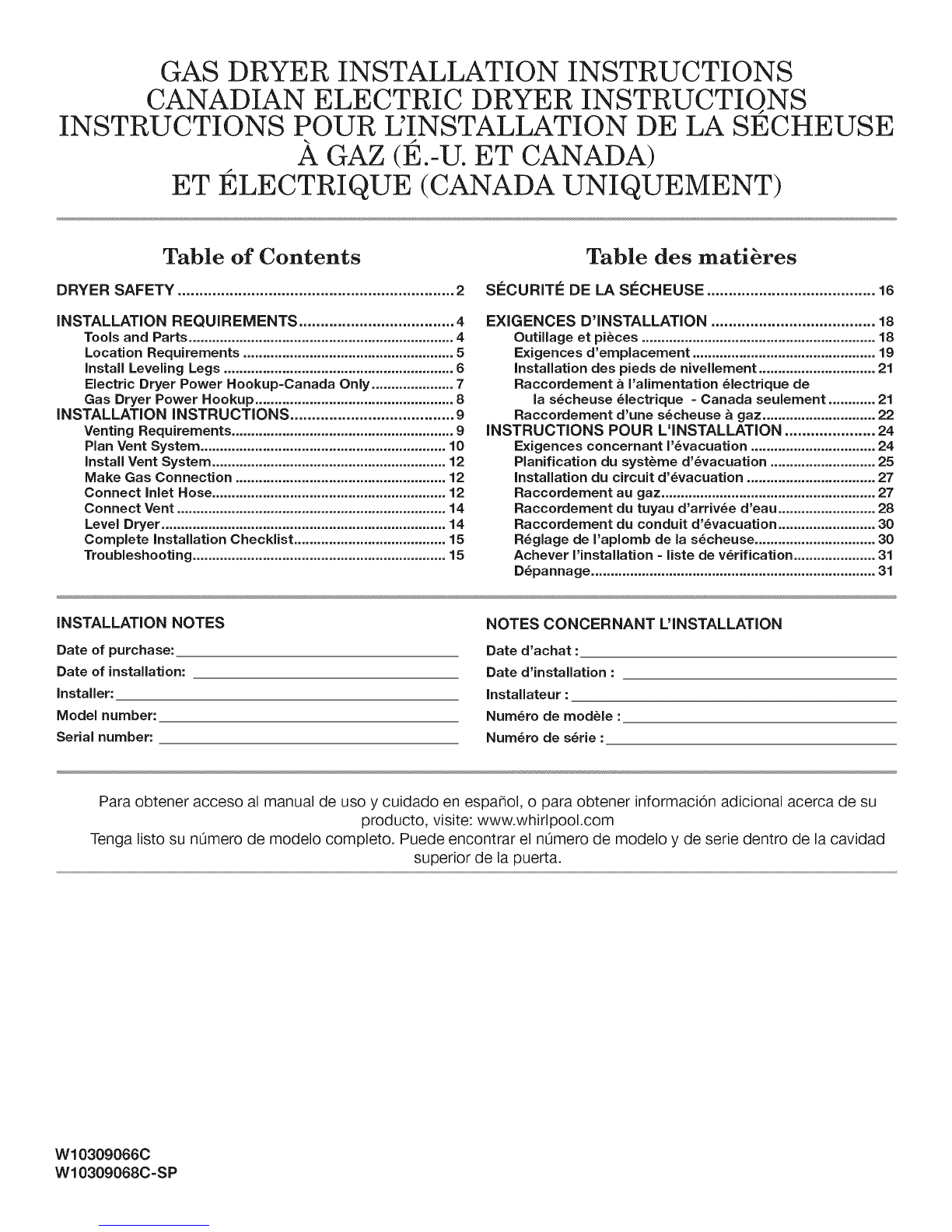

GAS DRYER INSTALLATION INSTRUCTIONS

CANADIAN ELECTRIC DRYER INSTRUCTIQNS

INSTRUCTIONS POUR UINSTALLATION DE LA SECHEUSE

GAZ (I_.-U. ET CANADA)

ET I_LECTRIQUE (CANADA UNIQUEMENT)

Table of Contents Table des matibres

DRYER SAFETY ................................................................ 2 SECURITE DE LA SECHEUSE ....................................... 16

iNSTALLATiON REQUIREMENTS .................................... 4

Tools and Parts .................................................................... 4

Location Requirements ...................................................... 5

install Leveling Legs ........................................................... 6

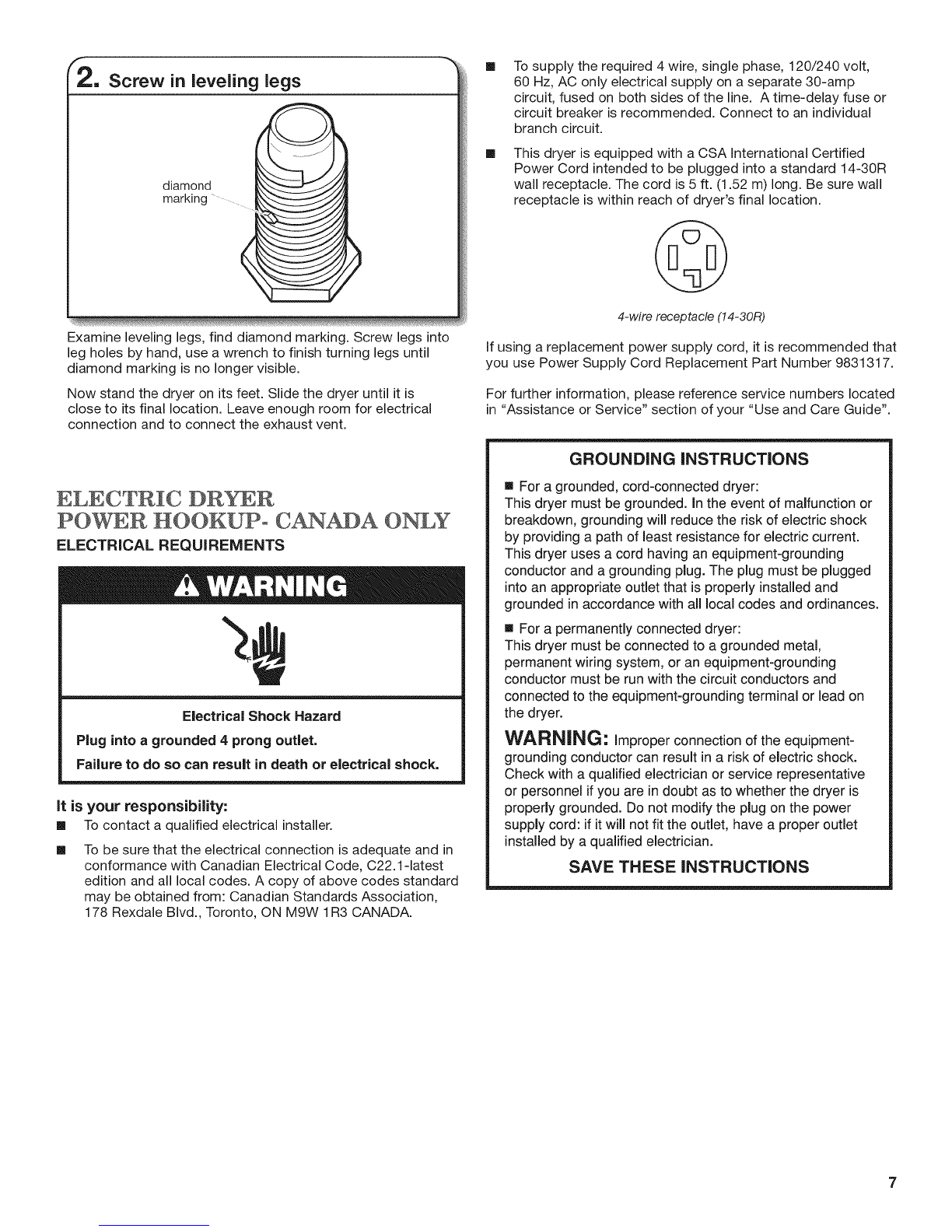

Electric Dryer Power Hookup-Canada Only ..................... 7

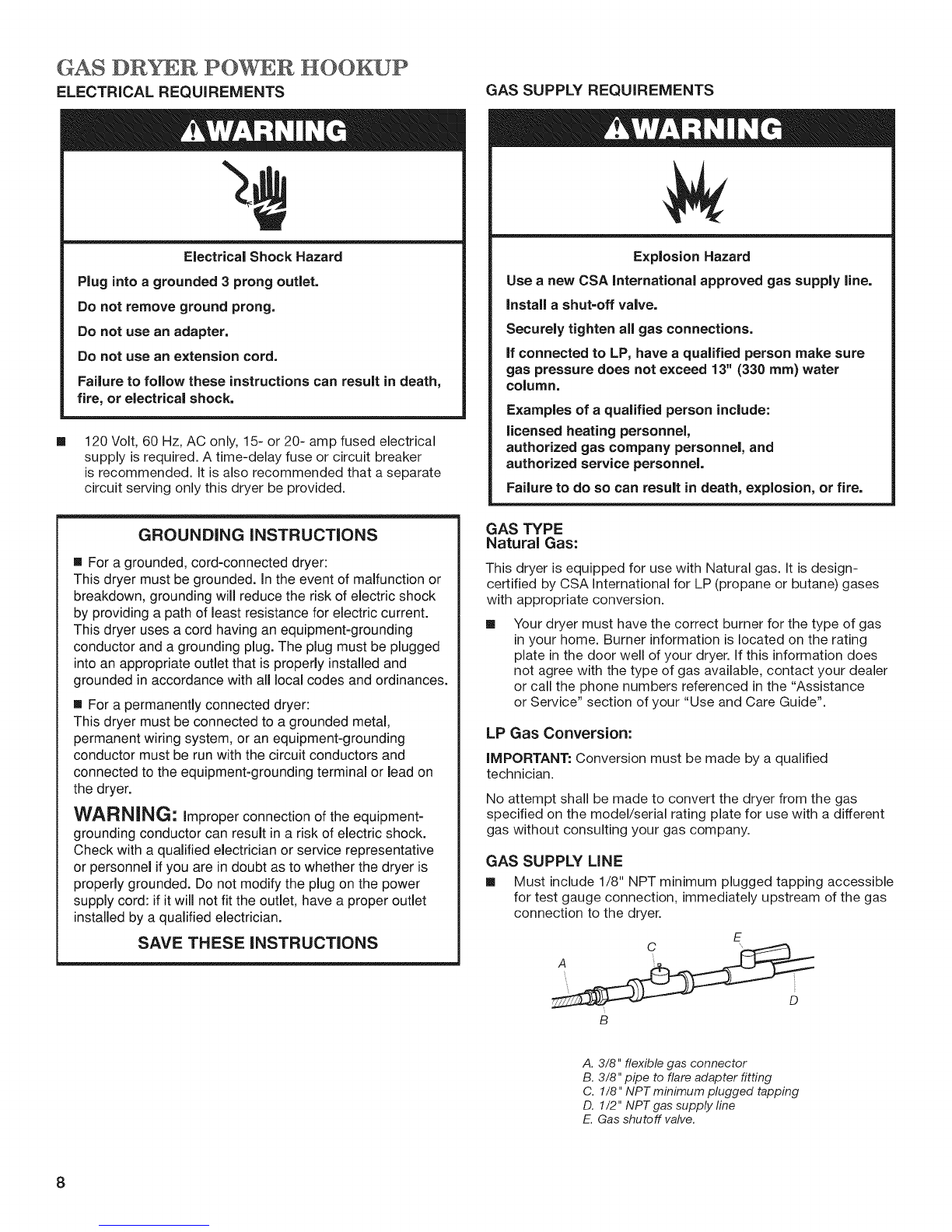

Gas Dryer Power Hookup ................................................... 8

iNSTALLATiON iNSTRUCTiONS ...................................... 9

Venting Requirements ......................................................... 9

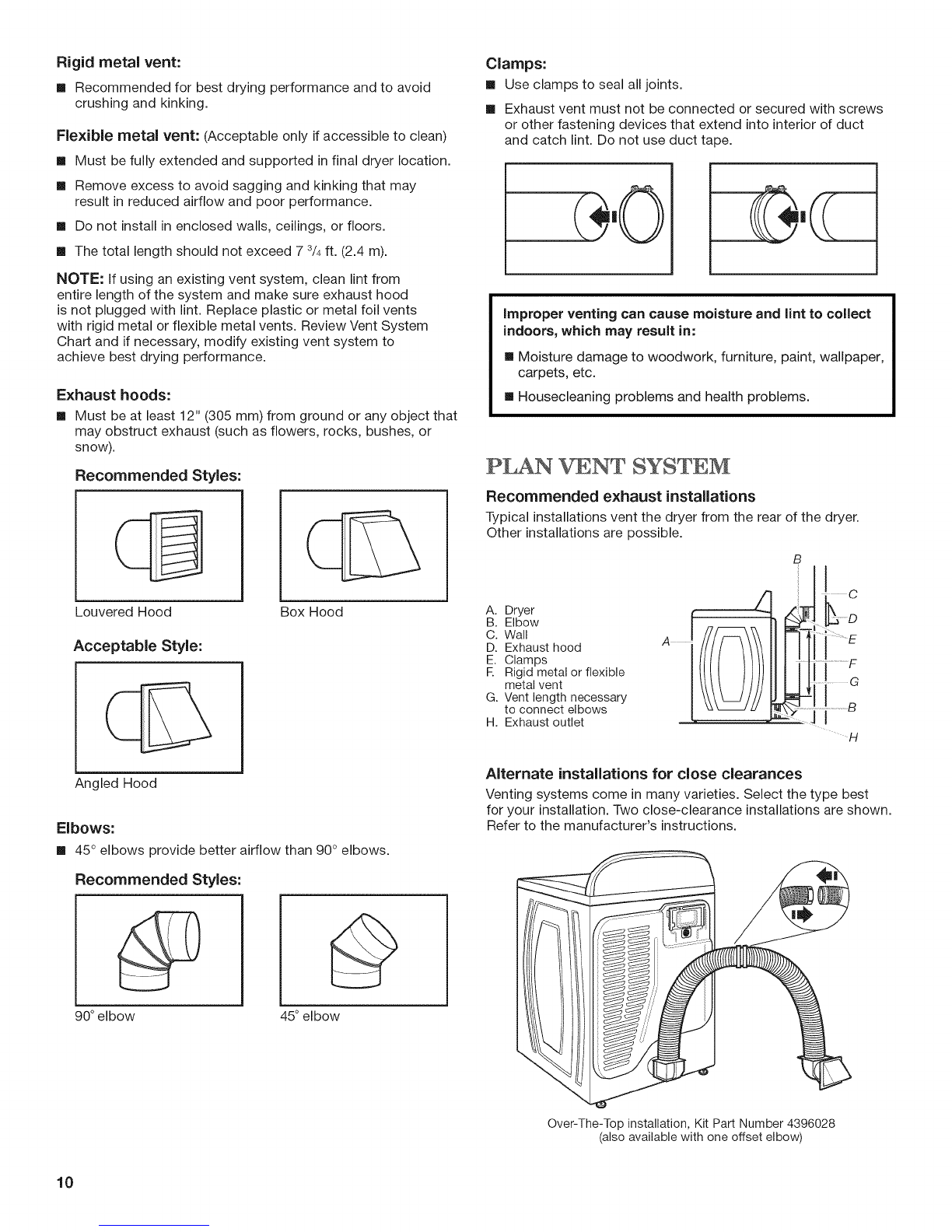

Plan Vent System ............................................................... 10

Install Vent System ............................................................ 12

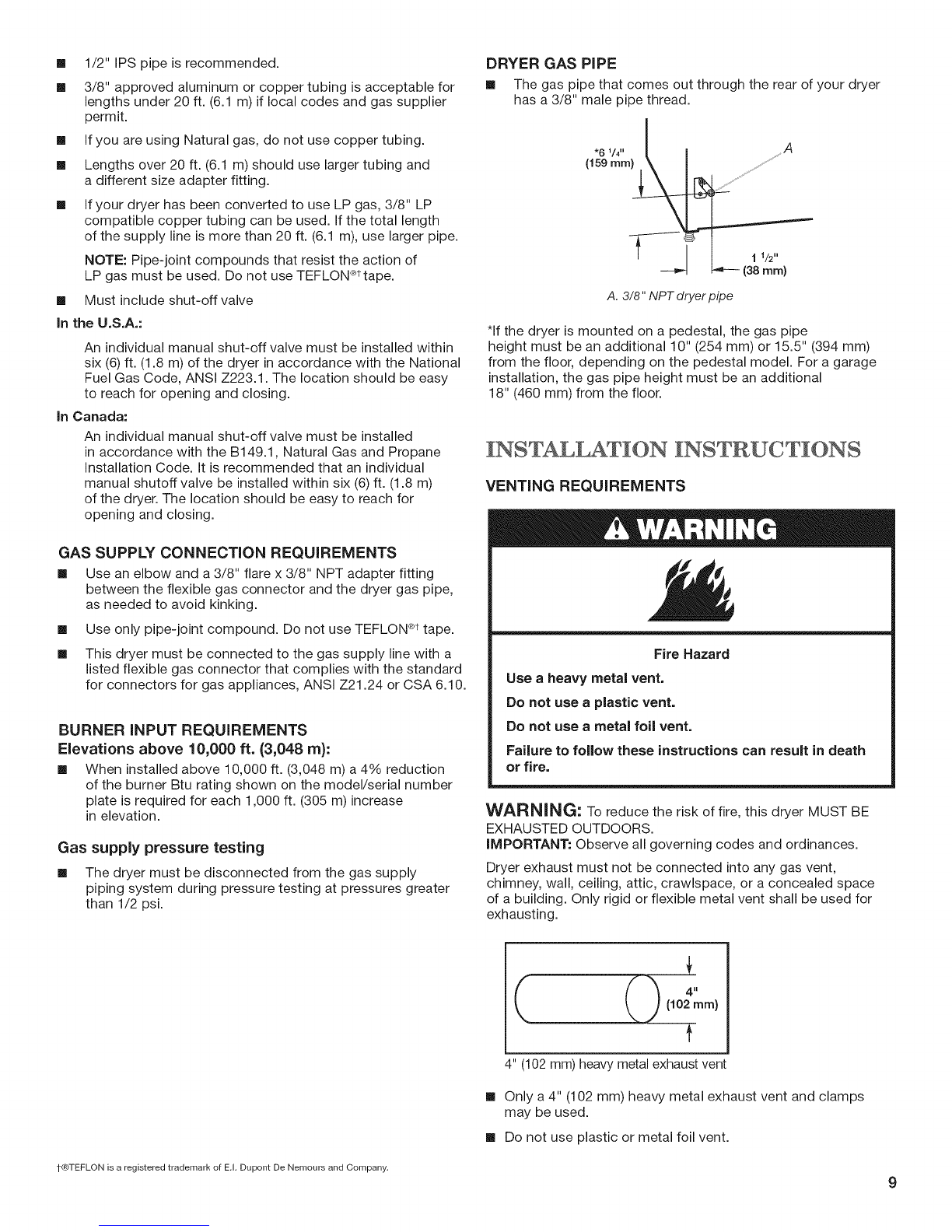

Make Gas Connection ...................................................... 12

Connect inlet Hose ............................................................ 12

Connect Vent ..................................................................... 14

Level Dryer ......................................................................... 14

Complete installation Checklist ....................................... 15

Troubleshooting ................................................................. 15

EXIGENCES D'INSTALLATION ...................................... 18

Outillage et pi_ces ............................................................ 18

E×igences d'emplacement ............................................... 19

installation des pieds de nivellement .............................. 21

Raccordement hI'alimentation _lectrique de

la s_cheuse _lectrique - Canada seulement ............ 21

Raccordement d'une s_cheuse h gaz ............................. 22

iNSTRUCTiONS POUR L'INSTALLATION ..................... 24

Exigences concernant I'_vacuation ................................ 24

Planification du syst_me d'_vacuation ........................... 25

installation du circuit d'_vacuation ................................. 27

Raccordement au gaz ....................................................... 27

Raccordement du tuyau d'arriv_e d'eau ......................... 28

Raccordement du conduit d'_vacuation ......................... 30

R_glage de I'aplomb de la s_cheuse ............................... 30

Achever I'installation - liste de v_rification ..................... 31

D_pannage ......................................................................... 31

iNSTALLATiON NOTES

Date of purchase:

Date of installation:

installer:

Model number:

Serial number:

NOTES CONCERNANT L'INSTALLATION

Date d'achat :

Date d'installation :

Installateur :

Num6ro de module :

Num6ro de s6rie :

Para obtener acceso al manual de uso y cuidado en espa_ol, o para obtener informaci6n adicional acerca de su

producto, visite: www.whirlpool.com

Tenga listo su nQmero de modelo completo. Puede encontrar el nQmero de modelo y de serie dentro de la cavidad

superior de la puerta.

W10309066C

W10309068C-SP

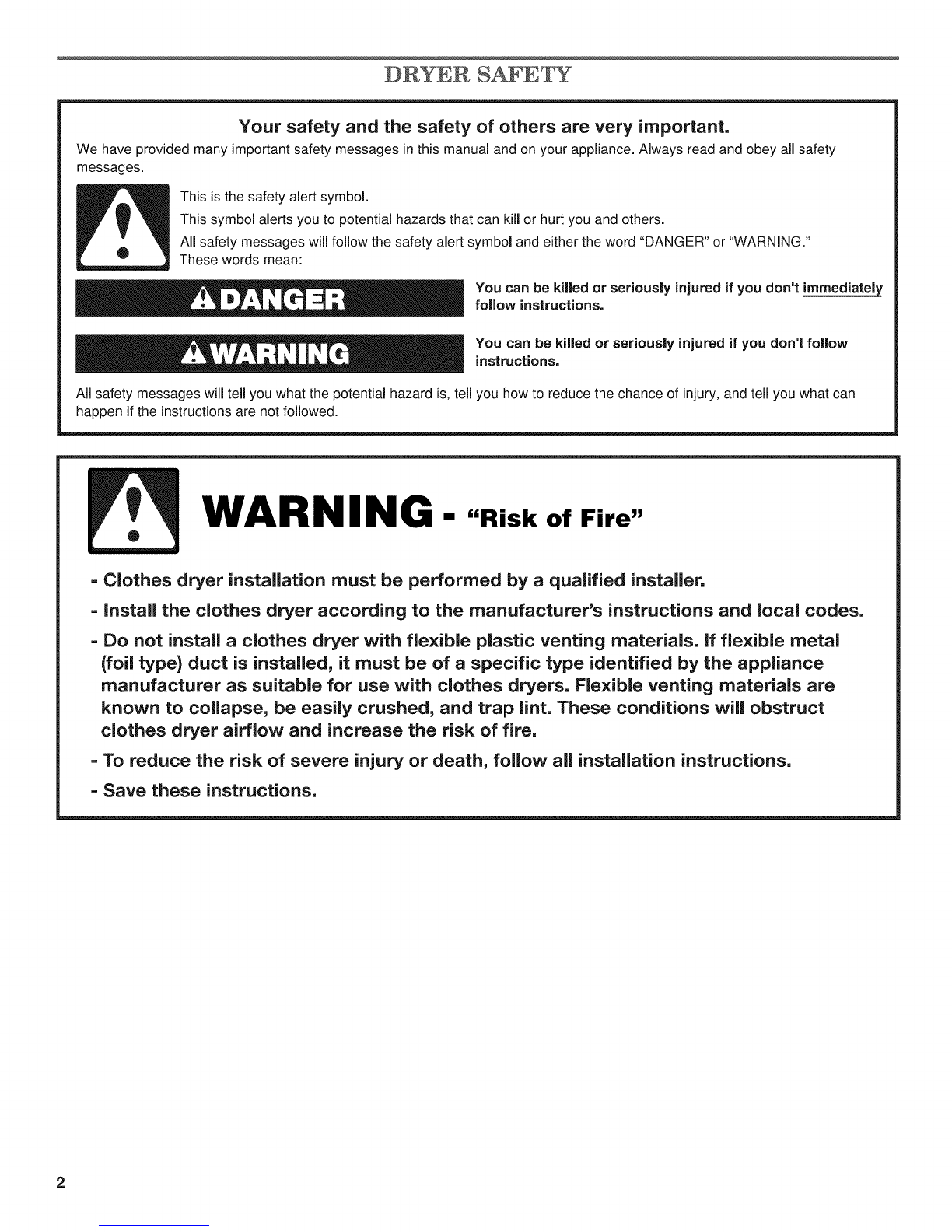

DRYER S_ETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

WARNING -"Risk of Fire"

- Clothes dryer installation must be performed by a qualified installer.

- install the clothes dryer according to the manufacturer's instructions and local codes.

- Do not install aclothes dryer with flexible plastic venting materials, if flexible metal

(foil type) duct is installed, it must be of a specific type identified by the appliance

manufacturer as suitable for use with clothes dryers. Fle×ible venting materials are

known to collapse, be easily crushed, and trap lint. These conditions will obstruct

clothes dryer airflow and increase the risk of fire.

- To reduce the risk of severe injury or death, follow all installation instructions.

- Save these instructions.

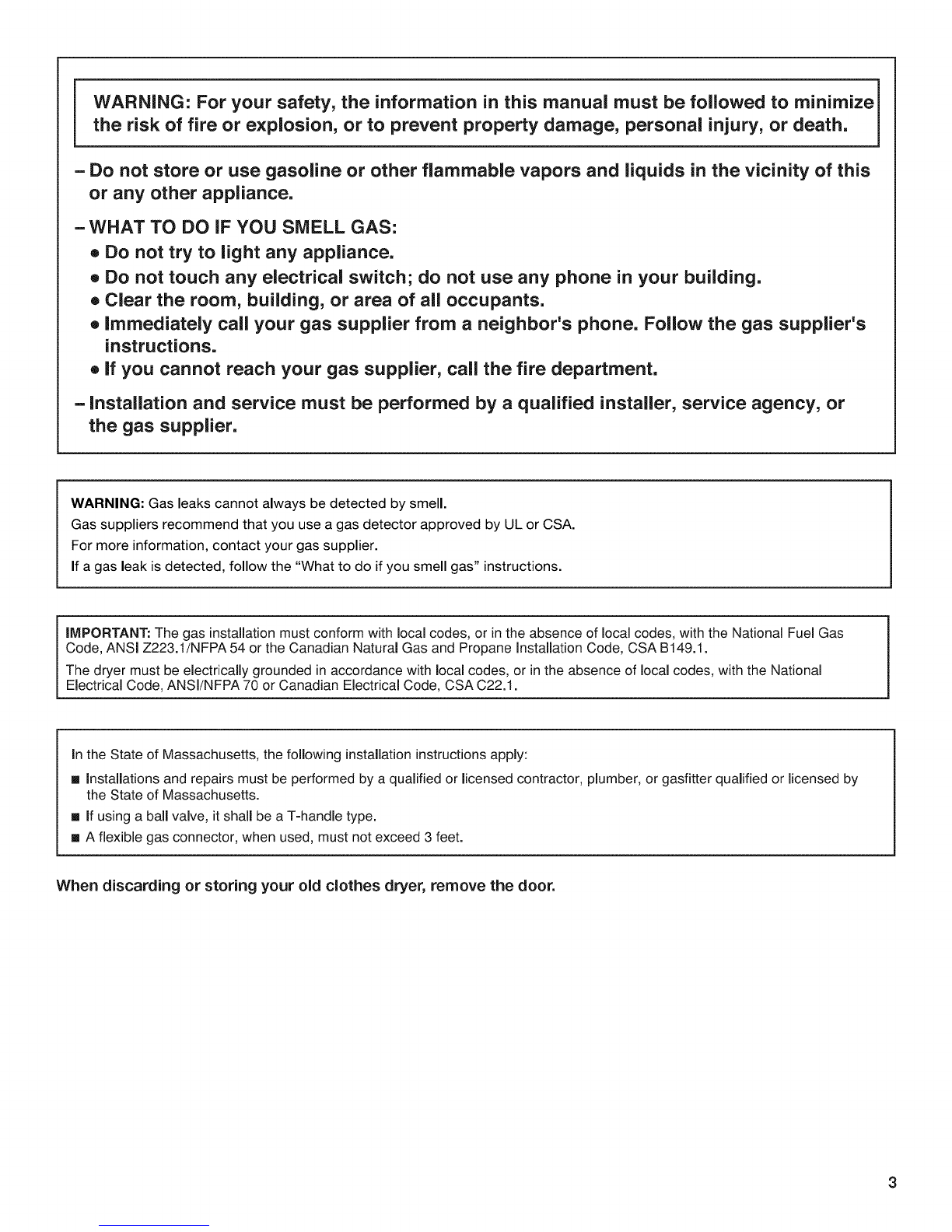

WARNING: For your safety, the information in this manual must be followed to minimize 1

the risk of fire or explosion, or to prevent property damage, personal injury, or death. 1

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this

or any other appliance.

- WHAT TO DO iF YOU SMELL GAS:

oDo not try to light any appliance.

•Do not touch any electrical switch; do not use any phone in your building.

®Clear the room, building, or area of all occupants.

•Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

=if you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service agency, or

the gas supplier.

WARNING: Gas leaks cannot always be detected by smell.

Gas suppliers recommend that you use a gas detector approved by UL or CSA.

For more information, contact your gas supplier.

If a gas leak is detected, follow the "What to do if you smell gas" instructions.

iMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas

Code, ANSi Z223.1/NFPA 54 or the Canadian Natural Gas and Propane Installation Code, CSA B149.1.

The dryer must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National

Electrical Code, ANSI/NFPA 70 or Canadian Electrical Code, CSA C22.1.

in the State of Massachusetts, the following installation instructions apply:

[] Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by

the State of Massachusetts.

[] if using a ball valve, it shall be a T-handle type.

[] A flexible gas connector, when used, must not exceed 3 feet.

When discarding or storing your old clothes dryer, remove the door.

INSTALLATION REQUIREMENWS

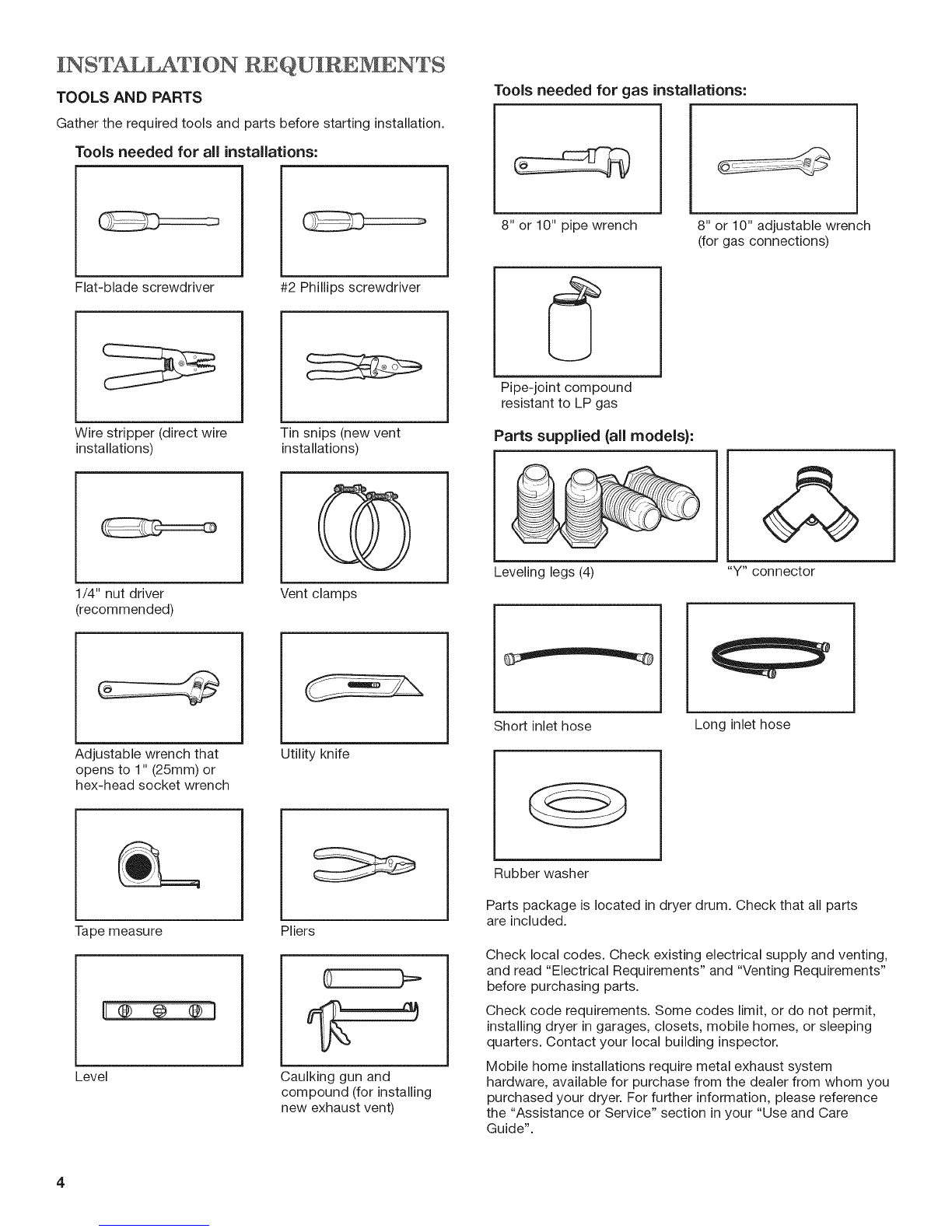

TOOLS AND PARTS

Gather the required tools and parts before starting installation.

Tools needed for all installations:

Tools needed for gas installations:

8" or 10" pipe wrench 8" or 10" adjustable wrench

(for gas connections)

Flat-blade screwdriver

Wire stripper (direct wire

installations)

1/4" nut driver

(recommended)

#2 Phillips screwdriver

Tin snips (new vent

installations)

Vent clamps

Pipe-joint compound

resistant to LP gas

Parts supplied (all models):

Leveling legs (4) "Y" connector

Adjustable wrench that

opens to 1" (25mm) or

hex-head socket wrench

Utility knife

Short inlet hose Long inlet hose

Tape measure Pliers

Level Caulking gun and

compound (for installing

new exhaust vent)

Rubber washer

Parts package is located in dryer drum. Check that all parts

are included.

Check local codes. Check existing electrical supply and venting,

and read "Electrical Requirements" and "Venting Requirements"

before purchasing parts.

Check code requirements. Some codes limit, or do not permit,

installing dryer in garages, closets, mobile homes, or sleeping

quarters. Contact your local building inspector.

Mobile home installations require metal exhaust system

hardware, available for purchase from the dealer from whom you

purchased your dryer. For further information, please reference

the "Assistance or Service" section in your "Use and Care

Guide".

if using apower supply cord:

Use a UL listed power supply cord kit marked for use with

clothes dryers. The kit should contain:

mA UL listed 30-amp power supply cord, rated 120/240 volt

minimum. The cord should be type SRD or SRDT and be at

least 4 ft. (1.22 m) long. The wires that connect to the dryer

must end in ring terminals or spade terminals with upturned

ends.

[] A UL listed strain relief.

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from dryer.

Place dryer at least 18 inches (460 mm) above the floor

for a garage installation.

Failure to do so can result in death, explosion, or fire.

You will need:

[]

A location allowing for proper exhaust installation.

See "Venting Requirements."

A separate 30 amp circuit.

If you are using power supply cord, a grounded electrical

outlet located within 2 ft. (610 mm) of either side of dryer.

See "Electrical Requirements."

A sturdy floor to support the total weight (dryer and load)

of 200 Ibs. (90.7 kg). The combined weight of a companion

appliance should also be considered.

Cold water faucets located within 4 ft. (1.2 m) of the water fill

valves, and water pressure of 20-100 psi (137.9-689.6 kPa).

You may use the water supply for your washer using the "Y"

conector and short hose (if needed) which are provided.

20-100 psi (138-690 kPa) for best performance.

Level floor with maximum slope of 1" (25 mm) under entire

dryer. (If slope is greater than 1" [25 mm], install Extended

Dryer Feet Kit, Part Number 279810.) If not level, clothes

may not tumble properly and automatic sensor cycles may

not operate correctly.

For a garage installation, you will need to place the dryer at

least 18" (460 mm) above the floor.

If you live in a hard water area, use of a water softener is

recommended to control the buildup of scale through the

water system in the dryer.

IMPORTANT: Do not operate your dryer at temperatures below

45°F (7°C). At lower temperatures, the dryer might not shut off at

the end of an automatic cycle. Drying times can be extended.

The dryer must not be installed or stored in an area where it will

be exposed to water and/or weather.

NOTE: No other fuel-burning appliance shall be installed in the

same closet as the dryer.

installation clearances:

The location must be large enough to allow the dryer door

to open fully.

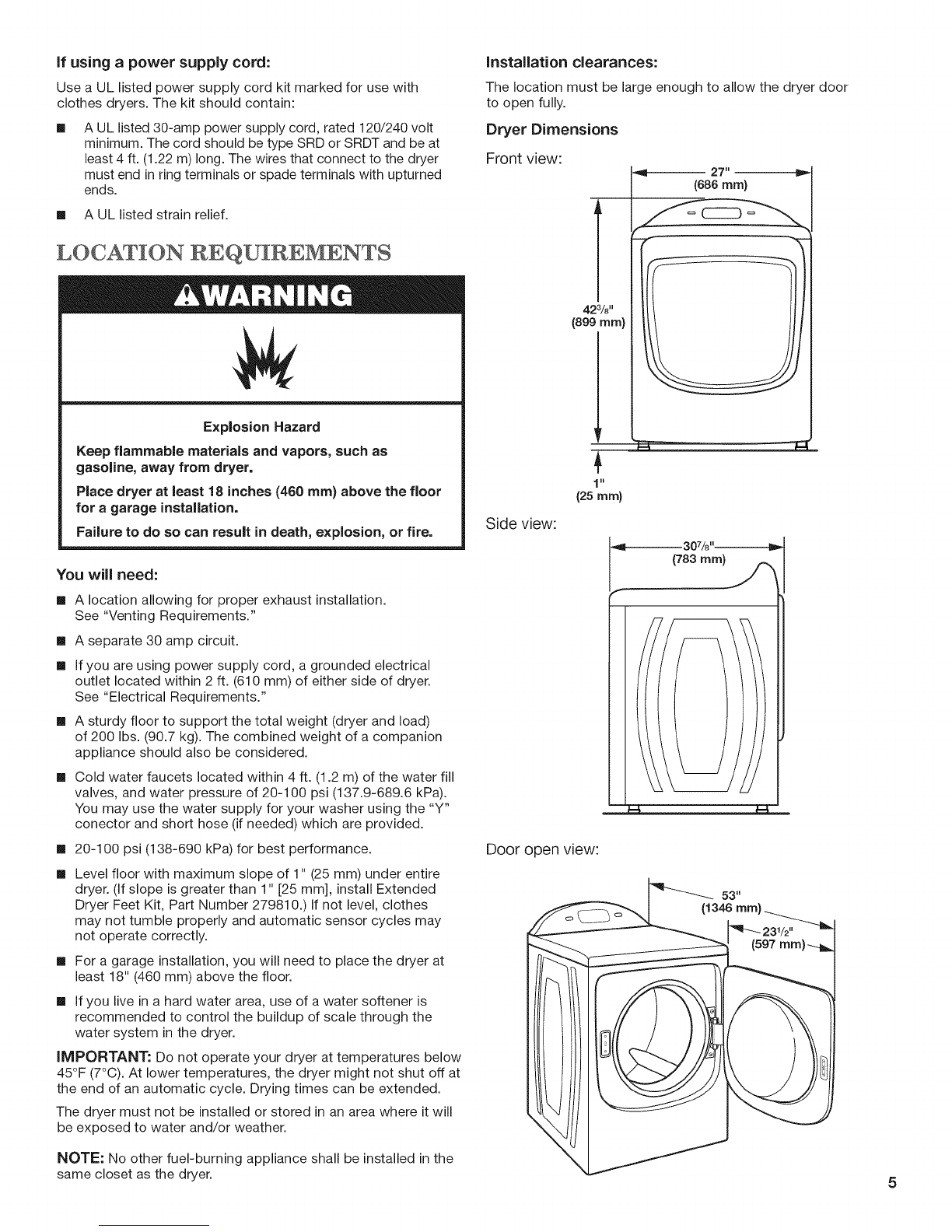

Dryer Dimensions

Front view: T

423/8"

(899 ram}

1 "

(25 ram)

(686 ram)

Side view:

Door open view:

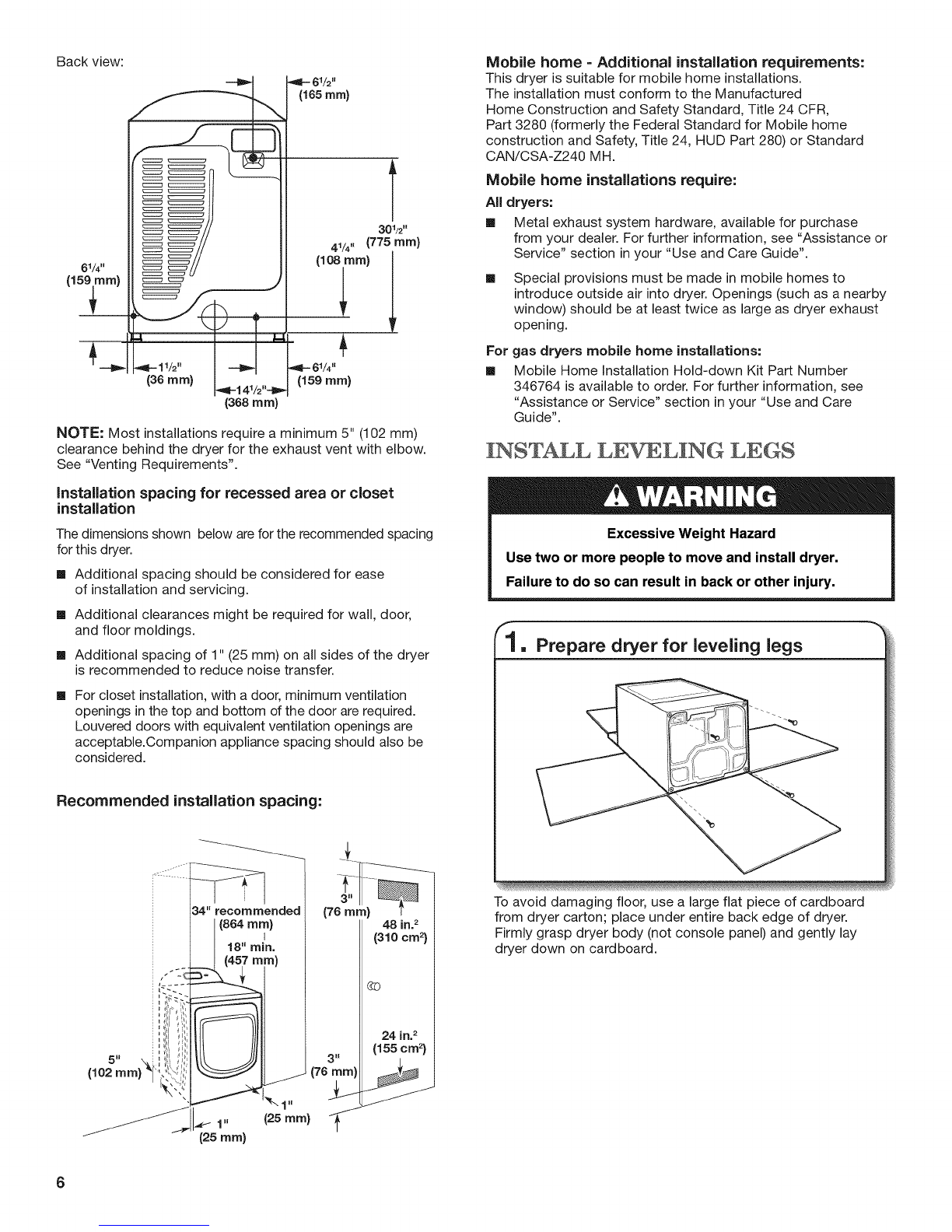

Back view:

41/4"

(108 ram)

301/2''

(775 ram}

NOTE: Most installations require a minimum 5" (102 mm)

clearance behind the dryer for the exhaust vent with elbow.

See "Venting Requirements".

Installation spacing for recessed area or closet

installation

The dimensions shown below are for the recommended spacing

for this dryer.

[] Additional spacing should be considered for ease

of installation and servicing.

[] Additional clearances might be required for wall, door,

and floor moldings.

[] Additional spacing of 1" (25 mm) on all sides of the dryer

is recommended to reduce noise transfer.

[] For closet installation, with a door, minimum ventilation

openings in the top and bottom of the door are required.

Louvered doors with equivalent ventilation openings are

acceptable.Companion appliance spacing should also be

considered.

Recommended installation spacing:

34" recommended

(864 ram)

18" rain.

_457 =

1 ii

(25ram)

48 in?

(310 cm2)

24 in?

(155 cm-3

Mobile home =Additional installation requirements:

This dryer is suitable for mobile home installations.

The installation must conform to the Manufactured

Home Construction and Safety Standard, Title 24 CFR,

Part 3280 (formerly the Federal Standard for Mobile home

construction and Safety, Title 24, HUD Part 280) or Standard

CAN/CSA-Z240 MH.

Mobile home installations require:

All dryers:

[] Metal exhaust system hardware, available for purchase

from your dealer. For further information, see "Assistance or

Service" section in your "Use and Care Guide".

[]

For

[]

Special provisions must be made in mobile homes to

introduce outside air into dryer. Openings (such as a nearby

window) should be at least twice as large as dryer exhaust

opening.

gas dryers mobile home installations:

Mobile Home Installation Hold-down Kit Part Number

346764 is available to order. For further information, see

"Assistance or Service" section in your "Use and Care

Guide".

INSTALL LE¥ LING LEGS

ExcessiveWeight Hazard

Usetwo or more people to move and install dryer.

Failureto do so can result in back or other injury.

.Prepare dryer for leveling legs

To avoid damaging floor, use a large flat piece of cardboard

from dryer carton; place under entire back edge of dryer.

Firmly grasp dryer body (not console panel) and gently lay

dryer down on cardboard.

Screw in leveling legs

diamond

marking ....... _ __ )

Examine leveling legs, find diamond marking. Screw legs into

leg holes by hand, use a wrench to finish turning legs until

diamond marking is no longer visible.

Now stand the dryer on its feet. Slide the dryer until it is

close to its final location. Leave enough room for electrical

connection and to connect the exhaust vent.

ELECTRIC DR R

POWER HOOKUP° ONLY

ELECTRICAL REQUIREMENTS

Electrical Shock Hazard

Plug into agrounded 4 prong outlet.

Failure to do so can result in death or electrical shock.

it is your responsibility:

[] Tocontact a qualified electrical installer.

[] To be sure that the electrical connection is adequate and in

conformance with Canadian Electrical Code, C22.1-1atest

edition and all local codes. A copy of above codes standard

may be obtained from: Canadian Standards Association,

178 Rexdale Blvd., Toronto, ON M9W 1R3 CANADA.

[]

To supply the required 4 wire, single phase, 120/240 volt,

60 Hz, AC only electrical supply on a separate 30-amp

circuit, fused on both sides of the line. A time-delay fuse or

circuit breaker is recommended. Connect to an individual

branch circuit.

This dryer is equipped with a CSA international Certified

Power Cord intended to be plugged into a standard 14-30R

wall receptacle. The cord is 5 ft. (1.52 m) long. Be sure wall

receptacle is within reach of dryer's final location.

4-wire receptacle (14-30R)

if using a replacement power supply cord, it is recommended that

you use Power Supply Cord Replacement Part Number 9831317.

For further information, please reference service numbers located

in "Assistance or Service" section of your "Use and Care Guide".

GROUNDING INSTRUCTIONS

[] For a grounded, cord-connected dryer:

This dryer must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock

by providing a path of least resistance for electric current.

This dryer uses a cord having an equipment-grounding

conductor and a grounding plug. The plug must be plugged

into an appropriate outlet that is properly installed and

grounded in accordance with all local codes and ordinances.

[] For a permanently connected dryer:

This dryer must be connected to a grounded metal,

permanent wiring system, or an equipment-grounding

conductor must be run with the circuit conductors and

connected to the equipment-grounding terminal or lead on

the dryer.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative

or personnel if you are in doubt as to whether the dryer is

properly grounded. Do not modify the plug on the power

supply cord: if it will not fit the outlet, have a proper outlet

installed by a qualified electrician.

SAVE THESE INSTRUCTIONS

GAS DR R POWER HOOKUP

ELECTRICAL REQUIREMENTS

[]

Electrical Shock Hazard

Plug into agrounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

120 Volt, 60 Hz, AC only, 15- or 20- amp fused electrical

supply is required. A time-delay fuse or circuit breaker

is recommended. It is also recommended that a separate

circuit serving only this dryer be provided.

GAS SUPPLY REQUIREMENTS

Explosion Hazard

Use a new CSA international approved gas supply line.

Install ashut=off valve.

Securely tighten all gas connections.

if connected to LP, have a qualified person make sure

gas pressure does not exceed 13" (330 ram)water

column.

Examples of a qualified person include:

licensed heating personnel,

authorized gas company personnel, and

authorized service personnel.

Failure to do so can result in death, explosion, or fire.

GROUNDING INSTRUCTIONS

[] For a grounded, cord-connected dryer:

This dryer must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock

by providing a path of least resistance for electric current.

This dryer uses a cord having an equipment-grounding

conductor and a grounding plug. The plug must be plugged

into an appropriate outlet that is propedy installed and

grounded in accordance with all local codes and ordinances.

[] For a permanently connected dryer:

This dryer must be connected to a grounded metal,

permanent wiring system, or an equipment-grounding

conductor must be run with the circuit conductors and

connected to the equipment-grounding terminal or lead on

the dryer.

WARNING: improper connection of the equipment-

grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative

or personnel ifyou are in doubt as to whether the dryer is

properly grounded. Do not modify the plug on the power

supply cord: if it will not fit the outlet, have a proper outlet

installed by a qualified electrician.

SAVE THESE INSTRUCTIONS

GAS TYPE

Natural Gas:

This dryer is equipped for use with Natural gas. It is design-

certified by CSA International for LP (propane or butane) gases

with appropriate conversion.

[] Your dryer must have the correct burner for the type of gas

in your home. Burner information is located on the rating

plate in the door well of your dryer. If this information does

not agree with the type of gas available, contact your dealer

or call the phone numbers referenced in the "Assistance

or Service" section of your "Use and Care Guide".

LP Gas Conversion:

iMPORTANT: Conversion must be made by a qualified

technician.

No attempt shall be made to convert the dryer from the gas

specified on the model/serial rating plate for use with a different

gas without consulting your gas company.

GAS SUPPLY LiNE

[] Must include 1/8" NPT minimum plugged tapping accessible

for test gauge connection, immediately upstream of the gas

connection to the dryer.

A. 3/8" flexible gas connector

B. 3/8" pipe to flare adapter fitting

C. 1/8" NPTminimum plugged tapping

D. 1/2" NPT gas supply line

E. Gas shutoff valve.

[]

1/2" IPS pipe is recommended.

3/8" approved aluminum or copper tubing is acceptable for

lengths under 20 ft. (6.1 m) if local codes and gas supplier

permit.

If you are using Natural gas, do not use copper tubing.

Lengths over 20 ft. (6.1 m) should use larger tubing and

a different size adapter fitting.

If your dryer has been converted to use LP gas, 3/8" LP

compatible copper tubing can be used. If the total length

of the supply line is more than 20 ft. (6.1 m), use larger pipe.

NOTE: Pipe-joint compounds that resist the action of

LP gas must be used. Do not use TEFLON<ettape.

[] Must include shut-off valve

in the U.S.A.:

An individual manual shut-off valve must be installed within

six (6) ft. (1.8 m) of the dryer in accordance with the National

Fuel Gas Code, ANSI Z223.1. The location should be easy

to reach for opening and closing.

in Canada:

An individual manual shut-off valve must be installed

in accordance with the B149.1, Natural Gas and Propane

Installation Code. It is recommended that an individual

manual shutoff valve be installed within six (6) ft. (1.8 m)

of the dryer. The location should be easy to reach for

opening and closing.

GAS SUPPLY CONNECTION REQUIREMENTS

[] Use an elbow and a 3/8" flare x 3/8" NPT adapter fitting

between the flexible gas connector and the dryer gas pipe,

as needed to avoid kinking.

[] Use only pipe-joint compound. Do not use TEFLON _*_ttape.

[] This dryer must be connected to the gas supply line with a

listed flexible gas connector that complies with the standard

for connectors for gas appliances, ANSI Z21.24 or CSA 6.10.

BURNER iNPUT REQUIREMENTS

Elevations above 10,000 ft. (3,048 rn):

[] When installed above 10,000 ft. (3,048 m) a 4% reduction

of the burner Btu rating shown on the model/serial number

plate is required for each 1,000 ft. (305 m) increase

in elevation.

Gas supply pressure testing

[] The dryer must be disconnected from the gas supply

piping system during pressure testing at pressures greater

than 1/2 psi.

DRYER GAS PiPE

[] The gas pipe that comes out through the rear of your dryer

has a 3/8" male pipe thread.

*6 1/4" A

(159 ram)

A. 3/8" NPT dryer pipe

*If the dryer is mounted on a pedestal, the gas pipe

height must be an additional 10" (254 mm) or 15.5" (394 mm)

from the floor, depending on the pedestal model. For a garage

installation, the gas pipe height must be an additional

18" (460 mm) from the floor.

INSTALLATION INSTRUCTIONS

VENTING REQUIREMENTS

Fire Hazard

Use a heavy metal vent,

Do not use a plastic vent.

Do not use ametal foil vent.

Failure to follow these instructions can result in death

or fire.

WARNING: To reduce the risk of fire, this dryer MUST BE

EXHAUSTED OUTDOORS.

iMPORTANT: Observe all governing codes and ordinances.

Dryer exhaust must not be connected into any gas vent,

chimney, wall, ceiling, attic, crawlspace, or a concealed space

of a building. Only rigid or flexible metal vent shall be used for

exhausting.

1®TEFLON is a registered trademark of E.I. Dupont De Nemours and Company.

[]

(102rnrn)

4" (102 ram) heavy metal exhaust vent

Only a 4" (102 mm) heavy metal exhaust vent and clamps

may be used.

Do not use plastic or metal foil vent.

Rigid metal vent:

[] Recommended for best drying performance and to avoid

crushing and kinking.

Flexible metal vent: (Acceptable only ifaccessible to clean)

[]

Must be fully extended and supported in final dryer location.

Remove excess to avoid sagging and kinking that may

result in reduced airflow and poor performance.

[] Do not install in enclosed walls, ceilings, or floors.

[] The total length should not exceed 7 3/4ft. (2.4 m).

NOTE: If using an existing vent system, clean lint from

entire length of the system and make sure exhaust hood

is not plugged with lint. Replace plastic or metal foil vents

with rigid metal or flexible metal vents. Review Vent System

Chart and if necessary, modify existing vent system to

achieve best drying performance.

Exhaust hoods:

[] Must be at least 12" (305 ram) from ground or any object that

may obstruct exhaust (such as flowers, rocks, bushes, or

snow).

Recommended Styles:

Louvered Hood

Acceptable Style:

Box Hood

Angled Hood

Elbows:

[] 45° elbows provide better airflow than 90° elbows.

Recommended Styles:

90°elbow 45° elbow

Clamps:

[] Use clamps to seal all joints.

[] Exhaust vent must not be connected or secured with screws

or other fastening devices that extend into interior of duct

and catch lint. Do not use duct tape.

Improper venting can cause moisture and lint to collect

indoors, which may result in:

[] Moisture damage to woodwork, furniture, paint, wallpaper,

carpets, etc.

[] Housecleaning problems and health problems.

PLAN SYSTEM

Recommended exhaust installations

Typical installations vent the dryer from the rear of the dryer.

Other installations are possible.

A. Dryer

B. Elbow

C. Wall

D. Exhaust hood A

E. Clamps

R Rigid metal or flexible

metal vent

G. Vent length necessary

to connect elbows

H. Exhaust outlet

J....jlLI_::_,, E

.... ...................F

.......... G

.......i.................B

Alternate installations for close clearances

Venting systems come in many varieties. Select the type best

for your installation. Two close-clearance installations are shown.

Refer to the manufacturer's instructions.

Over-The-Top installation, Kit Part Number 4396028

(also available with one offset elbow)

Table of contents

Languages:

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool NTSM1192SKUK User manual

Whirlpool

Whirlpool LDR3822D User manual

Whirlpool

Whirlpool W10115228C User manual

Whirlpool

Whirlpool LE4900XT User manual

Whirlpool

Whirlpool 3LG57OlXP User manual

Whirlpool

Whirlpool 8TWGD8620HW User manual

Whirlpool

Whirlpool WED9151YW User manual

Whirlpool

Whirlpool WGD8300S User manual

Whirlpool

Whirlpool 3LWED4800YQ User manual

Whirlpool

Whirlpool WED97HEDW User manual

Whirlpool

Whirlpool WGD5800SG0 User manual

Whirlpool

Whirlpool GGN2000H User manual

Whirlpool

Whirlpool WED5600VQ User manual

Whirlpool

Whirlpool Electric and Gas Dryers User manual

Whirlpool

Whirlpool 8535899 User manual

Whirlpool

Whirlpool Duet Steam WGD9600T User guide

Whirlpool

Whirlpool Easy Clean 100 Series User manual

Whirlpool

Whirlpool W11364660B User manual

Whirlpool

Whirlpool W10096895A User manual

Whirlpool

Whirlpool WGD71HEDW User manual

Whirlpool

Whirlpool GEW9250PT User manual

Whirlpool

Whirlpool LE5790XP User manual

Whirlpool

Whirlpool DUET W10224575B User manual

Whirlpool

Whirlpool Gold Resource Saver YGEW9877JQ1 User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
