Whirlpool LG5701XS User manual

AUTOMATIC

DRYERS

Electric Model

LE5700XS

and

Gas Model

LG5701XS

hCrOwaVe

Ovens, Trash Compactors. Room Air Condltloners. Oehumld~llers Automatic Washers Clothes Oryers. freezers Relrlgerator~Fr

Parts and features

CYCLE CONTROL KNOB

LAUNDRY INFORMATION CENTER

Remove the Con-

sumer Buy Guide label

before using your

dryer. It will be easier

to remove.

Wipe out the dryer

drum with a damp

cloth to remove dust

from storing or ship-

ping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

1. Complete Model and Serial Numbers

(from the plate located as shown].

2. Purchase date from sales slip.

Copy this information in these spaces.

Keep this book in the Laundry Information

Center with your “Dryer Guide:’ sales slip

and warranty

Model Number

Serial Number

Purchase Date

Service Company

Telephone Number

Please complete and mail the Owner Registration Card

furnished with this product.

Contents

Paae

-9-

PARTS AND FEATURES

IMPORTANT SAFETY

INSTRUCTIONS .

OPERATING INSTRUCTIONS..

Selecting a Cycle and

Starting Your Dryer

Dryer Cycles and Settings

Cool Down Times

DRYING TIPS

FLUFFAIR Setting

TUMBLE PRESS@Setting

Mixed Loads..

Drying Times

LINT SCREEN

LINT REMOVAL..

CARING FOR YOUR DRYER.

Cleaning Dryer Interior.

Vacation Care

IF YOU NEED SERVICE OR

ASSISTANCE

WHIRLPOOL DRYER

WARRANTY

Page

01987 Whirlpool Corporation

Additional Safety Instructions and Your Responsibilities

NEVER operate the dryer if... ALWAYS shut off the gas valve before leav-

it is not working right [i.e. noisy, too hot]. ing on vacation.

it is damaged. ALWAYS unplug the power supply cord or

parts are missing (i.e. door latch) turn off electrical power before attempting

all panels are not in place. to service the dryer. Shut off GAS VALVE if

. the lint screen is loose, damaaed or yours is a gas dryer.

missing.

FOR YOUR SAFETY

If you smell gas:

1. Open windows.

2. Don’t touch electrical

switches.

3. Fatttuish any open

4. Immediately call your

gas supplier.

FOR YOUR SAFETY

Do not store or use gas-

oline or other flammable

vapors and

liquids in the

vicinity of this or any other

appliance.

You are personally responsible for making

sure that your dryer...

is properly maintained.

is properly installed and leveled in a well

ventilated room* on a floor that can sup-

port the weight.

is located in an area where the tempera-

ture is above 45 F (7.2 C].

is connected to the proper outlet and

electrical supply.’

is properly connected to fuel and ex-

haust systems.’

is not installed against drapes or

curtains.*

is used only for jobs normally expected

of home clothes dryers.

is not used by children or anyone unable

to operate it properly.

*See LLlnstallation Instructions” for com-

plete information.

TYPE OF LOAD

COTTONS - LINENS

EXTRA HEAW - Bedspreads,

SUGGESTED SUGGESTED

CYCLE TEMPERATURE

mattress pads, quilts

HEAVYWEIGHT FABRICS - Towels,

jeans, corduroys, work clothes

MEDIUMWEIGHT COTTONS-

Sheets, pillowcases, cotton

underwear, diapers .

LIGHTWEIGHT COTTONS - Batistes,

EX HEAVY

HEAVY

MEDIUM

PERMIT

PRESS

HEAVY

HIGH

organdies, lingerie LIGHT

PERMANENT PRESS, SYNTHETICS PERM’T PRESS

AND BLENDS

HEAVYWEIGHT FABRICS - Work clothes,

jackets, raincoats . .

MEDIUMWEIGHT FABRICS - Shirts, play

clothes, sheets, slacks. ,

LIGHTWEIGHT FABRICS - Lingerie,

blouses, dresses

KNITS

HEAVYWEIGHT - Cottons, rayons,

blends,T-shirts, slacks, shirts

LIGHTWEIGHT - Synthetics (polyester,

acrylic, etc.) and blends, lingerie,

blouses,dresses.......................

LIGHTWEIGHT AND DELICATE FABRICS

40-50 MINS.

30-40 MINS.

20-30 MINS.

PERM’T PRESS

PERMIT

PRESS

HEAVY

HIGH

PERMIT PRESS

40-50 MINS. HEA,,Y HIGH

KNITS GENTLE

30-40 MINS. LOW

Sheer Curtains (2 or 3 panels) y;-&T;tf,;S KNITS GENTLE

Gauze. lace. etc. 15-20 MINS. LOW

RUBBER, PLASTIC, HEAT-SENSITIVE

FABRICS PERM’T PRESS

FOAM RUBBER- Pillows, bras,

stuffedtoys . . . . . . . . . . . . 20-30 MINS.

PLASTIC - Shower curtains, FLUFF

tablecloths............................ 20-30 MINS. AIR

RUBBER-BACKED RUGS 40-50 MINS.

OLEFIN, POLYPROPYLENE, SHEERNYLON 15-20 MINS.

. Select a CYCLE

Turn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for information on

the cycles.

. Push the START Button

The dryer will start tumbling when you

push the STARTButton.

The Cycle Control Knob should point 1

not in use. If the dryer is stopped before

Control Knob to an OFF area.

Set

. TEMPERATURE SELECTOR I

Turn the Temperature Selector to the

needed drying temperature

To stop and restart

the dryer

To stop the dryer, open the door (or

turn the Control Knob to OFF).

To restart the dryer, close the door,

select cycle, if necessary, and push

START.

‘0 an OFF area when the dryer is

the cycle is finished, turn the Cycle

Dryer cycles and settings Cool down times

The PERMANENT PRESS Cycle helps

provide the special care that perma-

nent press and synthetic fabrics

need...a period of heated drying

followed by a 10 minute cool down.

The chart on page 4 suggests time

and temperature settings for different

kinds of loads.

The EX HEAVY, HEAVY, MEDIUM and

LIGHT cycles describe the loads

they are designed to dry. The chart

on page 4 tells what is meant by

EX HEAVY, HEAVY, MEDIUM and LIGHT

loads.

At each sefting,the dryer will run

about long enough to dry the load

described by the setting. Example:

The HEAVY Cycle is designed to be

longenoughtodryaloadofheavy

fabrics (towels, jeans, corduroys, etc.)

when the Temperature Selector is set

on PERM’T PRESS/HEAVY HIGH.

MORE TIME LESSTIME - I

If the load is not as dry as you want,

set the dial more to the lefi the next

time you dry that kind of load.

If the load is dryerthan you want,

set the dial more to the right the next

time you dry that kind of load.

The PERMANENT PRESS Cycle has

10 minutes of cool down time at the

end of the cycle.

All other cycles have 5 minutes of

cool down time.

Drying tips

The dryer does not heat when the

Temperature Selector is set on FLUFF

AIR. This setting can be used to fluff

bedding, plastic tablecloths, foam

rubber pillows, stuffed toys, sneakers,

etc.

1. Turn the Temperature Selector to

FLUFFAIR.

2. Turn the Control Knob to the number

of minutes you want in the TIMED

DRYING Cycle.

TUMBLE PRESS” Setting

The TUMBLE PRESSsetting removes

wrinkles from dry clothing such as

items that may have been packed

in a suitcase, closet, or items not

removed from the dryer.

3. Push the STARTButton. 1. Set Temperature Selector to PERM’T

PRESS/HEAVY HIGH.

2. Set Control Knob to TUMBLE PRESS.

3. Push STARTButton.

The load will tumble in heated air

for 10 minutes. The heat shuts off and the

dryer continues to tumble the load

for 10 more minutes.

For best results, TUMBLE PRESSonly a

few items at a time. Put them on hang-

ers or fold them as soon as the dryer

stops.

Mixed loads Drying times

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest fab-

rics When the dryer stops, remove dry

items and reset the control.

Drying times will vary depending on:

amount of moisture in the clothes.

type and weight of the fabric.

size of load.

room temperature around the dryer.

temperature of the wash rinse water.

amount of lint in the lint screen.

dryer temperature selection.

See your “Dryer Guide” for more

information.

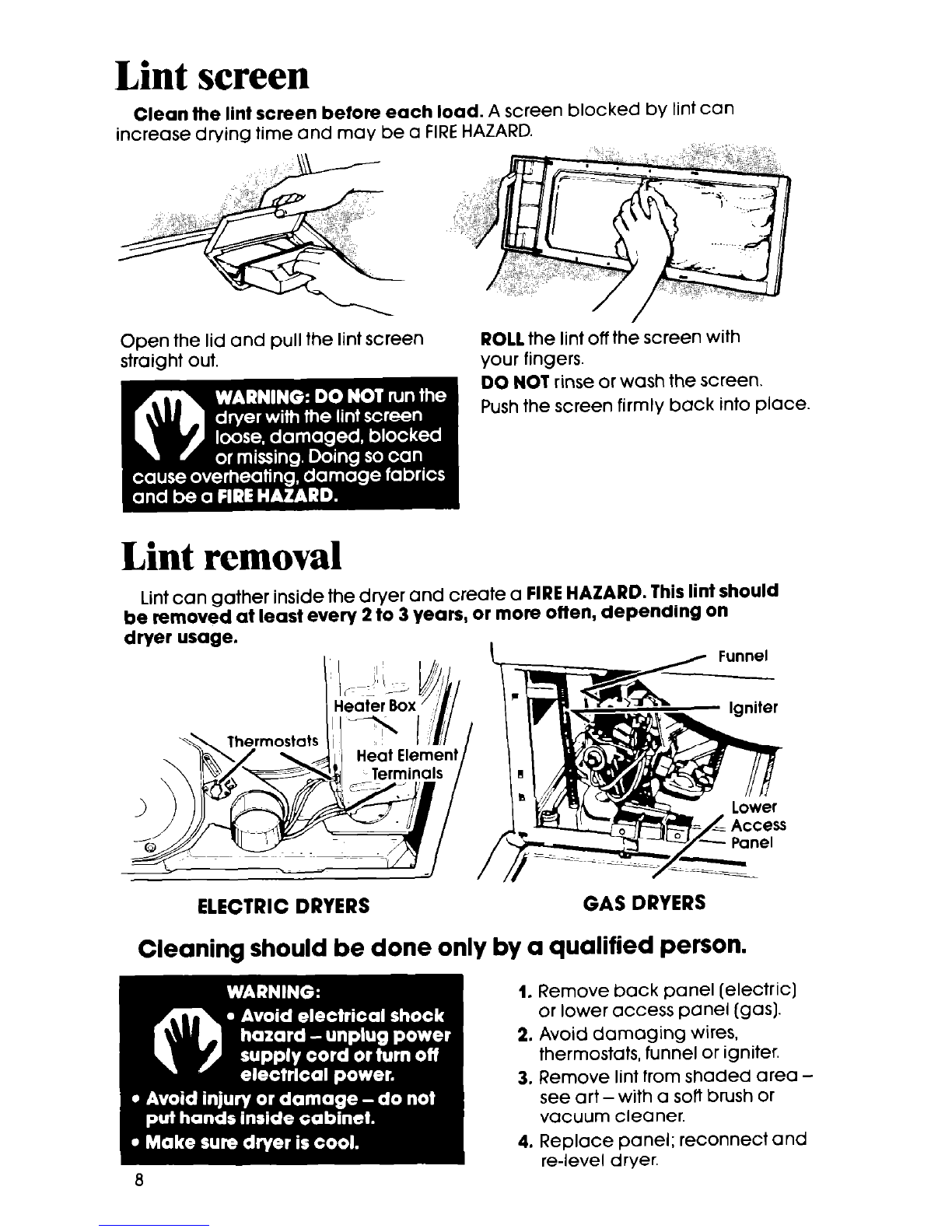

Lint screen

Clean the lint screen betore each load. A screen blocked by lint can

increase drying time and may be a FIREHAZARD. ‘E”, _;

Open the lid and pull the lint screen ROLL the lint off the screen with

your fingers.

DO NOT rinse or wash the screen.

Push the screen firmly back into place.

Lint removal

Lint can gather inside the dryer and create a FIRE HAZARD. This lint should

be removed at least every 2 to 3 years, or more otten, depending on

dryer usage. I

ELECTRIC DRYERS GAS DRYERS

Cleaning should be done only by a qualified person.

Caring for your

Remove loose and sharp objects

from pockets and cuffs before drying

pins, buckles, etc. Close metal

zippers.

Wipe off all spills with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never leave wet or damp laundry

in your dryer.

Sharp or heavy objects should

never be put on or in the dryer.

Check pockets for bolts, nuts etc.

Some pretreatment products can

damage dials, consoles and finish.

Do not use these products on or near

your dryer.

Cleaning dryer interior

Garments which contain unstable

dyes, such as denim blue jeans or

brightly colored cotton items, may

discolor the dryer interior. Ifthe

interior is discolored, clean with

one of the following methods to

avoid staining later load items.

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to

a soft cloth and scrub area until

all excess dye is removed. Wipe

thoroughly with a damp cloth.

Tumble a load of rags. -OR-

liquid spray household cleaner

Spray on stained area. Rub with

a cloth until all excess dye is

removed. Tumble a load of rags.

Vacation care

Unplug power cord or turn off

electrical power.

For gas dryers, close gas valve.

Clean lint screen. 9

If you need service or assistance, we

suggest_you follow these five steps:

Before calling for

assistance...

Performance problems often result

from little things you can find and fix

yourself without tools of any kind.

IF YOUR DRYER DOES NOT RUN:

Is the power supply plugged into a

live circuit with the proper voltage?

Is the door closed tightly?

Did you push the STARTButton?

Have you checked your home’s

main fuses or circuit breaker box?

IF YOUR DRYER DOES NOT HEAT:

The AIR setting is without heat.

The last minutes of heat settings are

without heat.

Is the gas turned on? If not, turn the

Control Knob to OFF. Turn on gas.

Wait 5 minutes. Reset controls and

start.

An electric dryer uses a circuit

breaker or 2 fuses. If one fuse is

blown, the dryer may run, but not

heat.

IF DRYING TIME SEEMS LONG:

Is the lint screen clean? See page 8

of this book for cleaning instructions.

See page 7 of this book and your

“Dryer Guide:’

This manual suits for next models

Table of contents

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool LEC8858EZ0 User manual

Whirlpool

Whirlpool LGT6634AW0 User manual

Whirlpool

Whirlpool LE5200XTW0 User manual

Whirlpool

Whirlpool WED5600XW0 User manual

Whirlpool

Whirlpool WED5900SB User manual

Whirlpool

Whirlpool GCEM2990TQ User manual

Whirlpool

Whirlpool WED7300XW User manual

Whirlpool

Whirlpool LGQ8000JQ5 User manual

Whirlpool

Whirlpool LE6090XSW1 User manual

Whirlpool

Whirlpool 3LCED9100 User manual

Whirlpool

Whirlpool 3LWED4705FW User manual

Whirlpool

Whirlpool HybridCare WHD862CHC User manual

Whirlpool

Whirlpool LET7646AQ2 User manual

Whirlpool

Whirlpool E9800XK User manual

Whirlpool

Whirlpool WED5500BW User manual

Whirlpool

Whirlpool YCEP2760KQ0 User manual

Whirlpool

Whirlpool LEV4624BW0 User manual

Whirlpool

Whirlpool LE5200XT User manual

Whirlpool

Whirlpool Duet WGD9200SQ0 User manual

Whirlpool

Whirlpool WED6600VU - 29-in Electric Dryer User manual

Whirlpool

Whirlpool Duet WED9600T Parts list manual

Whirlpool

Whirlpool WHD3090GW User manual

Whirlpool

Whirlpool WED8500DC User manual

Whirlpool

Whirlpool LER5600HQ0 User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
