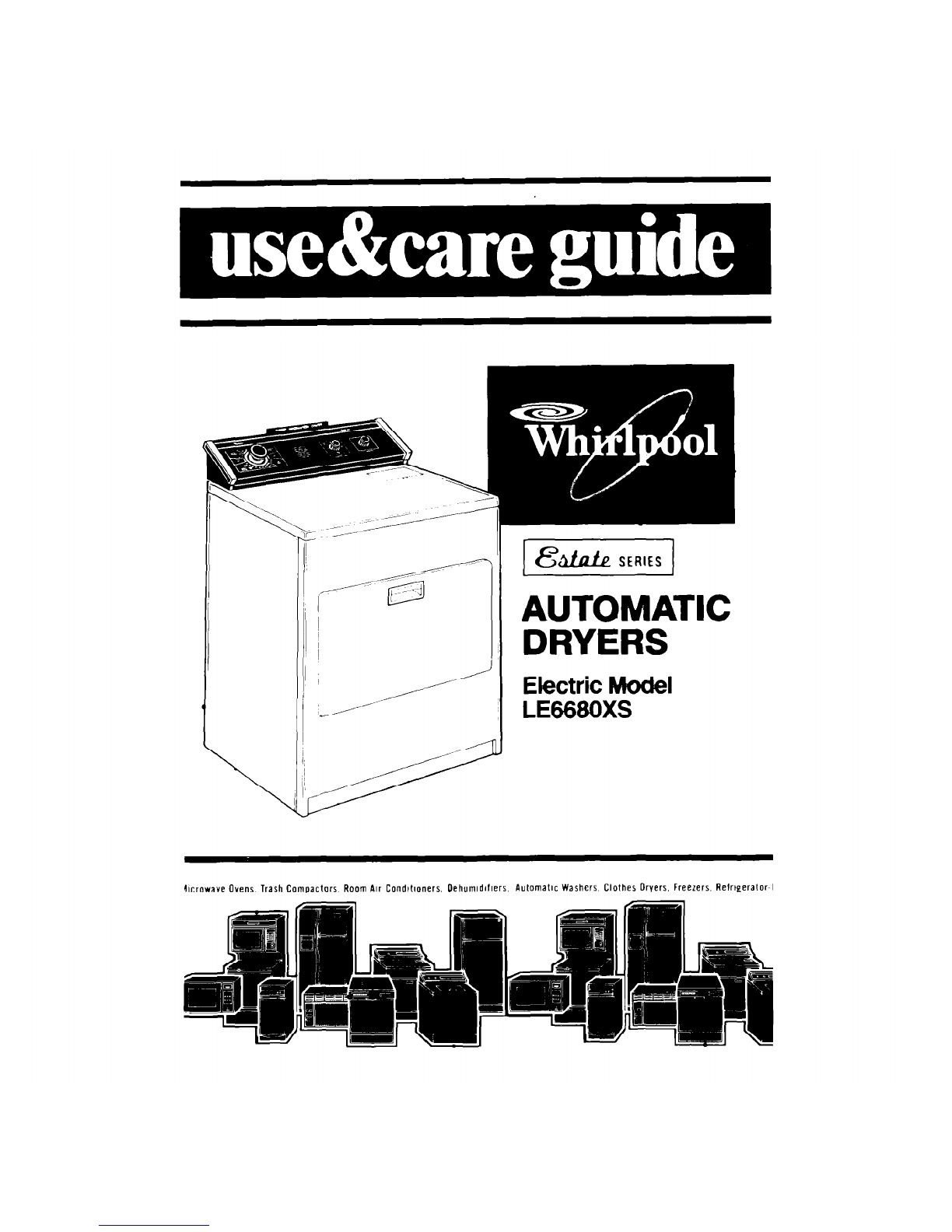

Whirlpool LE668OXS User manual

AUTOMATIC

DRYERS

Electric Model

LE668OXS

Ilcrowave Ovens. Trash Compactors. Room Air Condltloners. Oehumldlllers. Automallc Washers. Clothes Dryers. Freezers. Relqeralor~l

Parts and features

CYCLE CONTROL KNOB

I LAUNDRY INFORMATION CENTER

TEMPERATURE SELECTOR

)/DRYER DRUM

NUMBER PLATE

LOADING DOOR

Remove the Con-

sumer Buy Guide label

before using your

dryer. It will be easier

to remove.

Wipe out the dryer

drum with a damp

cloth to remove dust

from storing or ship-

ping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

1. Complete Model and Serial Numbers

(from the plate located as shown].

2. Purchase date from sales slop.

Copy this information in these spaces.

Keep this book in the Laundry Information

Center

with your “Dryer Guide:’ sales slip

and warranty.

Model Number

Serial Number

Purchase Date

Service Company

Telephone Number

Please complete and mail the Owner Registration Card furnished with

this product.

Contents

Paae

PARTS AND FEATURES. 2

YOUR RESPONSIBILITIES. 3

SAFETY FIRST.. 3

SELECTING A CYCLE AND

STARTING YOUR DRYER 4

OPERATING INSTRUCTIONS 6

The Automatic Cycles 6

Timed Drying 6

DRYING TIPS, 7

FLUFFAIR Setting 7

TUMBLE PRESS” Setting 7

FINISH GUARD” Setting 7

Page

Gentle Heat 7

Drying Times 8

Mixed Loads 8

End-of Cycle Signal 8

LINT SCREEN 9

LINT REMOVAL.. 9

CARING FOR YOUR DRYER 10

Cleaning Dryer Interior 10

Vacation Care 10

IF YOU NEED SERVICE OR

ASSISTANCE, 11

DRYER WARRANTY.. 12

2 c.1987 Whirlpool Corporation

Responsibilities

is located in an area where the tem-

oerature is above 45°F 17.2”CI.

is properly installed and leveled in a

Read this “Use and Care Guide” and

your “Dryer Guide” carefully for impor-

tant use and safety information.

well ventilated room* on a floor that

You are personally responsible for

making sure that your dryer...

can support the weight.

is installed by a qualified installer,

is properly maintained.

is installed in an area protected from

the weather.

. I

is connected to the right kind of outlet,

electric supply and grounding:

is properly connected to exhaust

systems.’

is used only for jobs normally ex-

pected of home clothes dryers.

is not run where there may be ex-

plosives fumes.

able to operate it properly.

*See the “Installation Instructions” for

complete information.

is not used by children or anyone un-

~ .K)RYOURSAFm. 1

’ FLAMMABLE VAPORS AND

LIQUIDS IN THEVICINITY

OF THISOR ANY OTHER

SUGGESTED SUGGESTED

TYPE OF LOAD CYCLE TEMPERATURE

COllONS - LINENS

EXTRA HEAW - Bedspreads, HEAVY

mattress pads, quilts HIGH

HEAVYWEIGHT FABRICS - Towels,

jeans, corduroys, work clothes PERM’T PRESS

MEDIUMWEIGHT COTTONS - AUTOMATIC

REGULAR MED

Sheets, pillowcases, cotton

underwear, diapers KNITS GENTLE

LIGHTWEIGHT COllONS - Batistes, LOW

organdies, lingerie

PERMANENT PRESS, SYNTHETICS

AND BLENDS

HEAVYWEIGHT FABRICS - Work clothes,

jackets, raincoats . .

MEDIUMWEIGHT FABRICS-Shirts, play

clothes, sheets, slacks.

LIGHTWEIGHT FABRICS - Lingerie,

blouses, dresses

PERM’I PRESS

AUTOMATIC MED

PERMANENT

PRESS MED LOW

KNITS

HEAVYWEIGHT - Cottons, rayons,

blends, T-shirts, slacks, shirts

LIGHTWEIGHT - Synthetics (polyester,

acrylic, etc.) and blends, lingerie,

blouses, dresses

AUTOMATIC MED LOW

PERMANENT

PRESS KNITS GENTLE

LOW

LIGHTWEIGHT AND DELICATE FABRICS AUTOMATIC

Sheer Curtains (2 or 3 panels] PERMANENT

Gauze, lace, etc. PRESS Ex LOW

RUBBER, PLASTIC, HEAT-SENSITIVE

FABRICS PERMIT PRESS

FOAM RUBBER-Pillows, bras,

stuffedtoys............................ 20-30 MINS.

PLASTIC-Shower curtains, FLUFF

tablecloths............................ 20-30 MINS. AIR

RUBBER-BACKED RUGS . 40-50 MINS.

OLEFIN, POLYPROPYLENE. SHEERNYLON 15-20 MINS.

2. SELECTOR I

Turn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for information on

the cycles.

Push the

3. START Button

The Temperature Selector can be set

on any desired temperature or any:

where between 2 temperatures,

To stop and restart

the dryer

The dryer will start tumbling when you

push the STARTButton.

Ifthe STARTButton is pushed when the

Cycle Control Knob is pointing to an

OFF area, the End-of-Cycle Signal will

sound. Dryer will not start.

To stop the dryer, open the door [or

turn the Control Knob to OFF).

To restart the dryer, close the door,

select cycle, if necessary, and push

START.

The Cycle Control Knob should point t

If the dryer is stopped before the cycle i

Knob to OFF.

‘0 OFF when the dryer is not in use.

is finished, turn the Cycle Control

Operating instructions

The automatic cycles

The automatic cycles allow you to se-

lect the degree of dryness you prefer

for the clothes being dried.

The Control Knob will not move until

the clothes load is almost dry, or the

COOL-DOWN portion of the cycle has

been reached. After COOL-DOWN, the

knob automatically moves to an OFF

area and tumbling stops.

weight cotton items. The load tumbles

without heat during the last 5 min-

utes. This helps make the load easier

to handle.

press, knits and other synthetic fab-

rics. The load tumbles without heat

during the last 10 minutes. This helps

keep wrinkles from setting in, and

makes the load easier to handle.

For the first few loads, set the Control

Knob to point to an * in either auto-

matic cycle. When the dryer stops, feel

the dried items.

If items are drierthan you like, use

a setting to the right of the * the next

time you dry a similar load.

If items are not as dry as you like, use

a setting to the left of the * the next

time you dry a similar load.

Timed drying

Drying tips

The dryer does not heat when the

Temperature Selector is set on FLUFF

AIR. This setting can be used to fluff

bedding, plastic tablecloths, foam

rubber pillows, stuffed toys, sneakers,

etc.

1. Turn the Control Knob to the number

of minutes you want in FLUFFAIR.

2. Push the STARTButton.

FINISH GUARD Setting

When you are unable to unload the

dryer as soon as it stops, wrinkles can

form.

If you don’t open the door within

5 minutes after the dryer stops, FINISH

GUARD takes over automatically to

protect the load. You don’t have to set

the Control Knob for FINISH GUARD.

FINISH GUARD tumbles the load,

without heat, every 5 minutes for up to

40 minutes. This tumbling rearranges

and fluffs the load to help avoid the

wrinkles that set in when the load

remains in the warm water.

TUMBLE PRESS” Setting

The TUMBLE PRESSsetting removes

wrinkles from dry clothing such as

items that may have been packed

in a suitcase, closet, or items not

removed from the dryer.

1. Set Control Knob to TUMBLE PRESS.

2. Set Temperature Selector to PERM’T

PRESVMED.

3. Push STARTButton.

The load will tumble in heated air

for 10 minutes. The heat shuts off and the

dryer continues to tumble the load

for 5 more minutes.

For best results, TUMBLE PRESSonly a

few items at a time. Put them on hang-

ers or fold them as soon as the dryer

stops,

Gentle Heat

The dryer automatically reduces the

heat settings in HEAVY HIGH and PERM’T

PRESSMED cycles. During the last 7

minutes of each of these cycles, the

temperature gradually reduces to a

lower setting. This helps prevent

overdrying.

Drying times Mixed loads

Drying times will vary depending on:

amount of moisture in the clothes.

type and weight of the fabric.

size of the load.

room temperature around the dryer.

temperature of the wash rinse water.

amount of lint in the lint screen.

dryer temperature selection.

See page 6 in your “Dryer Guide” for

more information

End-of-cycle signal

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest fab-

rics When the dryer stops, remove dry

items and reset the control.

To reduce wrinkling, take the load

from dryer as soon as tumbling stops.

This is important for permanent press

knits and synthetics fabrics.

The dryer sounds a signal to let you know when

the cycle is finished. The signal cannot be turned

off and is not adjustable.

The signal is helpful when you are drying per-

manent press, synthetics and other items that

should be taken out as soon as the dryer stops.

Lint screen

Clean the lint screen before each load. A screen blocked by lint can

increase drying time and may be a FIREHAZARD.

Open the lid and pull the lint screen ROLL the lint off the screen with

your fingers.

DO NOT rinse or wash the screen.

Push the screen firmly back into place.

Lint removal

Lint can gather inside the dryer and create a fire hazard. This lint

should be removed at least every 2 to 3 years, or more often,

depending on dryer usage.

Cleaning should be done only by a qualified person.

WARNING:

Avoid electrical shock

hazard - unplug power

supply cord or turn off

electrical power.

Avoid Injury or damage - do not

put hands inside cabinet.

Make sure dryer is cool.

1. Remove back panel.

2. Avoid damaging wires or

thermostats.

3. Remove lint from shaded area -

see art- with soft brush or

vacuum cleaner.

4. Replace panel; reconnect and

relevel dryer.

Remove loose and sharp objects

from pockets and cuffs before drying -

pins, buckles, etc. Close metal

zippers.

Wipe off all spills with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never leave wet or damp laundry

in your dryer.

Sharp or heavy objects should

never be put on or in the dryer.

Check pockets for bolts, nuts etc

Some pretreatment products can

damage dials, consoles and finish.

Do not use these products on or near

your dryer.

Cleaning dryer interior

WARNING: Before

cleaning interior, unplug

power supply cord or,

turn off electrical power to

avoid electrical shock hazard.

Garments which contain unstable

dyes, such as denim blue jeans or

brightly colored cotton items, may

discolor the dryer interior. Ifthe

interior is discolored, clean with

one of the following methods to

avoid staining later load items.

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to

a soft cloth and scrub area until

all excess dye is removed. Wipe

thoroughly with a damp cloth.

Tumble a load of rags. -OR-

liquid spray household cleaner

Spray on stained area. Rub with

a cloth until all excess dye is

removed. Tumble a load of rags.

Vacation care

Unplug power cord or turn off

electrical power.

For gas dryers, close gas valve.

Clean lint screen,

This manual suits for next models

Table of contents

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool 8578901 User manual

Whirlpool

Whirlpool LE6800XS User manual

Whirlpool

Whirlpool Duet W10151592A User manual

Whirlpool

Whirlpool W10562348B User manual

Whirlpool

Whirlpool WED9250WR - Duet Cranberry - Electric Dryer User manual

Whirlpool

Whirlpool WED8300SE - 27in Electric Dryer User manual

Whirlpool

Whirlpool WED8300SB1 User manual

Whirlpool

Whirlpool KHGV01RSS0 User manual

Whirlpool

Whirlpool GCEM2990TQ User manual

Whirlpool

Whirlpool WED9600TA1 User manual

Whirlpool

Whirlpool WGD5600SQ User manual

Whirlpool

Whirlpool 3SWED5205SQ1 User manual

Whirlpool

Whirlpool SEDS800MQ0 User manual

Whirlpool

Whirlpool AWD60A User manual

Whirlpool

Whirlpool LE7000XK User manual

Whirlpool

Whirlpool LG6606XP User manual

Whirlpool

Whirlpool WED7500G User manual

Whirlpool

Whirlpool 3978909 User manual

Whirlpool

Whirlpool Cabrio WED6400SW0 User manual

Whirlpool

Whirlpool WED5500BW User manual

Whirlpool

Whirlpool 4GNED4400 User manual

Whirlpool

Whirlpool WED7000DW User manual

Whirlpool

Whirlpool duet 8578185 User manual

Whirlpool

Whirlpool Cabrio,- WGD5500X Parts list manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
