Whirlpool CGM2751TQ0 User manual
c2008 WHIRLPOOL CORPORATION
COMMERCIAL
GAS DRYER
11−08 Litho in U.S.A. (LT) (eeb) Part No. W10119631 Rev. B
MODELS
CGM2751TQ0
(WHITE)
CGM2751TQ1
(WHITE)

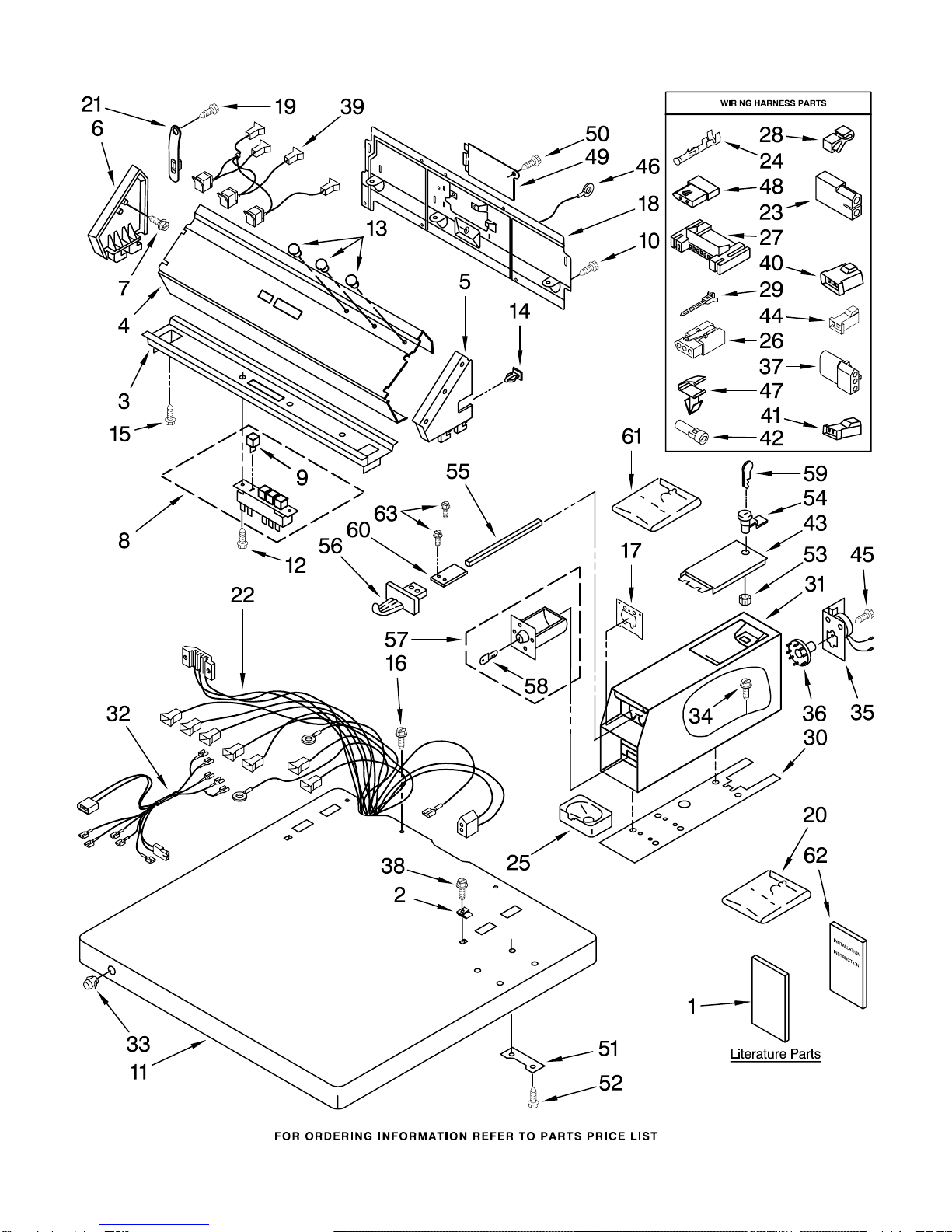

TOP AND CONSOLE PARTS
2
W10119631
For Models: CGM2751TQ0, CGM2751TQ1
(White) (White)
TOP AND CONSOLE PARTS
3W10119631
For Models: CGM2751TQ0, CGM2751TQ1
(White) (White)
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8577208 Instructions,
Installation
8533569 Wiring Diagram
W10119631
Repair Parts List
2 357213 Nut, Push−In
3 3361029 Bracket, Control
4 8316634 Panel, Control
5 8316516 Cap, End (R.H.)
6 3949734 Cap, End (L.H.)
7 97787 Screw, 11−16 x 3/4
8 8316437 Switch, Pushbutton
9 8316433 Pushbutton
10 693995 Screw, 8−18 x 3/8
11 3954665 Top
12 303921 Screw, 8−32 x 3/8
13 3348109 Lens, Amber (3)
14 689559 Nut, Push−In
15 8533971 Screw, 8−18 x 5/16
16 343641 Screw, 10−16 x 1/2
17 3954761 Plate,
Chute Adapter
(Includes
Illus. 25)
18 3978608 Panel, Rear
(Upper)
19 3390647 Screw, 8−18 x 1/2
20 3954807 Kit, Vertical
8−Coin
(Includes
Illus. 54−56−57
59−60−61 & 62)
21 8318255 Strap, Console
22 8529870 Harness, Main
23 717252 Receptacle
(2−Way)
24 94614 Terminal
25 385421 Funnel, Coin
26 717315 Receptacle
(4−Way)
27 3395683 Housing,
Connector
28 357572 Clip, Ground
29 3391018 Tie, Cable
30 3954812 Cushion, Case
31 3406994 Case, Meter
32 3401126 Harness, Timer
33 387371 Lock, Plug
Also Available
358290 Top Lock
34 3349065 Bolt,
5/16−24 x 1
35
W10045440
Timer
(Includes
4−Pin Cam)
36 Timing Cam
3387974 3−Pin (60 Min)
339855 4−Pin (45 Min)
343777 6−Pin (30 Min)
Also Available
339854 9−Pin (20 Min)
339853 12−Pin (15 Min)
37 3936144 Connector
3−Circuit
38 8281182 Screw,
8−18 x 1−1/4
39 8316640 Lights, Indicator
Assembly
40 3403498 Connector,
3 Position
41 3403499 Connector,
2 Position
42 351297 Plug, Harness
43
W10114751
Door, Service
44 351296 Receptacle
45 339805 Screw,
10−32 x 3/16
46 3398893 Ground Wire
47 3394427 Clip, Harness
48 717253 Plug, Terminal
49 8317340 Cover, Terminal
Block
50 3390814 Screw, 8−18 x 3/8
51 3347825 Plate−Mounting (2)
52 98445 Screw, 10−16 x 3/4
53 90406 Nut, Cage
Following Parts Supplied
On Whirlpool Coin
Equipped Models Only
54 8316526 Security Lock/Key
& Cam Assembly
55 8318517 Bolt, Slide
Mechanism
56 8316520 Slide Mechanism
(Vertical 8−Coin)
(Dollar Vend)
Inserts
(Not Shown)
8316264 Blank
8316265 25¢
57 8316525 Money Box W/Lock
58 Key (Money Box)
(When Ordering,
Specify Vendor
and Key Number)
59 Key (Service Door)
(When Ordering,
Specify Vendor
and Key Number)
60 8316523 Extension
61 8316524 Kit, Decal
62 8316532 Installation
Instructions
Coin Kit
63 3400086 Screw, 10−32 x 3/8
Coin Mechanism Parts May be
Ordered From Whirlpool Or
The Vendor (s) Listed Below.
ESD
270 New Jersey Dr.
Fort Washington, PA
19034
1−800−523−1510
@
info esdcoin.com

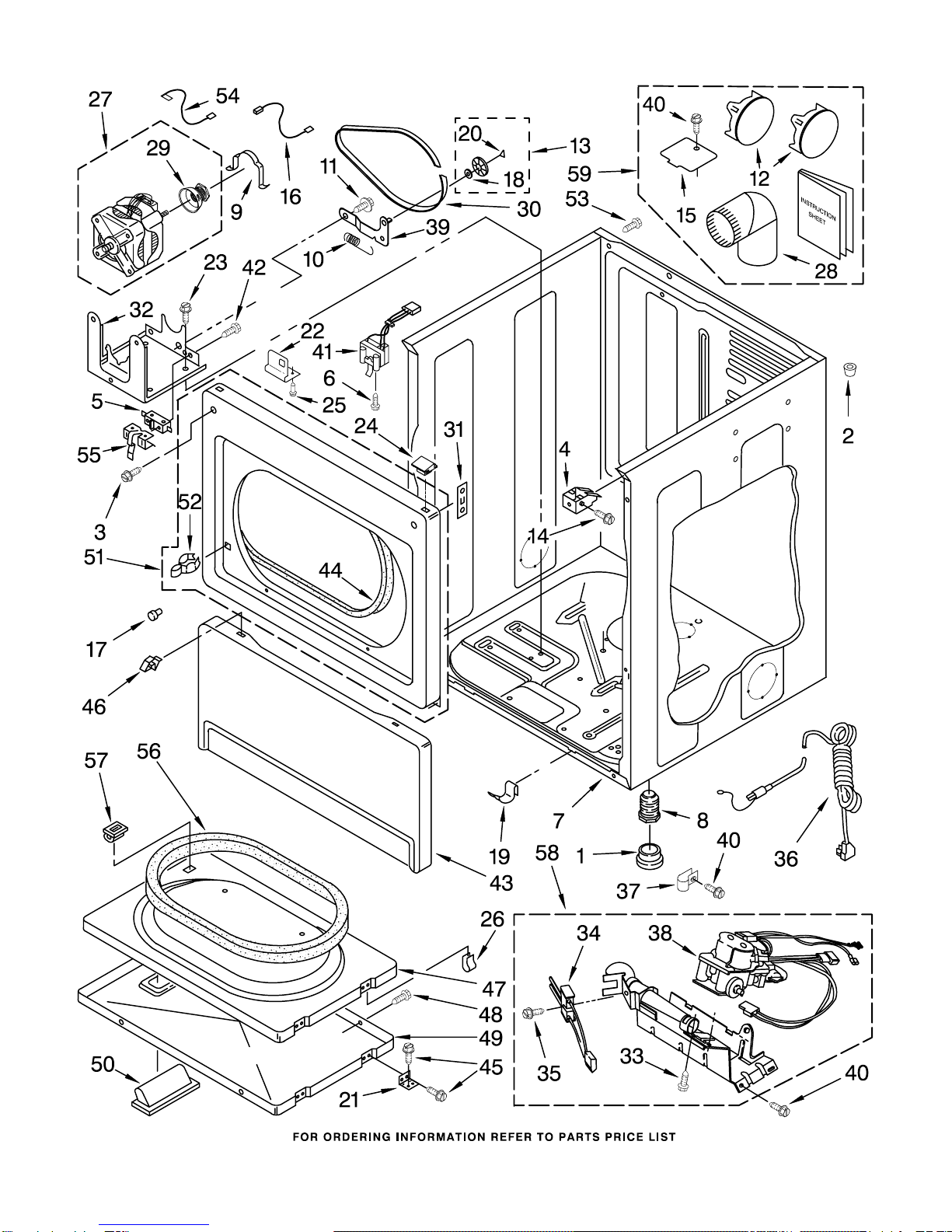

CABINET PARTS
4
W10119631
For Models: CGM2751TQ0, CGM2751TQ1
(White) (White)
CABINET PARTS
5W10119631
For Models: CGM2751TQ0, CGM2751TQ1
(White) (White)
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3391943 Boot, Foot
2 356674 Cone, Wedge
3
W10045050
Screw, 10−16 x 1/2
4 3391846 Clip, Front
Panel (2)
5 3394881 Switch, Broken
Belt
6 697773 Screw, 6−20 x 7/8
7 8310656 Cabinet
8 3392100 Foot, Dryer
(Plastic)
279810 Foot − Optional
(Extended Length
Package Of 2)
(Not Included)
9 660658 Clamp, Motor (2)
10 3387374 Spring, Idler
11 3389420 Retainer, Idler
12 697750 Plug, Multivent
13 3388672 Pulley Assembly
14 3391915 Screw, 10−16 x 1
15 3394331 Plate, Cover
16
W10167612
Wire, Belt Switch
17 693152 Bumper
18
W10121334
Washer, Thurst
19 297092 Clip (2)
20 690997 Tri−Ring
21 3389247 Hinge And Pin (2)
22 3353948 Bracket, Lock
23 3390663 Screw, 10−16 x 1/2
24 345670 Lock−Top
25 63554 Rivet (2)
26 3389249 Nut, "U" (4)
27 8538264 Motor Assembly
(60 Hz.)
28 279731 4"− 90
Elbow
29 8066184 Pulley 60 Hz
30 3387610 Belt, Drive
31 3390902 Clip, Door
Hinge (2)
32 3387118 Bracket, Motor
33 3387057 Screw, 8−18 x 3/8
34 686590 Ignitor
35 3393909 Screw, 8−32 x 5/8
36 3401401 Cord, Power
37 3387561 Clamp, Pipe
38 8281911 Valve, Gas
(Complete)
60 Hz.
39 3388674 Bracket, Idler
40 3390647 Screw, 8−18 x 1/2
41 3406109 Door Switch
Assembly
42 98129 Screw,
6/20 x 1 1/16
43 697215 Panel, Toe
(Includes
Illus. 17 )
44 3387242 Seal, Front Panel
45 342055 Screw, 8−18 x 1/2
46 3388229 Retainer
47 3392563 Door, Rear
48 694091 Screw, 8−18 x 3/8
49 3387872 Door, Front
50
W10116360
Handle, Door
51 3393081 Lower Front Panel
52 696144 Strike, Door
53 8533974 Screw−Ground
54 3398948 Wire, Jumper
55 8066120 Lever, Snap
Switch
56 3390735 Seal, Door
57 3392538 Catch, Door
Assembly
58 3401797 Burner Assembly
60 Hz.
(Refer To Pages
8 & 9 For Further
Breakdown)
Optional Parts Not Included
Dryer Exhaust Kit
(For Side & Bottom Venting)
59 279818 White

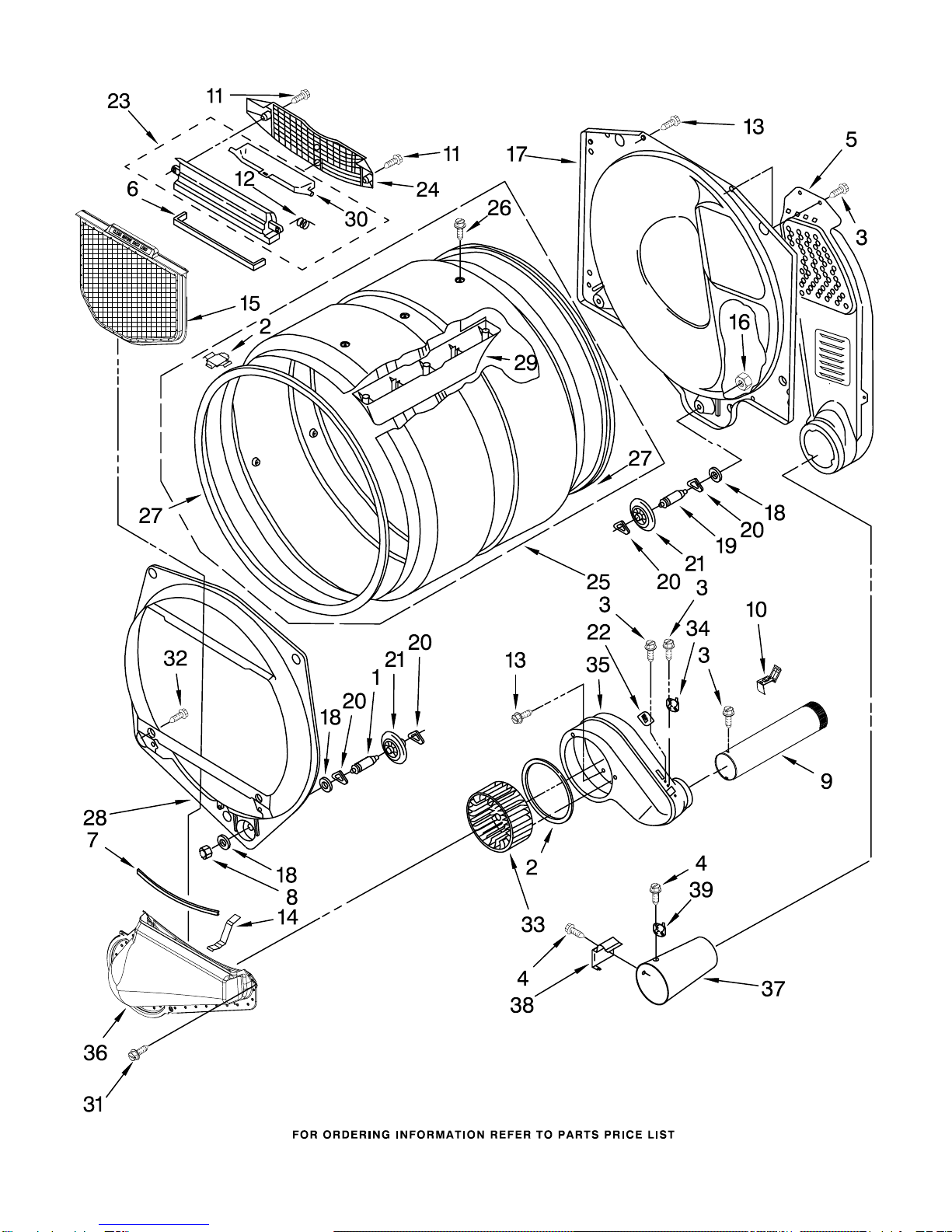

BULKHEAD PARTS
6
W10119631
For Models: CGM2751TQ0, CGM2751TQ1
(White) (White)
BULKHEAD PARTS
7W10119631
For Models: CGM2751TQ0, CGM2751TQ1
(White) (White)
Illus. Part
No. No. DESCRIPTION
1 8575324 Shaft, R.H. Thread
2 697770 Seal, Cover Plate
3 8533971 Screw, 8−18 x 5/16
4 90767 Screw, 8−18 x 3/8
5 3394346 Air Duct Assembly
6 697813 Seal, Outlet
Housing
7 697814 Seal, Drum Front
8 3934666 Nut,
3/8 x 16 (R.H.)
9 8066224 Exhaust Pipe
10 8572105 Clip
11 3387230 Screw,
10−16 x 13/16
12 3394986 Spring, Lint
Door
13 3390647 Screw, 8−18 x 1/2
14 8066208 Clip−Spring
15
W10049370
Screen, Lint
16
W10001120
Nut,
3/8−16 (L.H.)
17 3387809 Bulkhead, Rear
18 3387459 Washer, Support
19 8575325 Shaft, L.H. Thread
20 690997 Ring, Tri
21 8536973 Roller, Support
22 3392519 Thermal Fuse
23 3394985 Housing, Outlet
24 8299979 Grille, Outlet
25 8318215 Drum Complete
26
W10219342
Screw, 8−16 x 1/2
27
W10166807
Seal, Drum
28 697557 Bulkhead, Front
29 697693 Baffle, Drum (3)
30 3394984 Door, Lint Screen
31 487909 Screw, 8−15 x 1/2
32 3357011 Screw, 10−16 x 1/2
33
W10168564
Wheel, Blower
34 3387138 Thermostat
35 8544362 Housing, Blower
36 8066168 Lint Duct Assembly
37 8066047 Funnel, Burner
38 338906 Sensor, Radiant
39 3391912 Thermostat 255
(124 C)

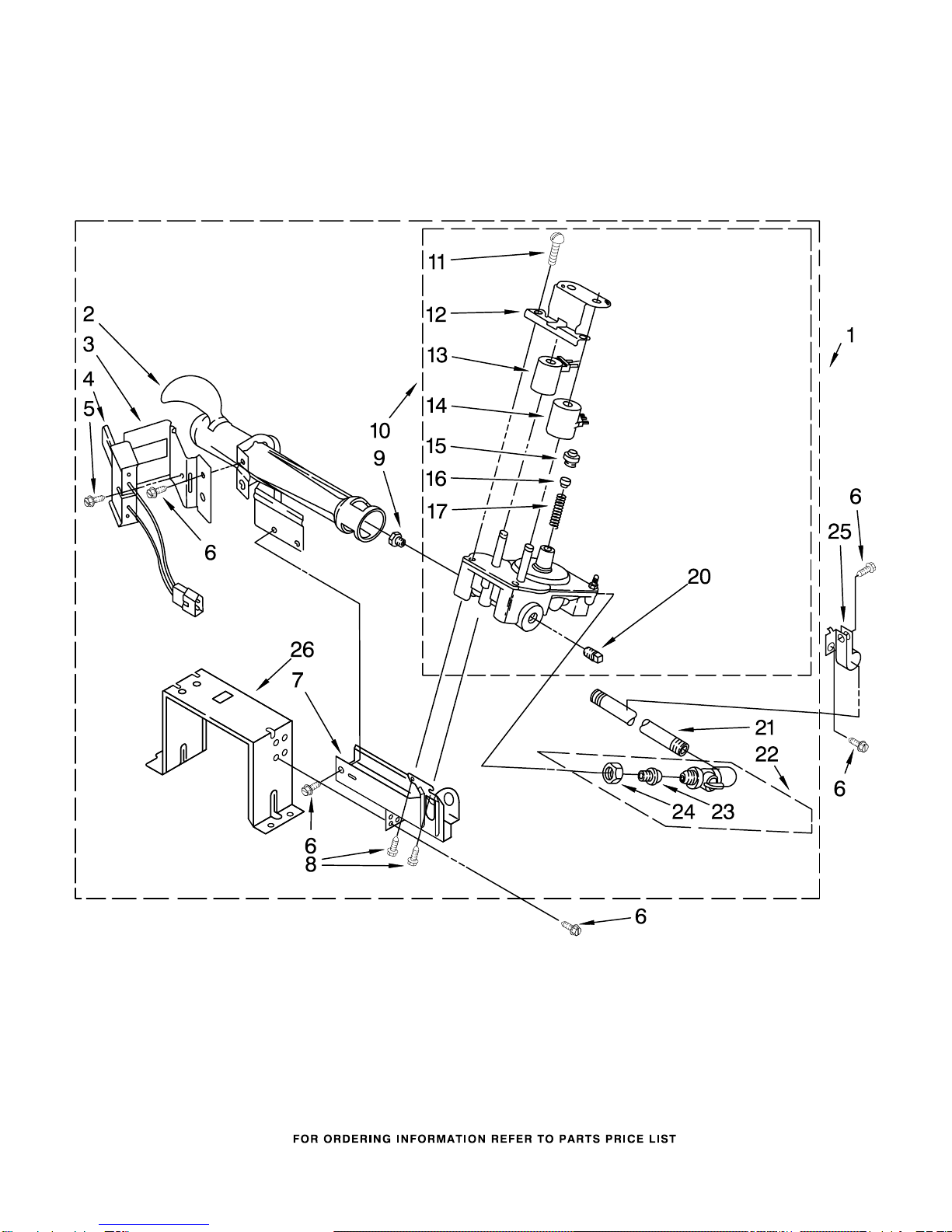

3401797 BURNER ASSEMBLY
BA−133−A
USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED,
AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES
8
W10119631
For Models: CGM2751TQ0, CGM2751TQ1
(White) (White)
USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED,
AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES
Illus. Part
No. No. DESCRIPTION
3401797 BURNER ASSEMBLY
1
3401797
Burner Assembly
60 Hz.
(Type 1, 2 & 3)
(White Rodgers)
2
688617
Tube, Burner
3
694298
Bracket, Ignitor
4
686590
Ignitor
5
3393909
Screw & Washer
(8−32 x 5/8)
6
343641
Screw, 10−16 x 1/2
7
3389871
Base, Burner
8
3387057
Screw,
10−16 x 1/2 (3)
9
Orifice, Burner
3397656
Type 1
15775
Type 2
10
3401775
Valve, Gas
60 Hz. (Complete)
11
694421
Screw,
8−32 x 1/2 (2)
12
694538
Bracket, Coil
13
694540
Coil, 60 Hz.
(2 Terminal)
(Main)
14
694539
Coil, 60 Hz.
(Split)
(3 Terminal)
(Pilot Position)
15
694424
Leak, Limiter
16
694423
Screw, Regulator
Adjustment
17
694422
Spring, Regulator
20
239822
Plug, Pipe
21
3387224
Pipe, Gas Supply
22
697441
Valve & Union
Shut−Off
23
3393767
Pipe, Tail
24
233076
Nut, Compression
25
3387561
Clamp, Pipe
26
3389889
Bracket, Support
Following Parts Not Illustrated
694572
Conversion Kit
(Type 1 and 2)
to Type (4) L.P.G.
BA−133−A
9W10119631
For Models: CGM2751TQ0, CGM2751TQ1
(White) (White)
OPTIONAL PARTS (NOT INCLUDED)
10
W10119631
For Models: CGM2751TQ0, CGM2751TQ1
(White) (White)
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
4392067 Kit,
Dryer Repair
8522199 Kit, Dryer
Vent Testing
PAINT, TOUCH−UP (1/2oz.)
72017 White
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
