Whirlpool CEM2750TQ0 User manual

c2007 WHIRLPOOL CORPORATION

CEM2750TQ0

2−07 Litho in U.S.A. (LT) Part No. W10119629 Rev. A

TOP AND CONSOLE PARTS

WIRING HARNESS PARTS

For Model: CEM2750TQ0

(White)

W10119629

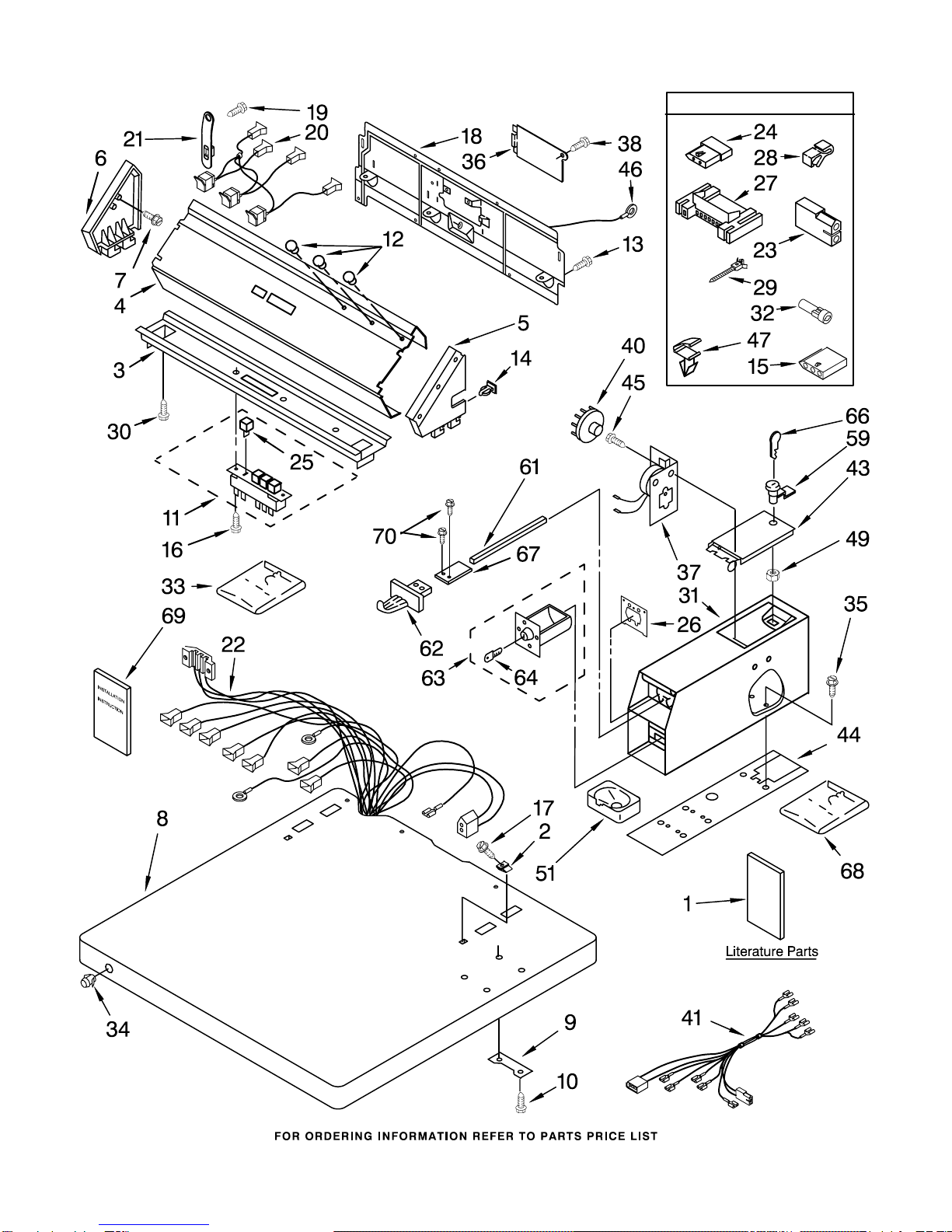

TOP AND CONSOLE PARTS

For Model: CEM2750TQ0

(White)

W10119629

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8577208 Instructions

Installation

8576821 Wiring Diagram

W10119629

Repair Parts List

2 357213 Nut, Push−In

3 3361029 Bracket, Control

4 8316634 Panel, Control

5 8316516 Cap, End (R.H.)

6 3949734 Cap, End (L.H.)

7 97787 Screw, 11−16 x 3/4

8 3954665 Top

9 3347825 Plate−Mounting (2)

10 98445 Screw, 10−16 x 3/4

11 8316437 Switch, Pushbutton

12 3348109 Lens Light

(Amber)

13 693995 Screw, 8−18 x 3/8

14 689559 Nut, Push−In

15 3936144 Connector,

3−Circuit

16 303921 Screw, 8−32 x 3/8

17 8281182 Screw

8−18 x 1−1/4

18 3978608 Panel, Rear

(Upper)

19 3390647 Screw, 8−18 x 1/2

20 8316640 Light, Indicator

Assembly

21 8318255 Strap, Console

22 8576528 Harness, Main

23 717252 Receptacle

(2−Way)

24 717253 Receptacle

(2−Way)

25 8316433 Pushbutton

26 3954761 Plate,

Chute Adapter

(Includes

Illus. 51)

27 3395683 Housing,

Connector

28 357572 Clip, Ground

29 3391018 Tie, Cable

30 8533971 Screw, 8−18 x 5/16

31 8316527 Case, Meter

32 351297 Plug, Harness

33 3954807 Kit, Vertical

8−Coin

(Includes

Illus. 59−62−63

66−67−68 & 69)

34 387371 Lock, Plug

Also Available

358290 Top Lock

35 3349065 Screw, 5/16−24 x 1

36 8317342 Cover,

Terminal Block

W10045440

Timer,

(Includes

4−Pin Cam)

38 3390814 Screw, 8−18 x 3/8

40 Timing Cam

3387974 3−Pin (60 Min)

339855 4−Pin (45 Min)

343777 6−Pin (30 Min)

Also Available

339854 9−Pin(20 Min)

339853 12−Pin (15 Min)

41 3401682 Harness, Timer

43 3351136 Door, Service

44 3954812 Cushion, Meter

Case

45 339805 Screw,

10−32 x 3/16

46 3398893 Ground Wire

47 3394427 Clip, Harness

49 90406 Nut−Cage

51 385421 Funnel, Coin

Following Parts Supplied

On Whirlpool Coin

Equipped Models Only.

59 8316526 Security Lock/Key

& Cam Assembly

61 8318517 Bolt, Slide

Mechanism

62 8316520 Slide Mechanism

(Vertical 8−Coin)

(Dollar Vend)

Inserts

(Not Shown)

8316264 Blank

8316265 25¢

63 8316525 Money Box W/Lock

64 Key (Money Box)

(When Ordering,

Specify Vendor

and Key Number)

66 Key (Service Door)

(When Ordering,

Specify Vendor

and Key Number)

67 8316523 Extension

68 8316524 Kit, Decal

69 8316532 Installation

Instructions

Coin Kit

70 3400086 Screw, 10−32 x 3/8

Coins Mechanism Parts May be

Ordered From Whirlpool Or

The Vendor (s) Listed Below.

ESD

270 New Jersey Dr.

Fort Washington, PA

19034

1−800−523−1510

info esdcoin.com

CABINET PARTS

For Model: CEM2750TQ0

(White)

W10119629

CABINET PARTS

For Model: CEM2750TQ0

(White)

W10119629

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3393008 Screw, 10−16 x 1/2

2 3353948 Bracket, Lock

3 3391846 Clip, Front

Panel (2)

W10045050

Screw, 10−16 x 1/2

5 3394881 Switch, Broken

Belt

6 3397659 Block, Terminal

7 8310656 Cabinet

8 3392100 Foot, Dryer

(Plastic)

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 697750 Plug, Multivent

13 3388672 Pulley Assembly

14 3391915 Screw, 10−16 x 1

15 3394331 Plate, Cover

16 3394081 Wire, Belt Switch

17 356674 Cone, Wedge

18 233520 Washer, Thurst

19 297092 Clip (2)

20 690997 Tri−Ring

21 3389247 Hinge And Pin (2)

22 63554 Rivet (2)

23 3391943 Boot, Foot

25 693152 Bumper

24 697773 Screw, 6−20 x 7/8

26 3389249 Nut, "U" (4)

27 8538264 Motor Assembly

(60 Hz.)

28 3389627 Pulley

29 8533974 Screw−Ground

30 3387610 Belt, Drive

31 3390902 Clip, Door

Hinge (2)

32 3387118 Bracket, Motor

33 3392186 Washer

34 279318 Terminal, Brass

& Tinned (3)

(Includes Ill. 35)

35 279393 Terminal Block

Screw Kit (For

Terminal Block)

36 3390663 Screw, 10−16 x 1/2

39 3388674 Bracket, Idler

41 3406109 Door Switch

Assembly

42 98129 Screw,

6−20 x 1−1/16

44 3387242 Seal, Front Panel

45 342055 Screw, 8−18 x 1/2

46 3388229 Retainer

47 3392563 Door, Rear

48 694091 Screw, 8−18 x 3/8

49 3387872 Door, Front

51 3393081 Front Panel

52 696144 Strike, Door

55 3390647 Screw, 8−18 x 1/2

57 3390735 Seal, Door

58 3392538 Catch, Door

Assembly

59 3398948 Wire, Jumper

60 3389522 Handle, Door

61 697215 Panel, Toe

64 8066120 Lever, Snap

Switch

65 279731 4" − 90 Elbow

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

66 279818 White

BULKHEAD PARTS

For Model: CEM2750TQ0

(White)

W10119629

BULKHEAD PARTS

For Model: CEM2750TQ0

(White)

W10119629

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8575324 Shaft, R.H. Thread

2 90767 Screw, 8−18 x 3/8

3 8533971 Screw, 8−18 x 5/16

4 8066086 Drum Hole

Plug

5 697354 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,

3/8 x 16 (R.H.)

9 8066224 Exhaust Pipe

10 8572105 Clip

11 693995 Screw, 8−18 x 3/8

12 3392537 Box, Heater

13 3390647 Screw, 8−18 x 1/2

14 3387748 Element, Heater

15 8066208 Clip−Spring

W10001120

Nut,

3/8−16 (L.H.)

17 3387809 Bulkhead, Rear

18 3387459 Washer, Support

19 8575325 Shaft, L.H. Thread

20 690997 Ring, Tri

21 8536973 Roller, Support

23 3394985 Housing, Outlet

24 8318314 Cut−Off, Thermal

(Includes

Illus. 32)

25 8318215 Drum Complete

W10109200

Screw, 11−16 x 3/4

27 697694 Seal, Drum

28 3394986 Spring, Lint

Screen

29 8066099 Bracket,

Heater Box

31 487909 Screw, 8−15 x 1/2

32 3391914 Thermostat 295 F

(146 C)

37 697772 Wheel, Blower

38 3394984 Door, Lint

Screen

42 3387138 Thermostat,

Internal−Bias

43 3387230 Screw, 10−16 x 3/4

44 8544362 Housing, Blower

45 8066168 Lint Duct Assembly

51 3357011 Screw, 10−16 x 1/2

53 697693 Baffle, Drum (3)

54 697557 Bulkhead, Front

58 8299979 Grill, Outlet

59 3392519 Thermal Fuse

60 697770 Seal, Cover Plate

64 8066170 Screen, Lint

OPTIONAL PARTS (NOT INCLUDED)

Illus. Part

No. No. DESCRIPTION

W10119629

ACCESSORY PARTS

4392067 Kit,

Dryer Repair

8522199 Kit, Dryer

Vent Testing

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

For Model: CEM2750TQ0
