Whirlpool WHAW050BW User manual

Model/Modèle/Modelo:

WHAW050BW

For questions about features, operation/performance,

parts or service, call: 1-800-207-1156.

In Canada, for assistance, installation or service,

call: 1-800-207-1156.

Si tiene preguntas respect o a las características,

funcionamiento, rendimiento, partes o servicio técnico,

llame al: 1-800-207-1156.

Room Air Conditioner

Use and Care Guide

Table of Contents

Acondicionador de aire

para habitación

Manual de uso y cuidado

Índice

AIR CONDITIONER SAFETY ........................................... 2

INSTALLATION REQUIREMENTS................................... 3

INSTALLATION INSTRUCTIONS..................................... 5

USING YOUR AIR CONDITIONER.................................. 9

AIR CONDITIONER CARE............................................. 10

TROUBLESHOOTING.................................................... 11

ASSISTANCE OR SERVICE........................................... 13

XLS PRODUCTS WARRANTY FOR AMANA®

AIR CONDTIONERS....................................................... 14

Table des matières

SÉCURITÉ DU CLIMATISEUR....................................... 15

EXIGENCES D’INSTALLATION ..................................... 16

INSTRUCTIONS D’INSTALLATION............................... 18

UTILISATION DE VOTRE CLIMATISEUR ..................... 22

ENTRETIEN DU CLIMATISEUR .................................... 23

DÉPANNAGE .................................................................. 24

ASSISTANCE OU SERVICE........................................... 26

GARANTIE DE XLS PRODUCTS

POUR LES CLIMATISEURS WHIRLPOOL®.................. 27

Au Canada, pour assistance, installation ou service,

composez le : 1-800 207-1156.

Climatiseur

Guide d’utilisation et d’entretien

SEGURIDAD DEL ACONDICIONADOR DE AIRE ........ 28

REQUISITOS DE INSTALACIÓN ................................... 29

INSTRUCCIONES DE INSTALACIÓN ........................... 31

USO DE SU ACONDICIONADOR DE AIRE .................. 35

CUIDADO DEL ACONDICIONADOR DE AIRE............. 36

SOLUCIÓN DE PROBLEMAS........................................ 37

AYUDA O SERVICIO TÉCNICO..................................... 39

GARANTÍA DE XLS PRODUCTS PARA

ACONDICIONADORES DE AIRE WHIRLPOOL®.......... 40

95114_Whirlpool_Mechanical_AC_book.indb 1 12/16/2016 11:59:23 AM

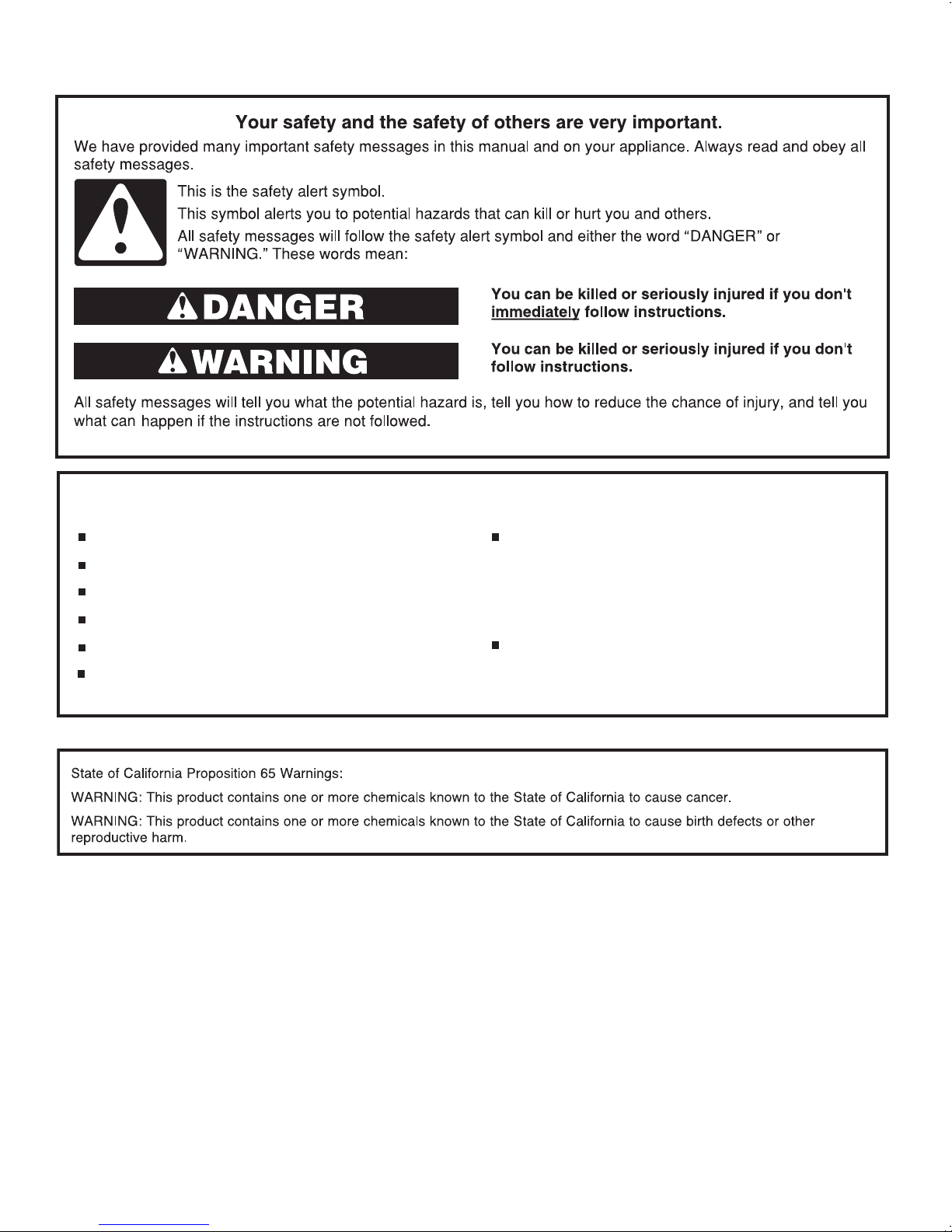

AIR CONDITIONER SAFETY

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic precautions:

SAVE THESE INSTRUCTIONS

Unplug air conditioner before servicing.

Use two or more people to move and install air conditioner.

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack experience and knowledge,

unless they have been given supervision or instruction

concerning the use of the appliance by a person

responsible for their safety.

Children should be supervised to ensure that they do

not play with the appliance.

95114_Whirlpool_Mechanical_AC_book.indb 2 12/16/2016 11:59:24 AM

INSTALLATION REQUIREMENTS

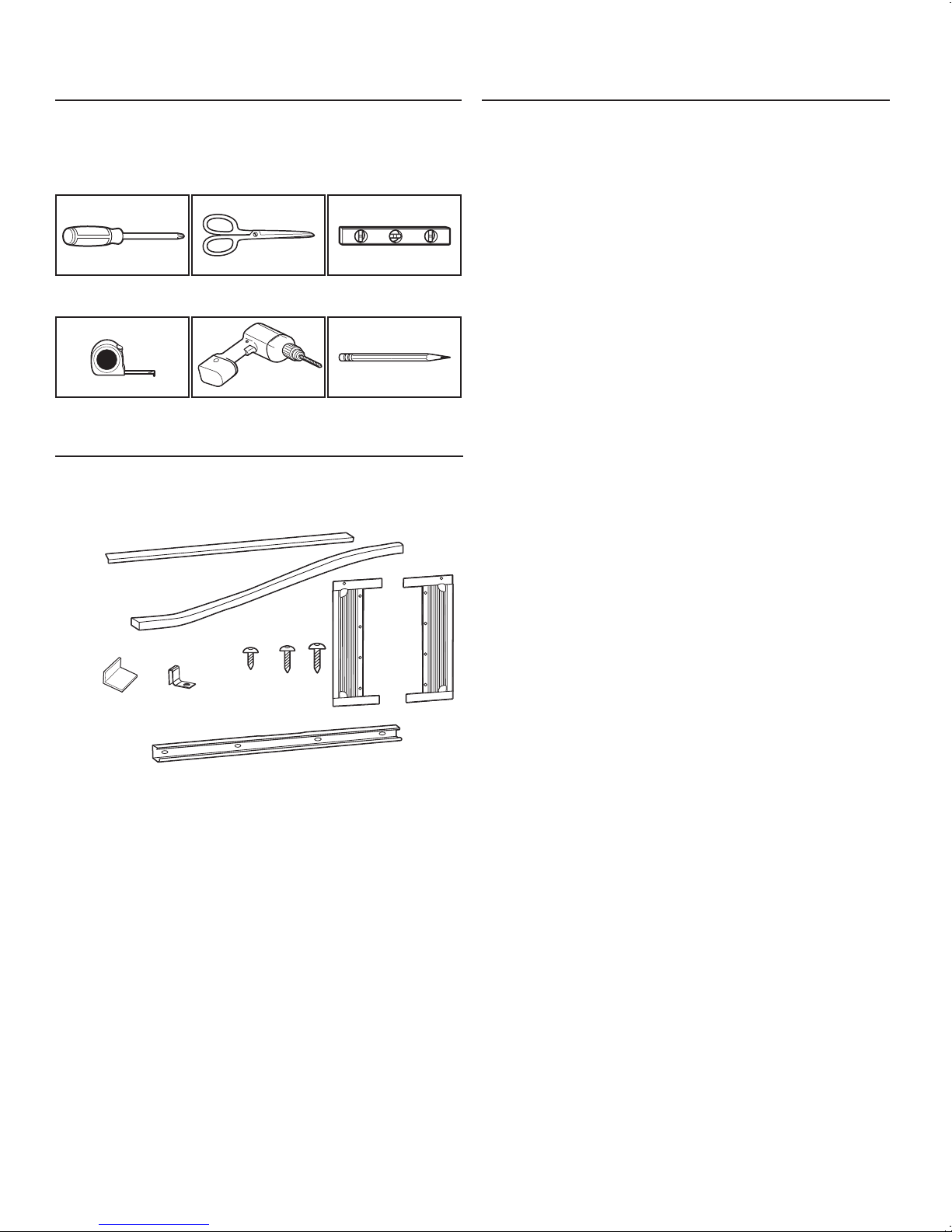

Tools Required—All Models

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools

listed here.

Parts Supplied

Check that all parts are included in parts package.

A. Foam seal with adhesive

strip

B. Foam seal without adhesive

strip

3⁄8" screws x 4 top channel

D. ½" screws x 3 top channel

E. 3⁄4" screws x 4

F. Sash lock

G. Side curtain bracket x 2

H. Side curtains x 2

I. Top channel

Phillips screwdriver

Tape measure

Scissors

Cordless drill and

1/8" bit

Level

Pencil

Location Requirements—All Models

IMPORTANT: Observe all governing codes and ordinances.

Check the location where the air conditioner will be installed.

Make sure you have everything necessary for correct installation.

The location should provide:

■Grounded electrical outlet within 6 ft (183 cm) of where the

power cord exits the air conditioner.

NOTE: Do not use an extension cord.

■Free movement of air in room to be cooled.

■A large enough opening for the air conditioner. Installation

parts are supplied for double-hung windows.

■Adequate wall support for weight of air conditioner. Air

conditioner weighs 50 lbs to 75 lbs (22.7 kg to 34 kg).

NOTE: Cabinet louvers must not be obstructed. Air must be able

to pass freely through the cabinet louvers.

BCDH

95114_Whirlpool_Mechanical_AC_book.indb 3 12/16/2016 11:59:25 AM

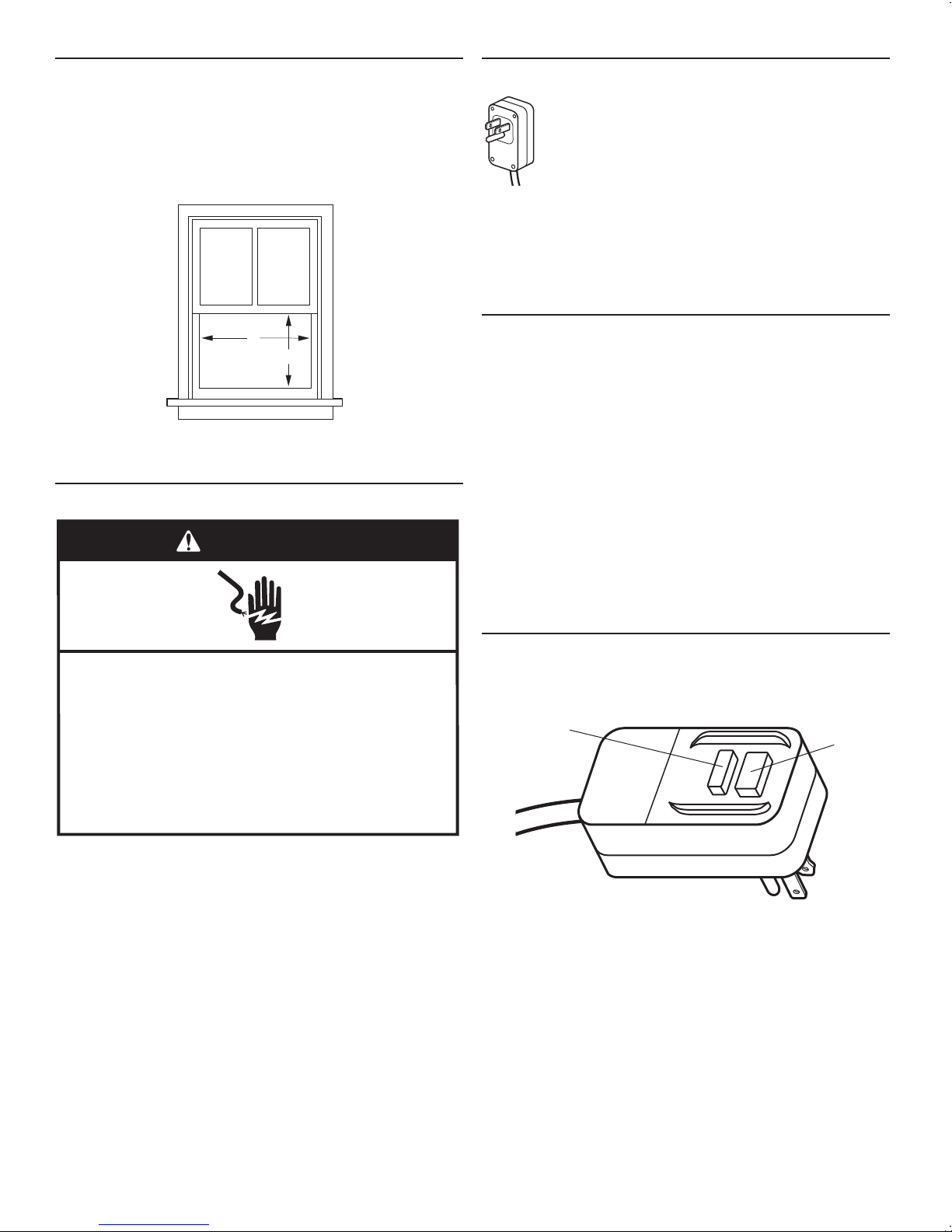

A. 5,000 BTUs: 22" (550 mm) minimum

B. 5,000 BTUs: 14½" (368 mm) minimum

Window Installation

Window Opening Measurements:

■22" (550 mm) minimum to 35" (914 mm) maximum

opening width

■14½" (368 mm) minimum opening height

Electrical Requirements

■115 volts (103.5 min. - 126.5 max.)

■0-12 amps

■15-amp time-delay fuse or circuit-breaker

■If there is a “Single Circuit Only” label on the unit,

use on a dedicated single-outlet circuit only. If a

dedicated single-outlet circuit is not available, then

it is the customer’s responsibility to have a single-

outlet circuit installed by a qualied electrician.

■If there is no “Single Circuit Only” label on the

unit, the unit may be used on any branch circuit

of correct voltage and adequate current

protection rating.

Recommended Grounding Method

This air conditioner must be grounded. This air conditioner is

equipped with a power supply cord having a grounded 3 prong

plug. To minimize possible shock hazard, the cord must be

plugged into a mating, grounded 3 prong outlet, grounded in

accordance with all local codes and ordinances. If a mating

outlet is not available, it is the customer’s responsibility to have

a properly grounded 3 prong outlet installed by a qualied

electrical installer. It is the customer’s responsibility:

■To contact a qualied electrical installer.

■To assure that the electrical installation is adequate and

in conformance with National Electrical Code, ANSI/NFPA

70—latest edition, and all local codes and ordinances.

Copies of the standards listed may be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02269

Power Supply Cord

NOTE: Your air conditioner’s power supply cord may differ from

the one shown.

This room air conditioner is equipped with a power supply cord

required by UL. This power supply cord contains state-of-the-art

electronics that sense leakage current. If the cord is crushed,

the electronics detect leakage current and power will be

disconnected in a fraction of a second.

Electrical Requirements—All Models

The electrical ratings for your air conditioner are listed on the

model and serial number label. The model and serial number

label is located on the right-hand side of the air conditioner

cabinet.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

�re, or electrical shock.

WARNING

A. Test button

B. Reset button

95114_Whirlpool_Mechanical_AC_book.indb 4 12/16/2016 11:59:25 AM

Prepare Air Conditioner for Installation

NOTES:

■The Reset button must be pushed in for proper operation.

■The power supply cord must be replaced if it fails to trip when

the test button is pressed or fails to reset.

■Do not use the power supply cord as an off/on switch. The

power supply cord is designed as a protective device.

■A damaged power supply cord must be replaced with a new

power supply cord obtained from the product manufacturer

and must not be repaired.

■The power supply cord contains no user-serviceable parts.

Opening the tamper-resistant case voids all warranty and

performance claims.

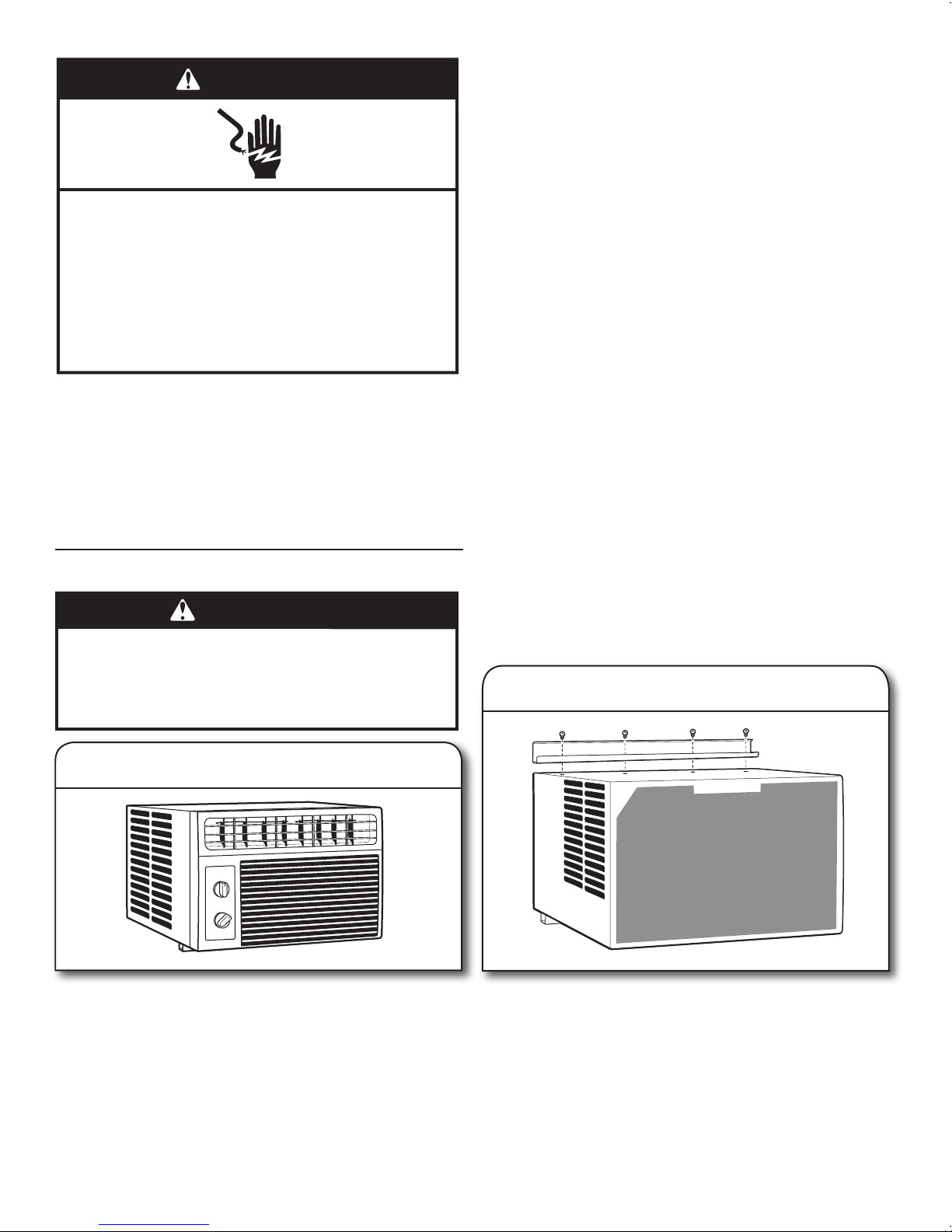

INSTALLATION INSTRUCTIONS

WARNING

Excessive Weight Hazard

Use two or more people to move and install

air conditioner.

Failure to do so can result in back or other injury.

■Do not use sharp instruments, rubbing alcohol, ammable

uids, or abrasive cleaners to remove tape or glue. These

products can damage the surface of your air conditioner.

■Remove any packaging materials inserted into the side

louvers.

■Dispose of/recycle packaging materials in an appropriate way.

1. Unpack the Air Conditioner

Remove Packaging Materials:

■Handle the air conditioner gently while unpacking the unit.

■Cut the 4 plastic bands that secure the carton.

■Remove the carton top and lift the air conditioner from the

base pad.

■Remove tape and glue residue from surfaces before turning

on the air conditioner. Rub a small amount of liquid dish soap

over the adhesive with your ngers. Wipe with a damp cloth

and dry.

To test your power supply cord:

1. Plug power supply cord into a grounded 3 prong outlet.

2. Pressing TEST (listen for click) button will trip and cut all

power to air conditioner.

3. Press and release RESET (listen for click; Reset button will

latch). The power supply cord is ready for operation.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

�re, or electrical shock.

WARNING

1. Place the top channel on the top of the air conditioner, lining

up the holes in the top channel with the holes in the top of the

air conditioner.

2. Using four 3⁄8" screws, attach the top channel to the air

conditioner.

2. Install top channel

95114_Whirlpool_Mechanical_AC_book.indb 5 12/16/2016 11:59:26 AM

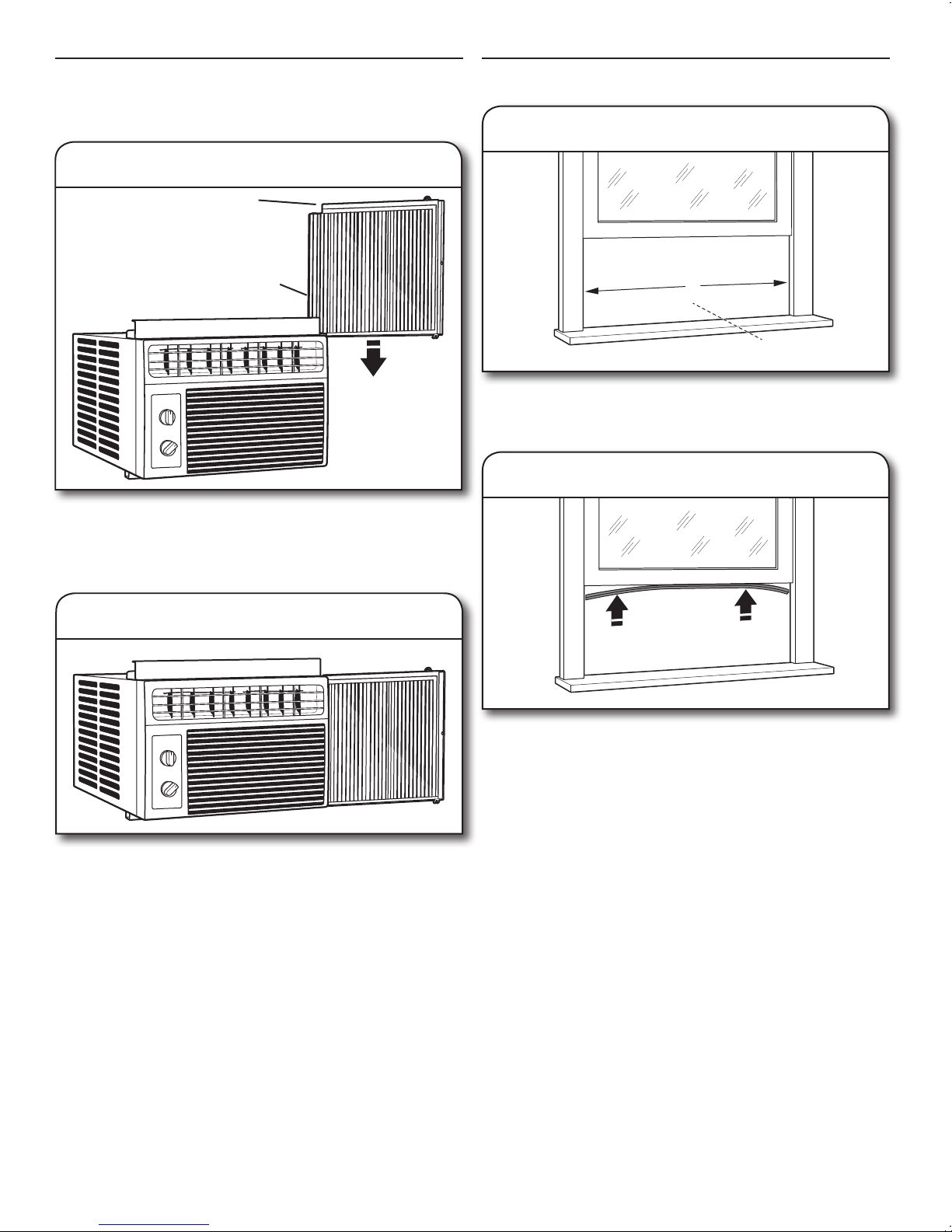

Place the tabbed side of the side curtain in the track on the

right-hand side of the air conditioner cabinet.

Then slide the side curtain down the track until the curtain is

aligned with the top and bottom of the air conditioner cabinet.

Install Side Curtains

NOTE: Attach curtains to the air conditioner before placing the air

conditioner in window.

1. Insert side curtain in right track

Slide the side curtain frame into the top channel and bottom

channels of the air conditioner.

Repeat steps 1 and 2 for other side curtain and frame.

2. Insert curtain frame into channels

Curtain frame

Prepare Window Opening

Measure the width of the window opening (A). Mark the center

line (B) of the window on the inside windowsill.

1. Measure and mark center line

Attach the foam seal with adhesive strip to the bottom of the

window sash.

2. Attach upper foam seal

Foam seal

Tabbed side of curtain

Center line

Width of window opening

95114_Whirlpool_Mechanical_AC_book.indb 6 12/16/2016 11:59:26 AM

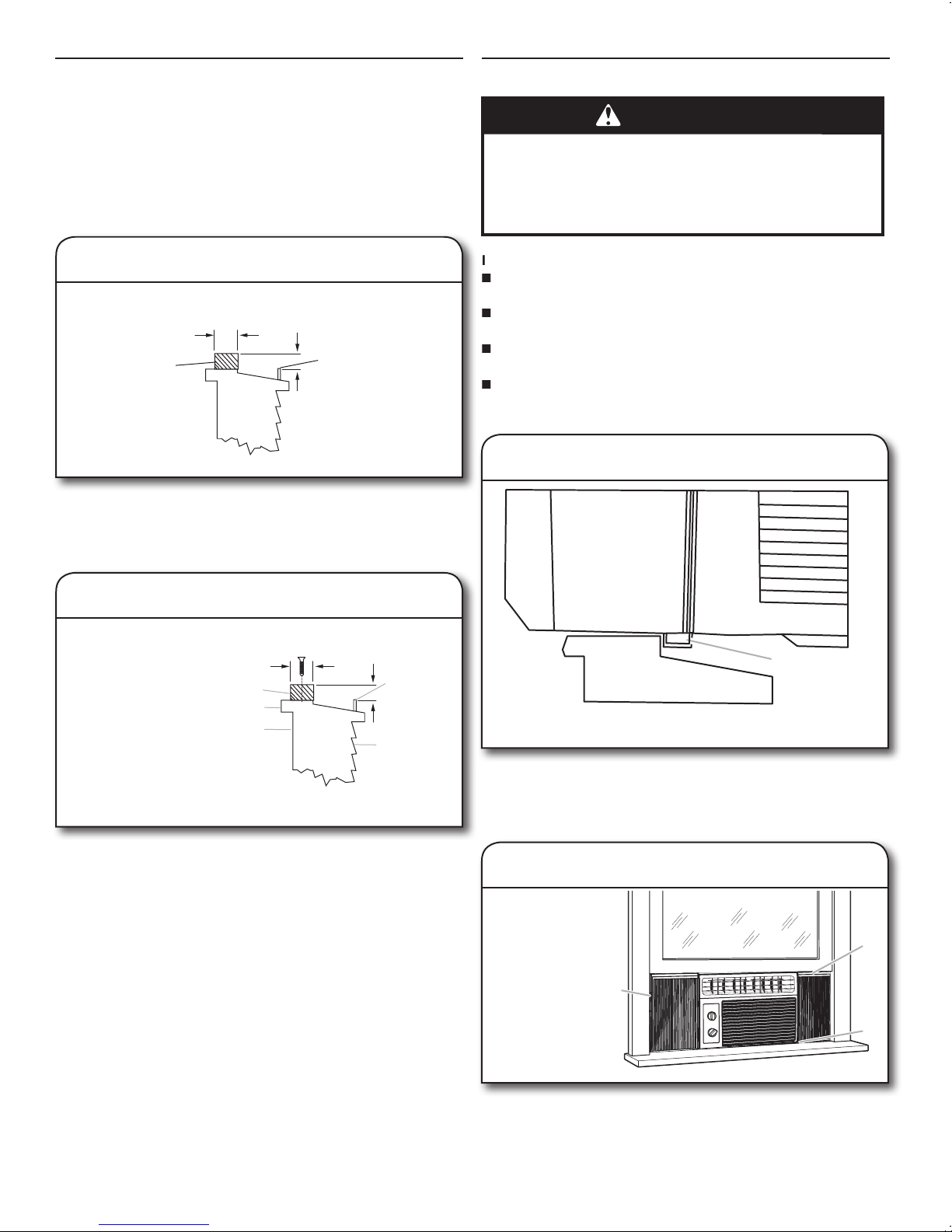

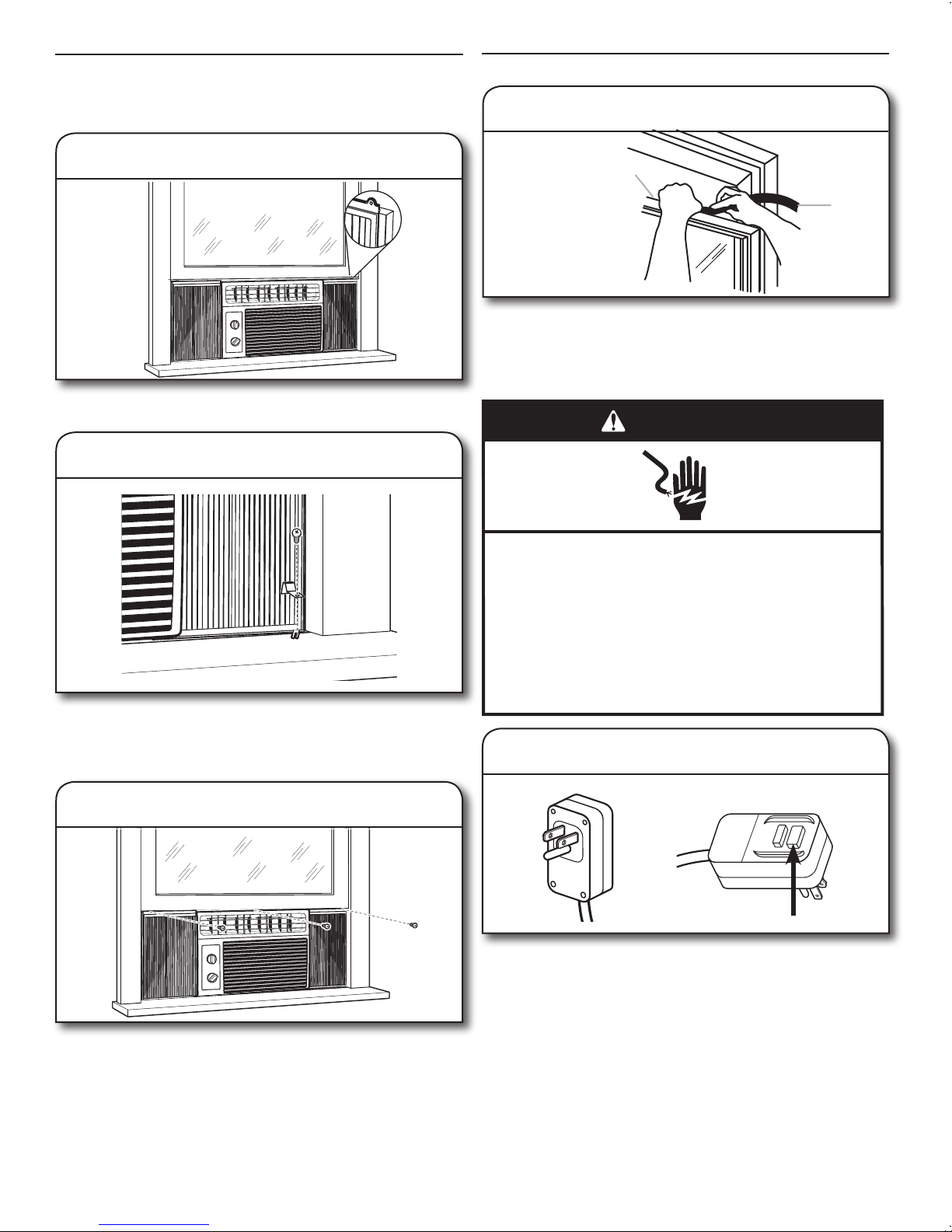

Install Air Conditioner in Window

IMPORTANT:

■Be sure your air conditioner does not fall out of the opening

during installation or removal.

■The place where the power cord exits the air conditioner

should be no more than 6 ft (183 cm) from a grounded outlet .

■To maximize cooling efciency and air circulation, do not

block the air intake or discharge louvers in the front panel.

■To reduce cycling on and off of the compressor and reduce

the risk of freezing up or damage to the unit, do not block the

louvers on the outside of the air conditioner.

Prepare Window with Storm Window

or Other Obstruction

Follow the steps in “Prepare Window Opening”. If possible,

remove the storm window frame or other obstruction.

If the storm window frame or obstruction CANNOT be removed,

a wood spacer will be required to ensure that the air conditioner

slopes to the outside. This will allow condensation and rainwater

to drain away.

Using a level and measuring tape, determine thickness of wood

spacer needed to allow the air conditioner to slope downward

slightly to the outdoors. The block should provide at least 1⁄2" of

height above the obstruction.

Place wood block on windowsill. Wood block should be at least

the full width of the air conditioner cabinet.

1/2"

Min.

1/2"

Min.

1. Measure size of spacer needed

1/2"

Min.

1/2"

Min.

2. Place wood block on windowsill

A. Wood block

B. Windowsill

C Indoors

D. Outdoors

E. Storm window frame

or other obstruction

WARNING

Excessive Weight Hazard

Use two or more people to move and install

air conditioner.

Failure to do so can result in back or other injury.

1. Position air conditioner in window

Using two or more people, place the air conditioner into the

window opening and center it according to the center line

marked earlier. Check that the bottom channel of the air

conditioner is against the windowsill.

A. Air conditioner

B. Bottom channel

C Windowsill

D. Outside

2. Lower window sash into place

Lower the window sash behind the top channel to hold the air

conditioner in place.

NOTE: Your model may differ from the one shown.

A. Side curtain

against window

channel

B. Window sash

behind top

channel

C. Bottom

channel behind

windowsill

Spacer Obstruction

95114_Whirlpool_Mechanical_AC_book.indb 7 12/16/2016 11:59:26 AM

Attach Side Curtains to Window

The steps for installing the side curtains are the same for

both sides.

1. Extend side curtains

Extend side curtains out until they t into the window channels.

3. Install screws into window sash

Use a 1⁄8" drill bit to drill a starter hole through the holes in the top

rail and the top corners of the side curtains into the window sash.

Secure with three ½" screws through the holes in the top rail and

side curtain and into the window sash.

Complete Installation

1. Install foam seal

A. Top of lower

window sash

B. Foam seal

Insert the foam seal without adhesive strip between the top of the

lower window sash and the glass of the upper window.

Remove any remaining clear plastic lm from the control panel

and plastic front panel.

2. Plug into grounded 3 prong outlet

Plug into a grounded 3 prong outlet

Press RESET on the power supply cord. See “Electrical

Requirements.”

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

�re, or electrical shock.

WARNING

2. Secure side curtains to windowsill

Place the frame lock between the extended side curtain and the

window sill. Screw a ¾" locking screw through the frame lock and

into the window sill.

95114_Whirlpool_Mechanical_AC_book.indb 8 12/16/2016 11:59:27 AM

Operating your air conditioner properly helps you to obtain the

best possible results.

This section explains proper air conditioner operation.

IMPORTANT:

■If you turn off the air conditioner, wait at least 3 minutes

before turning it back on. This prevents the air conditioner

from blowing a fuse or tripping a circuit breaker.

■Do not try to operate your air conditioner in Cool mode

when outside temperature is below 65°F (18°C). The inside

evaporator coil will freeze up, and the air conditioner will not

operate properly.

NOTE: In the event of a power failure, your air conditioner will

operate at the previous settings when the power is restored.

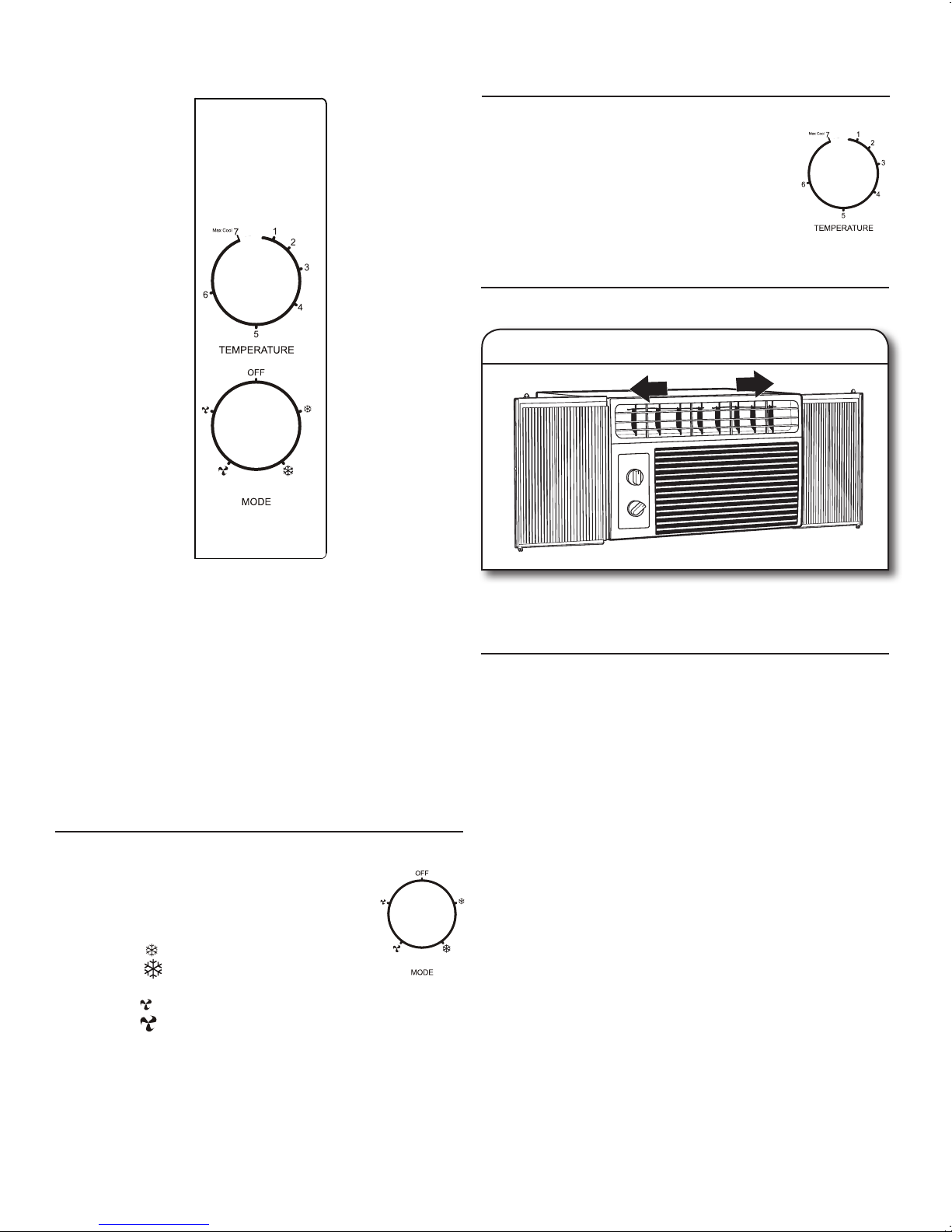

Operation

Turn the Operation knob to the desired operating

mode.

■Power—Turn on air conditioner by turning mode

dial to the desired setting.

■Cool Low ( )—Cools with the fan at low speed.

■Cool High ( )—Cools with the fan at high

speed. Use this setting for maximum cooling.

■Fan Low ( )—The fan runs at low speed without cooling.

■Fan High ( )—The fan runs at high speed without cooling.

■Off—Turns the air conditioner off.

Thermostat

The thermostat will automatically control room

temperature by cycling the compressor on and off.

The fan will continue to run.

■Turn to 6 (coolest) for cooler room temperatures.

■Turn to 1 (cool) for warmer room temperatures.

■A middle setting with the knob turned to 5 is

normal for average conditions.

USING YOUR AIR CONDITIONER

Changing Air Direction

Use tab to adjust air direction

Normal Operating Sounds

When your air conditioner is operating normally, you may hear

sounds such as:

■Droplets of water hitting the condenser, causing a pinging or

clicking sound. The water droplets help cool the condenser.

■Air movement from the fan.

■Clicks from the thermostat cycle.

■Vibrations or noise due to poor wall or window construction.

■A high-pitched hum or pulsating noise caused by the modern

high-efciency compressor cycling on and off.

Use the lever on the vent louvers to adjust the air direction left or

right.

95114_Whirlpool_Mechanical_AC_book.indb 9 12/16/2016 11:59:27 AM

Your new air conditioner is designed to give you many years

of dependable service. This section tells you how to clean and

care for your air conditioner properly.

Remove the lter by grasping the tab on the lter and pulling it

out of the grille to the side.

Reinstalling the air filter:

Slide the lter back into the grille.

AIR CONDITIONER CARE

Cleaning the Front Panel

1. Turn off the air conditioner.

2. Wipe the front panel with a soft, damp cloth.

3. Air dry the front panel completely.

Cleaning the Air Filter

The air lter is removable for easy cleaning. A clean lter helps

remove dust, lint, and other particles from the air and is important

for best cooling and operating efciency. Check the lter every

2 weeks to see whether it needs cleaning.

NOTE: Do not operate the air conditioner without the lter

in place. Cooling performance will be effected when the coil

becomes dirty.

Use a vacuum cleaner to clean air lter. If the air lter is very dirty,

wash it in warm water with a mild detergent and rinse well.

NOTE: Do not wash the air lter in the dishwasher or use any

chemical cleaners; it may damage the lter. Air dry the air lter

completely before replacing to ensure maximum efciency.

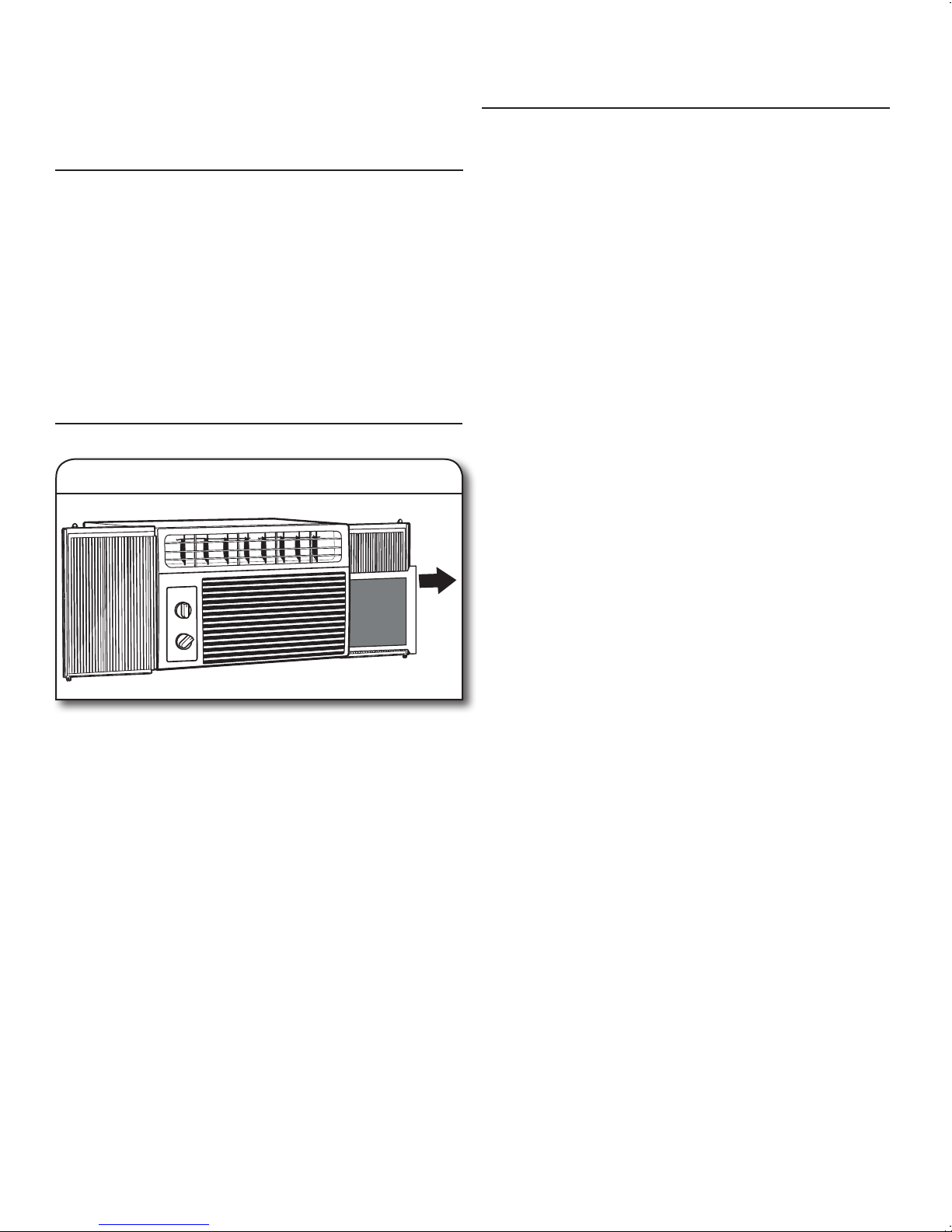

Air Filter Removal

Remove the air ﬁlter

95114_Whirlpool_Mechanical_AC_book.indb 10 12/16/2016 11:59:27 AM

Other manuals for WHAW050BW

Table of contents

Languages:

Other Whirlpool Air Conditioner manuals

Whirlpool

Whirlpool ACQ052 User manual

Whirlpool

Whirlpool 66121417 User manual

Whirlpool

Whirlpool ACQ304XS0 User manual

Whirlpool

Whirlpool AMD034 User manual

Whirlpool

Whirlpool Gold WPH43M User manual

Whirlpool

Whirlpool ACQL128XS0 User manual

Whirlpool

Whirlpool ACE184XM0 User manual

Whirlpool

Whirlpool WHAP13HAW User manual

Whirlpool

Whirlpool SIA90IN User manual

Whirlpool

Whirlpool R511 User manual

Whirlpool

Whirlpool ACU124PK0 Product information sheet

Whirlpool

Whirlpool CA13WQ4 User manual

Whirlpool

Whirlpool MAGICOOL User manual

Whirlpool

Whirlpool ACQ052 User manual

Whirlpool

Whirlpool 63851343 Assembly instructions

Whirlpool

Whirlpool WHAT102-2BW User manual

Whirlpool

Whirlpool WHAT081-HAW User manual

Whirlpool

Whirlpool ACG052XJ0 User manual

Whirlpool

Whirlpool BHAC1400XS0 User manual

Whirlpool

Whirlpool AMD 018 User manual

Whirlpool

Whirlpool YACQ108MR0 User manual

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER User manual

Whirlpool

Whirlpool AC0062XM0 User manual

Whirlpool

Whirlpool ACM052 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
