Whirlpool ACD052MM0 User manual

1. Front panel

2. Air louvers

3. Control panel

4. Side curtains

5. Slide-out filter

1. Panel delantero

2. Rejillas del aire

3. Panel de control

4. Cortinas laterales

5. Filtro deslizable

Use and Care Guide

Manual de Uso y Cuidado

ROOM AIR

CONDITIONER

Table of Contents ....................2

ACONDICIONADOR

DE AIRE PARA

HABITACIÓN

Contenido ..............................16

Questions regarding features,

operation/performance, parts,

accessories or service?

Call 1-800-253-1301

In Canada, call 1-800-461-5681 for

assistance. For installation and

service, call 1-800-807-6777.

¿Tiene alguna pregunta sobre

características, operación/

desempeño, partes, accesorios o

servicio?

Llame al 1-800-253-1301

En Canadá, llame al 1-800-461-5681

para recibir asistencia. Para la

instalación y el servicio, llame al

1-800-807-6777.

EN ES

326026021

Thank you for buying this appliance.

To ensure you enjoy years of trouble-free operation, we

developed this Use and Care Guide. It contains valuable

information about how to operate and maintain your

appliance properly and safely. Please read it carefully.

Also, please complete and mail the Product Registration

Card provided with your appliance. This card helps us

notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service on your appliance,

you need to know your complete model number and

serial number. You can find this information on the

model and serial number label (located on the lower left

corner of the front panel).

Please record the model and serial number

information below. Also, record the purchase date of

your appliance and the store’s name, address, and

telephone number.

Model Number

Serial Number

Purchase Date

Store Name

Store Address

Store Phone

Keep this book and the sales slip together

for future reference.

A NoteToYou

Contents Page

A Note To You...........................................................2

Air Conditioner Safety.............................................3

Important Safety Instructions ..........................3

Air Conditioner Installation.....................................4

Installation requirements..................................4

Tools needed......................................................4

Installation parts supplied................................5

Electrical requirements.....................................5

Installing side curtains .....................................6

Positioning air conditioner in window............6

Completing installation.....................................7

Air Conditioner Use .................................................8

Starting your air conditioner............................8

Changing air direction......................................9

Saving energy....................................................9

Normal sounds ..................................................9

Air Conditioner Care..............................................10

Cleaning the air filter ......................................10

Cleaning the front panel.................................10

Repairing paint damage..................................10

Performing Annual Maintenance ...................10

Troubleshooting .....................................................11

Accessories............................................................13

Assistance or Service ...........................................14

IMPORTANT SAFETY

INSTRUCTIONS

Help us help you

Please:

• Install your air conditioner in a window that will hold

the weight, and secure the air conditioner according to

the Installation Instructions.

• Connect the air conditioner to the proper kind of outlet

with the correct electrical supply and ground. (See the

Installation Instructions.)

• Make sure the air conditioner is the correct size for the

area you want to cool.

• Use the air conditioner only to do what a window air

conditioner is designed to do.

• Make sure the air conditioner is not used by anyone

unable to operate it properly.

• Maintain the air conditioner properly.

• Remove the Energy Label. Use a damp cloth to take

off any glue residue. DO NOT use sharp instruments,

flammable fluids, or abrasive cleaners. These can

damage the air conditioner finish.

Air Conditioner Safety

Your safety and the safety of others are

very important.

We have provided many important safety messages

in this manual and on your appliance. Always read

and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards

that can kill or hurt you and others.

All safety messages will follow the safety alert

symbol and either the word “DANGER” or

“WARNING”. These words mean:

All safety messages will tell you what the potential

hazard is, tell you how to reduce the chance of

injury, and tell you what can happen if the

instructions are not followed.

You can be killed or seriously injured if you don’t

immediately follow instructions.

You can be killed or seriously injured if you don’t

follow instructions.

WARNING

DANGER Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in

death, fire, or electrical shock.

Electrical Shock Hazard

WARNING

Air Conditioner Installation

Installer: Leave Use and Care Guide with the homeowner.

Homeowner: Keep Use and Care Guide for future reference and for local

electrical inspector’s use, if required.

Location requirements

IMPORTANT: Observe all governing codes and

ordinances.

Check the location where air conditioner will be installed.

Proper installation is your responsibility. Make sure you

have everything necessary for correct installation.

The location should provide:

•Grounded electrical outlet within 4 ft (122 cm) of the

window. Do not use an extension cord.

•Free movement of air to rooms to be cooled.

•A large enough opening for the air conditioner.

Installation parts are supplied for double-hung

windows.

•Adequate wall support for weight of air conditioner. Air

conditioner weighs 56 lbs (25 kg) to 80 lbs (36 kg).

Do not install the air conditioner in an area where the

front panel will be exposed to heat sources that will raise

the panel surface temperature above 120°F (50°C).

Window opening measurements

Tools needed

A. Gloves

B. Flat-blade and Phillips screwdrivers

C.Scissors

D. Drill and 3/32 in. or smaller bit

E. Safety glasses

F. Tape measure

G. Level

Air Conditioner Size

5000-6000 25" to 38" 16"

Btu/h (63.5 cm to (40.6 cm)

96.5 cm)

A B

Installation parts supplied

H. 1 Window-lock bracket

I. 1 foam seal

J. 6 #10 x 3/8 in. Phillips-head screws

K. 3 3/4 in. slotted round-head screws

L. 2 side curtains HI

JKL

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in

death, fire, or electrical shock.

Electrical Shock Hazard

Wiring requirements

Power supply cord

plug outlet

•3-wire

•Single-phase

•AC only

•60 hertz

•115 volt (103.5 min. -

126.5 max.)

•0-12 amperes

•15-amp time-delay

fuse or circuit breaker

•14 gauge copper

wiring

WARNING

Specific electrical requirements are listed in the chart.

Follow the requirements for the type of plug on the

power supply cord.

Recommended ground method

For your personal safety, this air conditioner must be

grounded. This air conditioner is equipped with a

power supply cord having a 3-prong ground plug. To

minimize possible shock hazard, the cord must be

plugged into a mating, 3-prong ground-type outlet,

grounded in accordance with all local codes and

ordinances. If a mating outlet is not available, it is the

customer’s responsibility to have a properly grounded,

3-prong outlet installed by a licensed installer.

It is the customer’s responsibility:

•To contact a qualified electrical installer.

•To assure that the electrical installation is adequate

and in conformance with National Electrical Code,

ANSI/NFPA 70 —latest edition*, and all local codes

and ordinances.

Copies of the standards listed may be obtained from:

* National Fire Protection Association

Batterymarch Park

Quincy, Massachusetts 02269

Electrical requirements

Installing side curtains

Attach curtains to unit before placing unit in window.

1. Remove unit from packaging.

2. Locate supplied bag of 6 screws.

3. Insert top and then bottom of right curtain housing (A) in

top and bottom curtain guides (B) on air conditioner.

4. Extend right curtain outward so you may insert the first

screw (C) through the middle hole of the curtain. Screw

curtain to middle hole in air conditioner cabinet. This screw

is required to correctly attach curtain (top to bottom) to the

air conditioner cabinet.

5. While the right curtain is still extended, insert another screw

conditioner cabinet.

6. While the right curtain is still extended, insert another screw

air conditioner cabinet.

7. Slide curtain housing into guides as far as it will go.

8. Repeat above steps for left curtain, then go to “Positioning

the air conditioner”below.

bottom view

back view

Positioning air conditioner in window

1/2 bubble tilt

Use two or more people to move and install air

conditioner.

Failure to do so can result in back or other

injury.

Excessive Weight Hazard

WARNING

1. Using two people, lift air conditioner into place.

NOTES:

• Handle air conditioner with care.

•Air conditioner should be placed no more than 4 ft (122

cm) from a grounded outlet.

2. Center air conditioner in window. Check that lower rail of

air conditioner is behind and against back side of window

seal. Lower window sash (A) to hold cabinet in place.

NOTES:

•Do not block the louvers in the front panel.

•Do not block the openings on the outside of the air

conditioner.

3. Check that air conditioner cabinet is tilted to the outside so

that water will run to the outside. There should be a tilt to

the outside of about 1/2 bubble (B). If cabinet is not

properly positioned, reposition or shim cabinet to provide

the proper tilt.

Use two or more people to move and install air

conditioner.

Failure to do so can result in back or other

injury.

Excessive Weight Hazard

WARNING

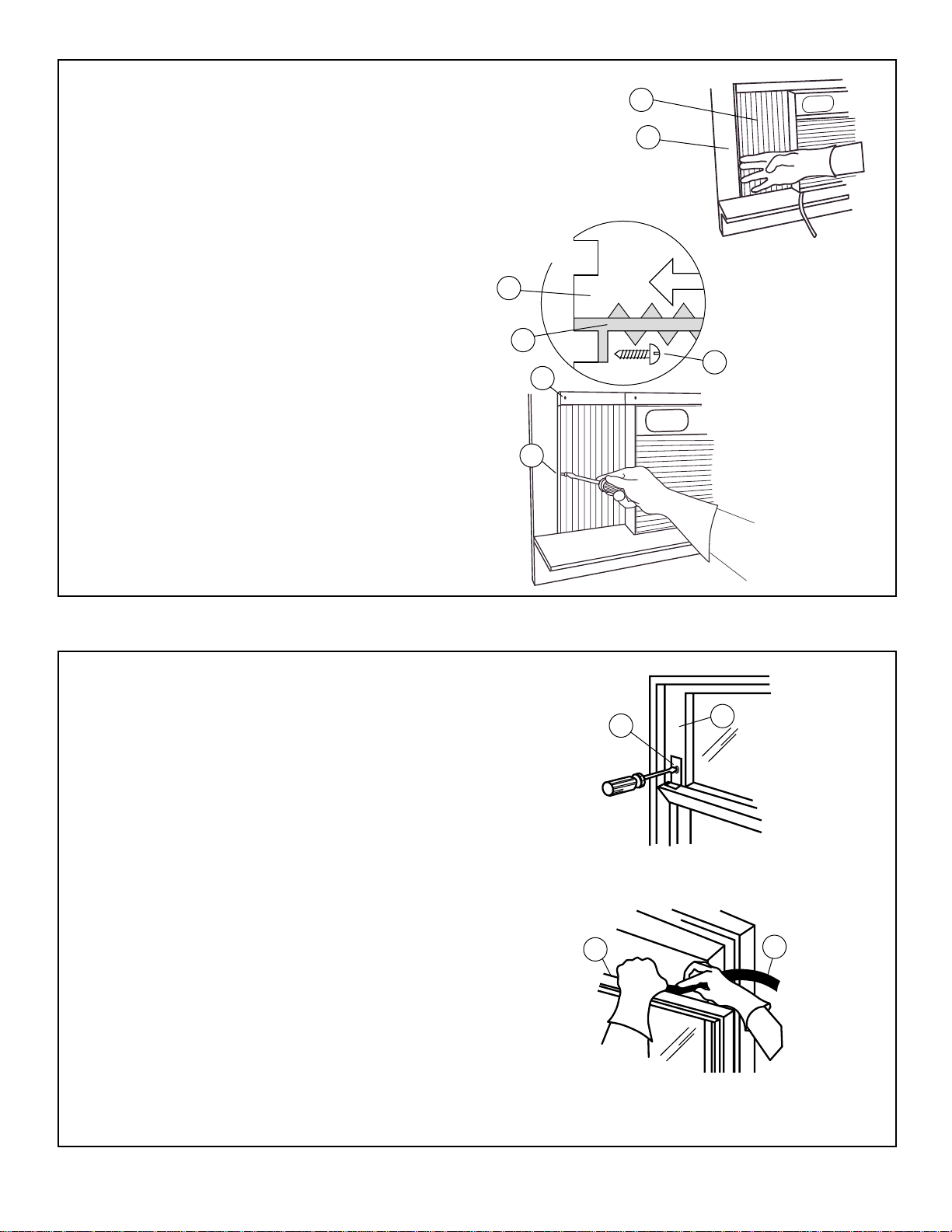

4. Pull left curtain (D) out until it fits into the window

channel (E). Repeat with right curtain.

Top view

5. Insert one of the slotted round-head screws (F)

through left curtain and into the window channel or

through alternate hole (G) at the top of the curtain

and into the window channel to fasten the curtain to

the window sash. Repeat for right curtain.

NOTE: Install window-lock bracket to prevent air

conditioner from falling out of window.

1. Place window-lock bracket (H) on top of lower

window and against upper window sash (I).

2. Use a 3/32 in. drill bit to drill a starter hole through

the hole in the bracket.

3. Attach window-lock bracket by inserting one of the

slotted round-head screws through the window lock

bracket (H) and into the upper window sash (I).

4. Insert foam seal (J) behind the top of the lower

window sash (K) and against the glass of the upper

window.

5. Plug power cord into outlet.

Completing installation

Starting your air conditioner

Operating your air conditioner properly helps you to obtain the best possible results.

This section explains proper air conditioner operation.

IMPORTANT:

•If you turn the air conditioner off, wait at least 3 minutes before turning it back on. This prevents the air conditioner from

blowing a fuse or tripping a circuit breaker.

•Do not try to operate your air conditioner in the cooling mode when outside temperature is below 65°F (18°C). The

inside evaporator coil will freeze up, and the air conditioner will not operate properly.

Air Conditioner Use

1. Set the FAN SPEED to the desired setting. When

the air conditioner is operating at LOW, HIGH, or

TURBO (some models), the fan circulates air

continuously.

LOW - for sleeping comfort

HIGH - for normal cooling

TURBO (on some models) - for maximum cooling

FAN ONLY

When the FAN ONLY setting is selected, the fan will

run continuously to move air, but the air will not be

cooled.

Your air conditioner may have one of these fan controls:

2. Turn the TEMPERATURE Control to a mid-setting.

Adjust the air conditioner's performance by turning

theTEMPERATURE Control clockwise ( ) for

maximum cooling. For less cooling, turn the

TEMPERATURE Control counterclockwise ( ).

Experiment and find the setting that suits you best.

The louvers in the top of the front

panel allow you to control the

direction of the cooled air. Roll the

wheel up or down to direct the air

left or right. Use the tabs to move

the whole cartridge to direct air up,

down or straight ahead.

There are many things you can do to help save energy.

When your air conditioner is operating normally, you may hear sounds such as:

Changing air direction

Saving energy

Normal sounds

•Droplets of water hitting the condenser, causing a

“pinging”or “clicking”sound. The water droplets

help cool the condenser.

•Air movement from the fan.

•Clicks from the thermostat cycle.

•Vibrations or noise due to poor wall or window

construction.

•A high-pitched hum or pulsating noise caused by the

modern high-efficiency compressor cycling on and off.

•Improve your home's insulation. Seal doors and

windows. Close fireplace flue.

•Close blinds or drapes on the sunny side of your

house. Add awnings.

•Make sure drapes or furniture do not block airflow from

your air conditioner.

•Turn lights and appliances off when they are not

needed.

•Ventilate your attic. High temperatures in the attic add

to the air conditioner's cooling load.

•Try not to use heat-producing appliances during the

hottest part of the day.

•Keep heat registers and cool-air returns closed.

•Use exhaust vent fans while cooking, doing laundry, or

bathing.

wheel tab

1. Unplug air conditioner or disconnect power.

2. Wipe the front panel with a soft, damp cloth.

3. Air dry front panel completely.

4. Plug in air conditioner or reconnect power.

Your new air conditioner is designed to give you many years of dependable service. This section tells you how to clean

and care for your air conditioner properly. Call your local authorized dealer for an annual checkup. Remember…the cost

of this service call is your responsibility.

Check once or twice a year for paint damage. This is

very important, especially in areas near oceans or

where rust is a problem. If needed, touch up with a

good grade enamel paint.

NOTE: To reduce paint damage during the winter,

install a heavy-duty cover over air conditioner cabinet.

For information on ordering a heavy-duty cover, see

“Accesories.”

Air Conditioner Care

Repairing paint damage

Cleaning the front panel

The air filter is removable from either side of the unit for easy

cleaning. A clean filter helps remove dust, lint, and other

particles from the air and is important for best cooling

operating efficiency. Check the filter every 2 weeks to see if it

needs cleaning. Do not operate the air conditioner without the

filter in place.

1. Unplug air conditioner or disconnect power.

2. Slide air filter out from either side of unit.

3. Use a vacuum cleaner to clean air filter. If air filter is very

dirty, wash it in warm water with a mild detergent. Do not

wash air filter in the dishwasher or use any chemical

cleaners. Air dry filter completely before replacing to ensure

maximum efficiency.

4. Slide air filter back into either side of unit.

5. Plug in air conditioner or reconnect power.

Cleaning the air filter

Filter may be removed from either side.

Your air conditioner needs annual maintenance to help

ensure steady, top performance throughout the year.

Call your local authorized dealer to schedule an

annual checkup. The expense of an annual inspection

is your responsibility.

Performing annual maintenance

This manual suits for next models

Table of contents

Languages:

Other Whirlpool Air Conditioner manuals

Whirlpool

Whirlpool AMD 385 User manual

Whirlpool

Whirlpool R-WHAP121AW User manual

Whirlpool

Whirlpool ACQ058MM0 User manual

Whirlpool

Whirlpool ACD052PK0 User manual

Whirlpool

Whirlpool AMD 093 User manual

Whirlpool

Whirlpool R-94 User manual

Whirlpool

Whirlpool AMAP101AB User manual

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER Original operating instructions

Whirlpool

Whirlpool ACQ254XF0 User manual

Whirlpool

Whirlpool ACE184XR0 User manual

Whirlpool

Whirlpool YACQ108MR0 User manual

Whirlpool

Whirlpool 66161279 User manual

Whirlpool

Whirlpool ROOM AIR CONDITIONER User manual

Whirlpool

Whirlpool FM07IDUWA2 User manual

Whirlpool

Whirlpool ACPE102PS2 User manual

Whirlpool

Whirlpool ACQ088MS User manual

Whirlpool

Whirlpool 66121417 User manual

Whirlpool

Whirlpool ACU124XD0 User manual

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER User manual

Whirlpool

Whirlpool WHAT081-HAW User manual

Whirlpool

Whirlpool CA25WC50 Operation manual

Whirlpool

Whirlpool AR1230XA0 User manual

Whirlpool

Whirlpool ACE184XM0 User manual

Whirlpool

Whirlpool CAH12W04 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
