WE-EF FLC122 LED User manual

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this

document for details.

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Wall Luminaire Surface Mounted

FLC122 LED

FLC142 LED

IP55, IK07, Class I, ta= 40°C

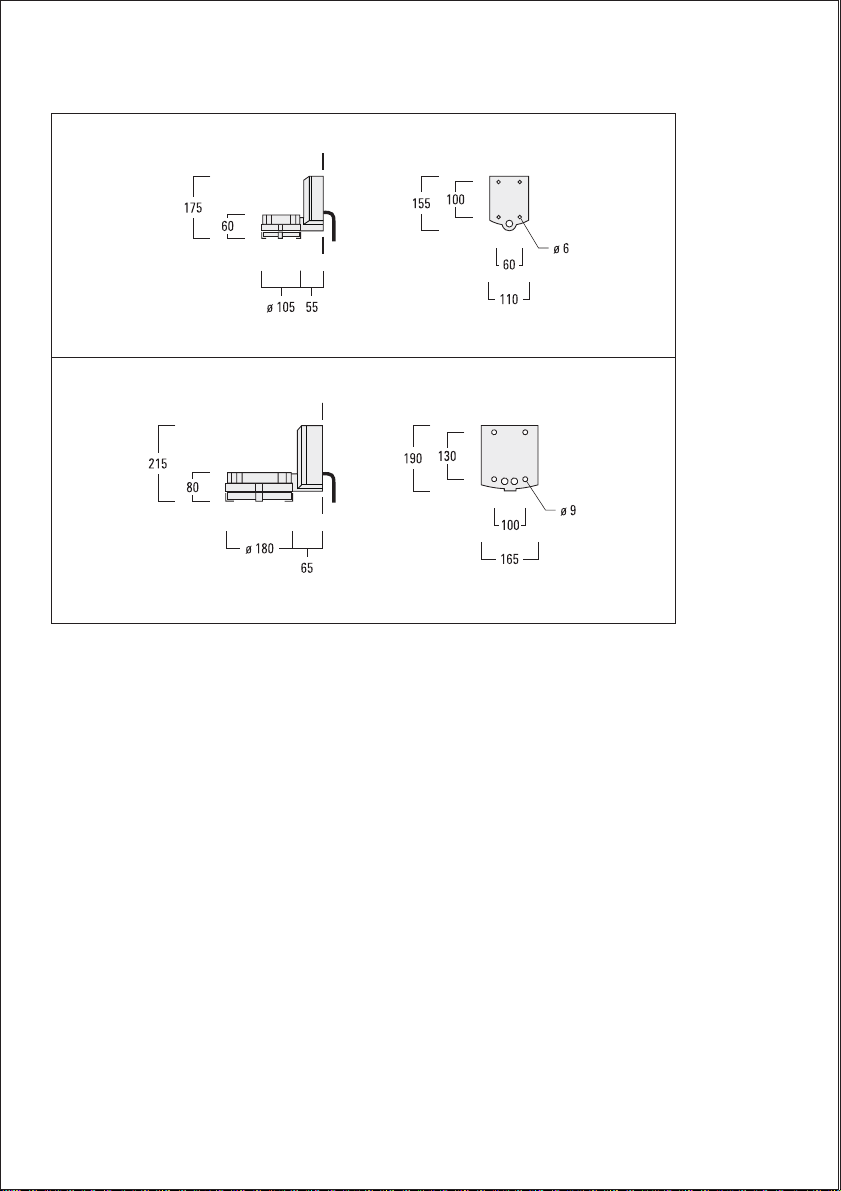

Wall Luminaire Surface Mounted

FLC122

FLC142

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.

Do not use high-pressure cleaners.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out

by a suitably qualiƂed and trained professional.

Warning: Do not open luminaire while mains supply is switched on.

Installation

The product must be installed and maintained by a

suitably qualiƂed professional in compliance with latest

building/construction and/or electrical regulations and

relevant legislation.

Warning: Switch off mains electrical supply prior to

installing and connecting the luminaire.

Notice: If the luminaire is modiƂed by anybody other

than the original manufacturer, then the warranty will

no longer be valid and shall become the full respon-

sibility of the modifying person/organisation. Claims

based on defects attributable to improper installation

and/or application, and the consequences thereof, are

excluded.

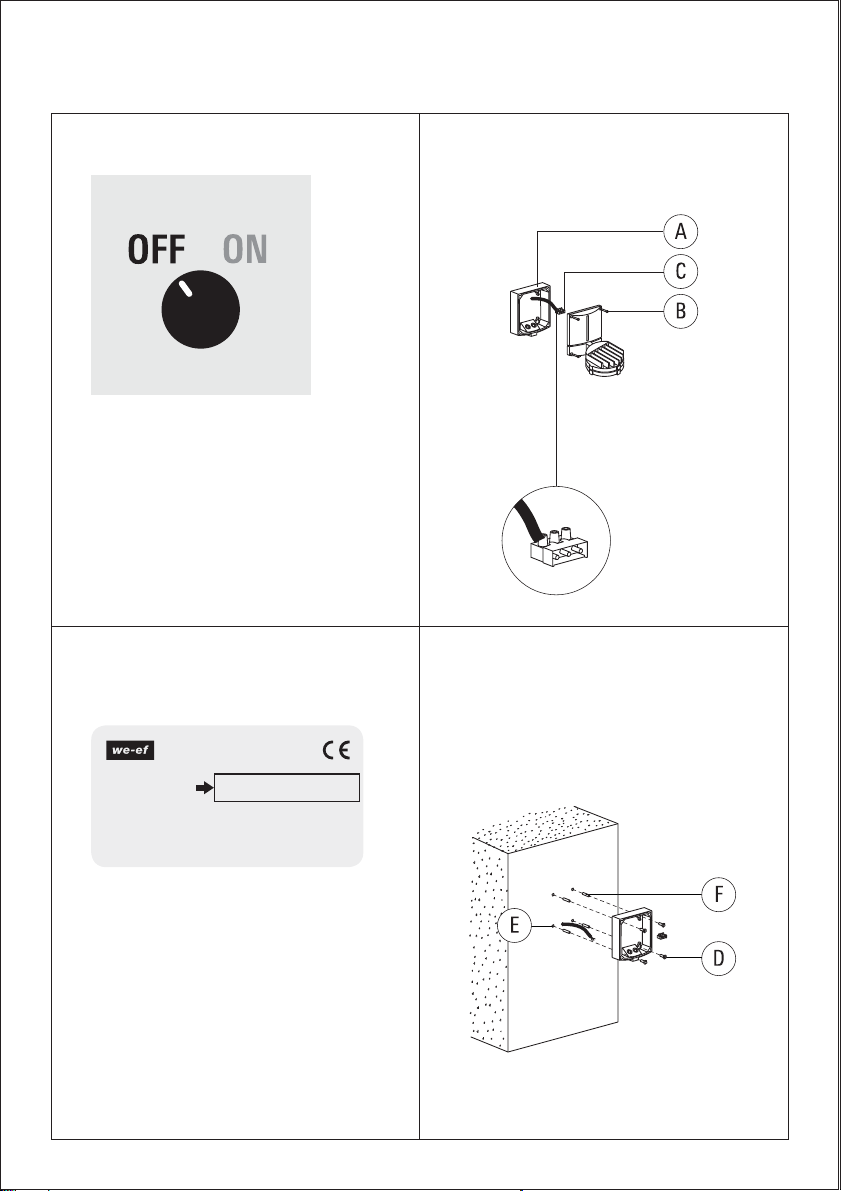

1) Switch off mains electrical supply.

Installation Procedure

4) Determine position for Ƃxing screws D. Drill

relevant holes Eand insert nylon plugs F.

Warning: Ensure not to damage any electrical

cable, water pipe or other items drilling holes.

2) Remove mounting ƃange Aby loosening

screws B. Detach terminal connector C.

3) Check that rating shown on luminaire label

conforms with mains electrical supply.

(example)

FLC122-LED 220-240V50-60/Hz

145-XXXX SOE XXXXXXX

LED 3000K 12W item no. XXX

12/17 IP55

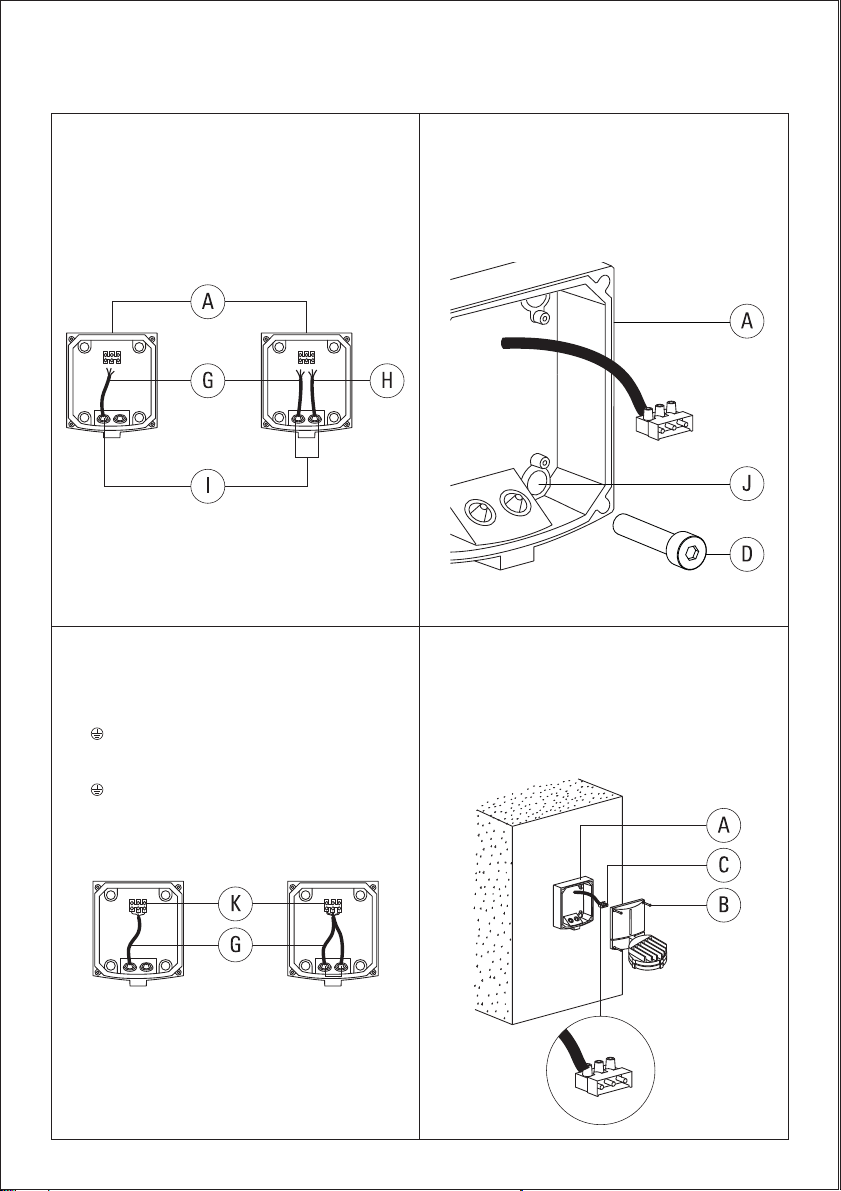

5) Feed mains supply cable G(and second cable

Hfor through wiring, if required) through

membrane spout(s) I, while setting mounting

ƃange Ain position.

6) To Ƃx mounting ƃange A, pierce through nylon

plugs Jby inserting and tightening screws D.

Attention: Nylon plugs Jmust remain in

position to provide sealing.

7) Connect mains supply cable Gleads to

respective terminals in terminal connector K:

a) ON/OFF (L = Phase, N = Neutral,

= Earthing)

b) 1-10 V/DALI (L = Phase, N = Neutral,

= Earthing, DA/DA = DALI control line,

D–/D+ = 1-10 V control line).

8) Ensure that all surfaces are clean and dry.

Position luminaire over mounting ƃange A

and attach terminal connector C. Tighten

screws B.

www.we-ef.com

WE-EF LEUCHTEN

Germany

Tel +49 5194 909 0

Fax +49 5194 909 299

info.germany@we-ef.com

WE-EF LUMIERE

France

Tel +33 4 74 99 14 44

Fax +33 4 74 99 14 40

info.france@we-ef.com

WE-EF HELVETICA

Switzerland

Tel +41 22 752 49 94

Fax +41 22 752 49 74

info.switzerland@we-ef.com

WE-EF LIGHTING

United Kingdom

Tel +44 844 880 5346

Fax +44 844 880 5347

info.uk@we-ef.com

WE-EF LIGHTING

Thailand

Tel +66 2 738 9610

Fax +66 2 175 2174

info.asiapaciƂc@we-ef.com

WE-EF LIGHTING

Australia

Tel +61 3 8587 0444

Fax +61 3 8587 0499

info.australia@we-ef.com

WE-EF LIGHTING

United States of America

Tel +1 724 742 0030

Fax +1 724 742 0035

info.usa@we-ef.com

TO9205W0318 © WE-EF 2018

Technical speciƂcations are

subject to change.
