WE-EF FLC122 LED User manual
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning
and electrical surges,it is essential to cover mains supply and data input
lines at the distribution board level,by using respective primary (Type 1)
and secondary (Type 2) surge arrestors in compliance with EN61643-11/
IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and
activated prior to luminaire installation.Also,disconnect luminaires
before operating high-power devices such as, for example,electrical
arc welders.
Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
WE-EF LIGHTING
Installation and Maintenance
Instructions
Wall Luminaire Surface Mounted
FLC122 LED
FLC142 LED
1
IP55, IK07, Class I, ta= 40°C

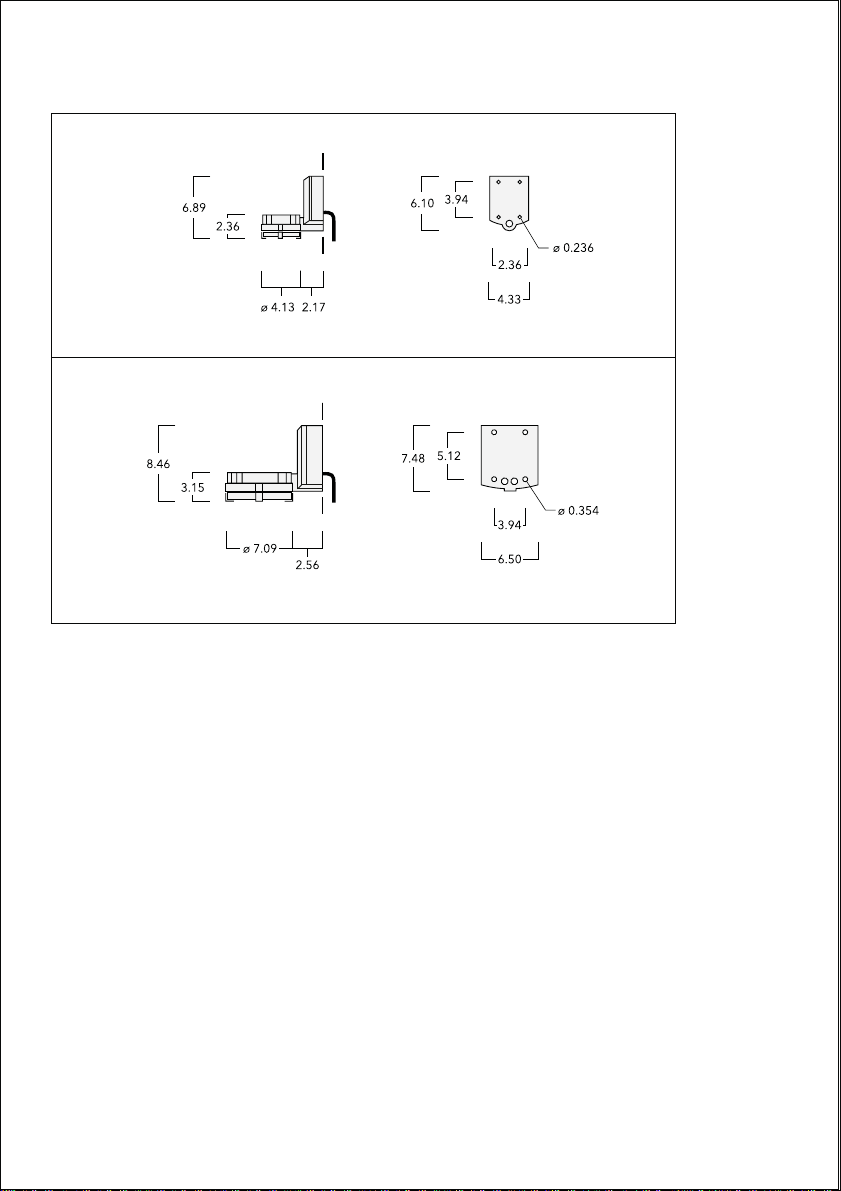

Wall Luminaire Surface Mounted
FLC122
FLC142
2
Light Source
LED
Maintenance
Apart from cleaning the product’s exterior surfaces,no special maintenance work is required.
Do not use high-pressure cleaners.
In case of component failure due to abnormal circumstances or at end of life, replacement must be carried
RXWE\DVXLWDEO\TXDOLĥHGDQGWUDLQHGSURIHVVLRQDO
Warning: Do not open luminaire while mains supply is switched on.
3
Installation
The product must be installed and maintained by a VXLWDEO\TXDOLĥHGSURIHVVLRQDOLQFRPSOLDQFHZLWKODWHVW
building/construction and/or electrical regulations and relevant legislation.
Warning:6ZLWFKRĪPDLQVHOHFWULFDOVXSSO\SULRUWRLQVWDOOLQJDQGFRQQHFWLQJWKHOXPLQDLUH
Notice:,IWKHOXPLQDLUHLVPRGLĥHGE\DQ\ERG\RWKHUWKDQWKHRULJLQDOPDQXIDFWXUHUWKHQWKHZDUUDQW\ZLOO
no longer be valid and shall become the full responsibility of the modifying person/organisation.
Claims based on defects attributable to improper installation and/or application, and the consequences
thereof, are excluded.
The installation on site must comply with local and/or national health and safety regulations.
4

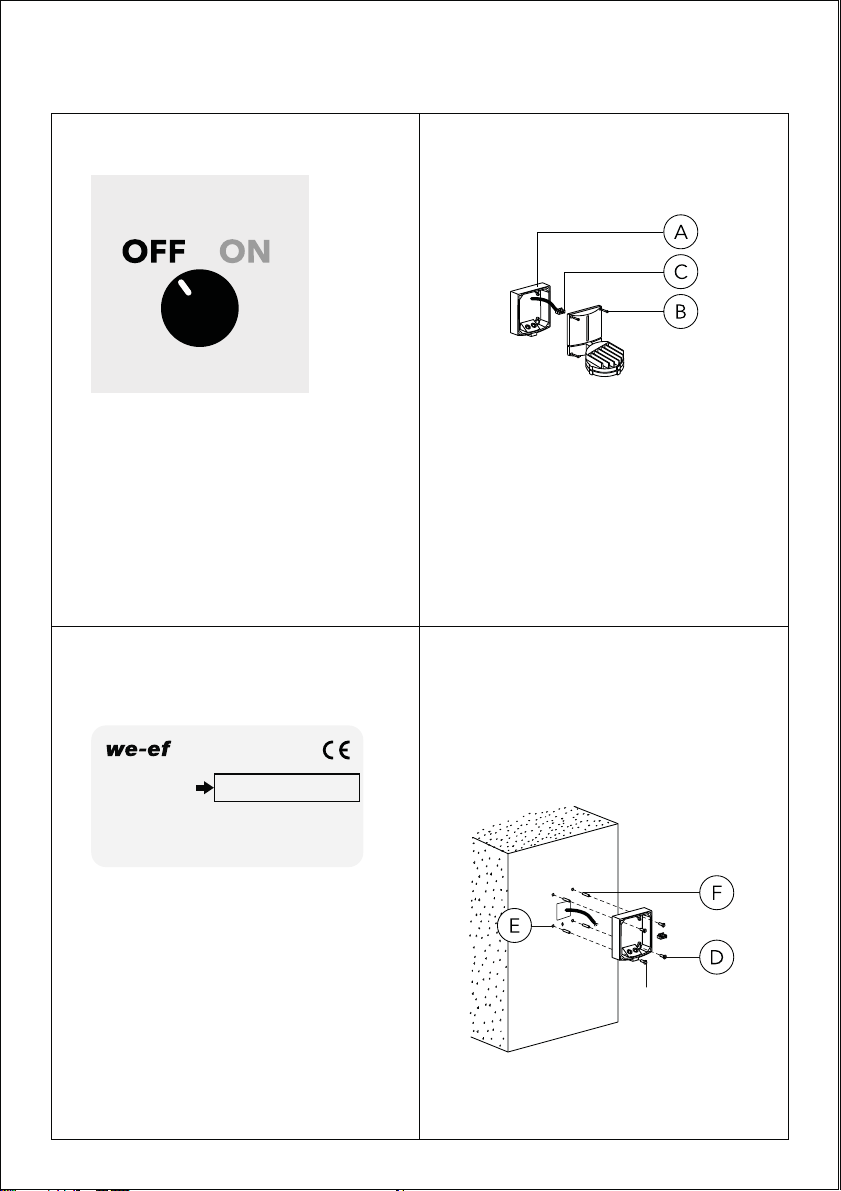

6ZLWFKRĪPDLQVHOHFWULFDOVXSSO\
Installation Procedure
'HWHUPLQHSRVLWLRQIRUĥ[LQJVFUHZVD. Drill
relevant holes Eand insert nylon plugs F.
Warning: Ensure not to damage any electrical
cable, water pipe or other items drilling holes.
5HPRYHPRXQWLQJĦDQJHAby loosening
screws B.
3) Check that rating shown on luminaire label
conforms with mains electrical supply.
(example)
FLC122-LED 120-277V/60Hz
145-XXXX SOE XXXXXXX
LED 3000K 12W item no.XXX
12/17 IP55
5

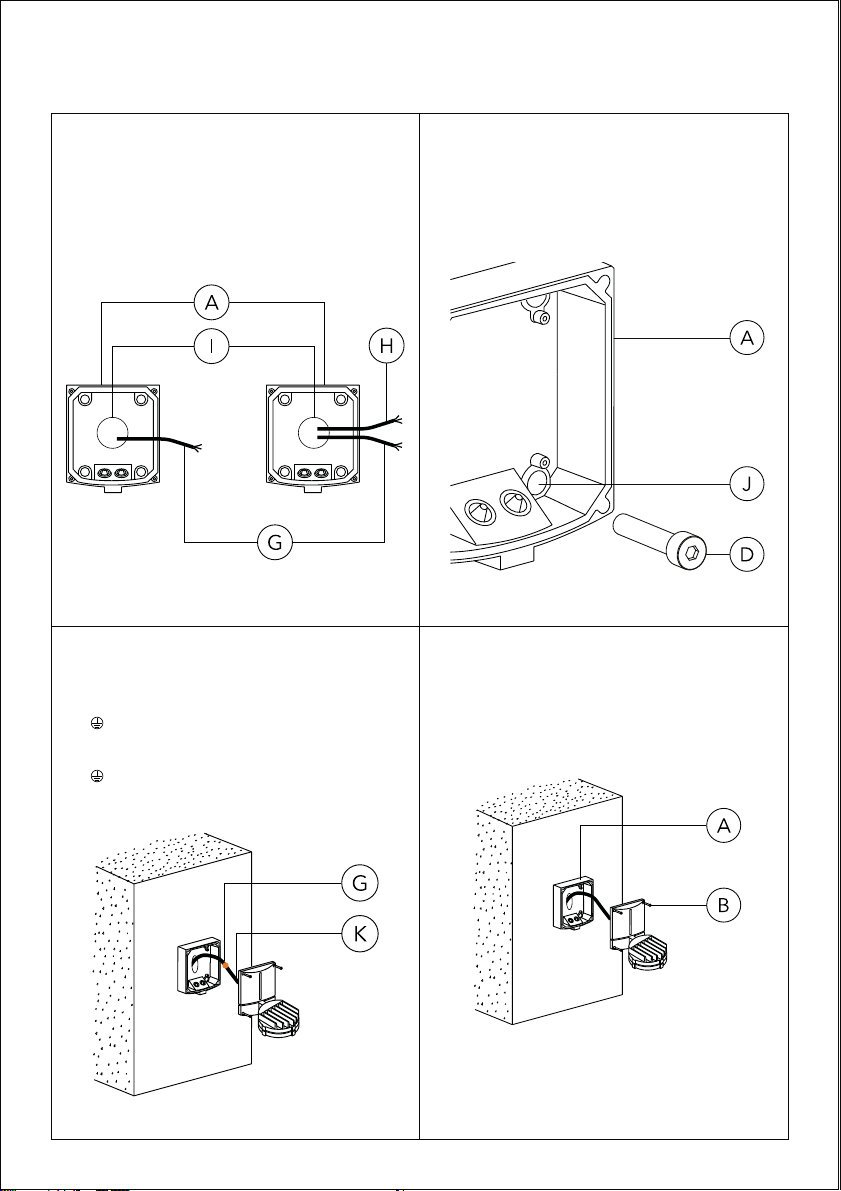

5) Feed mains supply cable G(and second cable
Hfor through wiring,if required) through
ĥ[WXUHRSHQLQJIZKLOHVHWWLQJPRXQWLQJĦDQJH
Ain position.
7Rĥ[PRXQWLQJĦDQJHA, pierce through nylon
plugs Jby inserting and tightening screws D.
Attention: Nylon plugs Jmust remain in
position to provide sealing.
7) Connect mains supply cable Gleads to
respective terminals in of LED Driver K:
a) ON/OFF (L = Phase,N = Neutral,
= Earthing)
b) 0-10 V (L = Phase,N = Neutral,
= Earthing,D–/D+ = 0-10 V control line).
8) Ensure that all surfaces are clean and dry.
3RVLWLRQOXPLQDLUHRYHUPRXQWLQJĦDQJHA.
Tighten screws B.
www.we-ef.com
WE-EF LIGHTING
United States of America
Tel +1 724 742 0030
Fax +1 724 742 0035
TO9205W0422 © WE-EF 2022
Technical specifications are
subject to change.
