Volt VFL-40 MS-ABZ Series User manual
VOLT®Low Voltage Landscape Lighting
VOLT®Floodlight with Motion Sensor
VFL-40XX-MS-ABZ
INSTALLATION INSTRUCTIONS
Specications and product details subject to change without notice.
© Copyright 2019, VOLT® Lighting, Lutz FL USA 33549 • All rights reserved.
[email protected] • 813.978.3700
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- 1 -
Package Contents
Products Model #
Important: Please Read Before Installation
INSTALLATION INSTRUCTIONS
A. (1) Fixture Body
!
www.voltlighting.com [email protected] • 813.978.3700

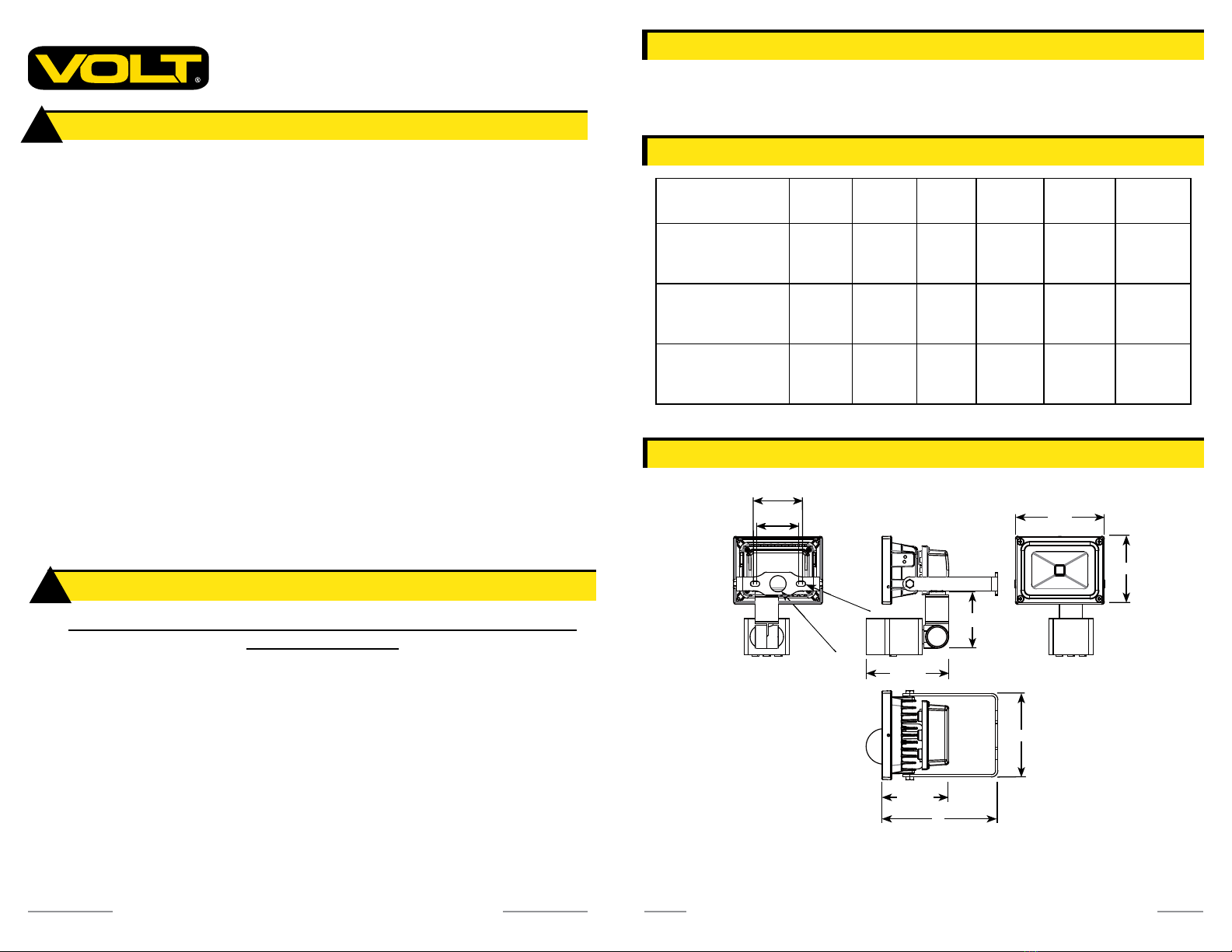

Important Safety Instructions
!
- 2 - - 3 -
VOLT®Floodlight with Motion Sensor
VFL-40XX-MS-ABZ
Product Dimensions
This luminaire is intended for installation in accordance with local codes
and the National Electric Code (NEC). Failure to adhere to these codes and
instructions may result in serious injury, property damage and void the
warranty.
These instructions do not intend to cover all variations in installation,
operation maintenance or mounting situations.
1. Make sure that the power is turned OFF before installing or servicing this
xture.
2. Warning: this xture is not intended to be installed within 10 feet [3
meters] of a pool, spa or fountain.
3. This xture is intended to be used only with a power supply
(transformer) rated maximum of 300 watts (25 AMPS) at 12 volts.
4. Underground Low Energy Cable must not be buried over 6” (15.2 cm) in
order to connect to the main low voltage cable.
5. Wiring connections must be made with wire connectors that is suitable
for outdoor use.
6. Position the wire connector so that it is located within 6 inches (15.2 cm)
from a building structure, a luminaire, or tting.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
Lighted lamp is HOT!
WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.
1. Lamp gets HOT quickly! Contact only switch/plug when turning on.
2. Do not touch the hot lens, guard or enclosure.
3. Keep lamp away from materials that may burn.
4. Do not touch lamp at any time. Use a soft cloth. Oil from skin may
damage lamp.
5. Do not operate the luminaire tting with a missing or damaged shield.
SAVE THESE INSTRUCTIONS
Model Input
Voltage
Power
Factor Watt Input
Current Finish Mounting
7W Flood Light AC 12V >0.65 7W 0.7A
Bronze
Powder
Coat
Yoke
10W Flood Light AC 12V >0.65 10W 1A
Bronze
Powder
Coat
Yoke
30W Flood Light AC 12V >0.8 30W 3A
Bronze
Powder
Coat
Yoke
4.25”
3.45”
6”
3.5”
4.25”
4.5”
2.15”
2.55”
7W Flood Light
2.85”
R0.15”
Ø0.85”
www.voltlighting.com [email protected] • 813.978.3700
- 4 - - 5 -

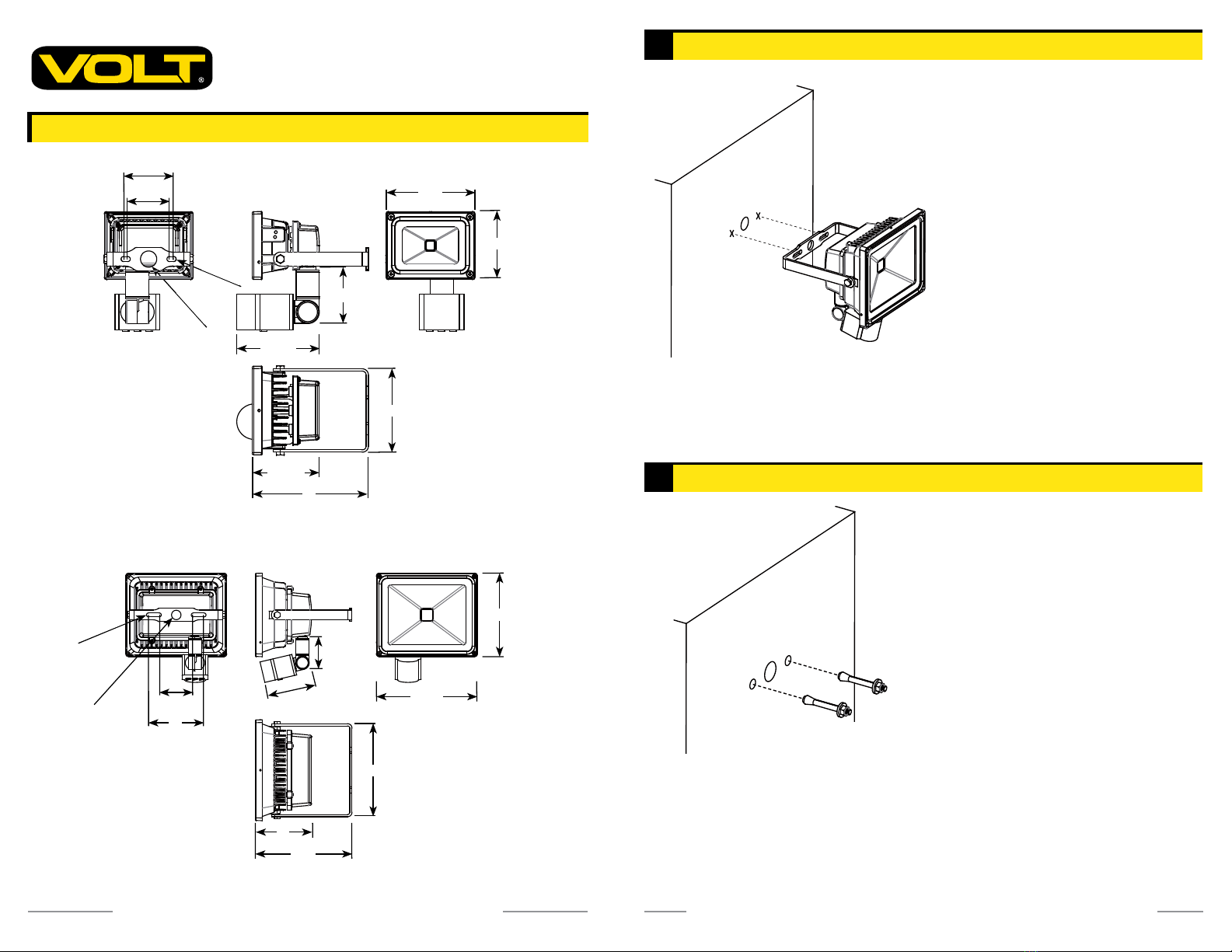

Place Marks for Wall Anchor Bolts
1
Install Wall Anchors
2
VOLT®Floodlight with Motion Sensor
VFL-40XX-MS-ABZ
Product Dimensions Wall
Fixture
Mark
Yoke Mount
Hold the yoke mount to your
desired mounting surface.
Place a mark on the wall using
the holes of the mount. These
marks will be used for the wall
anchors.
Wall Anchors
Hole
Wall
Drill the holes for the wall anchors
using the marks on the wall. Insert
the wall anchors into the drilled
holes. Tighten the hex nuts on the
bolts until they are secure to the
wall.
INSTALLATION INSTRUCTIONS
10W Flood Light
30W Flood Light
8.25”
4.25”
7.35”
8.85”
8.5”
5”
R0.175”
Ø0.85”
3”
5”
2.85”
4.25”
3.45”
6”
3.5”
4.25”
4.5”
2.15”
2.55”
2.85”
R0.15”
Ø0.85”
www.voltlighting.com
- 6 -
- 7 -

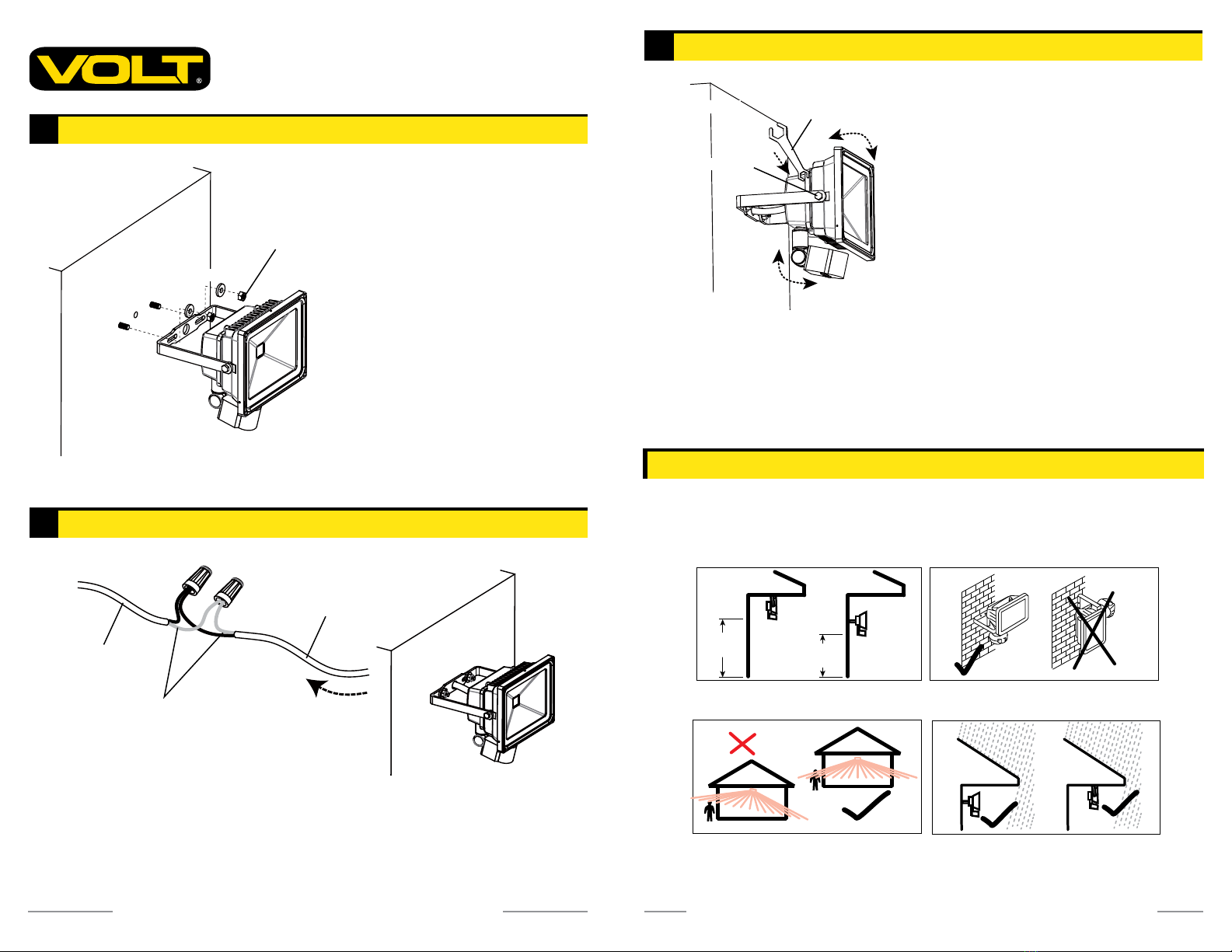

Install Fixture
3
Wire Connections
4
VOLT®Floodlight with Motion Sensor
VFL-40XX-MS-ABZ
Fixture
Yoke Mount
Bolt
Hex Nut
Washer
Wall
Remove the hex nuts and the
washers from the wall anchors.
Attach the yoke mount of the
xture to the wall anchors and
secure them in place with the
previously removed washers and
hex nuts. Tighten until snug.
Adjust Fixture and IR Sensor
5
Wall
Fixture
Set Screw
IR Sensor
Wrench
Adjust the xture to your desired
orientation and tighten set screws
with a wrench.
Adjust the IR sensor to proper
orientation.
After installation, but before power is on:
A. Check whether the lighting xture is rmly xed.
B. Check whether wires are connected properly.
Infrared (IR) Sensor
max.
11.48 Ft. min.
6.56 Ft.
This product can be installed outdoors. It is recommended to install in
these orientations to protect the ood light against heavy rain.
INSTALLATION INSTRUCTIONS
Fixture
Strip both leads from the xture pigtail and main supply cable.
Using two wire connectors (sold separately), connect the leads from
the xture to the main supply cable leads.
Wire Connectors
Pigtails
Main Supply
Cable
Supply Cable
from Fixture
www.voltlighting.com
INSTALLATION INSTRUCTIONS
VOLT®Floodlight with Motion Sensor
VFL-40XX-MS-ABZ

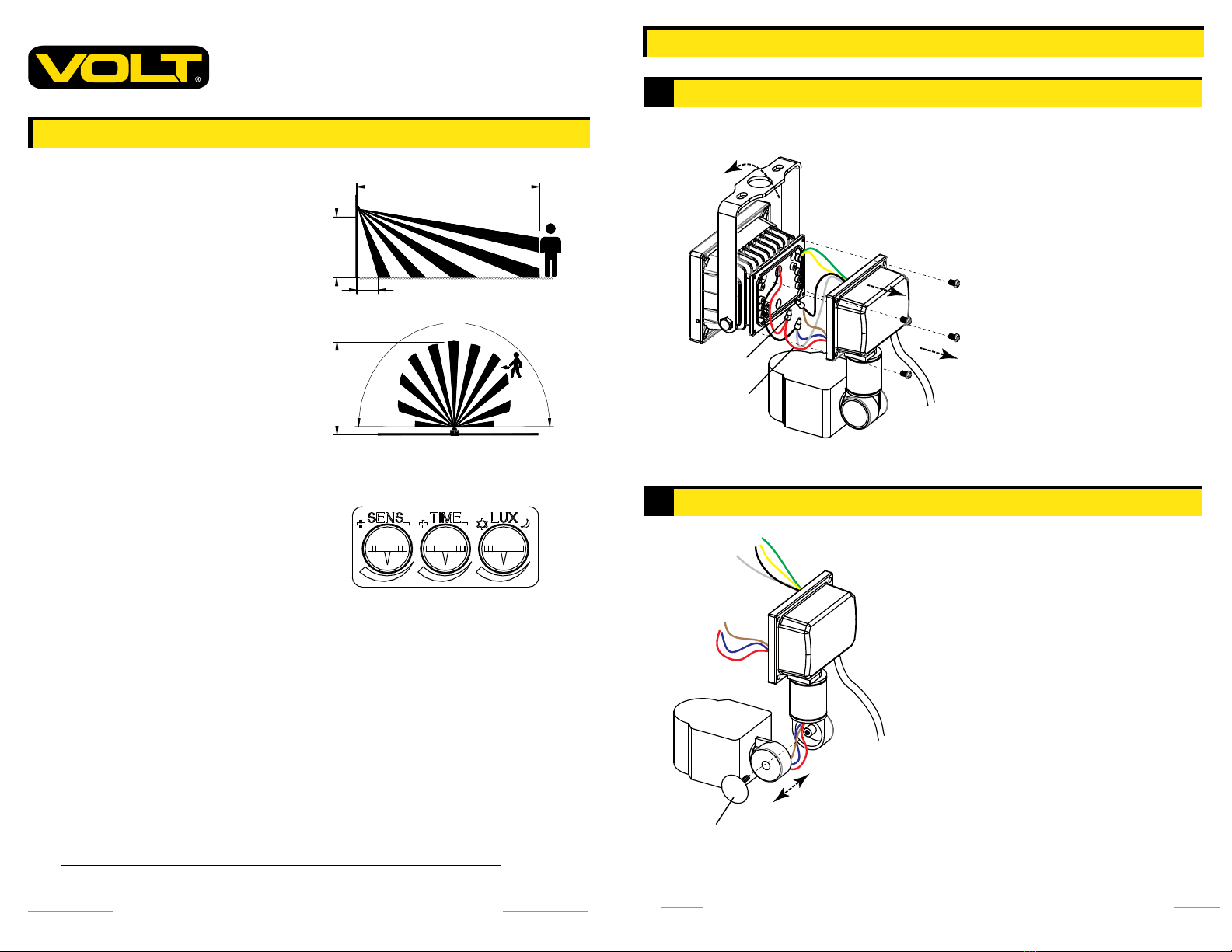

Infrared (IR) Sensor (Continued)
Max 39.4 Ft.
180。
Max 39.4 Ft.
1.64 Ft.
6.56~11.48 Ft.
321
Last, turn on the power and check if the lighting xture works.
Detection distance: max. 39.4 feet
Detection angle: 180°
Optimal installation height:
6.56 - 11.48 feet
Operating humidity:< 93% RH
1. LUX: 0-2000 lux twilight sensor
sensivity adjustable.
a. When set at maximum
(towards the sun) the
motion sensor works even in
the day time.
b. When set at minimum
(towards the moon) the
motion sensor works only in
the dark.
2. TIME: From 7 sec to 15 min. adjustability
a. At the maximum setting, the xture is illuminated 15 minutes
after the sensor is triggered.
b. At the minimum setting, the xtured is illuminated 7 seconds
after the sensor is triggered.
3. SENS: If the sensor is too sensitive or not sensitive enough, it can be
adjusted here.
Replace IR Sensor
1
Remove Backing with IR Sensor
Rotate the bracket so that
the backing can easily be
removed from the xture.
Remove the backing with IR
sensor from the xture by
loosening the screws.
Use pliers to squeeze the
connectors and release
wires.
Bracket
Backing
Fixture
Screw
IR Sensor
Supply Cable
Connectors
Wires
2
Remove/Replace IR Sensor
Unscrew the lock screw from
the knuckle and remove the
IR sensor from the back of
the xture.
Place the wires of the
replacement IR sensor inside
of the back by passing wires
through the knuckle. Then,
connect the replacement
sensor to the back by using
the previously removed lock
screw. Hand tighten until
snug.
Back
IR Sensor Supply Cable
Lock Screw
Wires
INSTALLATION INSTRUCTIONS
VOLT®Floodlight with Motion Sensor
VFL-40XX-MS-ABZ
www.voltlighting.com [email protected] • 813.978.3700
3

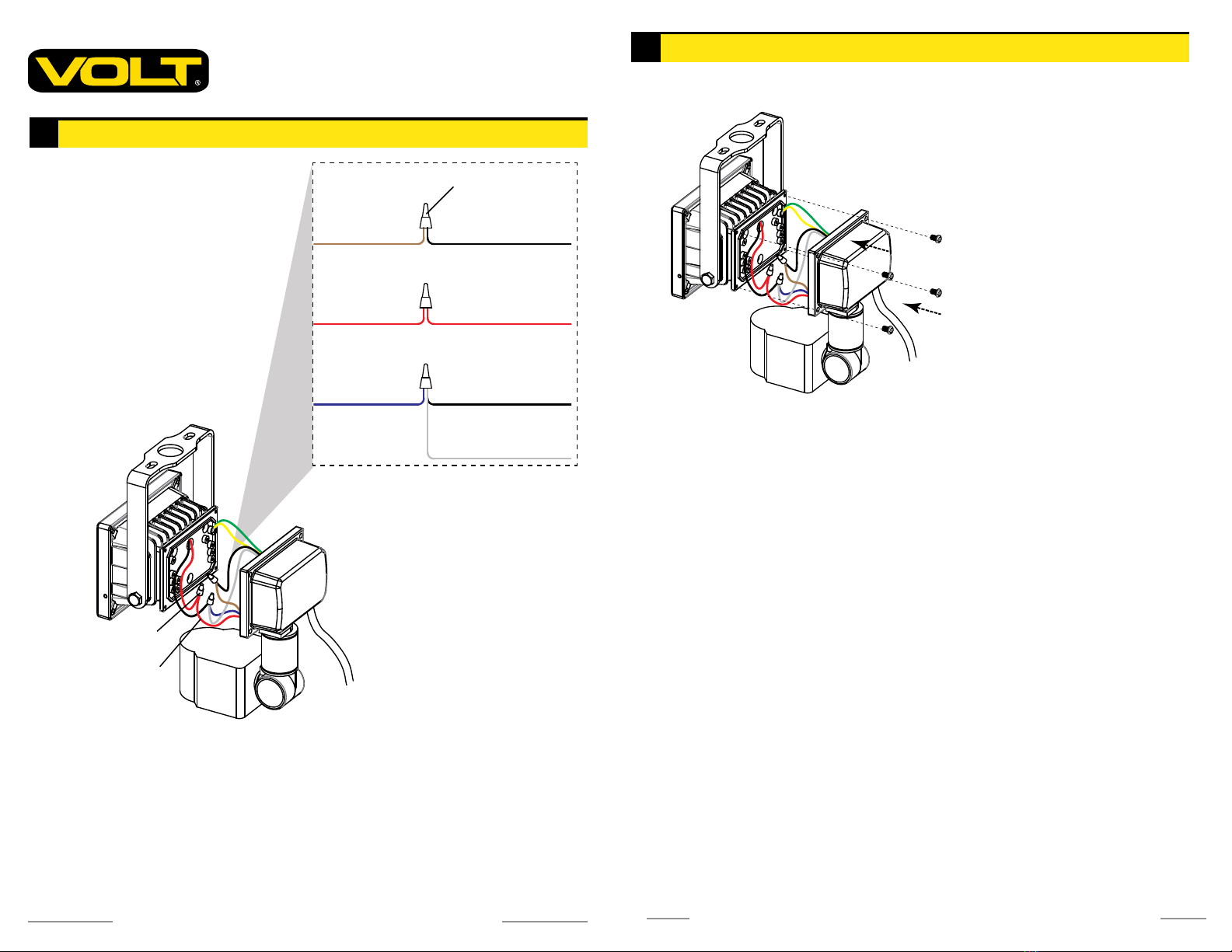

Make Connections of IR Sensor Wires
Refer to the wire connections illustration, connect wires from the
driver, the IR sensor and the supply cable by using wire connectors (not
included). Squeeze connectors with pliers to engage crimp connectors.
Back
Fixture
IR Sensor
Supply Cable
Connector
Wires
Brown Wire
from Sensor
Black Wire from
Supply Cable
Connector
Red Wire
from Sensor
Blue Wire
from Sensor
Red Wire from
Luminaire
Black Wire from
Luminaire
White Wire from
Supply Cable
4
Make Connections of IR Sensor Wires
Carefully tuck all the wires
inside of the back housing.
Place the backing with the
IR sensor back onto the
xture and secure with
previously removed screws.
Hand tighten until snug with
a screwdriver.
Back Housing
Fixture
Screw
IR Sensor
- 12 -
Specications and product details subject to change without notice.
© Copyright 2019, VOLT® Lighting, Lutz FL USA 33549 • All rights reserved.
[email protected] • 813.978.3700
www.voltlighting.com
IS-VFL-40XX-MS-ABZ-ver1.pdf
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
