Vmar VSTICK 60 User manual
VSTICK 60
Before beginning assembly,please read these intructions thoroughly.
Photograph is nitro version
INSTRUCTION MANUAL
UNDER SAFETY PRECAUTIONS
This radio control model is not a toy!
It is highly recommended that first-time builders seek advice of experienced modelers before beginning assembly.
Assemble this kit only in places out of children’s reach!
Take enough safety precautions prior to operating this model. You are responsible for ths model’s assembly and safe operation!
Always keep this instruction manual ready at hand for quick reference, even after completing the assemble.
Taking out liability insurance is recommended.
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
The pre-covered film on ARF kits may wrinkle due to variations
of temprature. Smooth out as explained at right.
Use an iron covered with a cloth!
Start at low setting. Increase the
setting if necessary. If it is too high,
you may damage the film.
with cover (cloth) low setting
1
ALMOST-READY-TO-RLY
ARTF
DANGER
60
Wingspan: 1850mm (73")
Length: 1320mm (52")
2 (953Sq Inch)
Wing Area: 61.5dm
Weight: 3500-4500g (8-10lbs)
Engine: .61-1.20 (10-20cc)
Radio: 5 channels , 7 servos
Electric motor: 1200watts up
Assemble in the
specified order.
Assemble left and right
sides the same way.
Drill holes with the
specified diametre.
Must be purchased
separately!
Apply threadlocker
(screw cement).
Pay attention here! Ensure smooth, non-binding
movement when assembling. Cut off excess.
Do not overlook
This symbol!
Warning!
Symbols used throughout this instruction manual, comprise:
Check all parts. If you find any defective or missing past, contact your local dealer or our VMARSHOP.
Read through the manual before you begin, so you will have an overall idea of what to do.
3
2
1
accepts no responsibility for accidents, damage or breakage if other manufacturers parts are used.
Drill,Bits (2,3,4,6mm)
Cutters Pliers Long Nose Pliers
Shap Hobby Knife
File Scissors
Hex Wrench (2, 2.5, 3mm)
Phillips screwdrivers (size: L, M, S)
Threat locker Cement
SCREW
CEMENT
BEFORE YOU BEGIN
TOOLS REQUIRED (Purchase separately!)
CAUTION : For detalls concerning the equlpment Ilsted below (size, make, etc.) check with your hobby shop.
ITEM REQUIRED FOR OPERATION (Not included in kit!)
2
A minimum 4 channel radio for alrplanes (with 5 standard servos),
and nicad or alkaline batteries are required.
4-channel (minimum) radio system for aircraft 4 servos (standard servos).
Please be sure to sure to use servos with enough torque (3.0 - cm minimum).
Y-Harness 2pcs
2-stroke .60~1.20
4-stroke 1.20~1.80
Suitable Outer Rotor Motor.
Use outer rotor motor power
between 1200w up
Motor : KV / 380~650
ESC More than 70A
Muffler
Glow Plug
Radio Set
Engine,
Motor, ESC
Install Servos
to the wing
< Bottom view of left wing >
1
Cut off shaded portion.
Must be purchased
separately!
2mm
Drill holes with the
specified diameter.
Assemble as many
time as specified.
4
Assemble left and right
sides the same way. Pay close attention here!
approx. 16mm
2mm
x4
Typical control horn
installations
SURFACE CONTROL
EZ CONNECTOR
CLEVIS
< Top view of left wing >
Aileon servo location
Flaps servo location
Aileron servo arm
position
90
Flaps servo arm
position
45

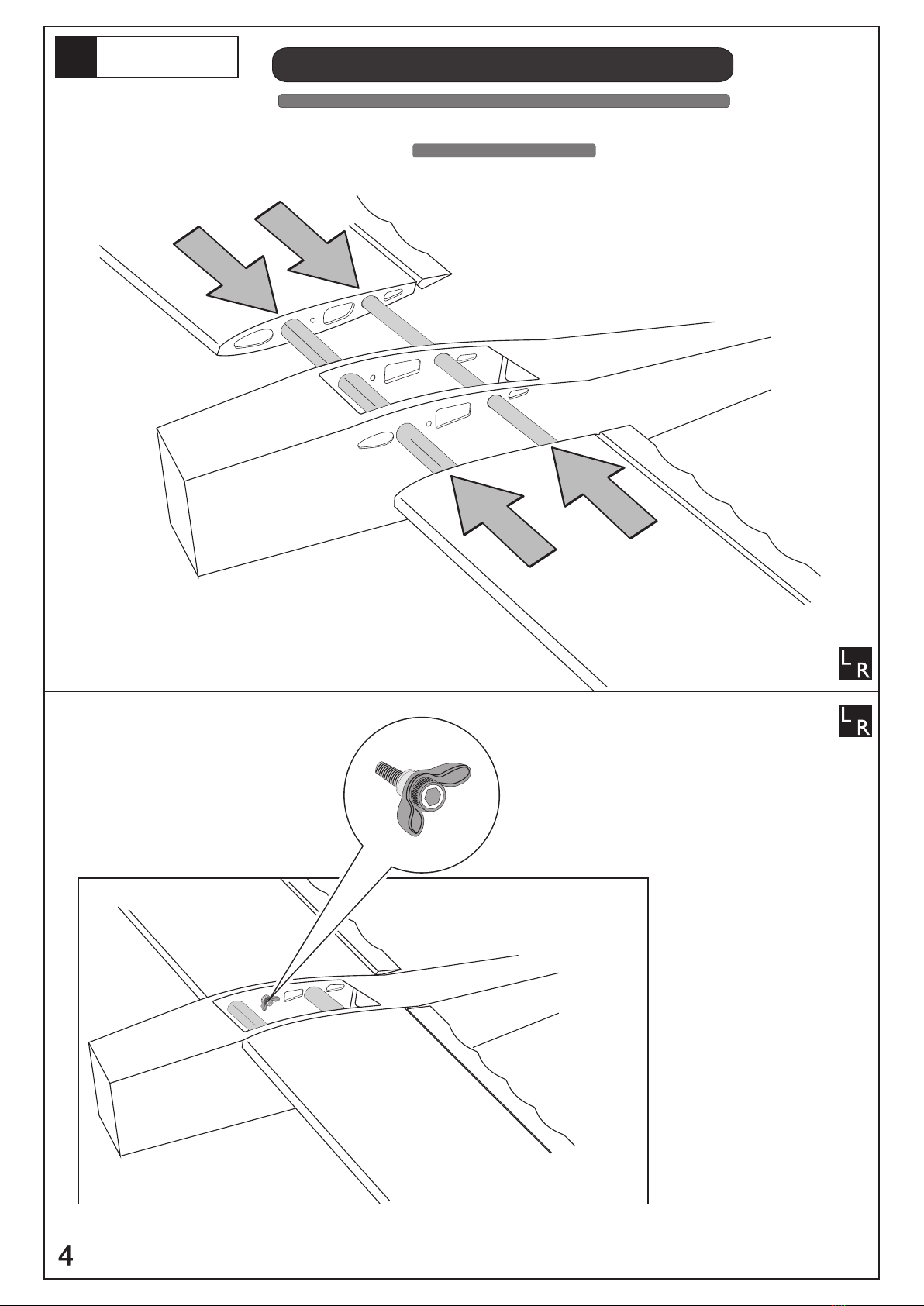

Attached the wing
to the fuselage
2
NO GLUE NEDED FOR THIS ASSEMBLY
Front aluminum wing joiner tube size 19mm diameter and 540mm long
1. Insert the wing joiner tube
to the fuselage
1. Insert the wing tube onto right wing panel
the tighten with the butterfly nut to secure
to the fuselage
2 . same procedure the secure the left wing
panel to the fuselage
4x20xhex bolt
1 wooden washer
1 butterfly nut
Rear aluminum wing joiner tube size 16mm diameter and 250mm long
4
5
3mm
security nut
Main Gear
nut
washer
4mm
security nut
6mm
nut
washer
Installing the wheel
to the main landing gear
Install the main gear
3
4mm
4mm
Hex cap bolt
4 x 50mm
6mm
3mm
washer
Install the vertical
and horizontal stab
6
2 x 10mm
TP Screws
5
2 x 7mm
4
TP Screws
Install the tail wheel
Linkage rod
7
Rudder rod
8
Rudder rod
2mm
approx.2mm
Servo
6
Supplied with
the radio.
Supplied with
the radio.
x2
1.5mm
1.5mm
7
Control horn sets
SUFACE CONTROL
8
Connect the fuel line to the engine
Install the fuel tank to the fuselage
To Muffler
To Carburetor
Engine Mount
10
4x20mm Hex bolt
4
Engine Mount
Engine Mount
4x20mm
4x20mm
Elevator rod
9
9
Securely tighten the nut holding the propeller
for it not come off when the motor is spinning.
If coming off, there is a high risk of injury!
Warning!
Propeller
3x30mm Throttle rod
Engine
3x30mm
3mm
3mm
3mm
12
3
4
Motor Mount
11 EP
version
Brushless motor
Motor mount
10
C of G position
12 GP/EP
version In order to obtain the CG specified, reposition
the receiver and other equipment
Warning!
Do not fly before confirming the correct location of the CG.
If the CG is incorrect, you lose control of your airplane which leads to accidents!
90~100mm
Fuel tank
V
M
TYPICAL BATTERY AND SERVOS ARRANGEMENT
Throttle servo
Elevator rudder
servos
Propeller
Propeller Adapter
3x16mm
