Vmar Nouvo 1300 EP User manual
1
Before beginning assembly,please read these intructions thoroughly.
INSTRUCTION MANUAL
UNDER SAFETY PRECAUTIONS
This radio control model is not a toy!
It is highly recommended that first-time builders seek advice of experienced modelers before beginning assembly.
Assemble this kit only in places out of children’s reach!
Take enough safety precautions prior to operating this model. You are responsible for ths model’s assembly and safe operation!
Always keep this instruction manual ready at hand for quick reference, even after completing the assemble.
Taking out liability insurance is recommended.
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
The pre-covered film on ARF kits may wrinkle due to variations
of temprature. Smooth out as explained at right.
Use an iron covered with a cloth!
Start at low setting. Increase the
setting if necessary. If it is too high,
you may damage the film.
with cover (cloth) low setting
ALMOST-READY-TO-RLY
ARTF
Wingspan: 1300mm (51.18")
Length: 870mm (34.25")
2 (383Sq Inch)
Wing Area: 24.7dm
Weight: 850-950g (1.9-2.1lbs)
Motor: 350-500watts
Radio: 4 chanels , 4 servos
Assemble in the
specified order.
Assemble left and right
sides the same way.
Drill holes with the
specified diametre.
Must be purchased
separately!
Apply threadlocker
(screw cement).
Pay attention here! Ensure smooth, non-binding
movement when assembling. Cut off excess.
Do not overlook
This symbol!
Warning!
Symbols used throughout this instruction manual, comprise:
Check all parts. If you find any defective or missing past, contact your local dealer or our VMARSHOP.
Read through the manual before you begin, so you will have an overall idea of what to do.
3
2
1
accepts no responsibility for accidents, damage or breakage if other manufacturers parts are used.
Drill,Bits (2,3,4,6mm)
Cutters Pliers Long Nose Pliers
Shap Hobby Knife
File Scissors
Hex Wrench (2, 2.5, 3mm)
Phillips screwdrivers (size: L, M, S)
Threat locker Cement
SCREW
CEMENT
BEFORE YOU BEGIN
TOOLS REQUIRED (Purchase separately!)
CAUTION : For detalls concerning the equlpment Ilsted below (size, make, etc.) check with your hobby shop.
ITEM REQUIRED FOR OPERATION (Not included in kit!)
2
A minimum 4 channel radio for alrplanes (with 5 standard servos),
and nicad or alkaline batteries are required.
4-channel (minimum) radio system for aircraft 4 servos (standard servos).
Please be sure to sure to use servos with enough torque (3.0 - cm minimum).
Y-Harness 2pcs
Suitable Outer Rotor Motor.
Use outer rotor motor power
between 350~450 w
Motor : KV / 600~900
ESC More than 30A
Cut off shaded portion.
Must be purchased
separately!
2mm
Drill holes with the
specified diameter.
Assemble as many
time as specified.
4
Assemble left and right
sides the same way. Pay close attention here!
1
TP Screw
2 x 10mm
4
Set all screws securely. If they come off during flight
you will lose control of your aicraft!
Waning!
Typical control horn
installations EZ CONNECTOR “Z”bent
SURFACE CONTROL
Install the main
landing gear
2
Install aileron
servo to the wing

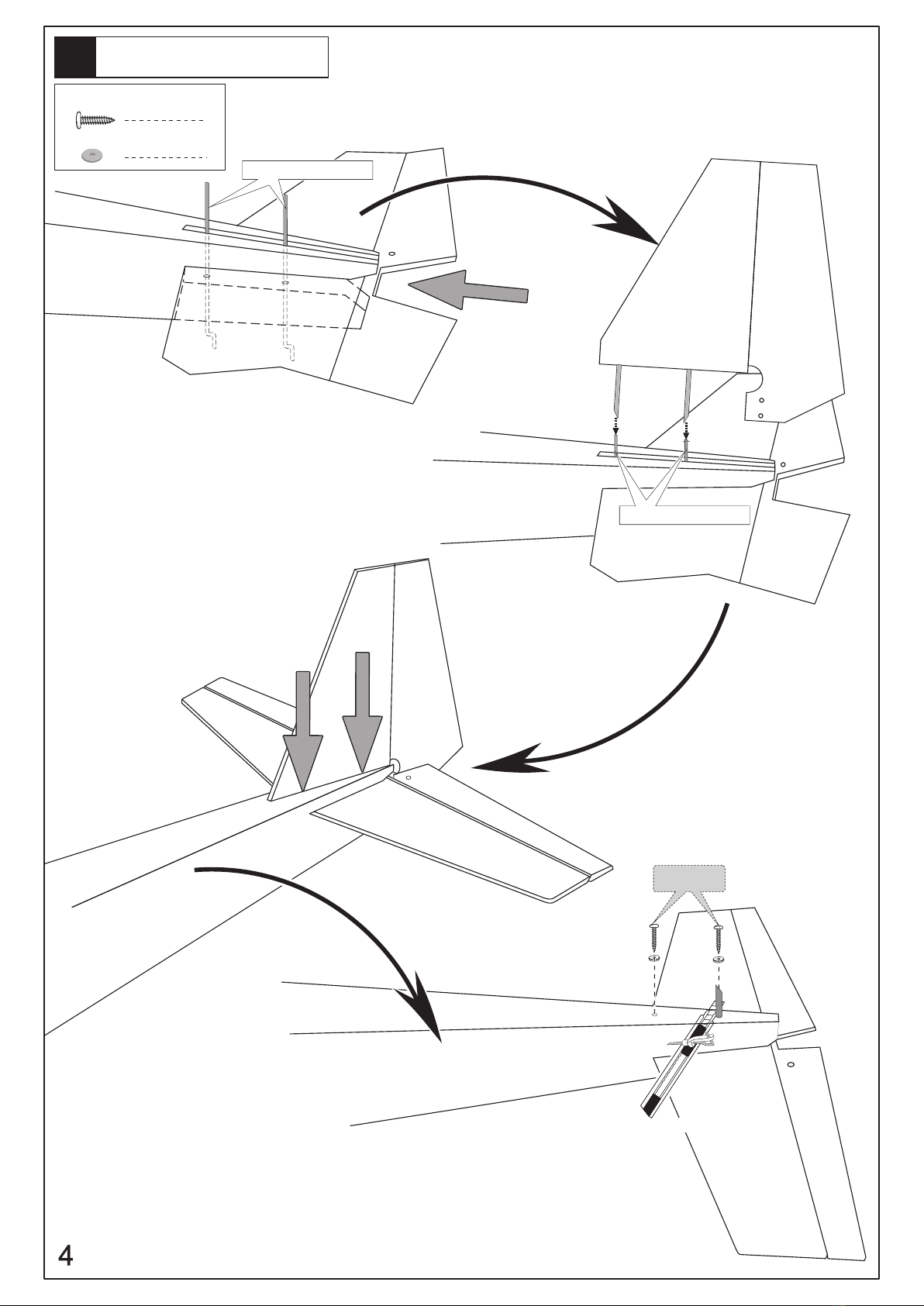

Install the vertical and horizontal
stabilizer to the fuselage
3
Use aileron control rod for
guiding vertical stab into fuse
Plastic washer
2
2mm
TP Screw
2 x 10mm
2
Aileron control rod
Cut off shaded portion.
2x10mm
screw
Aileron control rod
Install the tail wheel
4
555
TP Screw
2 x 10mm
2
Install the elevator
and rudder servos
5
Connecting the elevator
and rudder control rod
6
NO GLUE NEEDED FOR THIS ASSEMBLY
Aluminum wing joiner tube
size 9mm diameter and 335mm long
3x20 wing bolt assembly3x20 wing bolt assembly3x20 wing bolt assembly
1. Insert the wing tube1. Insert the wing tube
onto right wing panel onto right wing panel
then tighten with the then tighten with the
wing bolt to secure wing bolt to secure
to the fuselage to the fuselage
1. Insert the wing tube
onto right wing panel
then tighten with the
wing bolt to secure
to the fuselage
2. Same procedure 2. Same procedure
secure the left wing secure the left wing
panel to the fuselage panel to the fuselage
2. Same procedure
secure the left wing
panel to the fuselage
8
Attached the wing
to the fuselage
3mm Wooden washer
6
Install the motor
7
72mm
2mm
9-10 inch
propeller
ELEVATOR
RUDDER
ALERON
High rate Low rate
Battery

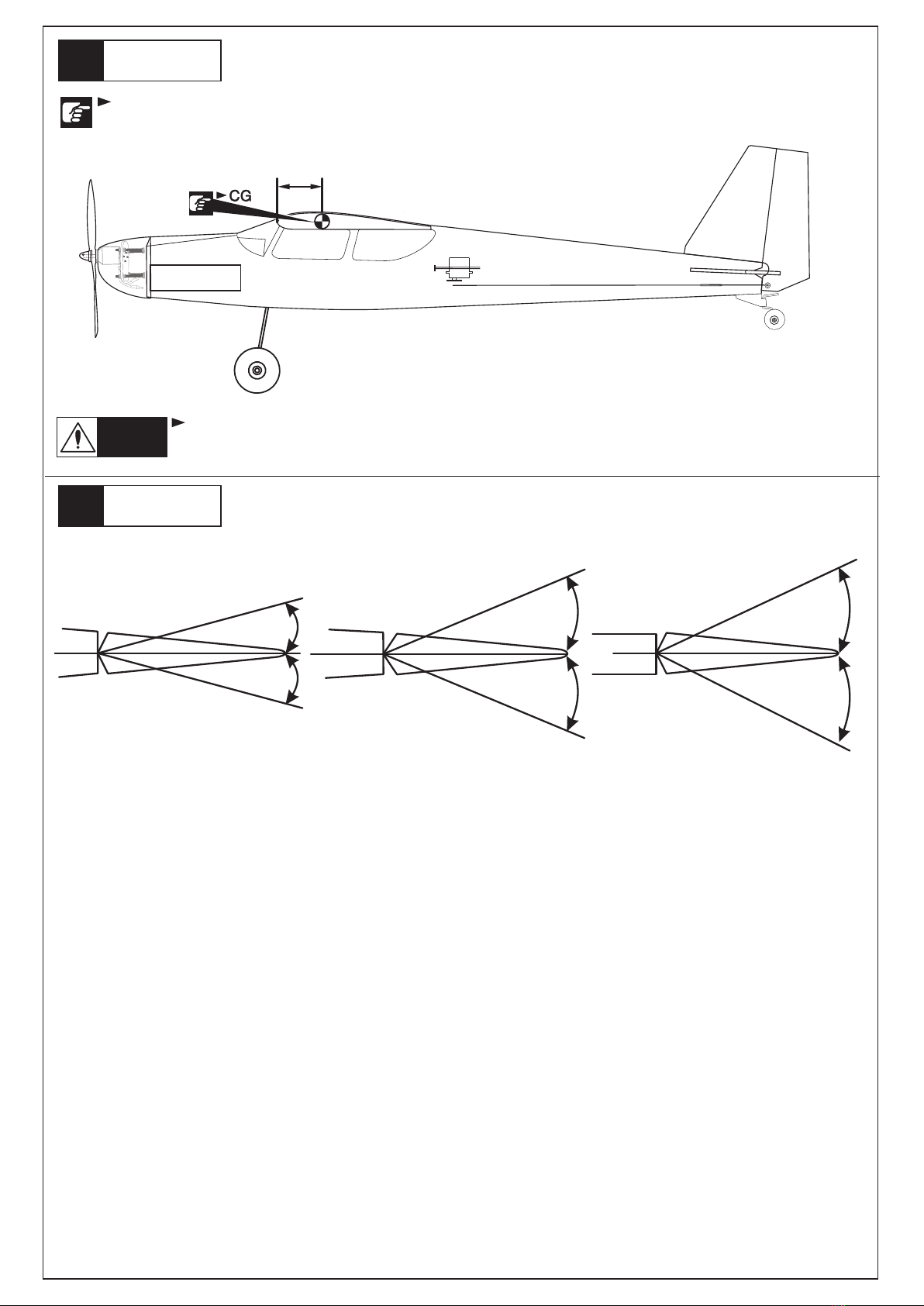

C of G position
9
In order to obtain the CG specified, reposition
the receiver and other equipment
Warning!
Do not fly before confirming the correct location of the CG.
If the CG is incorrect, you lose control of your airplane which leads to accidents!
SURFACE CONTROL MOUVEMENT
Elevator movement
5/16"
8mm
25/64"
10mm
25/64"
10mm
5/16"
8mm
19/32"
15mm
19/32"
15mm
5/16"( 8mm ) up
15/64"( 6mm ) down
19/32"( 15mm ) right
19/32 "( 25mm ) left
25/64"( 10mm ) up
25/64"( 10mm )down
15/64"( 6mm ) up
7/16" ( 11mm ) right
7/16" ( 11mm ) right
5/16"( 8mm ) up
5/16"( 8mm )down
5/16"( 8mm ) down
Aileron movement Rudder movement
Surface control
mouvement
10
7
50~55mm
2-2.1/4in
TYPICAL BATTERY AND SERVOS ARRANGEMENT
