Vivotek PD8136 User manual

EN - 1

English

Keep the Network Camera away

from water. If the Network Camera

becomes wet, power off immediately.

Do not place the Network Camera in

high humidity environments.

Do not touch the Network Camera

during a lightning storm.

Do not drop the Network Camera.

Do not manually pan and tilt the

Network Camera when the power is

on.

Power off the Network Camera

assoon as smoke or unusual odors

are detected.

Do not place the Network Camera

around heat sources, such as a

television or oven.

Keep the Network Camera away from

direct sunlight.

Do not place the Network Camera on

unsteady surfaces.

Do not disassemble the Network

Camera.

Do not insert sharp or tiny objects

into the Network Camera.

Warning Before Installation

EN - 2

PD8136 Software CD

Screws & RJ-45 Coupler Ceiling Mount Brackets

Quick Installation Guide /

Warranty Card

Alignment Sticker

Package Contents

P/N : 62xxxxxxxx

Drill hole

Home Position

Drill hole

Cable

hole

EN - 3

English

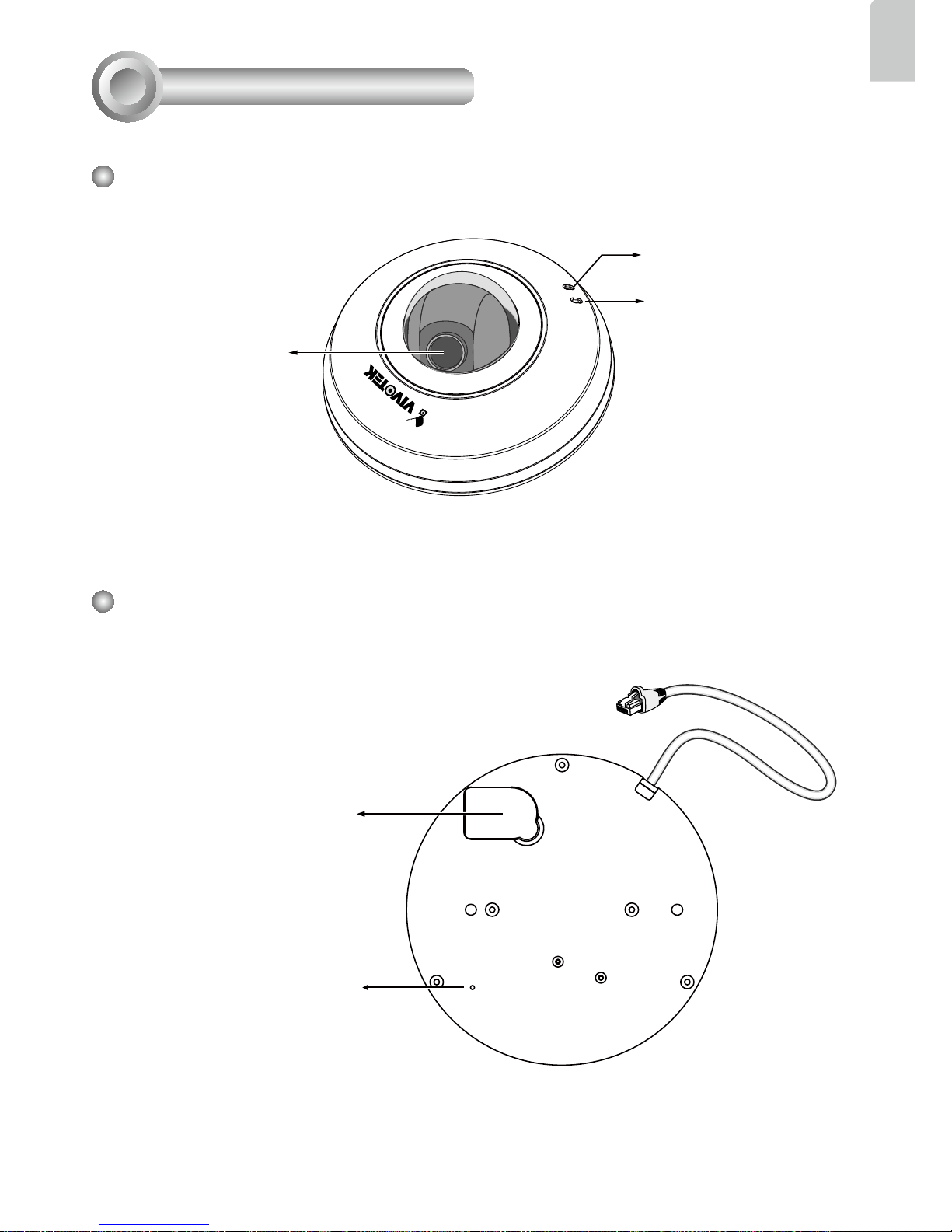

Physical Description

Top View

Bottom View

Built-in Microphone

Status LED

Lens

Reset Button

Ethernet 10/100

RJ-45 cable

MicroSD/SDHC Socket

EN - 4

P/N : 62xxxxxxxx

Drill hole

Home Position

Drill hole

Cable

hole

180°Pan

The Default FrontThe Default Front

Stop Point

0°

The Default Front

Hardware Installation

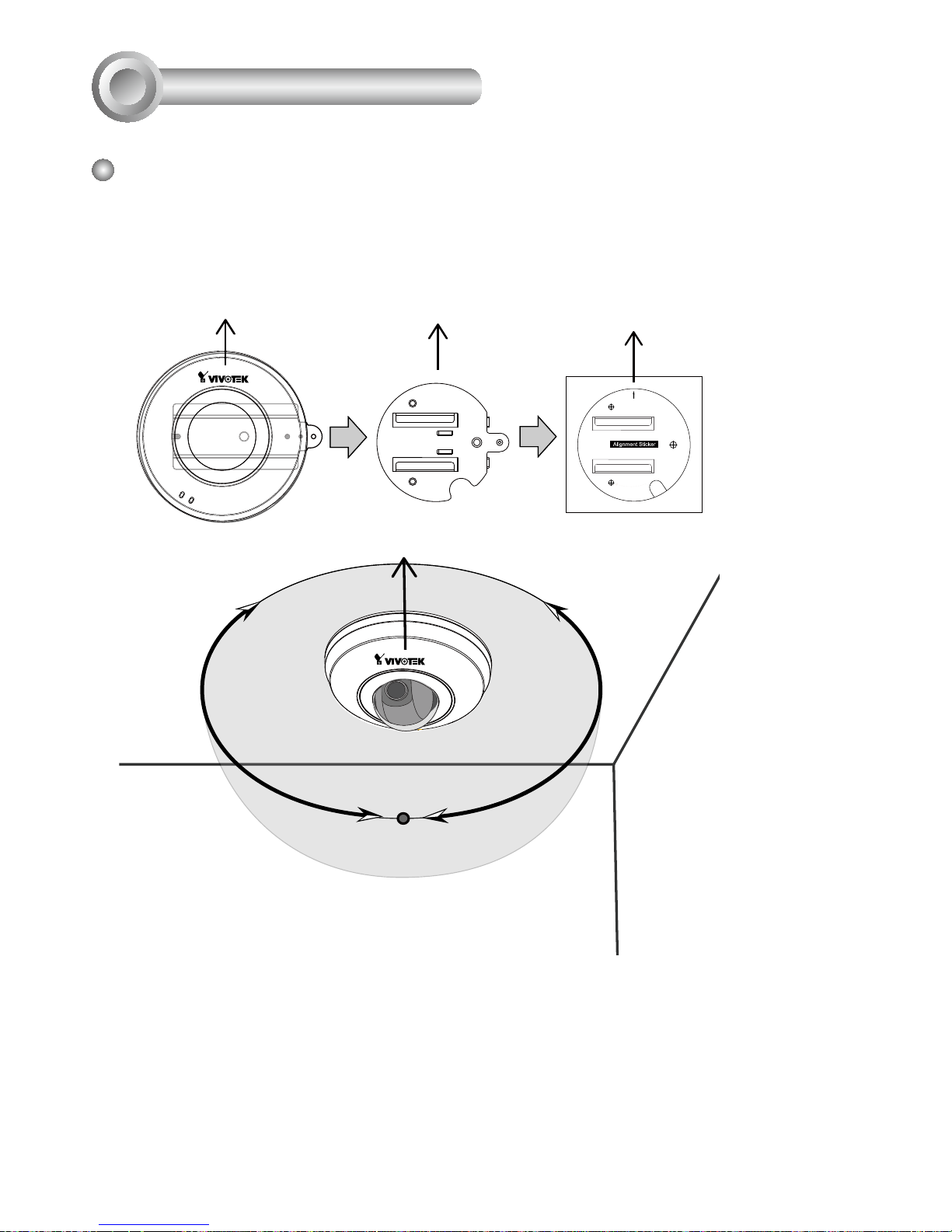

Mounting Plate and Camera Orientation

When installing the camera, orient the default front on the alignment sticker and the

mounting plate (illustrated below) towards the area of your interest. The camera lens’

central position is aligned with the VIVOTEK logo on the dome cover.

EN - 5

English

icro

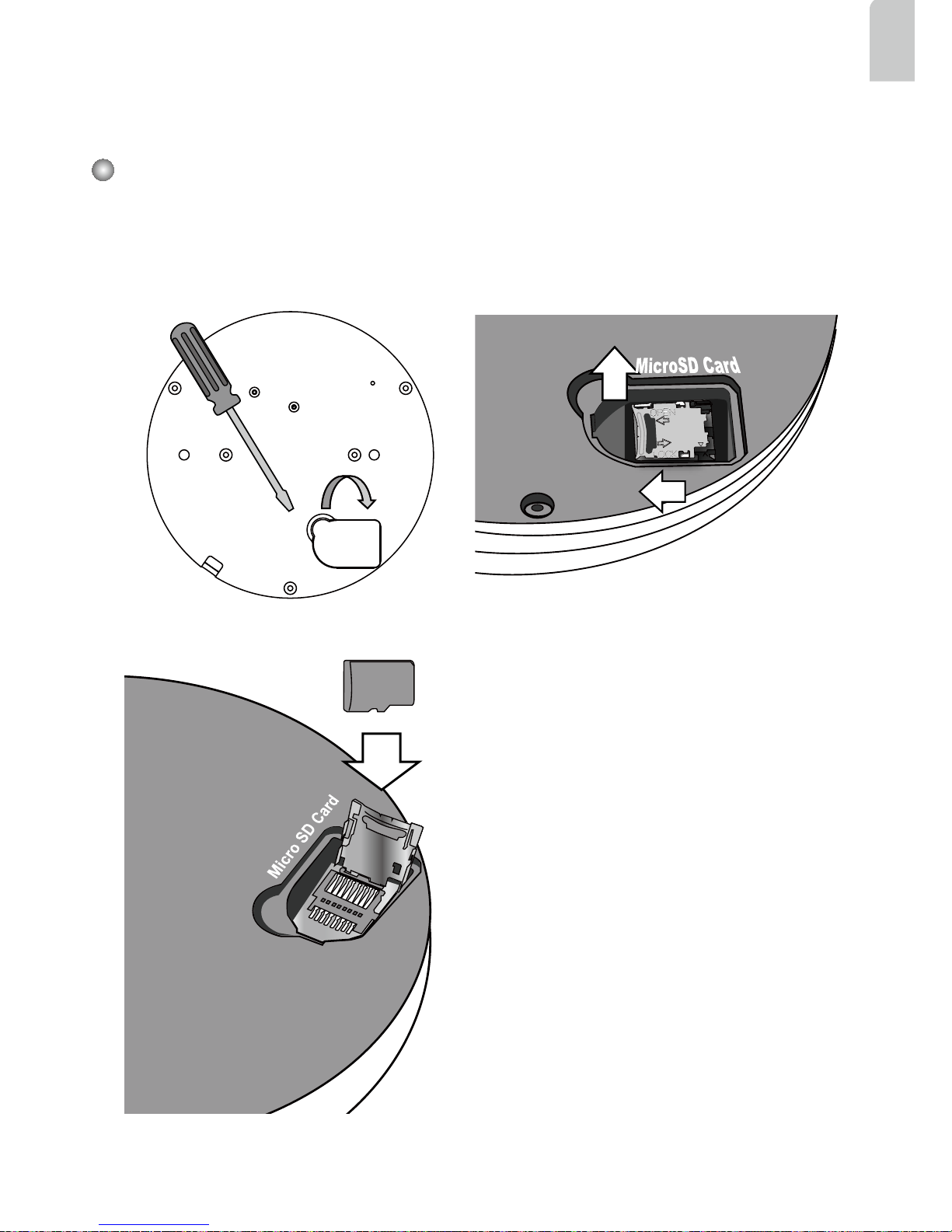

Install MicroSD Card

Open the MicroSD card plastic cover at the bottom using a small flathead screwdriver.

Flip the socket cover forward and up. Insert a MicroSD card, close the cover, and

push it back to secure the installation. Install the plastic cover by pressing it back to its

original position.

EN - 6

A B

P/N : 62xxxxxxxx

Drill hole

Home Position

Drill hole

Cable

hole

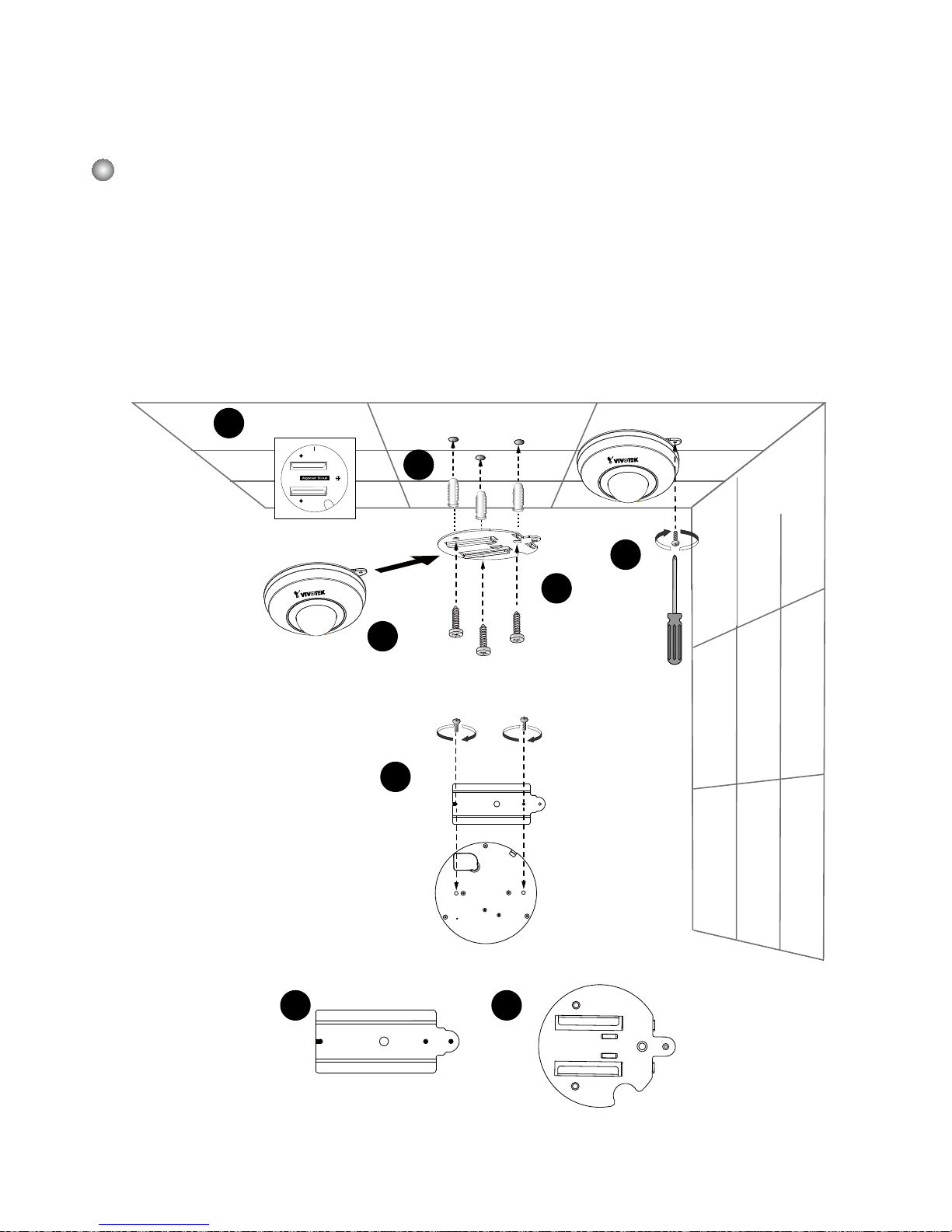

Mounting the Network Camera

1. Attach base plate "A" of the ceiling mount bracket to the bottom of camera and

secure it with two small round head screws. Note that the guiding edge of the base

plate (where a screw hole is available) must protrude from the edge of camera.

2. Use the included alignment sticker, orient the sticker toward the direction you prefer.

3. Drill three holes into the ceiling; hammer the plastic anchors into the holes.

4. Install ceiling mounting plate "B" to the ceiling with three screws.

5. Slide the Network Camera into mounting plate "B."

6. Secure the camera to the mounting plate with a small screw.

EN - 7

English

POWER COLLISION

LINK

RECEIV E

PARTITION

12345

POW ER COLLISION

LINK

RECEIV E

PARTITION

12345

PoE Switch

Non-PoE Switch

PoE Power Injector

(optional)

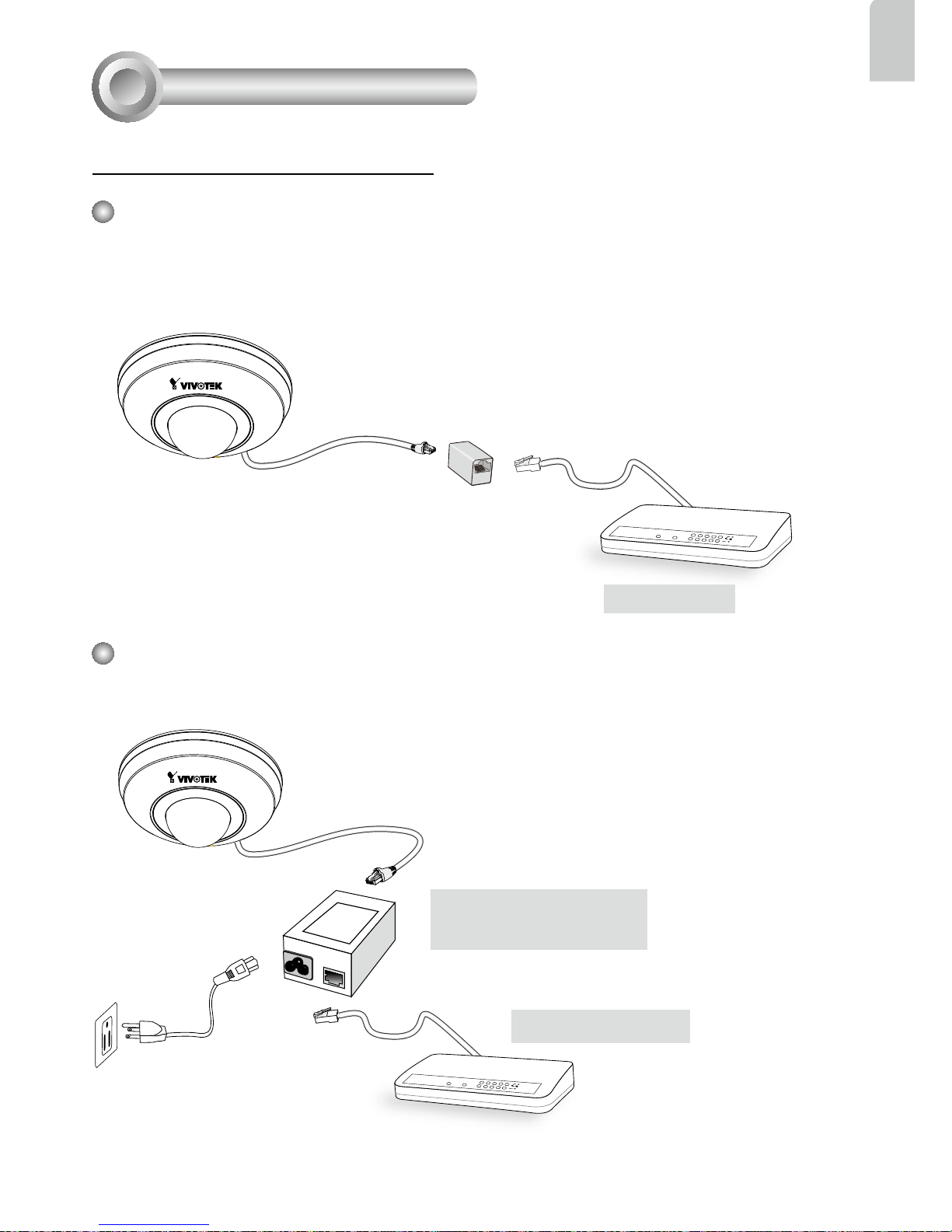

Power over Ethernet (PoE)

When using a PoE-enabled switch

This Network Camera is PoE-compliant, allowing transmission of power and data via

a single Ethernet cable. Follow the below illustration to connect the camera to a PoE

enabled switch via Ethernet cable.

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a

non-PoE switch.

Network Deployment

EN - 8

For further setup, please refer to the user's manual on the software CD.

Assigning an IP Address

Ready to Use

1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network is

analyzed, please click on the “Next” button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network

Cameras on the same LAN.

4. After a brief search, the main installer window will pop up. Double-click on the MAC

address that matches the one printed on the camera label or the S/N number on the

package box label to open a browser management session with the Network Camera.

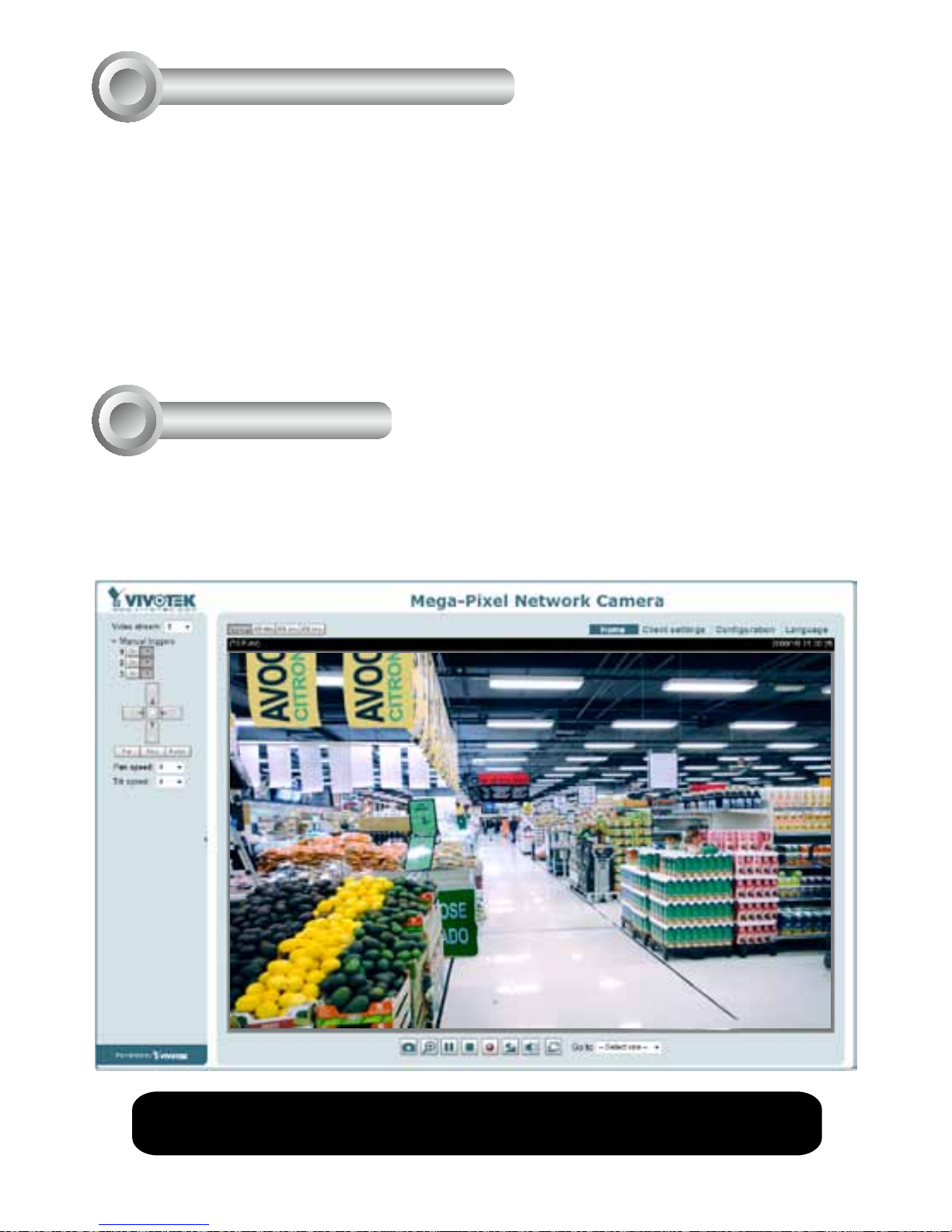

1. A browser session with the Network Camera should prompt as shown below.

2. You should be able to see live video from your camera. You may also install the

32-channel recording software from the software CD in a deployment consisting of

multiple cameras. For its installation details, please refer to its related documents.
