Vivo STAND-V002P User manual

Dual Monitor Desk Stand

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v002p

[email protected]om www.vivo-us.com 309-278-5303

SKU: STAND-V002P

2

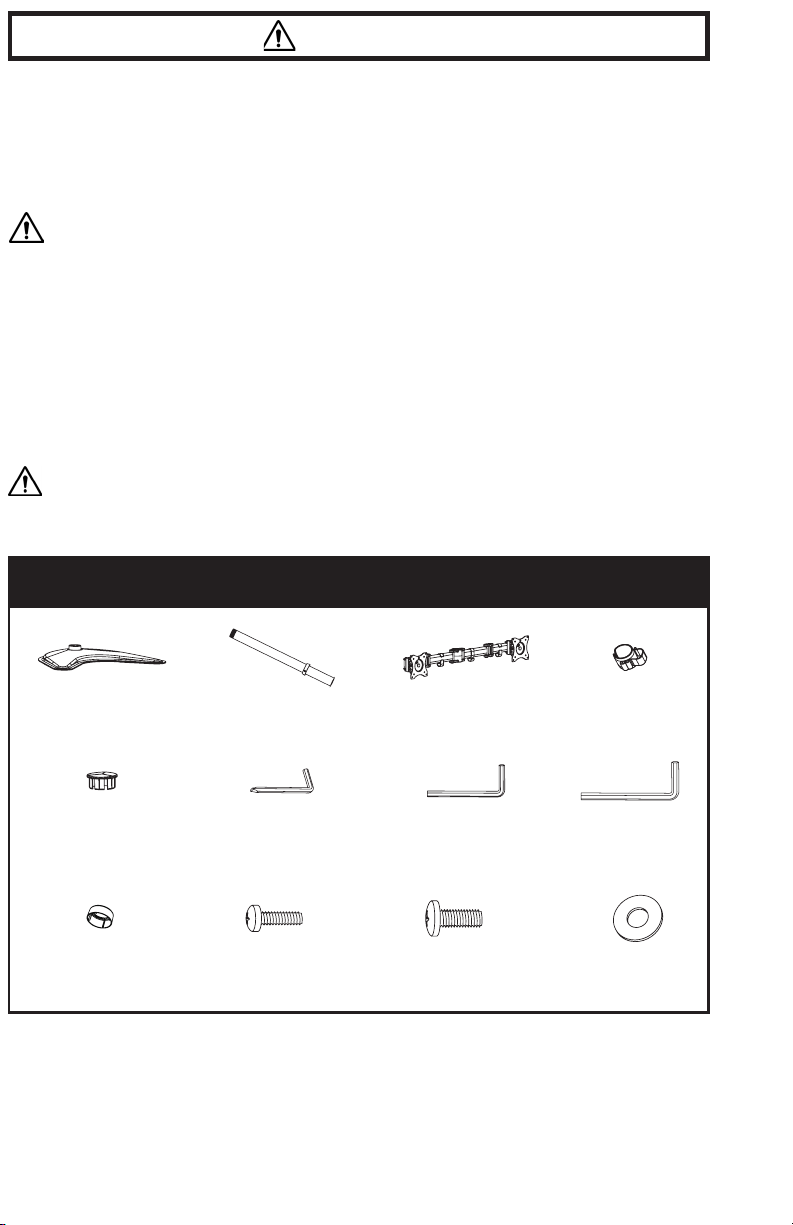

PACKAGE CONTENTS

A (x1)

Base

B(x1)

Pole

C(x1)

Arm

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

D(x1)

Cable Clip

E(x1)

Pole Cover

F (x1)

3mm Allen

Key

G (x1)

5mm Allen Key

H (x1)

6mm Allen Key

M-A (x8)

M4x12

M-B (x8)

M5x12

M-C (x8)

D5 Washer

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• TO PREVENT TIPPING, PLEASE BE CAREFUL NOT TO EXTEND THE ARMS TOO FAR FORWARD

OR BACKWARD.

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

I (x1)

Base Cover

3

ASSEMBLY STEPS

STEP 1

TOOLS NEEDED

Phillips

Screwdriver

Slide cable management clip (D) and base cover (I) on to bottom of pole (B). Thread pole onto base (A).

Tighten grub screws in bottom of base (A) using 3mm allen key (F).

Attach Pole Cover (E) to Pole (B).

17.6 lbs

(8 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

PER ARM

BE

4

STEP 2

Adjust bracket supporter using 3mm allen key (F).

STEP 3

Slide arm (C) over top of pole and tighten using 5mm allen key (G).

C

G

5

STEP 4

Attach two bolts (M-A or M-B) and washers (M-C) to top mounting holes of monitors, making sure to

leave 3mm of threads exposed. Align bolts (M-A, M-B) in VESA plates. Secure using two more bolts (M-A

or M-B) and washers (M-C) in the bottom two holes. Tighten all eight bolts using phillips screwdriver.

M- A

M- B

M- C

M- A

M- B

M- C

2

3m m

1

3

6

STEP 5

Adjust tension in monitor bracket with 6mm allen key (H) as shown in diagram.

STEP 6

Store allen keys (H, G) in cable management clip (D) for future adjustment.

+45 °

-45 °

H

G

H

7

STEP 7

Do not move monitors past center point of gravity. This could result in tipping.

STEP 8

Adjust monitor height using 5mm allen key (G) as shown in diagram.

360°

360°

LAST UPDATED: 10/28/2019

Open Monday-Friday from 7:00am-7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times.

If any parts are received damaged or defective, please contact us.

We are happy to replace parts to ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected]

www.vivo-us.com

309-278-5303

AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

AVG. RESOLUTION TIME (within oice hrs): < 15 M
