Vivo STAND-SHELF2W User manual

Above/Below Clamp-On 13” Dual Shelf

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-shelf2c

SKU: STAND-SHELF2C/W

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

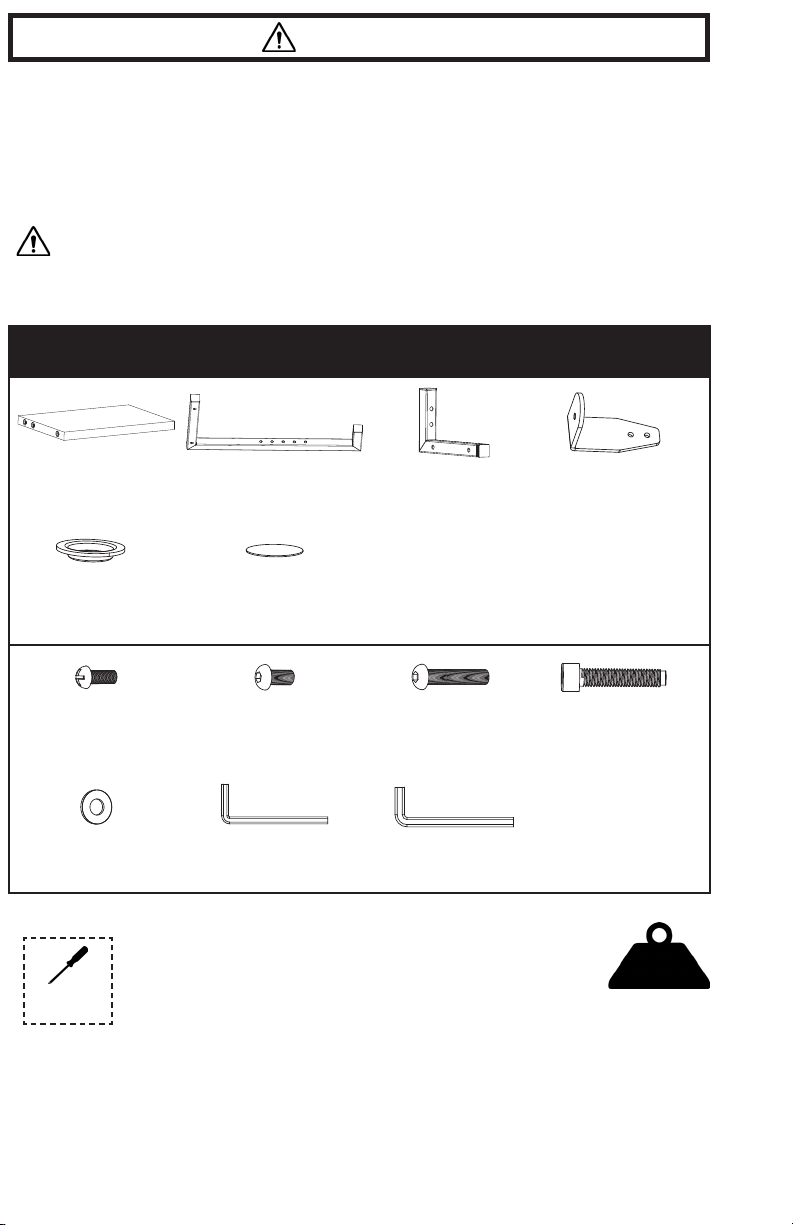

PACKAGE CONTENTS

WARNING!

A (x2)

Shelf

B(x2)

Vertical Support

C(x2)

Shelf Bracket

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

D(x2)

Clamp Brace

F(x2)

So Pad

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

11lbs

(5kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

Per Shelf

S-A (x2)

M4x10mm Screw

S-B (x4)

M6x12mm Screw

S-C (x12)

M6x30mm Screw

S-D (x2)

M8x50mm Screw

S-E (x2)

M4 Washer

T-A (x1)

4mm Allen Wrench

T-B (x1)

6 mm Allen Wrench

TOOLS NEEDED

Phillips

Screwdriver

E(x2)

Clamp Plate

ASSEMBLY STEPS

STEP 1

Secure Shelf (A) into top holes on Vertical Support (B) using M6x30mm Screws (S-C) and

4mm Allen Wrench (T-A).

Secure remaining Shelf (A) to Shelf Bracket (C) using M6x30mm Screws (S-C) and 4mm

Allen Wrench (T-A).

S-C

T-A

Attach Shelf Bracket (C) to middle holes

of Vertical Support (B) using M6x30mm

Screws (S-C) and 4mm Allen Wrench

(T-A). Select mounting holes based on

desired shelf height.

T-A

S-C

T-A

INSTALLATION STEPS

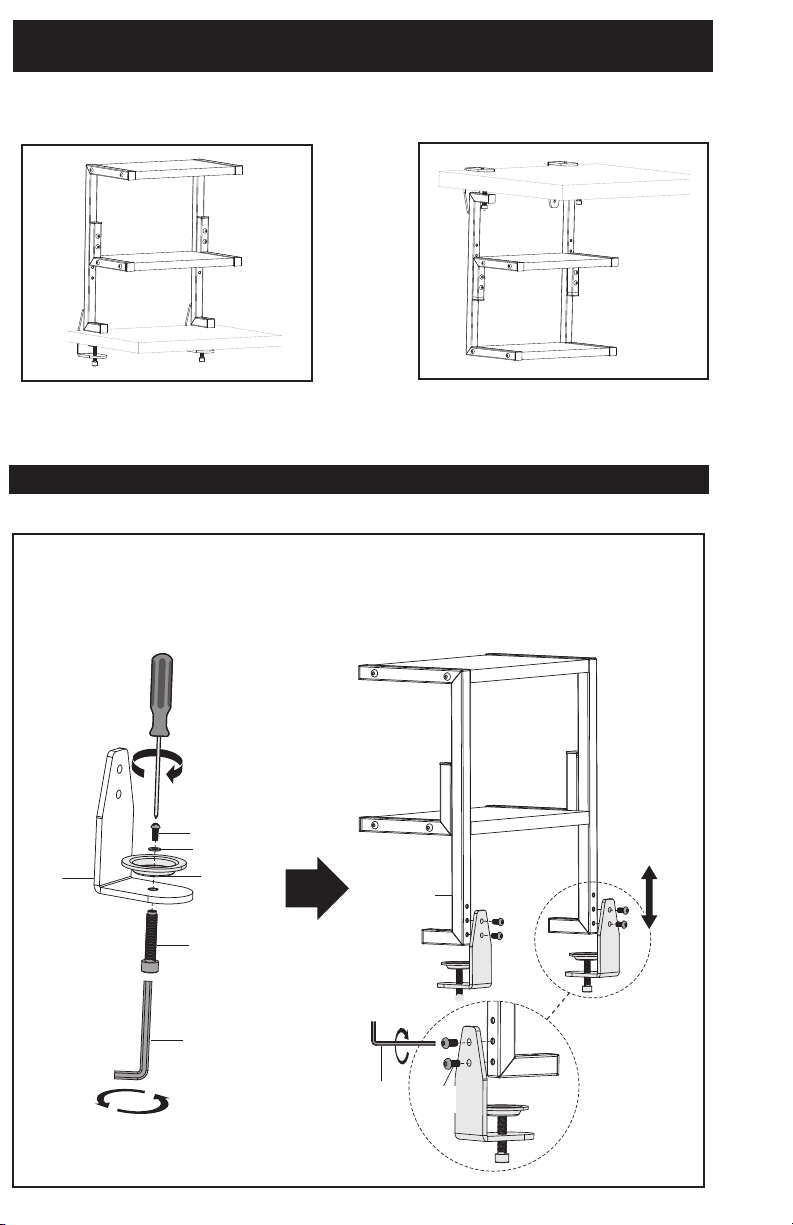

INSTALLATION OPTIONS:

Choose your desired installation method and follow appropriate steps below.

ABOVE DESK

Page 4-5

BELOW DESK

Page 6-7

Above Desk

STEP 1

Thread M8x50mm Screws (S-D) into Clamp Braces (D) with Clamp Plate (E), M4x10mm

Screws (S-A) and M4 washer (S-E). Tighten using 6mm Allen Wrench (T-B) and a Phillips

Screwdriver. Mount the clamp assemblies to Vertical Supports (B) using M6x12mm

Screws (S-B) and 4mm Allen Wrench (T-A).

S-A

S-E

S-D

T-A

S-B

T-B

STEP 2

STEP 3

Remove adhesive backing from So Pads (F) and apply to Vertical Supports (B) as shown

below.

Secure the shelf assembly above the desktop by tightening M8x50mm Screws (S-D) using

6mm Allen Wrench (T-B).

T-B

S-D

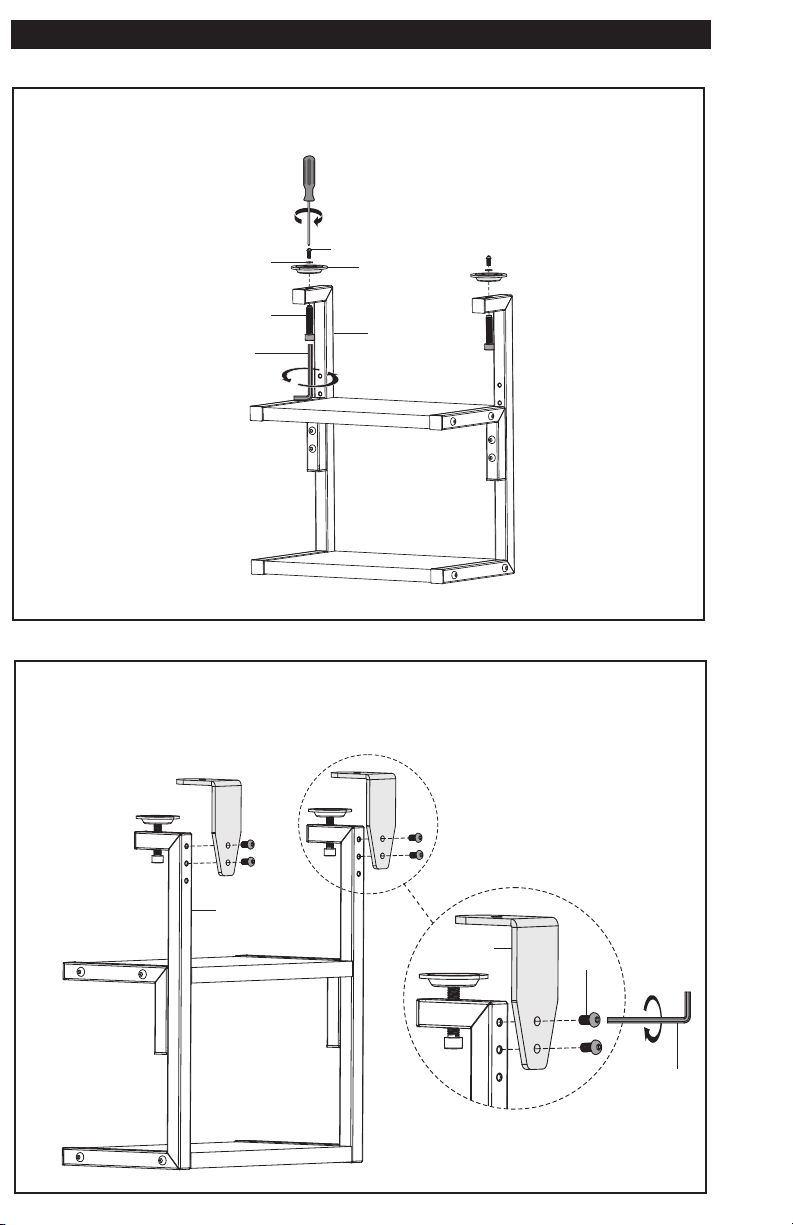

Below Desk

STEP 1

STEP 2

Thread M8x50mm Screws (S-D) into Vertical Supports (B) with Clamp Plates (E),

M4x10mm Screws (S-A) and M4 Washers (S-E). Tighten using 6mm Allen Wrench (T-B)

and a Phillips Screwdriver.

Assemble Clamp Braces (D) to Vertical Supports (B) using M6x12mm Screws (S-B) and

4mm Allen Wrench (T-A).

S-D B

S-A

S-E

T-B

T-A

DS-B

STEP 3

Remove adhesive backing from So Pads (F) and apply them to Clamp Braces (D) as

shown below.

Secure the shelf assembly below the desktop by tightening M8x50mm Screws (S-D) using

6mm Allen Wrench (T-B).

T-B

S-D

LAST UPDATED: 08/21/2023

REV2.2

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
