Black Clamp-on Pegboard Panel

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/pp-dk12b

SKU: PP-DK30B-1

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

2

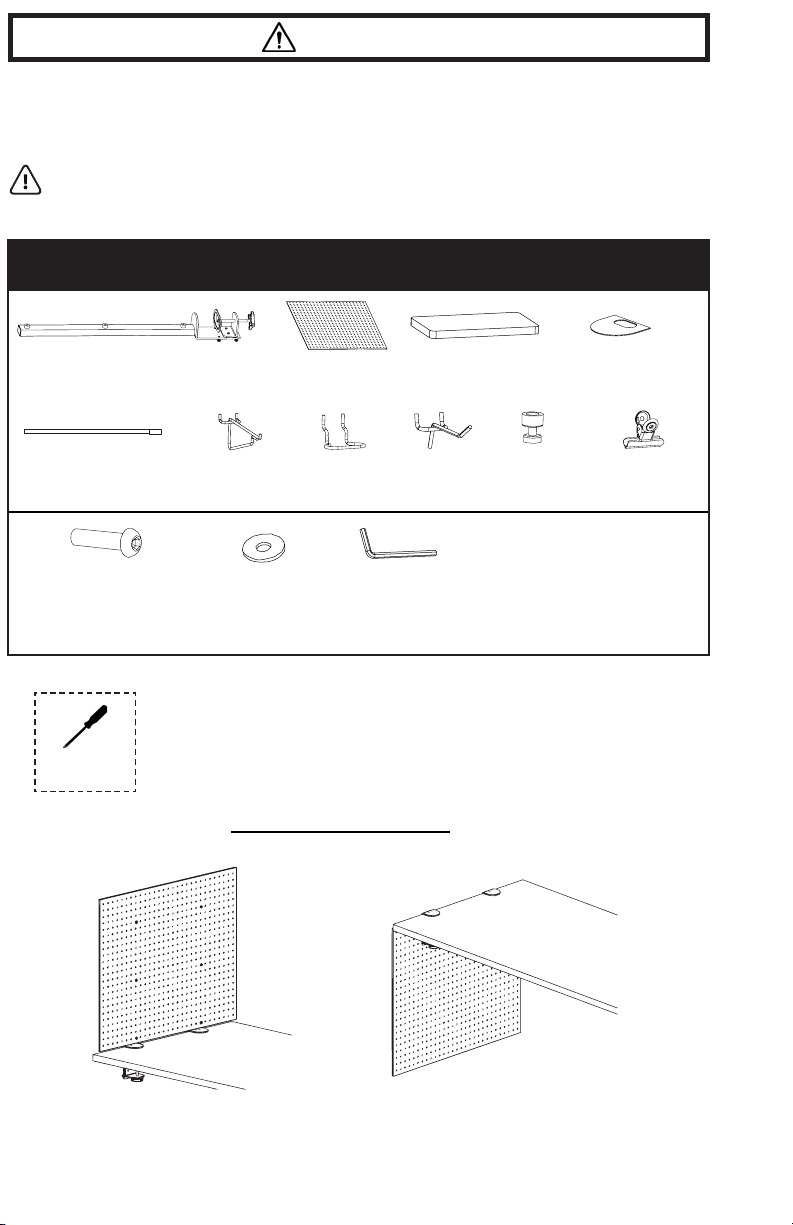

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may

cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual

and do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect

assembly, or inappropriate use.

WARNING!

TOOLS NEEDED

Phillips

Screwdriver

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

Option B:

Below Desk

Cable Management

Page 6

Option A:

Above Desk Mounting

Page 3

ASSEMBLY OPTIONS:

PACKAGE CONTENTS

A (x2)

Support

B (x1)

Pegboard

C (x2)

Shelf

S-A (x6)

M6x16mm

Screw

S-B (x6)

M6 Washer

T-A (x1)

4mm Allen Wrench

E (x8)

Zip Tie

I (x8)

Magnet

H (x2)

Hook

J (x2)

Clip

D (x2)

Clamp Pad

F (x4)

Shelf Bracket

G (x2)

Loop

3

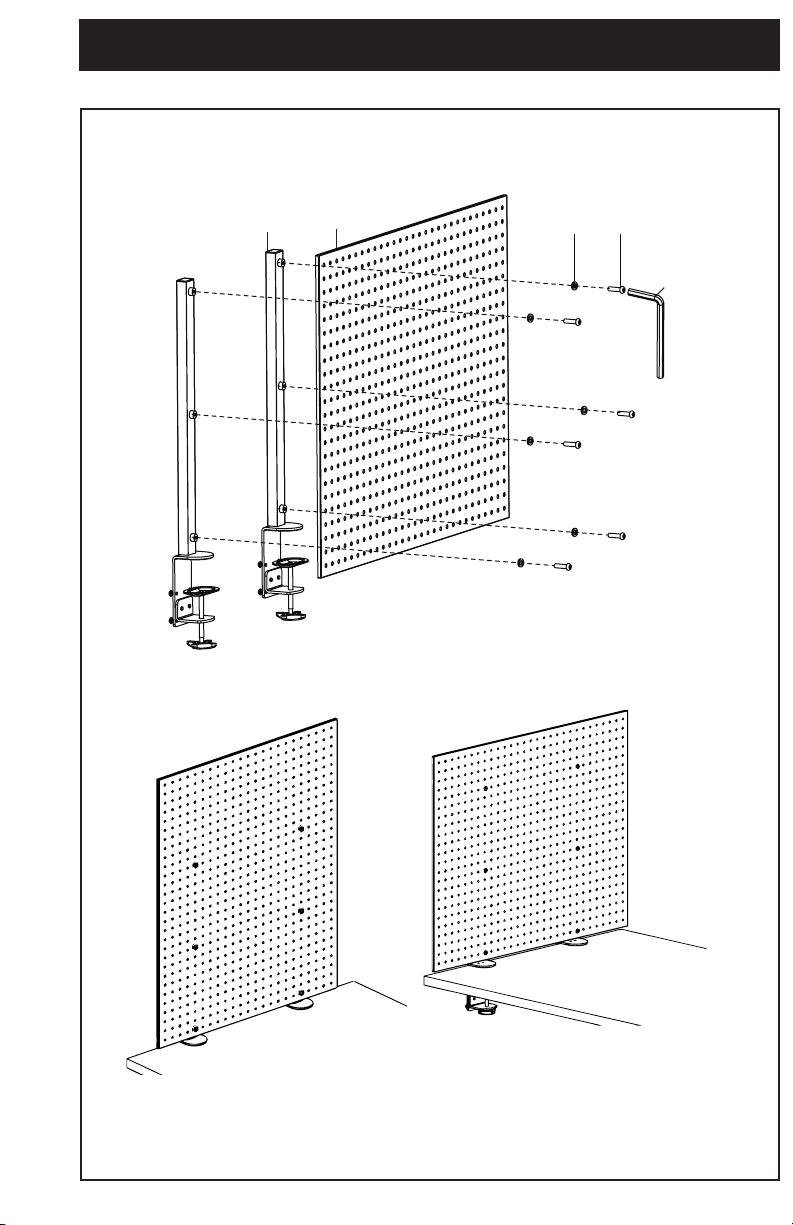

STEP 1

Connect Pegboard (B) to Supports (A) by installing M6x16mm Screws (S-A) and M6 Washer (S-B)

through pegboard into threaded holes of Supports (A) using 4mm Allen Wrench (T-A). This can be done

in a portrait or landscape orientation. See examples below.

Orientation Options

Portrait Landscape

ASSEMBLY OPTION A: Above Desk Mounting

ABS-B S-A

T-A

4

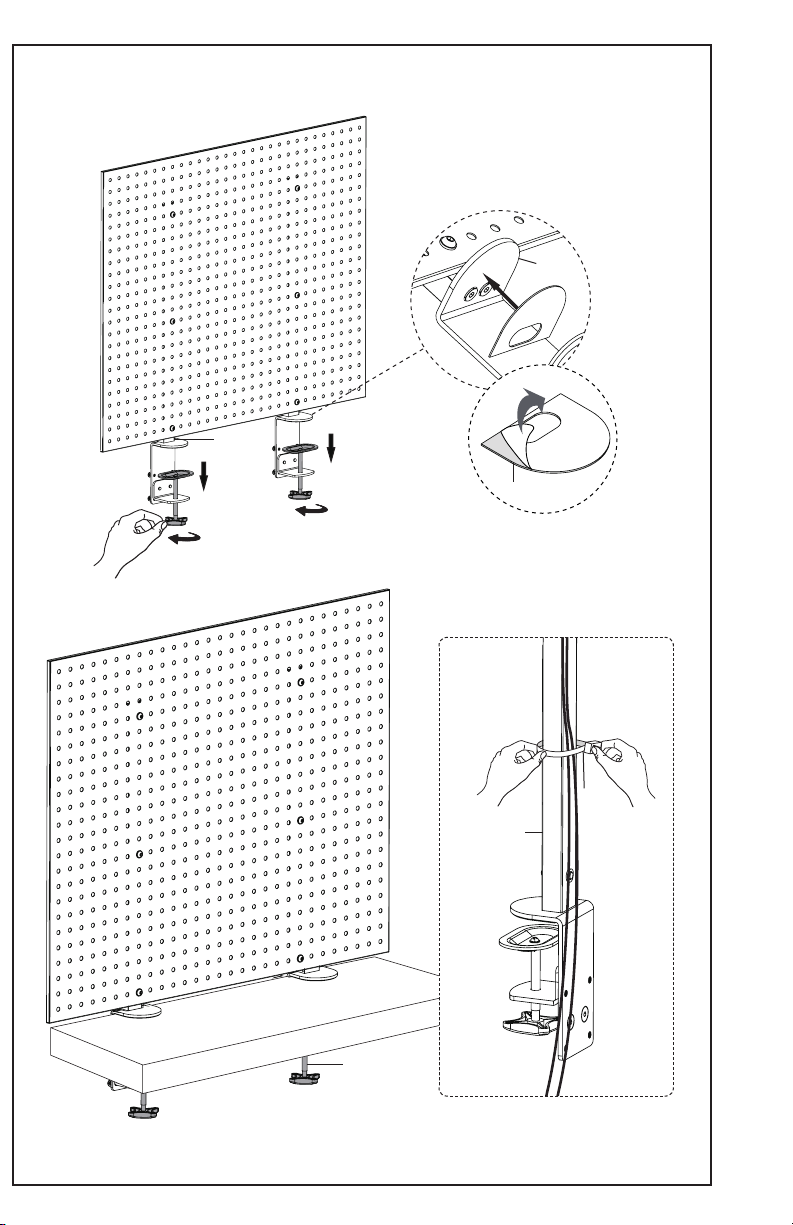

STEP 2

Install Clamp Pads (D) on the Clamps (A1) on Supports (A). Tighten Clamps (A1) to attach to desired

surface. Use Zip Ties (E) to secure cables along Supports (A).

D

A1

A

E

A

A1

5

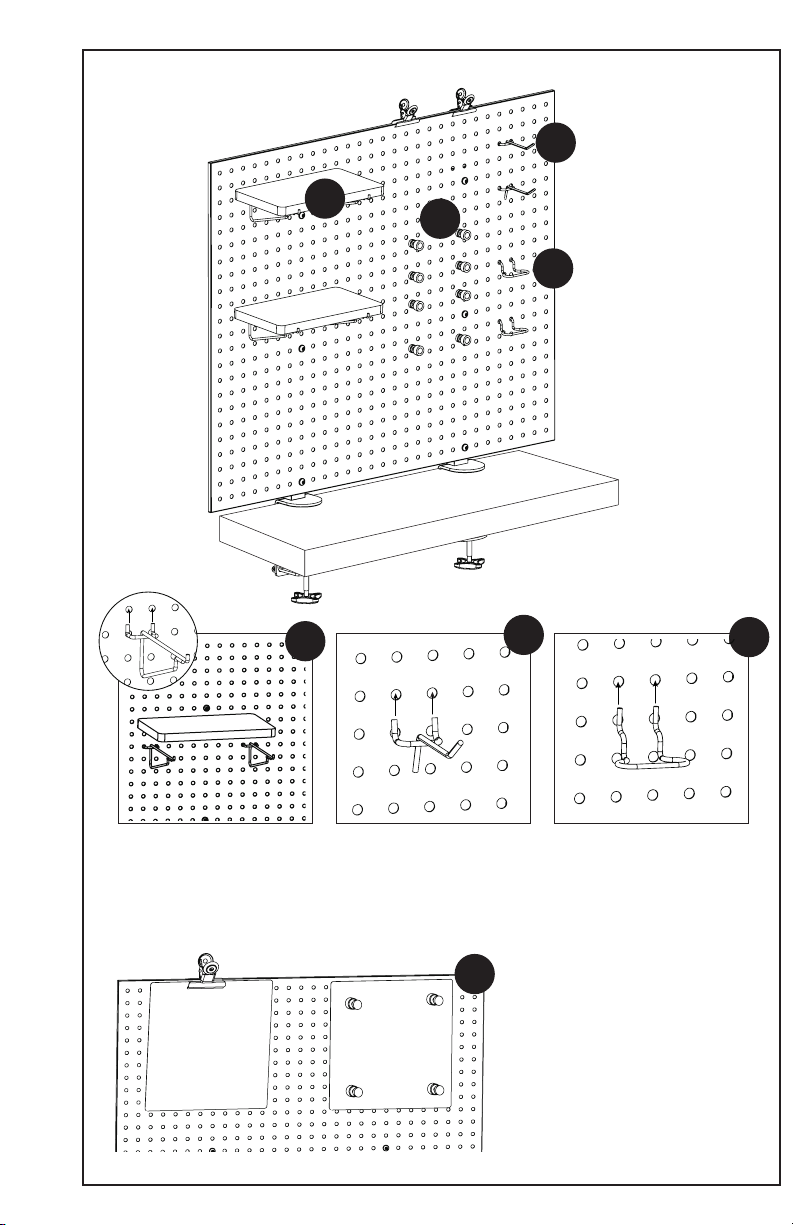

STEP 3

Install accessories (C, F thru J) onto assembled pegboard.

1

3

4

2

Shelf (C,F)

Magnets

Hooks (H) Loops (G)

Place Shelf Brackets (F)

onto desired location on

pegboard. Place Shelf (C)

onto Shelf Brackets (F).

Clips (J) and Magnets (I) can be

used as desired on pegboard.

Place Hooks (H) into

desried pegboard holes.

Place Loops (G) into

desired pegboard holes.

13

2

4

6

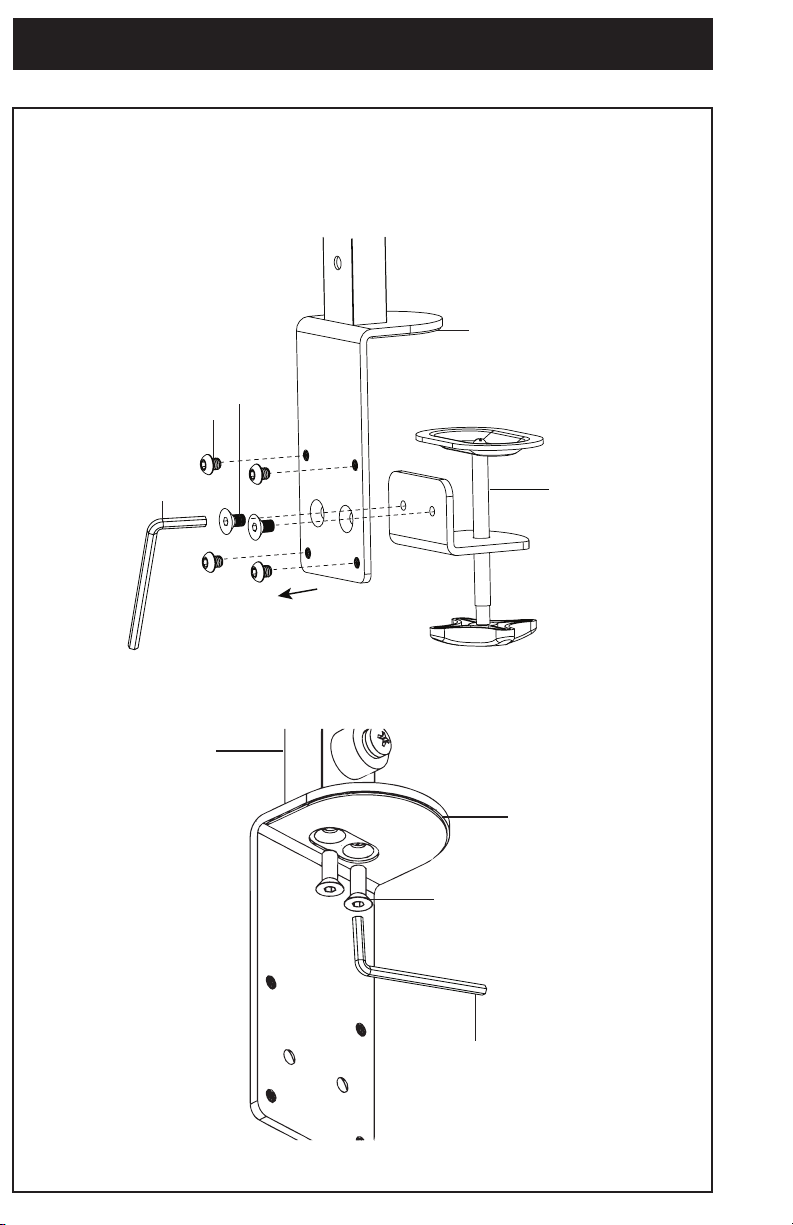

STEP 1

To mount belowdesktop, the Clamp on Supports (A) will first need to be removed. The Clamp will be

re-installed to the pegboard and used to secure pegboard below desktop.

DISASSEMBLE SUPPORTS (A):

Remove M6x6mm Screws (A2) and M6x8mm Screws (A3) from Clamp (A1) to remove Clamp Bolt (A4)

using 4mm Allen Wrench (T-A).

Next, remove M6x16mm Screws (A5) from underside of Supports (A) using 4mm Allen Wrench (T-A) to

separate Clamp (A1).

ASSEMBLY OPTION B: Below Desk Cable Management

A5

T-A

A1

A

A4

A3

T-A

A1

A2

7

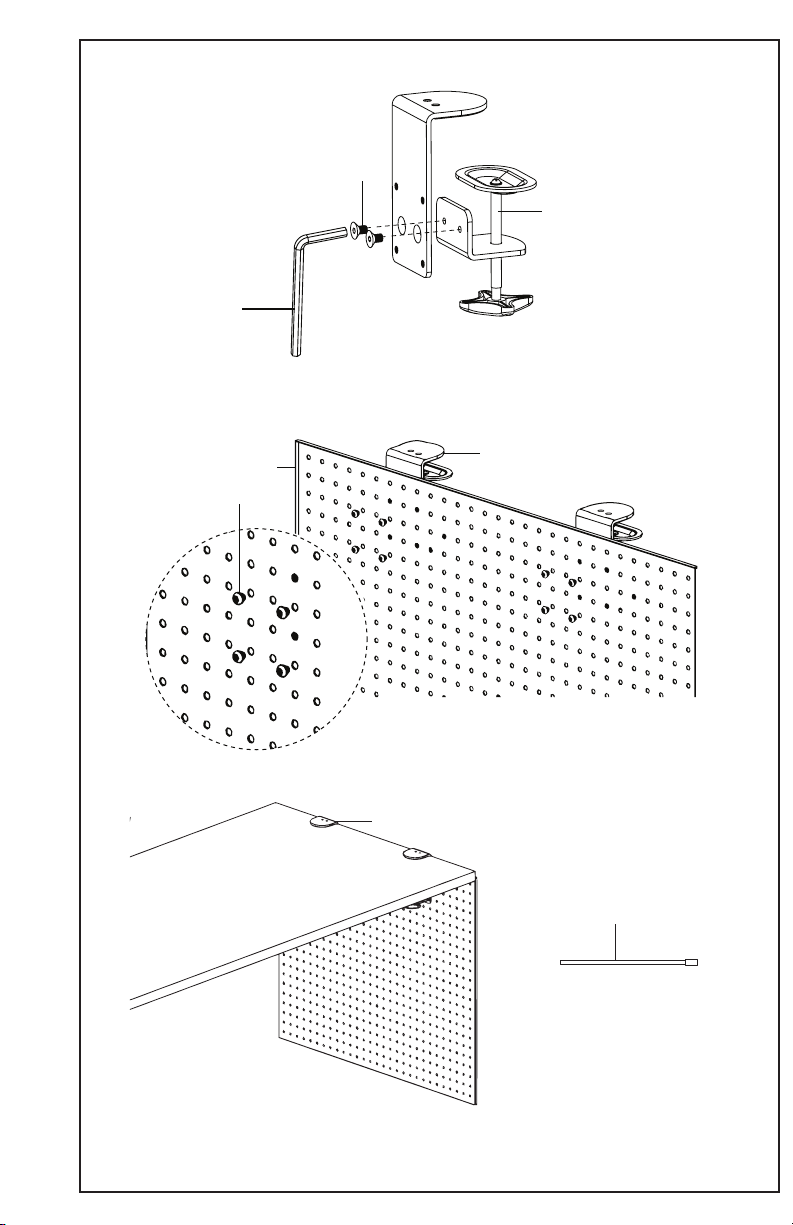

STEP 2

Connect Clamp Bolt (A4) to Clamp (A1) using previously removed M6x8mm Screws (A3) and

4mm Allen Wrench (T-A).

Connect Pegboard (B) to front of Clamps (A1) using previously removed M6x6mm Screws (A2).

Secure Clamp (A1) to desktop surface.

Zip Ties (E) can be used to manage

cables on assembled pegboard.

A1

E

A3

A4

T-A

A2

BA1

LAST UPDATED: 07/06/2023

REV1
