Vivo MOUNT-VP06W User manual
White Projector Ceiling and Wall Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-vp06b
SKU: MOUNT-VP06W
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
CAUTION!
DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR CEILING CONSTRUCTION. USE WOOD STUDS
TO MOUNT. We include mounting for brick and concrete. If unsure, please contact us at vivo-us.com,
PACKAGE CONTENTS
A (x1)
Ceiling Plate
B(x1)
Pole
M-A (x6)
M5x10
M-B (x4)
M6x10
C (x1)
Bracket
M-C (x4)
M5x8
M-D (x4)
M4x8
M-E (x4)
M3x8
M-F (x4)
D3 Washer
M-G (x4)
D4 Washer
M-H (x10)
D5 Washer
M-I (x2)
D5 Washer
W-A (x4)
Screw
W-B (x4)
Anchor
W-C (x4)
Washer
D(x1)
Bracket
E (x1)
Cover
M-J (x4)
D6 Washer
M-K (x1)
Allen Wrench
M-L (x1)
Allen Wrench
M-M (x2)
Arm Extension
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
3
ASSEMBLY STEPS

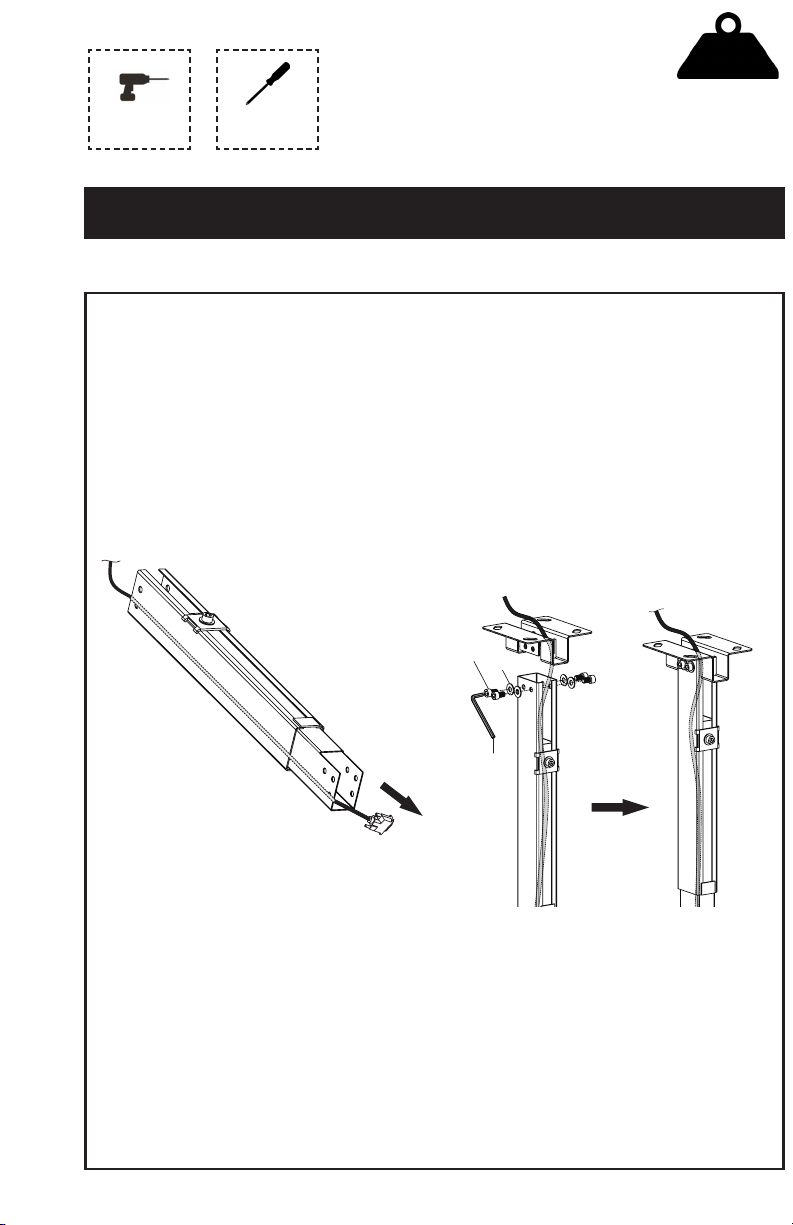

STEP 1
TOOLS NEEDED
Phillips
Screwdriver
Drill
Route cables through telescopic pole (B). Route cables through ceiling plate (A). Attach ceiling plate
to telescopic pole using M6x10 screws (M-B) and D6 washers (M-J), and tighten with large Allen
wrench (M-L). Attach mounting bracket (C) to telescopic pole using x4 M5x10 screws (M-A) and x4 D5
washers (M-H), and tighten with small Allen wrench (M-K).
44lbs
(19.96kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
M- L
M- B M- J
4
STEP 2
OPTION B: Concrete Ceiling Installation
Position ceiling plate against ceiling and mark drill locations with a pencil. Drill 2.4” (60mm) deep
holes using a 3/8” (10mm) drill bit. Press concrete anchors (W-B) into holes. Mount ceiling plate using
screws (W-A) and washers (W-C). Please note, anchors are designed for use in concrete and are not
suitable for use in drywall.
OPTION A: Wood Ceiling Installation
Position ceiling plate against ceiling and mark drill locations with a pencil. Use of a stud finder is
recommended with wood beam ceilings. Drill 2.2” (55mm) deep holes using a 3/16” (4.5mm) drill bit.
Mount ceiling plate using screws (W-A) and washers (W-C).
M- K
M- A
M- H
W- A
W- C
W- B
W- C
W- A
5
STEP 3
STEP 4
Hang projector with mounting bracket over mounting bracket. Secure using x2 M5x10 screws (M-A),
D5 washers (M-H) and plastic D5 washers (M-I) with small Allen wrench (M-K).
Install projector mounting bracket (D) to projector using appropriate screws (M-C, M-D, M-E)
and washers (M-F, M-G, M-H). For projectors with uneven mounting holes, swap appropriate arm
extensions with alternate extensions (M-M). Please note, if your projector has only three mounting
holes, simply leave one mounting arm unused.
M- M
M-C/M-D/M- E
M-F/M-G/M- H
M- L
M- A
M- H
M- I
M- A
M- H
M- I
M- K
6

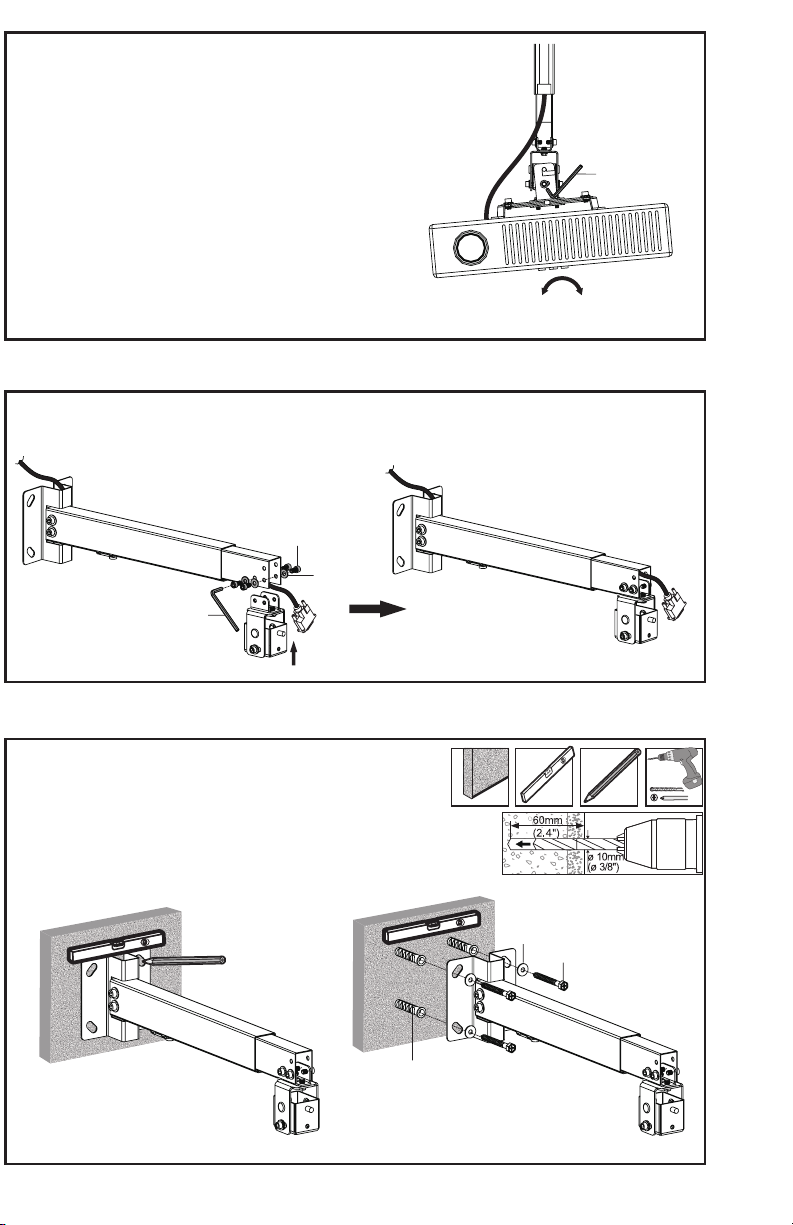

STEP 5
Adjust tilt angle and secure with small Allen wrench (M-K).
STEP 7
Brick/Concrete Wall Installation:
Position ceiling plate against wall and mark drill locations
with a pencil. Drill 2.4” (60mm) deep holes using a 3/8”
(10mm) drill bit. Press concrete anchors (W-B) into holes.
Mount ceiling plate using screws (W-A) and washers (W-C).
STEP 6
Attach mounting bracket (C) to telescopic pole in alternate position using x4 M5x10 screws (M-A) and
x4 D5 washers (M-H), and tighten with small Allen wrench (M-K).
M- K
+8°
-8°
M- A
M- H
M- K
W- A
W- C
W- B
7
STEP 8
Install projector mounting bracket
(D) to projector using appropriate
screws (M-C, M-D, M-E) and washers
(M-F, M-G, M-H). For projectors
with uneven mounting holes, swap
appropriate arm extensions with
alternate extensions (M-M). Please
note, if your projector has only three
mounting holes, simply leave one
mounting arm unused.
STEP 9
Hang projector with mounting bracket over mounting bracket. Secure using x2 M5x10 screws (M-A),
D5 washers (M-H) and plastic D5 washers (M-I) with small Allen wrench (M-K).
STEP 10
Adjust tilt angle and secure with small Allen wrench (M-K).
M-C/M-D/M- E
M-F/M-G/M- H
M- M
M- A
M- H
M- I
M- A
M- H
M- I
M- K
-15° ~ 15°
M- K
+8 ° -8 °
LAST UPDATED: 08/04/2022
REV1.1
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
