Vivo MOUNT-VP02B User manual

Extending Projector Ceiling Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-vp02b

SKU: MOUNT-VP02B/W

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

PACKAGE CONTENTS

WARNING!

A (x1)

Arm

B(x1)

Bracket

M-A (x4)

M3x8mm Screw

If you do not understand these directions, or if you have any doubts about the safety of the installation,

please call a qualied technician. Check carefully to make sure there are no missing or defective parts.

Improper installation may cause damage or serious injury. Do not use this product for any purpose that is

not explicitly specied in this manual. Do not exceed weight capacity. We cannot be liable for damage or

injury caused by improper mounting, incorrect assembly or inappropriate use.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

M-B (x4)

M4x10mm Screw

C (x1)

Mounting Bracket

M-C (x4)

M5x10mm Screw

M-D (x4)

M6x10mm Screw

M-F (x4)

M4 OD-10

Washer

M-G (x4)

M5 OD-12

Washer

M-H (x4)

M6 OD-12 Washer

S-A (x6)

M5x12mm

Screw

S-B (x6)

M5 OD-10

Washer

T-A (x1)

4mm Allen Wrench

W-A (x4)

Screw

W-B (x4)

Anchor

W-C (x4)

M6 OD-16

Washer

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR CEILING CONSTRUCTION. USE WOOD STUDS

TO MOUNT. We include mounting for brick and concrete. If unsure, please contact us at vivo-us.com,

email at [email protected]om, or call us at 309-278-5303.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

S-C (x6)

M5 OD-10

Plastic Washer

S-D(x2)

Spacer

S-E (x2)

Plate

M-E (x4)

M3 OD-10

Washer

WASHER SPECIFICATION KEY

MCompatible Screw Size

Outside DiameterOD

ASSEMBLY STEPS

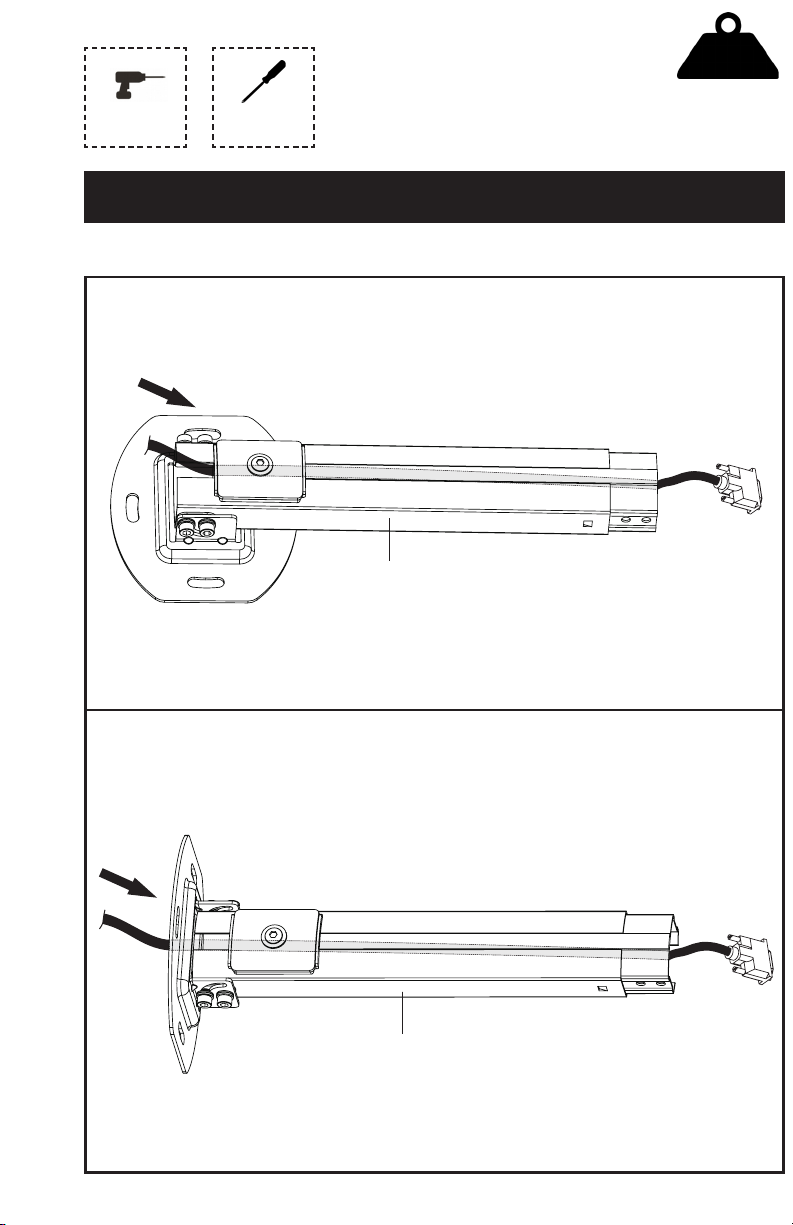

STEP 1

TOOLS NEEDED

Phillips

Screwdriver

Drill

OPTION A:

Run cables through Arm (A).

OPTION B:

If running cables through ceiling, pull cables through top plate of Arm (A).

30lbs

(13.61kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

STEP 2

OPTION A: Wood Ceiling Joist Installation

Use top plate of Arm (A) to mark mounting holes on ceiling. Using a 3/16” drill bit, drill approximately

2.2” into ceiling stud. Put Arm (A) in place and mount to the pre-drilled holes using Screws (W-A) and

M6 OD-16 Washers (W-C) as shown in diagram.

W-A

W-C

123

STEP 2 (Continued)

OPTION B: Concrete/Brick Mounting

Use top plate of Arm (A) to mark mounting holes on ceiling. Using a ⅜” drill bit, drill approximately

2.4” into ceiling. Use Anchors (W-B), Screws (W-A), and M6 OD-16 Washers (W-C) to mount Arm (A) as

shown in diagram.

W-B

W-C

W-A

STEP 3

Mount Bracket (B) to Arm (A) using Spacers (S-D), Plates (S-E), M5x12mm Screws (S-A), and Washers

(S-B, S-C). Tighten using 4mm Allen Wrench (T-A).

T-A

S-A S-C

S-B

S-E

S-D

Align arms on Mounting Bracket (C) with mounting holes in projector, and secure to

projector using Screws (M-A through M-D) and Washers (M-E through M-H) most

appropriate for your projector. If your projector has 3 mounting holes, simply remove one

of the arms.

M-A, M-B, M-C, M-D

M-E, M-F, M-G, M-H

M-A, M-B, M-C, M-D

M-E, M-F, M-G, M-H

M-A, M-B, M-C, M-D

M-E, M-F, M-G, M-H

STEP 4

STEP 4 Cont.

STEP 5

STEP 6

Adjust height and tilt of mount using the allen wrench (T-A).

+15°

-15°

+15°

Adjustment #1: Use for pitched ceiling applications ONLY.

Adjustment #2 & #3: Adjust tilt angle using one or both of these adjustments.

Secure Mounting Bracket (C) using M5x12mm Screws (S-A), M5 OD-10 Washers (S-B) and

M5 OD-10 Plastic Washers (S-C). Tighten with 4mm Allen Wrench (T-A).

T-A

S-AS-A S-CS-C

S-BS-B

T-AT-A

[PAGE INTENTIONALLY LEFT BLANK]
