Viva SKYLO User manual

Wall Fixing Bracket

Wall Fixing Bolt

Side Fixing Holes

Flush Pipe

Pan Connector Clip

Height Adjustment Bolts

Floor Fixing Holes

Toilet Hanging Bolts

Cistern Inspection Cover

1m Height Indicator

Insulated Casing

ULTRA WALL HUNG FRAME

First check for any obvious manufacturing defects i.e.

Cracks.

Check all parts listed are present.

Follow installation guide carefully.

Pressure to the cistern should preferably be between

0.2 bar and 8.0 bar, if greater, it is recommended that

an inline pressure reducing valve is ﬁtted.

Pipework must be free from debris prior to installation.

Do not use plumbers putty or silicone sealant on any

ﬁttings.

Ensure the mounted surface is adequate to carry the

weight of the cistern when full approx 8kg.

Faults that occur due to working outside the

recommended pressure.

Damage found to be caused at site.

Damage caused by bleach/cleaners. It is not

recommended any in tank cleaners are used as they

may result in product failure and/or property damage.

Faults caused by incorrect or poor installation.

Faults caused by any other particles, dirt, silt, silicone,

plumbers putty etc.

Any consequential loss or damage.

PRE INSTALLATION CHECKS AND NOTES

WARRANTY EXCLUSIONS

We shall not be responsible or liable for any failure of, or damage to, this plumbing product caused by

the use of chlorine/bleach cleaners or related products added to the tank water. Use of such products

will void the warranty and may result in product failure, possibly causing property damage. Do not over

tighten plastic nuts and always turn o water supply when installing / removing toilet cistern parts.

For more information please contact:

VIVA Sanitary

Units 1-3 Capitol Trading Park, Kirkby Bank Road,

Knowsley Industrial Estate, Liverpool, L33 7SY

Tel: 0151 546 0531

E-mail: sales@vivasanitary.co.uk

Please note: Save this instruction booklet for future reference. DO NOT use plumber’s putty to seal any components of this product

INSTALLATION VIDEO

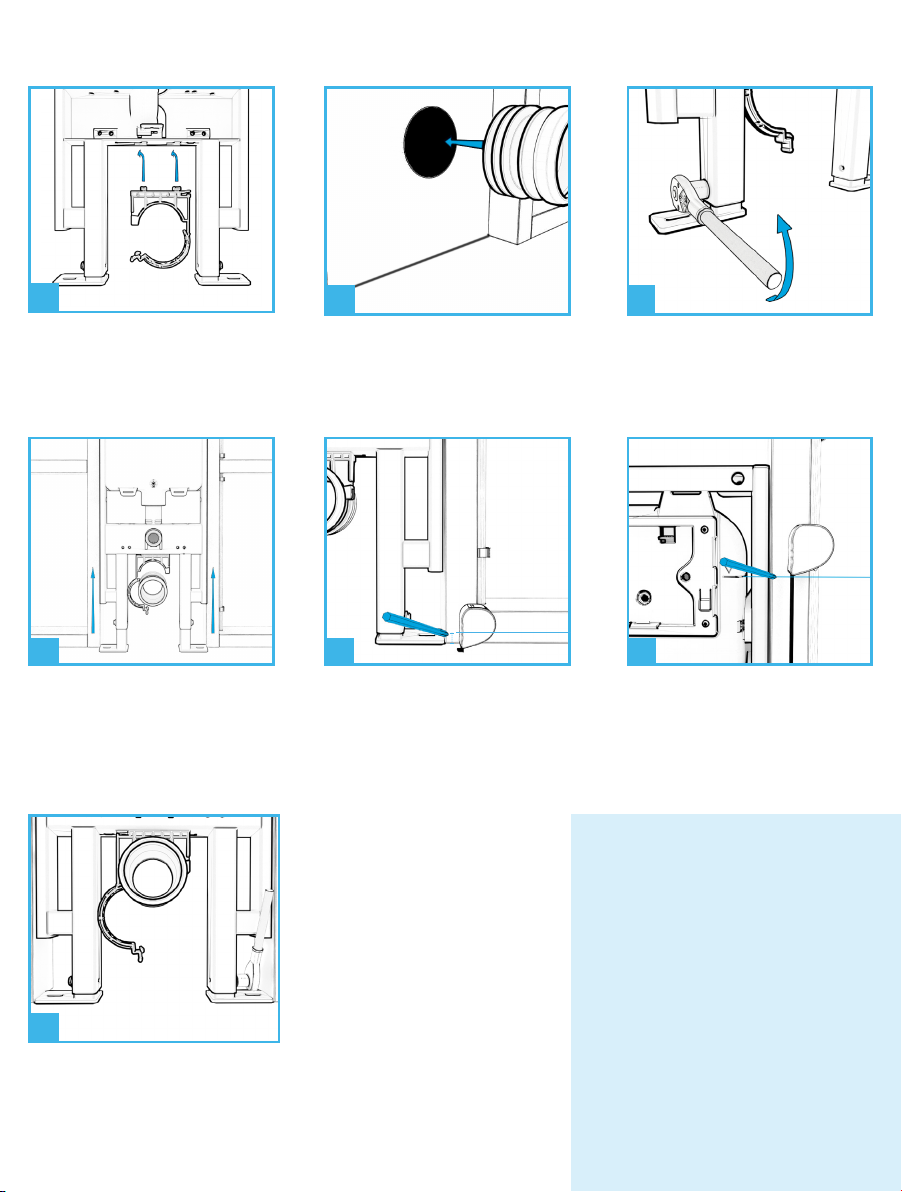

PART 1: PREPARING THE FRAME HEIGHT

Insert the drain connector clip into

the frame and slide to the left to

lock into position. The clip can be

ﬂipped 180° to suit the pipework.

Position the frame into place.

Insert the supplied drain connector

into the soil pipe. Optional angled

drain connectors are available for

connection to ﬂoor outlets.

Loosen both height adjustment

bolts on the frame using a socket

wrench or spanner.

Measure from the sub ﬂoor and

mark on a joist the height of the

intended ﬁnished ﬂoor level.

Tighten the height adjustment bolts

on both frame legs and check that

the height hasn’t slipped.

Measure up from the FFL 1m and

mark on the joist. Raise the frame

so that the recommended 1m

indicator on the frame lines up with

the 1m marking on the joist.

FITTING FLEXIBILITY

FINISHED

FLOOR LEVEL

FFL + 1M

The cistern frame has been designed

to ﬁt in almost every scenario. It has

even been designed to be just 75mm

deep, meaning that it will ﬁt within the

void of a typical stud wall.

There are two ﬁxing options,

depending on whether you are

securing it to a solid masonry wall

behind the frame (option A), or to the

timber studs either side of it (option B).

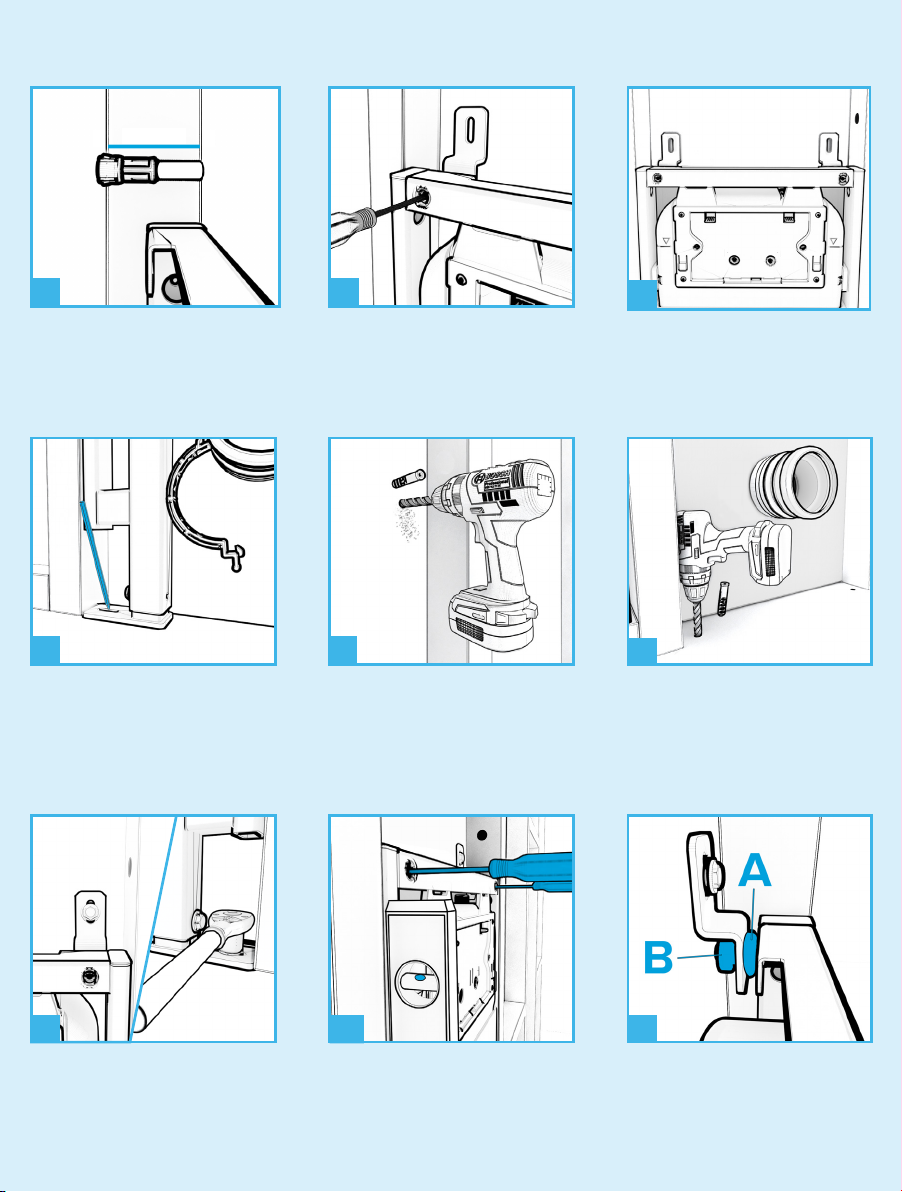

OPTION A: FIXING THE FRAME TO A SOLID WALL AND SUB FLOOR

Locate the wall ﬁxing brackets,

oer them up behind the frame and

using a phillips screw driver, screw

the bolt into the bracket 2-3 full

rotations.

Locate the wall ﬁxing bolts. Measure

and cut the bolts using a hacksaw

5mm shorter than the total depth of

the wall void. Then clip the bolts into

the top frame adjustment holes.

Ensuring the brackets are upright,

mark on the wall the locations of

the holes to be drilled.

iii

Drill two 10mm holes where marked

on the sub-ﬂoor, and insert the

supplied raw plugs.

Place the locking clips onto the

bolt, either side of the wall bracket

and tighten as follows:

A = against frame

B = against bracket

Ensuring that the feet of the frame

are ﬂush with the front edge of the

joists, mark on the sub-ﬂoor the

locations to be drilled.

Remove frame and place to one

side. Drill two 10mm holes where

marked on the wall, and insert the

supplied raw plugs.

viii

To ensure the frame is plumb, adjust

the level of the frame using the

adjustment bolts.

Place the frame back between the

joists, and using a socket wrench or

spanner secure to the wall and ﬂoor

using the supplied screws.

vii

A B -5mm

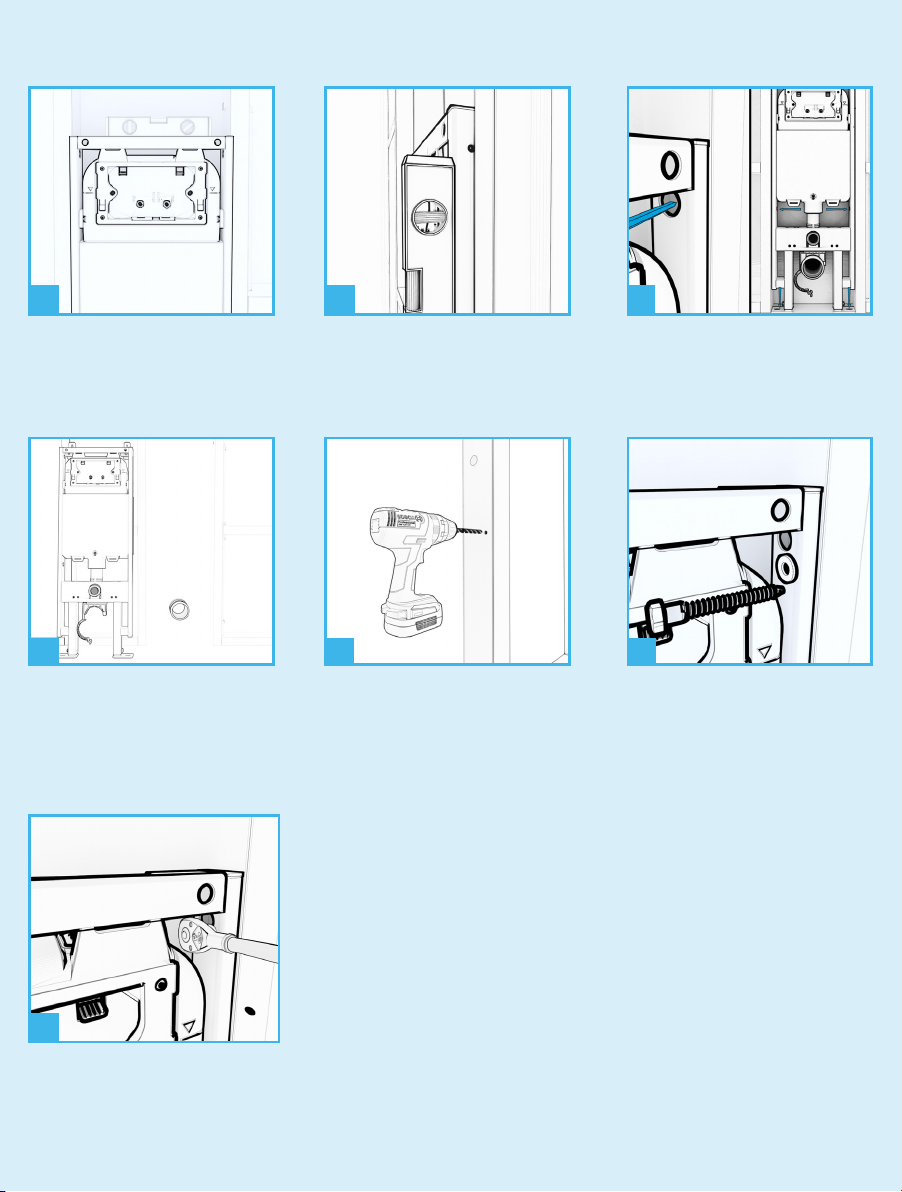

OPTION B: FIXING THE FRAME WITHIN A STUD WALL

Set frame to one side.

With the feet set ﬂush with the front

edge of the joists, ensure the frame

is plumb.

Ensure that the frame is level. If not,

adjust the legs accordingly.

Mark the 4 frame hole locations

as well as the locations of the feet

holes.

iii

Drill 5mm pilot holes at each marked

location.

Tighten using a socket wrench or

spanner.

vii

Secure with the supplied screws.

PART 2: PREPARING THE CISTERN

Remove the cover cap prior to

completing the wall.

Attach the cover over the inspection

plate to prevent debri getting into

the cistern.

Ensure that the isolation valve is

closed by twisting it fully to the

right.

Remove the inspection plate by

pinching the clips at the top.

Connect the water supply to the

1/2” thread near the top right hand

side of the cistern.

Lock the drain connector clip

around the drain connector.

Insert the toilet hanging threads,

using whichever hole combination

corresponds with the toilet hanging

holes (180mm/230mm). Then slot

the sheaths over the theads.

Locate and insert both ﬂush pipe

and drain connector blanks into the

corresponding outlets.

Replace the inspection plate.

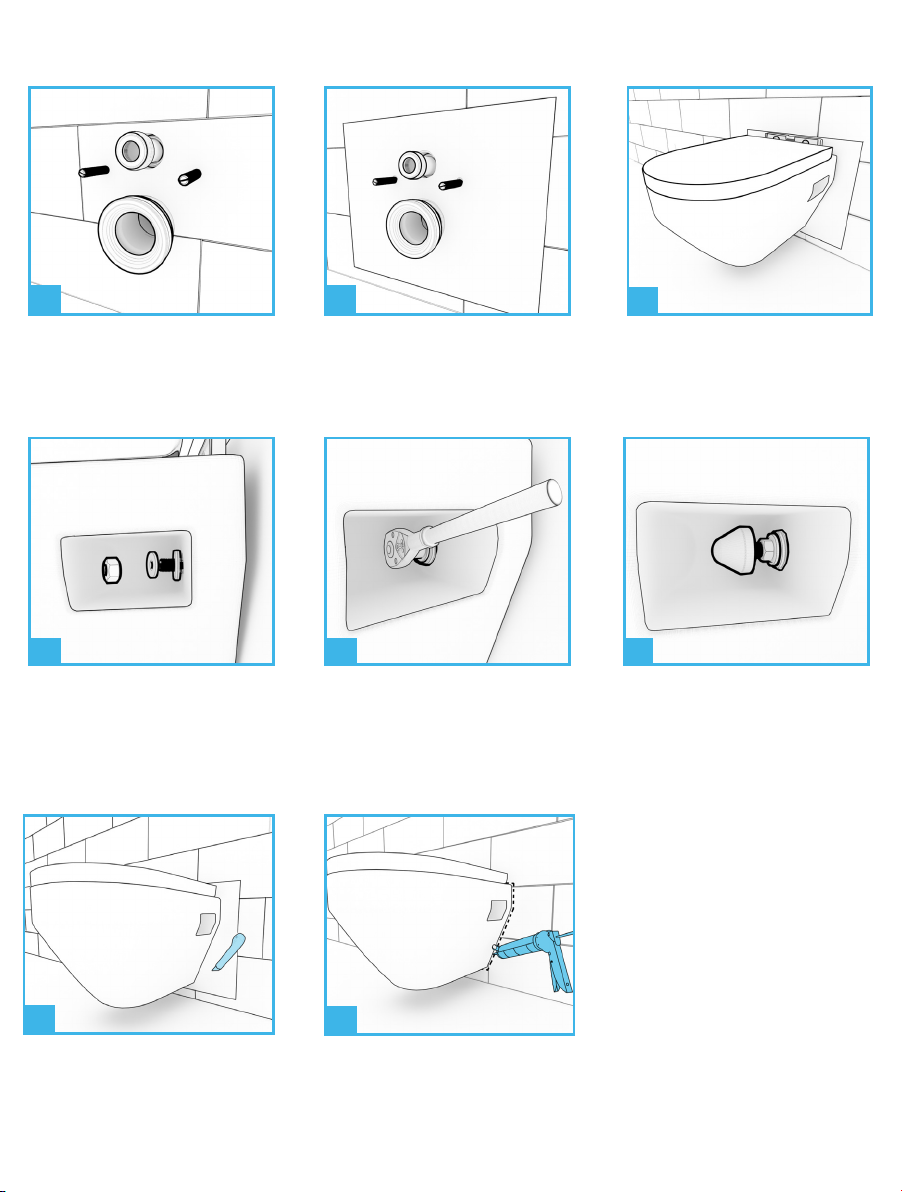

PART 3: FINISHING THE WALL & HANGING THE TOILET

File a small chamfer onto the

outer edge of the cut ends of

the connectors. Ensure they are

smooth to the touch.

Measure the gap between the two

lines, and cut o the same distance

from the end of the connecors.

(We would reccomend removing a

further 3mm)

Finish the wall with tiles and grout.

Cover the stud wall with

plasterboard, cutting holes for the

button opening, ﬂush pipe and pan

connector outlet.

Re-attach inspection cover plate

prior to tiling the wall.

Remove or cut the toilet bolt

sheaths.

Remove the connectors from

the toilet and insert fully into the

corresponding wall outlets. Mark a

line ﬂush with the ﬁnished tiles.

Locate the pan connector and ﬂush

pipe connector. Insert onto the

rear of the toilet and mark a line on

each, level with the back edge of

the toilet.

Remove the ﬂush pipe and drain

connector blanks.

Once you are happy there is no

leaks seal the rear edge of the

toiilet with silicone sealant.

Place the pan onto the bolts.

Ensuring someone is holding it into

position check tha pan is level.

At this point lubricate the cut ends

and insert the connectors fully into

the corresponding wall outlets.

Locate the wall protector

membrane and hang against the

wall.

Tighten on both sides with a socket

wrench. Do not over-tighten.

Cut the wall membrane around the

outer edge of the toilet and discard

the excess membrane.

Place the blanking caps onto the

ends of the bolts.

Secure on both sides with plastic

washer, metal washer and nut.

Please note depending on the

brand of pan ﬁxing method may

dier.

The left button is for a full ﬂush

and the right button is for half ﬂush

operation.

Apply the ﬂush button, ﬁrstly onto

the lower spring clips and then

return the top edge to the wall and

allow to drop onto the clip.

Attach the ﬂush plate bracket using

the rods provided.

Cut and discard the corrugated part

of the cover with a knife, ﬂush with

the ﬁnished wall tiles.

Remove inspection cover and turn

on the water, using the isolation

valve inside.

Depending on the depth of your

wall, the central button rods may

need breaking o before inserting.

38 39

Insert the central button rods and

secure by twisting the rod wings.

They should be in a vertical postion

once fully secured.

Rotate the clips as shown to lock

and secure.

PART 4: FINISHING THE WALL & HANGING THE TOILET
