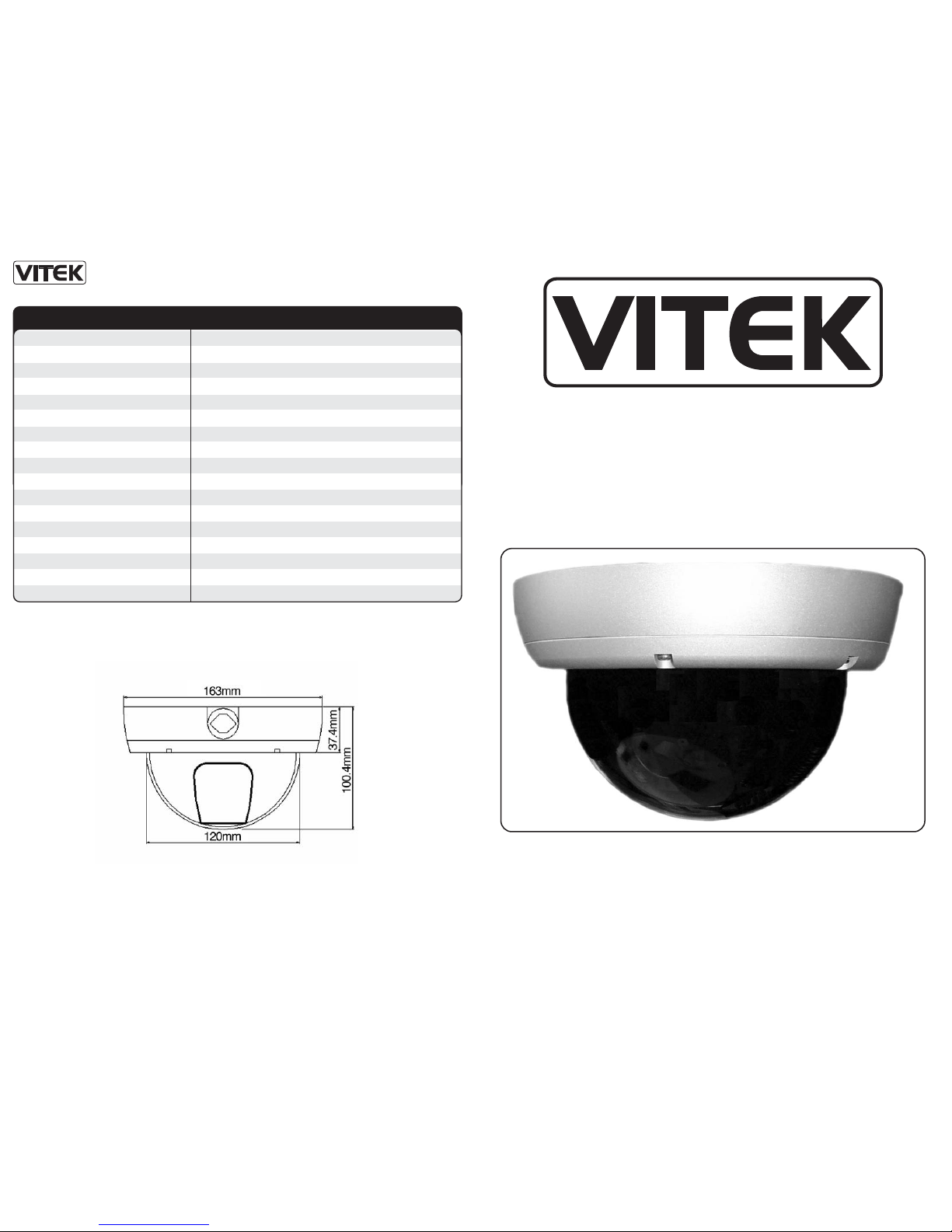

Vitek VTD-VH49VP4 User manual

VTD-VH49VP4

Vandal Proof Color Varifocal Dome Camera

Vandal Proof Color Vari Focal Dome Specifications

VTD-VH49VP4

USER’S MANUAL

Image Device

Effective Pixels

Resolution

Minimum Illumination

S/N Ratio

Video Output

Auto Gain Control

Sync. System

White Balance

BLC

Scanning System.

Electronic Shutter

Standard Lens

Operation Temperature

Camera Dimensions

Weight

Power Supply

1/3" Sony Super HAD CCD Sensor

768 (H) X 494 (V)

More Than 480 Horizontal Tv Lines

0.7 Lux At F1.2 (AGC Off)

More Than 48db (AGC Off)

Composite Output 1.0 Vp-P/75Ω

Built-In (On)

Line Lock Only

Auto White Balance

Built-In (On)

2:1 Interlace / 525lines / 60fields / 30frames

1/60 ~ 1/100,000 Sec

Direct Drive A/I with 4-9mm Focal Range

-10°~ 50°C (14°~ 122°F)

3.96" (H) X 6.42" (OD) / (100.4mm X 163mm)

26.46 Oz. / 750 g. / 1.65 Lbs.

AC 110 60 Hz (Input Power) / AC 24V 500 mA (Output Power)

VITEK INDUSTRIAL VIDEO PRODUCTS, INC.

9970 GLENOAKS BLVD. UNIT B SUN VALLEY, CA 91352

PHONE: 888-VITEK-70 818-771-0300 FAX: 818-771-0400

WWW.VITEKCCTV.COM

9970 GLENOAKS BLVD. UNIT B SUN VALLEY, CA 91352

PHONE: 888-VITEK-70 818-771-0300 FAX: 818-771-0400

WWW.VITEKCCTV.COM

INDUSTRIAL VIDEO PRODUCTS, INC.

SAFETY CONSIDERATIONS:

• Don't touch the CCD Chip with your fingers.

• Use the camera only with 24 VAC power supply.

• Use a monitor with 75 ohm impedance.

INSTALLATION STEPS:

1) Mount the camera securely.

2) Connect video using suitable coaxial cable with BNC-connector.

3) Connect the camera to a 24 VAC power supply.

CAUTION

RISK OF ELECTRICAL SHOCK

DO NOT OPEN

12VDC Power Input Is Not Polarity Protected.

Use extreme caution when connecting 12VDC power to unit.

Do not attempt to disassemble the camera.

To prevent electric shock, do not remove screws or cover. There

are no user-serviceable parts inside. Refer servicing to qualified

service personnel.

Handle the camera with care.

Do not abuse the camera. Avoid striking or shaking it. The camera

could be damaged by improper handling or storage.

Do not expose the camera to rain or moisture, or try to

operate it in wet areas.

Take immediate action if ever the camera does become wet.

Turn power off and refer servicing to qualified service personnel.

Moisture can damage the camera and also create the danger of

electric shock.

Never face the camera toward the sun.

Whether the camera is in use or not, never face it toward the

sun. Use caution when operating the camera in the vicinity of

spot lights or other blight lights and light reflecting

objects.

Do not operate the camera beyond its temperature or power

source ratings.

Do not use the camera in an extreme environment where high

temperature or high humidity exist. Use the camera under

conditions where temperatures are within - 10°C~+50°C.

Do not touch the CCD sensor directly with your fingers.

If necessary, use soft cloth moistened with alcohol to wipe off

the dust.

PRECAUTIONS INSTALLATION
