Vitek VTC-C750/DN User manual

blackyellowmagentacyan

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

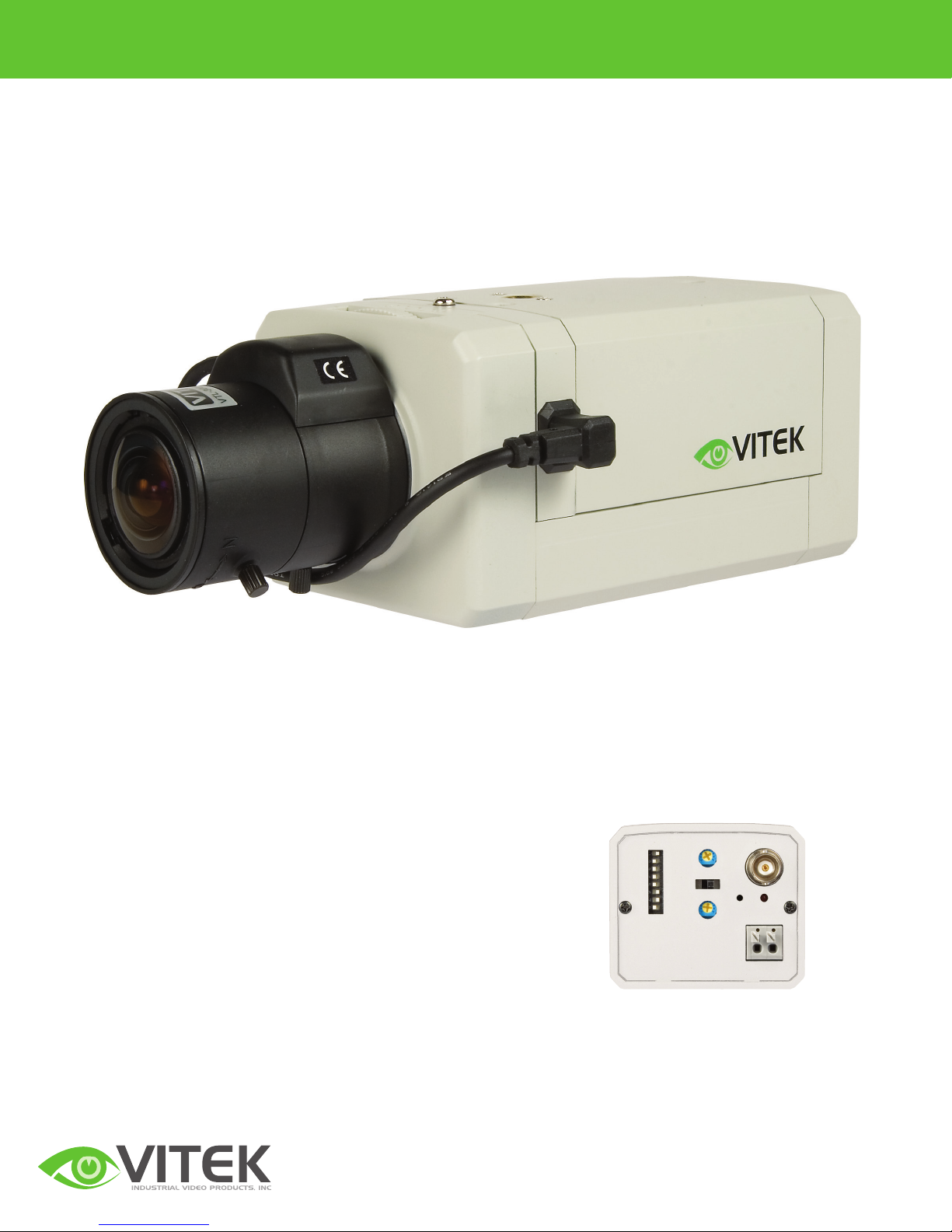

VTC-C750/DN 1/3” Color Camera with 550 TVL

& True Day/Night Operation

• 1/3” Super HAD CCD With 550 TVL

• True D/N Function with ICR (Infrared Cut Removal)

• Minimum Illumination 0.02 Lux (F1.2)

• Accepts DC Servo Type Auto Iris Lenses

• 2000-8000 Degree K Automatic White Balance Tracking

• Max 1/100,000 Sec. Electronic Shutter

• Better Than 52dB S/N Ratio

• 12VDC / 24VAC Dual Voltage Operation

FEATURES

blackyellowmagentacyan

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

VTC-C750/DN 1/3” Color Camera with 550 TVL

& True Day/Night Operation

Detailed Specifications

Image Device

Gamma

Image Processor

Effective Pixels

Scan System

Scan Freq.

Sync. System

Resolution

Sensitivity

S/N Ratio

Electronic Iris

White Balance

External Controls

Video Output

Lens Mount

Operating Power

Power Consumption

Operation Temperature

Dimensions (W x H x L)

Weight

1/3” Sony New Structure Super HAD Color CCD

0.45

DSP (Digital Signal Processor)

768(H) x 494(V)

2:1 Interlace

60Hz(V), 15.75Khz(H)

Internal

550TVL

0.2Lux (F1.2@40IRE)

More than 52dB with AGC OFF at 50IRE

1/60 ~ 1/100,000sec

2000~8000ºK Automatic tracking

8-Pin DIP Switch: ELC/ALC, BLC, AGC, Flickerless, SHARP / Pot.: Video level adjustment(Iris)

Composite: 1.0 Vp-p / 75 Ohm

CS Mount

24VAC/12VDC (Dual Voltage)

3 Watts (max)

14°F~122°F / -10°C ~ + 50°C 85% RH. Max

2.56” x 2.17” x 4.17” (65mm x 55mm x 106mm)

5.29 Oz. (150g)
