Vitek VTC-IR1600/550 User manual

BBLLAACCKKYYEELLLLOOWWMMAAGGEENNTTAACCYYAANN

VITEK

VTC-IR600/4215

VTC-IR1600/550

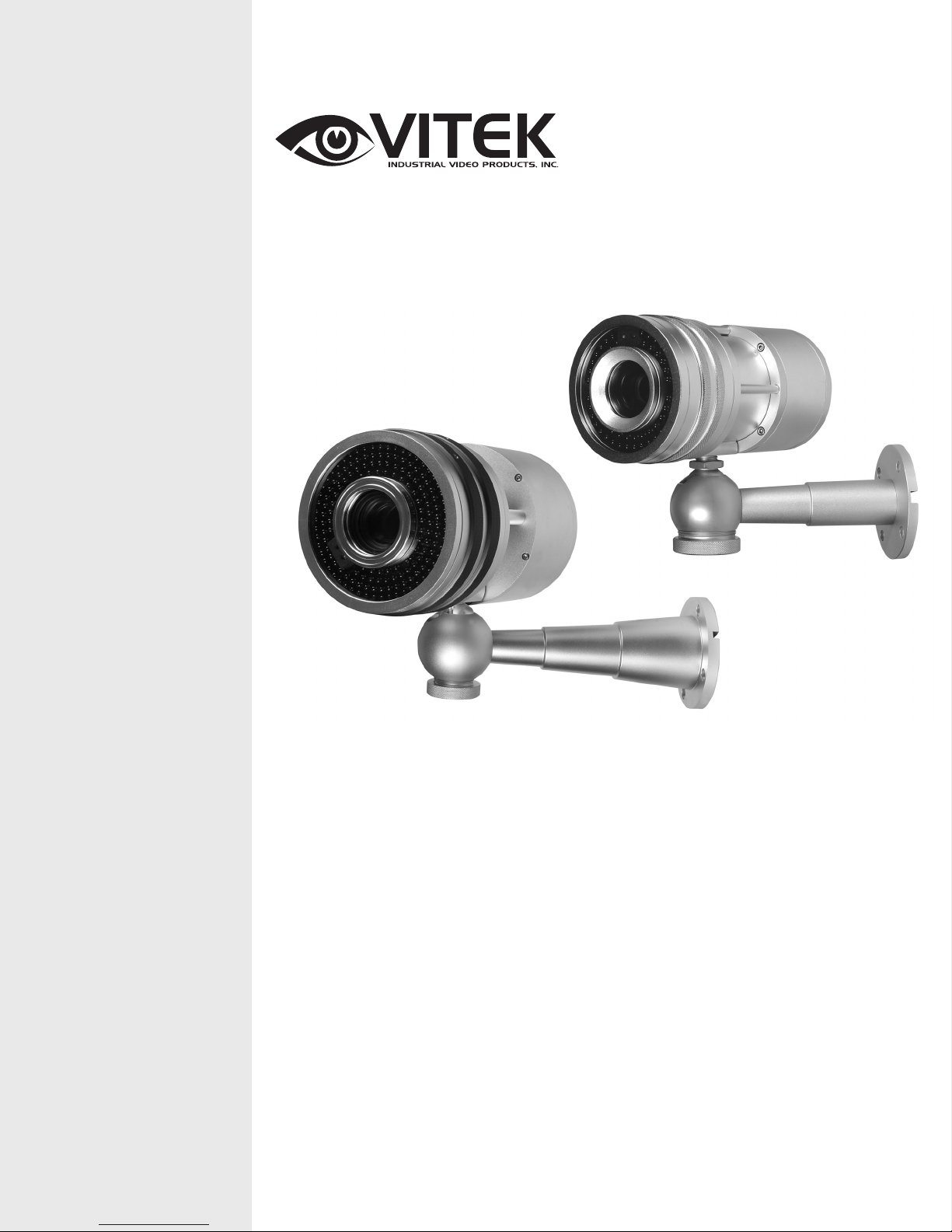

Long Distance Infrared Bullet

Cameras

•1/3" Color dual programmed CCD tuned for

optimal performance in day or night conditions

•480 TV Lines Resolution

•60 Infrared LEDs at 850nm enable viewing in

Total Darkness up to 150 Feet (VTC-IR600) /

160 Infrared LEDs at 850nm enable viewing in

Total Darkness up to 350 Feet (VTC-IR1600)

•Three individually isolated compartments for:

Camera, IR LEDs, and Power Module.

•Vari-Focal DC Auto Iris IR Lens 4.2~15.5mm

F1.4 (VTC-IR600) / Vari-Focal DC Auto Iris IR

Lens 5.0~50mm F1.4 (VTC-IR1600)

•Heavy Duty Weather/Vandal Resistant

Aluminum Construction is 100% water and dust

proof

•Heavy Duty Aluminum Feed-Through Wall

Mount Included

•External focus and zoom controls for ease of

installation and adjustment

•150mA Power consumption (IR-Off) & 900mA

(VTC-IR600 - IR On), 1800mA (VTC-IR1600 -

IR On)

•IR picture quality is dramatically improved by

separating the Camera and IR LED

compartments, preventing stray IR light from

entering the lens.

•80,000 Hour LED life expectancy

•Dual Voltage: 12VDC / 24VAC

•Dimensions: 6.875” L x 3.5” OD (VTC-IR600

Camera) / 9” L x 5” OD (VTC-IR1600 Camera)

/ 8.0” (Mount)

VTC-IR600/4215 / VTC-IR1600/550

The VTC-IR600/4215 and VTC-IR1600/550 are long range Infrared cameras that are

robustly built with a revolutionary design. These cameras are ideal for use in

commercial or residential applications that require a bright same-as-day quality visibility

during the night time.

Both cameras come with 12VDC or 24VAC power input for easy integration with

standard CCTV power systems. Feed-through mounting minimizes vandalism potential

as well as make them look aesthetically pleasing.

They feature Sony SuperHAD technology with a high resolution of 480 horizontal TV

lines.

RISK OF ELECTRICK SHOCK WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR

OTHER OPENINGS ON THE EQUIPMENT.

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to

alert the user to the presence of uninsulated "dangerous voltage" within the product's

enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance (servicing) instruction in the literature

WARNING

CAUTION

accompanying the product.

VTC-IR600/4215 / VTC-IR1600/550

Content Verification

Prior to the installation of the cameras, please verify that the packaging contains the

following contents:

1. One Camera

2. One Instruction manual

If any of the contents are missing, please contact the Vitek Customer Help Desk

immediately.

Installation Overview

Your camera is designed to be wall mounted. The camera is weather sealed for indoor

or outdoor locations.

Wiring Connections

The camera should be powered by the following power supplies:

zVTC-IR600/4215: 12VDC 2Amps or 24VAC 20VA, CSA Certified Class 2 Power

Supply .

zVTC-IR1600/550: 12VDC 3 Amps or 24VAC 40VA, CSA Certified Class 2 Power

Supply.

For optimum video signal, use 95% copper shielded coax cable. Twisted pair or

Category 5e cable may also be used with optional VT-TR1M Passive Video

Transceivers. Maximum cable distance for 95% copper braid coax is approximately 800

feet. For Category 5e or twisted pair, 2000 feet using VT-TR1M transceivers.

VTC-IR600/4215 / VTC-IR1600/550

FEATURE HIGHLIGHTS

REVOLUTIONARY AND UNIQUE DESIGN

These cameras are designed with three separate compartments for the camera

module/lens, power module and infrared LEDs.

Many infrared cameras encounter compromised video images due to the

reflection of the LEDs into the lens, both viewing through a common surface

(polycarbonate/glass). A separate lens compartment eliminates this reflection

and glare, optimizing video performance.

The power module and IR LEDs generate intense heat when in full operation.

These separate compartments provide more efficient heat dissipation rather

than trapping the heat inside of the camera increasing the longevity of the

product.

Most infrared cameras suffer from focus shift (going out of focus) at night. The

cameras encompass a patented Dual Program CCD eliminating focus shift when

switching to night viewing.

VTC-IR600/4215 / VTC-IR1600/550

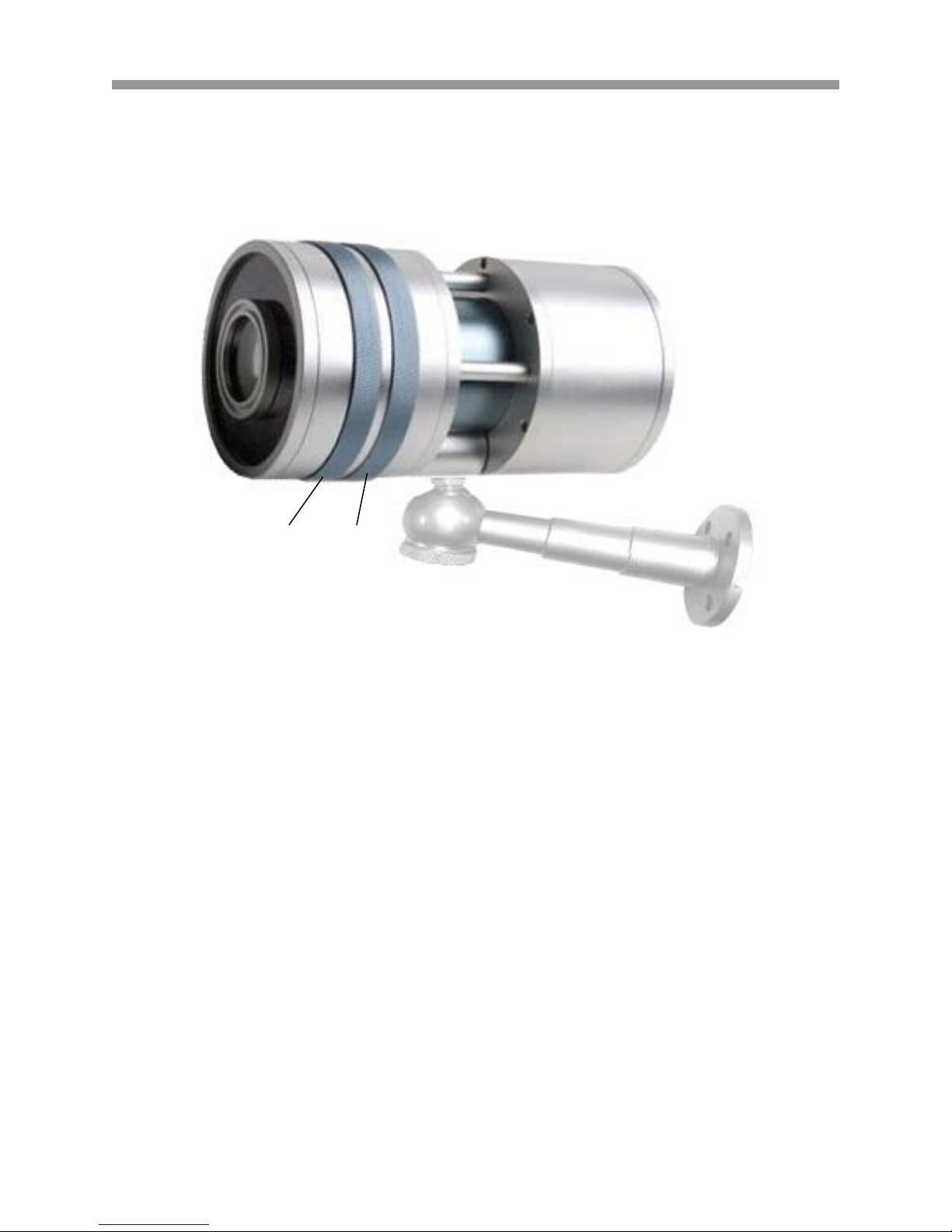

ADJUSTING THE FIELD OF VIEW

① ZOOM: The front ring adjusts the zoom ratio.

② FOCUS: The rear ring adjusts the focus.

①②

VTC-IR600/4215 / VTC-IR1600/550

SPECIFICATIONS

VTC-IR600/4215

Image Sensor 1/3" (Interline transfer type color CCD (SONY)

Effective Pixels 768H x 494V (380K pixels)

Scanning System 525 Lines 2 : 1 Interlace

Scanning Frequency 15.734KHz (H), 59.94Hz (V)

Resolution 480 TV - Lines

Shutter Speed 1/60 ~ 1/100,000 sec.

S/N Ratio More than 48dB (AGC Off)

Sync. System Internal

Min. Iilumination 0.5Lux (F1.3)/0.00Lux(IR LED ON)

White Balance AWC

Video Output VBS 1.0 Vp-p (75ohm load)

Lens Vari-Focal DC Auto Iris IR Lens 4.2~15.5mm F1.4

Power Supply DC12V±10% / AC 24V±10%

Power Consumption IR LED On/1,300mA, IR LED Off/150mA

Operating Temp. - 10℃~ + 50℃

Operating Humidity 90% RH max.

No. of I.R. LEDs 60 Pieces Infrared LED

Wave Length 850NM

Angles of I.R. LEDs Combination of 10°and 30°

Viewing Distance Max 150 Feet

VTC-IR600/4215 / VTC-IR1600/550

VTC-IR1600/550

Image Sensor 1/3" (Interline transfer type color CCD (SONY)

Effective Pixels 768H x 494V (380K pixels)

Scanning System 525 Lines 2 : 1 Interlace

Scanning Frequency 15.734KHz (H), 59.94Hz (V)

Resolution 480 TV - Lines

Shutter Speed 1/60 ~ 1/100,000 sec.

S/N Ratio More than 48dB (AGC Off)

Sync. System Internal

Min. Iilumination 0.5Lux (F1.3)/0.00Lux(IR LED ON)

White Balance AWC

Video Output VBS 1.0 Vp-p (75ohm load)

Lens Vari-Focal DC Auto Iris IR Lens 5 ~ 50mm F1.4

Power Supply DC12V±10% / AC 24V±10%

Power Consumption IR LED On/1,800mA, IR LED Off/150mA

Operating Temp. - 10℃~ + 50℃

Operating Humidity 90% RH max.

No. of I.R. LEDs 160 Pieces Infrared LED

Wave Length 850NM

Angles of I.R. LEDs Combination of 10°and 30°

Viewing Distance Max 350 Feet

28492 CONSTELLATION ROAD VALENCIA, CA 91355

WWW.VITEKCCTV.COM | 888-VITEK-70
