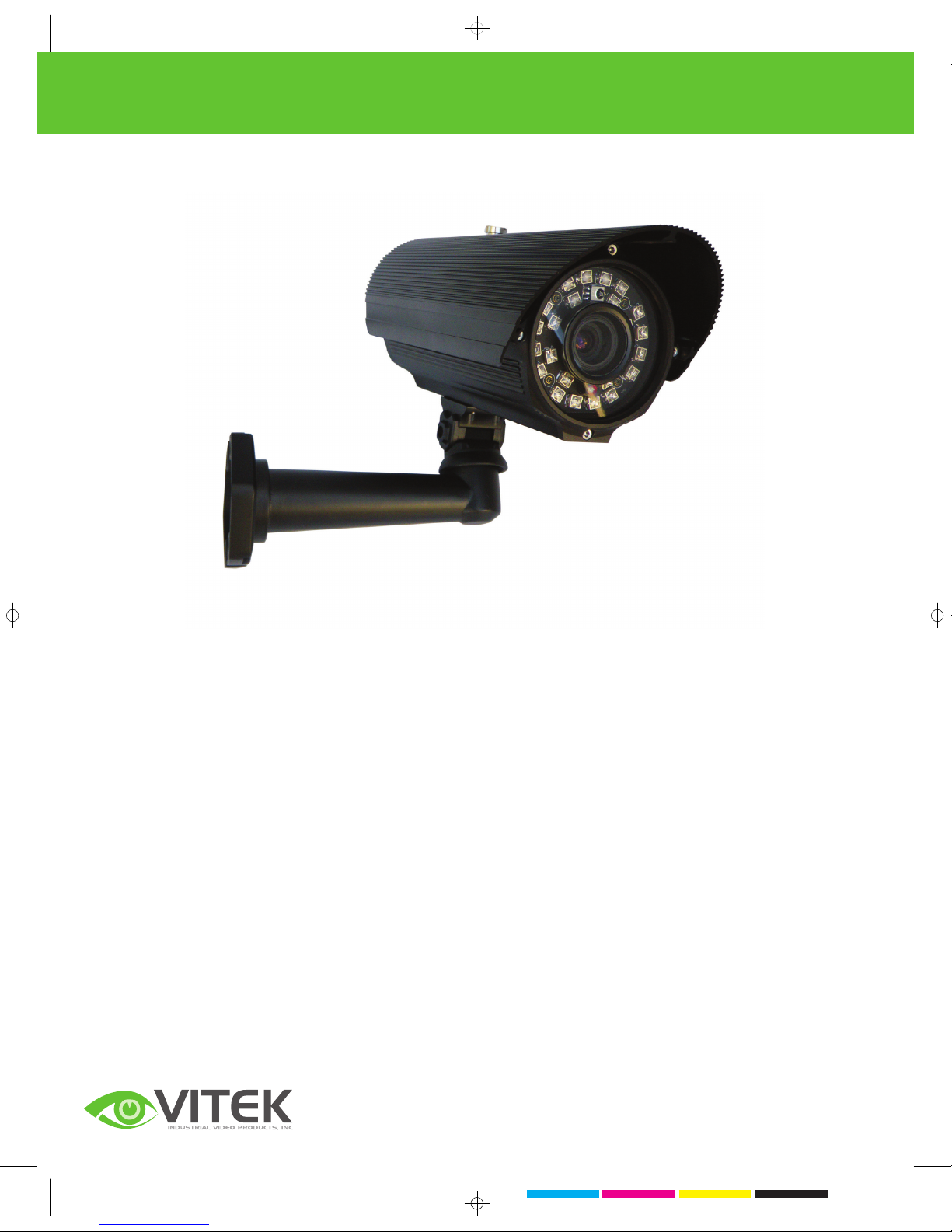

VTD-IR90HD 1.3 Mega Pixel Infrared Bullet Camera

with 3-16mm Varifocal Lens

• 1/3” Sony Progressive Scan Exview CCD

• 30 PPS @ 1280 x 720 or 22.5 PPS @ 1280 x

960)

• 100% Pure Digital Transmission of video data

• HD-SDI output via BNC connector

• 24 High Density IR LED

FEATURES

blackyellowmagentacyan

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

VTD-IR90HD 1.3 Mega Pixel Infrared Bullet Camera

with 3-16mm Varifocal Lens

Detailed Specifications

Image Sensor

Total Pixels

Effective Pixels

Scanning System

Sync System

S/N Ratio

Min, Illumination

Video Mode

AGC

DSS

MIRIS

BLC

Lens

Video Out 1

Video Out 2

IR LED

Operation Temp

Storage Temp

Power Spec

1/3” progressive scan CCD, 1.3 Mega pixel

1348(H) x 976(V) 1.32 Mega pixel

1296(H) x 966(V) 1.25 Mega pixel

Progressive Scan

Internal

More than 50dB

1.0 lux (F1.2, 30IRE, AGC On, 0.1x DSS On)

Select Switch for 1280x960, 22.5fps / 1280x720, 30fps in NTSC mode

OSD

OSD

OSD

OSD

F=3~16mm Auto IRIS Varifocal Lens

HD-SDI (BNC Type)

Composite 1V p-p (Dual Output)

24 High Density @ 850nm

14°F -58°F(-10°C ~ 50°C)

-4°F -94°F (-20°C ~ 70°C)

12V DC ±2V / 1A
