Vitek Transcendent VTC-TNT4FLN-2 User manual
VITEK
VITEK
VTC-TNT4FLN-2
Transcendent Series 4 MegaPixel
Fixed Lens WDR IP Turret Camera
QUICK START GUIDE
FEATURES:
• 1/3” 4.0 Megapixel CMOS Image Sensor
•Up to 30fps @ 4MP (2560 × 1440), 3MP (2304 × 1296), 1080P
(1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240
•2.8mm Fixed Iris Lens
•Matrix IR with up to 100’ IR Range
•True 120dB Wide Dynamic Range
•True Mechanical Day/Night function by ICR
•XD-DNR (3D & 2D-DNR) Noise Reduction
•1 Ch. Audio In + Built-in Mic*
•Region Intrusion Detection, Scene Change Detection, Line Crossing,
Video Blur, Video Cast Detection
•Compression - Main stream: H.265+ / H.265 / H.264+ / H.264
Compression - Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
•MicroSD Card Slot for Local Recording (Up to 256GB)
•Remote Viewing via VMS, Internet Explorer (Plug-in Req’d), Edge in IE Mode,
and iOS & Android Apps
•ONVIF Compliant
•IP67 Weather Resistance
• Optional Wall Mounts (VT-TWMT-3, VT-TWMT-A1 [reqs. VT-TJB08]), Junction
Boxes (VT-TJB01, VT-TJB08), and Pendant Mounts (VT-TPDMT-A1 [reqs.
VT-TJB08], VT-TPDM-2 [reqs. VT-TJB01]) Available
[See Additional Mounting Options on Pg. 9]
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance.
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
2 3
Network Cable & Power Connections
First connect the Weather Resistant Cap to an Ethernet patch cable,
then connect the cameras to the ethernet adaptor. If not powering the
camera with PoE, also connect the power Cable to an approved
12VDC power supply.
Overview
Components and Accessories
Camera
Quick Guide
Screws
Hex Wrench
Drill Template
Rubber Plug
Waterproof Cap
DC12V
Weather Resistant Security Cap
3
Weather Resistant Network Coupler
1. Loosen the nut from the Weather Resistant Network Coupler,
2. Run ethernet cable through coupler, then attach a RJ-45 connector.
3. Tighten the nut and coupler for a weather resistant seal.
Installation
Before beginning installation, make sure that the wall or ceiling is
strong enough to withstand 3 times the weight of the camera.
1. Attach the drill template to
the place where you want to
install the camera, then drill
3 screw holes and 1 cable
hole (if you want to route the
cables through the mounting
base) according to the drill
template
2. Route the cables and connect the power & video cables, using the
rubber plug to fill the gap of the mounting base, then secure the
mounting base to the ceiling or wall with screws (see fig. 2 on next
page).
∅
∅3.84”
∅.17”
1.92”
120° 120°
.96”
3.22”
4.25”
MicroSD Card Installation: Remove the bottom of the cover from the
camera, insert card and replace the cover (be sure it is even).
4 5
Lock Screw
3. Loosen the lock screws,
then adjust the camera
to obtain the optimium
viewing angle. Confirm
the correct viewing
angle with a monitor.
Next, tighten the lock
screw to secure the
viewing angle
adjustments.
Fig. 2
5
LAN Configuration
The camera can be accessed on the local network either using the
IP-Tool or directly in a web browser.
Accessing the Camera Using the IP-Tool
1. Make sure the camera and PC are connected to the LAN.
2. Locate the IP-Tool installer at www.
vitekcctv.com/Downloads/Soft-
ware/Transcendent-IPTool_v2.0.2.zip
, then install on the PC. Open
the installed application.
3. Modify the IP address. The default IP address is 192.168.226.201.
Click the information of the camera listed in the above table to show
the network information on the right side. Modify the IP address and
gateway of the camera and make sure its network address is in the
same local network segment as the computer’s. Please modify the
IP address of your device according to the practical situation.
For example, the IP address of your computer
is 192.168.13.4. So the IP address of the
camera shall be changed to 192.168.13.X.
After modification, please input the password
of the administrator and click “Modify” button
to modify the setting.
** Default admin password: “123456".
MENU
IP Camera
Network Cable Network Cable
Switch
Router Computer
6 7
4. Double-click the IP address and then the system will pop up the web
browser to connect IP-CAM . IE browser will download the Active X
control. After downloading, a login window will pop up as shown
below:
Input the user name and password to log in.
Default user name: admin / Default password: 123456.
Directly Access Through a Web Browser
The default network settings are as shown below:
IP address: 192.168.226.201 HTTP: 80
Subnet Mask: 255.255.255.0 Data Port: 9008
Gateway: 192.168.226.1
You may use the above default settings when you log in the camera for
the first time.
1. Manually set the IP address of the PC. The network segment should
be the same as the default settings of IP-CAM. Open the network
and share center. Click “Local Area Connection” to pop up the
following window.
Select “Properties” and then select Internet protocol according to the
actual situation (for example: IPV4). Next, click “Properties” button to
set the network of the PC.
7
2. Open the IE Browser and input the default address of IP-CAM and
confirm. The IE browser will download Active X control.
3. After downloading Active X control, the login dialog box will pop up.
4. Input the default username and password and then enter to view.
WAN Configuration
Access the camera by the router or virtual server for example.
1. Make sure the camera is connected to the LAN; Then log into the
camera via LAN and go to System Congfig→Network Config→Port
menu to set up the port number.
2. Enter System Config→Network Config→IP Address menu to modify
the IP address.
4. Open the web browser and input its WAN IP and HTTP port to
access the IP-CAM.
3. Go to the router’s management interface through IE browser to
forward the IP address and port of IP-CAM in the “Virtual Server”.
5. For additional setup, features and functions, please scan
the QR code on the front page of this quick guide and
download the complete manual.
8 9
Image Sensor, Size
Resolution
Min. Illumination
Lens
Day / Night
IR LEDs / IR Distance
Video Compression
Main-Stream
Sub-Stream
Bit Rate
Bit Rate Type
BLC Control
Wide Dynamic Range (WDR)
Digital Noise Reduction (DNR)
Image Setting
Analytics
Smart Alarm
Region of Interest (ROI)
Network
Audio
Storage
Remote Viewing
Reset
Supported Browsers
Connection Protocol
Ingress Protection
Power Input
Power Consumpt. (12VDC)
Power Consumpt. (PoE)
Working Environment
Weight Net (Shipping)
Dimensions (Dia × H)
1/3” 4.0 Megapixel CMOS Image Sensor
4MP(2560 × 1440), 3MP(2304 × 1296), 1080P(1920 × 1080), 720P(1280 × 720), D1, CIF, 480 × 240
0.005 lux @F1.6, AGC ON; 0 lux with IR
2.8mm Fixed Iris Lens
True Day/Night by ICR
1 Matrix IR up to 100’ Range
Main stream: H.265+ / H.265 / H.264+ / H.264, Sub: H.265+ / H.265 / H.264+ / H.264 / MJPEG
60Hz: 4MP/3MP/1080P (1~30fps), 50Hz : 4MP/3MP/1080P (1~25fps)
60Hz : 720P(1~30fps)/D1 /CIF (1~30fps), 50Hz: 720P/D1/CIF (1~25fps)
64Kbps ~ 8Mbps
VBR / CBR
Backlight & Highlight Compensation
True WDR (120dB)
XD-DNR (2D-DNR & 3D-DNR)
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Noise Reduction
Region Intrusion, Scene Change, Line Crossing, Video Blur, Video Cast Detection
Motion Alarm, SD Card Error, SD Card Full
Each ROI to be Configured Separately
RJ45
1 Ch. Audio In + Built-in Mic*
MicroSD Card Slot (up to 256GB)
VMS / Web Browser / Mobile (iOS/Android)
YES
Internet Explorer (IE) - Plug-in Required, Edge in IE Mode
ONVIF
IP67
12VDC / PoE
300mA (LEDs Off) / 600mA (LEDs On)
<5W
-22°~140°F (-30°C ~ 60°C) / < 95% Humidity
16.23oz / 1.01lb / 460g (19.75oz / 1.235lb / 560g)
3.77 × 4.25” [95.7 × 108mm]
VTC-TNT4FLN-2 Detailed Specifications
*Please research local, state and federal laws regarding the implementation of audio
surveillance.
9
OPTIONAL ACCESSORIES
AND RELATED PRODUCTS
FOR VTC-TNT4FLN-2
VT-TWMT3
Optional Wall
Mount
VT-TJB01
Optional
Junction Box
VT-TJB08
Optional
Junction Box
VT-TPDMT-A1
Transcendent
Universal 10”
Pendant Mount.
Reqs. VT-TJB08
VT-TWMT-A1
Transcendent
Wall Mount. Reqs.
VT-TJB08
VT-TPLMT
Transcendent
Universal Pole
Mount - Ivory,
reqs. VT-TJB08
VT-TCNMT
Transcendent
Universal Corner
Mount - Ivory,
reqs. VT-TJB08
8.46”
6.43”
8.46”
8.47”
5.10”
6.10”
2.93”
1.46”
6.28”
2.50”
1.46”
5.83”
VT-TPDM-2
Transcendent Universal
10” Pendant Mount. Reqs.
VT-TJB01
10 11
OPTIONAL ACCESSORIES AND
RELATED PRODUCTS FOR
NDAA COMPLIANT
TRANSCENDENT IP CAMERAS
NEWLYNEWLY UPDATEDUPDATED
VT-TNR1626PN
VT-TNR414PN
VT-TNR818PN
• 8MP (4K) HDMI Output
• H.265S / H.265+ / H.265 / H.264 Video Compression
• Analytic Support Including Basic Face Detection,
License Plate Recognition, and More!
• Available in 4, 8, and 16 Channels
• Up to 24TB Depending on Model (12TB per HDD)
• PoE Support on ALL Models
Transcendent NVRs
A Standalone Solution with
Analytic Support and
NDAA Compliance!
Table of contents
Other Vitek Security Camera manuals
Vitek
Vitek VTC-BHOC6R4F User manual
Vitek
Vitek VTC-BHOCR4F User manual
Vitek
Vitek Alpha VTD-A2812/I User manual
Vitek
Vitek Transcendent VTC-THB2RFS User manual
Vitek
Vitek VTC-BHOCRAZ User manual
Vitek
Vitek VTC-C54 User manual
Vitek
Vitek VT-IR1C/24 User manual
Vitek
Vitek TRANSCENDENT VTD-T4D6HR8MD User manual
Vitek

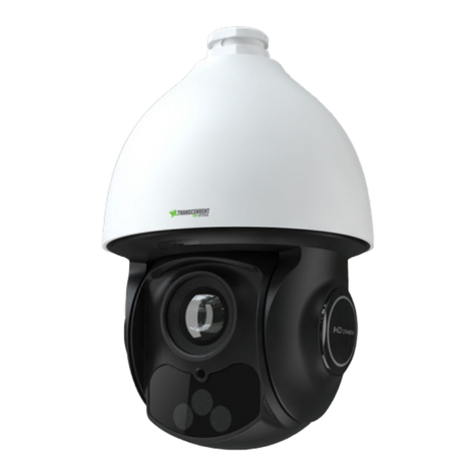

Vitek VT-TPTZ25HRAN-4PNS User manual
