Vitek TRANSCENDENT VTC-TNB4LPRN User manual

VITEK

VTC-TNB4LPRN

Transcendent Series

4 MegaPixel License Plate

Recognition WDR IP Motorized

Bullet Camera

QUICK START GUIDE

FEATURES:

•1/1.8” 4 MegaPixel Progressive Scan CMOS Sensor

•Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light Producing

Color Images in Very Dark & Night Scenes

• Up to 30fps live view @ 4 MegaPixel (2592 × 1520)

• 8~32mm @F1.6 Motorized Varifocal Lens

• Matrix IR (up to 325’ IR Range)

• True Wide Dynamic Range (120dB)

• True Mechanical Day / Night function by ICR

• XD-DNR (3D & 2D-DNR) Noise Reduction

• Intelligent Analytics: License Plate Recognition, Vehicle Type Detection, Video Exception

• 10,000 Vehicle Plate Database

• 0-75m/h (120km/h) Capture Speed (Dependant on Installation)

• Overlay Options: Time, Location, License Plate Information

•Triple Streaming: H.265+ / H.265 / H.264+ / H.264 / MJPEG

• 1 Ch. Audio In + 1 Ch. Audio Out*

• 1 Ch. Alarm In + 1 Ch. Alarm Out, 1 Ch. CVBS

• Supports Wiegand Protocol for Advanced Access Control Integrations

• Remote Viewing via VMS, Web Browsers, and iOS & Android Apps

• MicroSD Card Slot for Local Recording (256GB)

• IP67 Weather Resistance

• Wall Mount Included, Optional Mounts: Junction Box VT-TJB01

[See Additional Mounting Options on pg. 12]

• 12VDC / 24VAC [Dual Voltage] & PoE (Power over Ethernet) Operation Options

[See Power Supply Options on pg. 13]

• 3-Year Warranty

*Please research local, state and federal laws regarding audio surveillance.

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

2 3

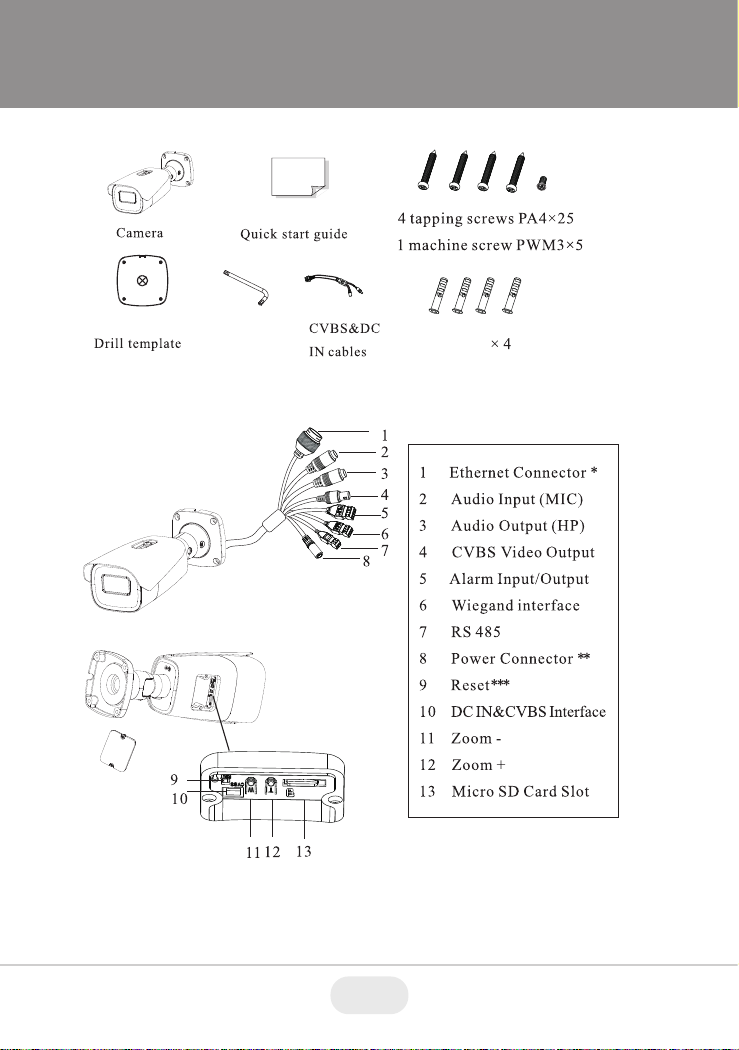

Components and Accessories

Overview

Hex Wrench Anchors

* The weather resistant security cap is necessary for outdoor installation.

* If PoE is used to power the camera, 12VDC/24VAC power supply is not required.

[SEE PG. 13 FOR LIST OF SUGGESTED POWER SUPPLIES FOR THIS MODEL]

* Press and hold the reset button for over 10 seconds to restore factory settings.

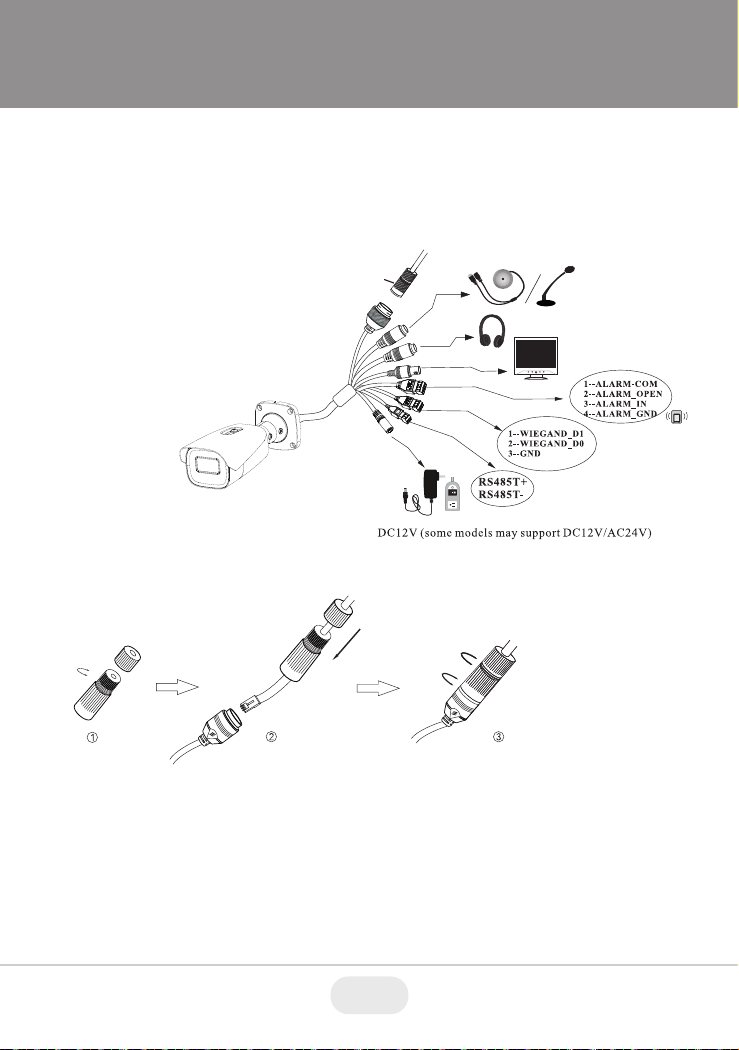

Cable Connections

Weather Resistant Network Coupler

First connect the weather resistant cap to an ethernet patch cable,

then connect the cameras ethernet adaptor. If not powering the

camera with PoE, also connect the power cable to an approved

12VDC power supply.

1. Loosen the nut from the Weather Resistant Network Coupler,

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

weather resistant cap

4 5

Installation

Before beginning installation, make sure that the wall or ceiling is strong

enough to withstand 3 times the weight of the camera. The mounting steps

are as follows:

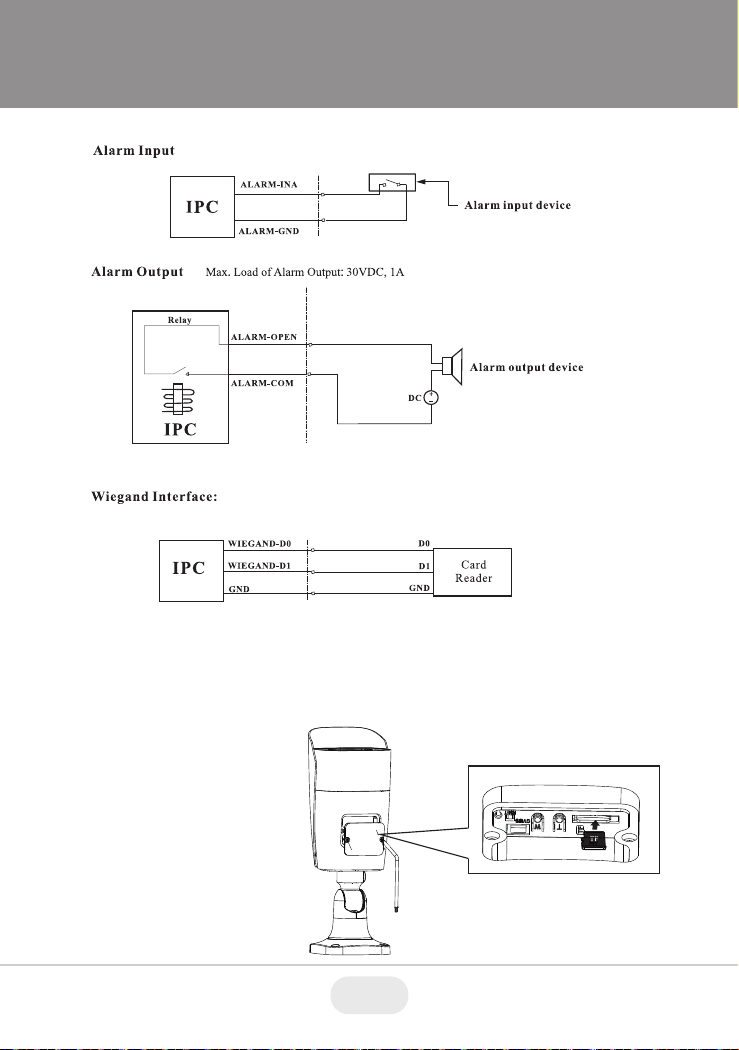

Connecting Alarm Input / Output

Install the MicroSD Card

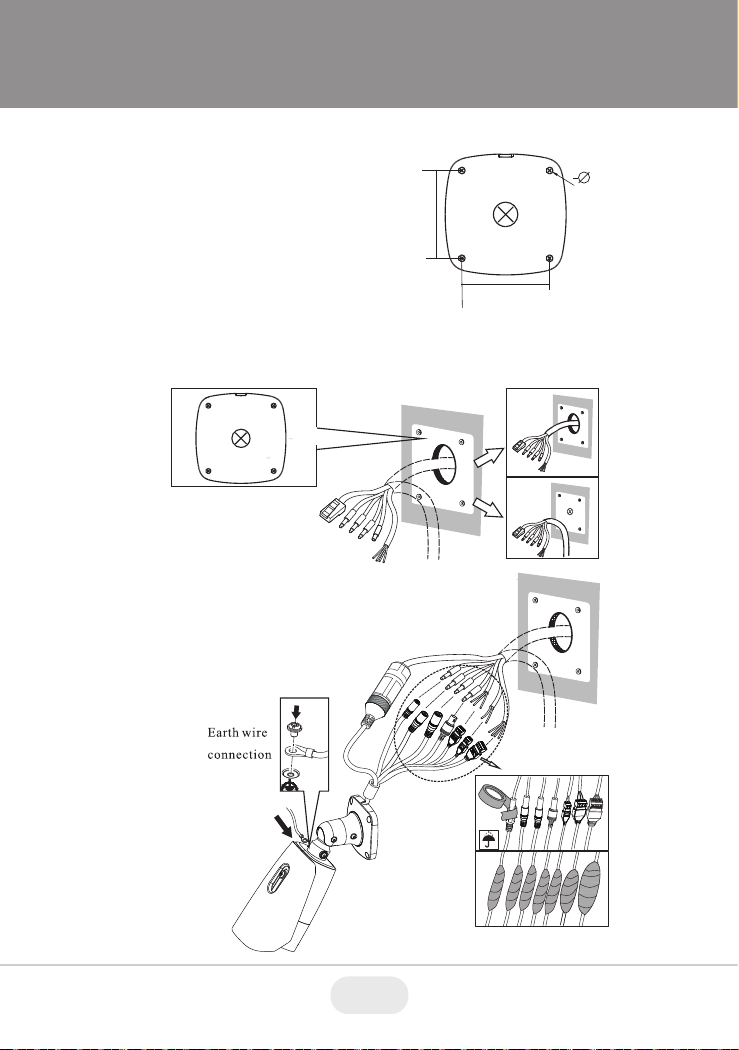

1. Attach the drill template to the

place where you want to install

the camera, then drill 4 screw

holes and 1 cable hole (if you

want to route the cables through

the mounting base) according to

the drill template.

2. Route the cables and connect the power & video cables, use the rubber plug

to fill the gap of the mounting base, then secure the mounting base to the

ceiling or wall with screws.

2.54”

.2”

**Refer to pg 3 for Weather Resistance Cap instructions.

6 7

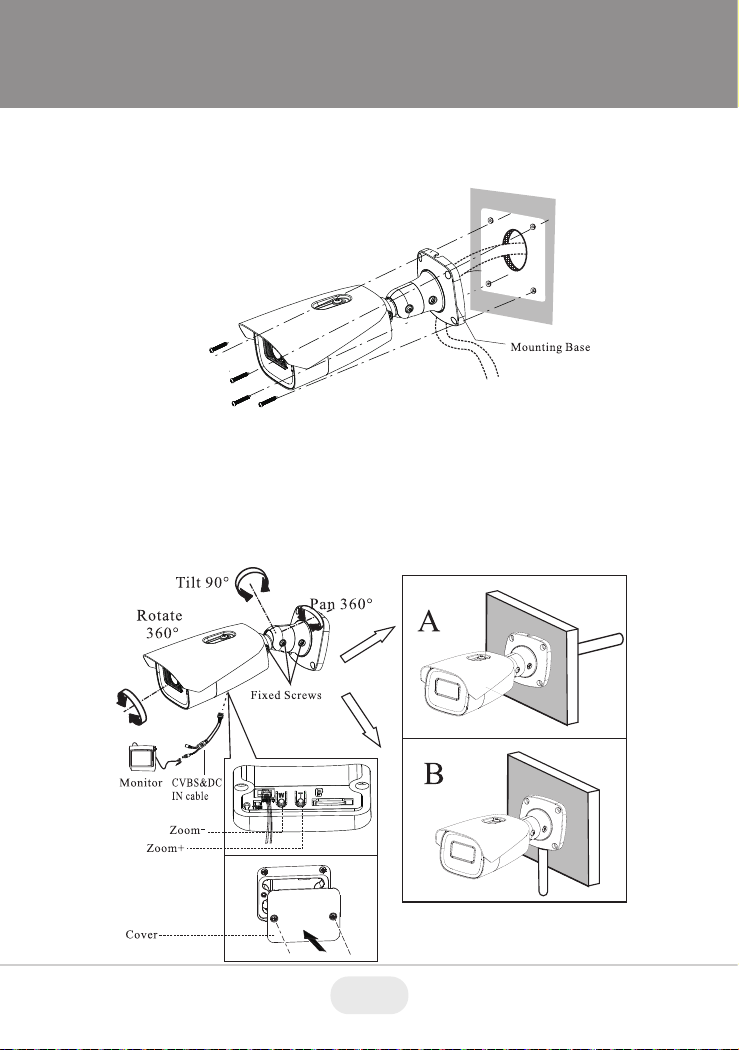

3. Loosen the screws to adjust the viewing angle of the camera. After that,

tighten the screws. Before adjustment, view the image of the camera on a

monitor.

4. Press the T or W button to obtain an optimum image.

5. Finally, re-install the cover.

**Refer to pg 3 for Weather Resistance Cap instructions.

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

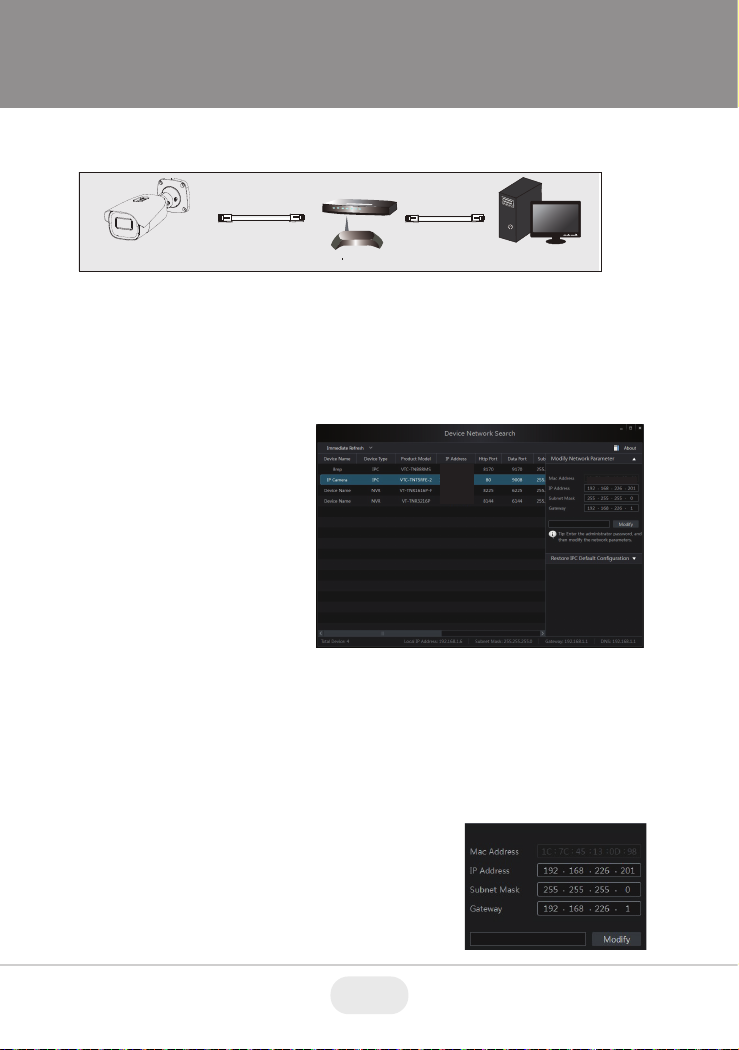

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera should be changed to 192.168.13.X.

After modifying, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

Network Cable Network Cable

Switch

Router Computer

8 9

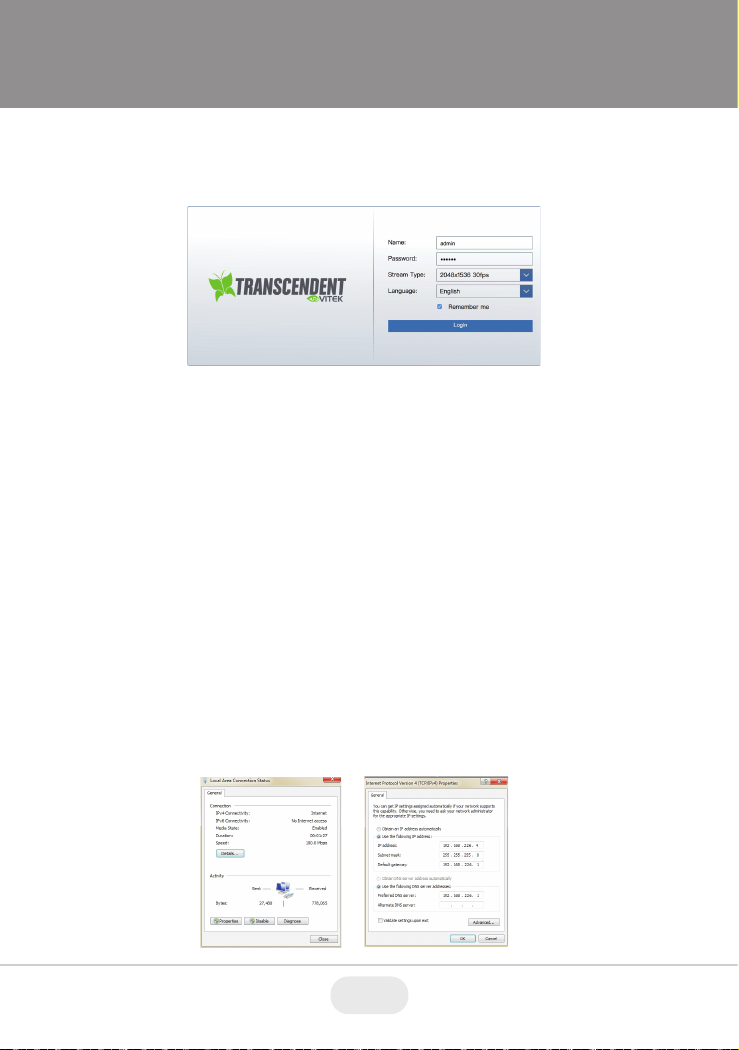

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download an Active X control.

3. After downloading the Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

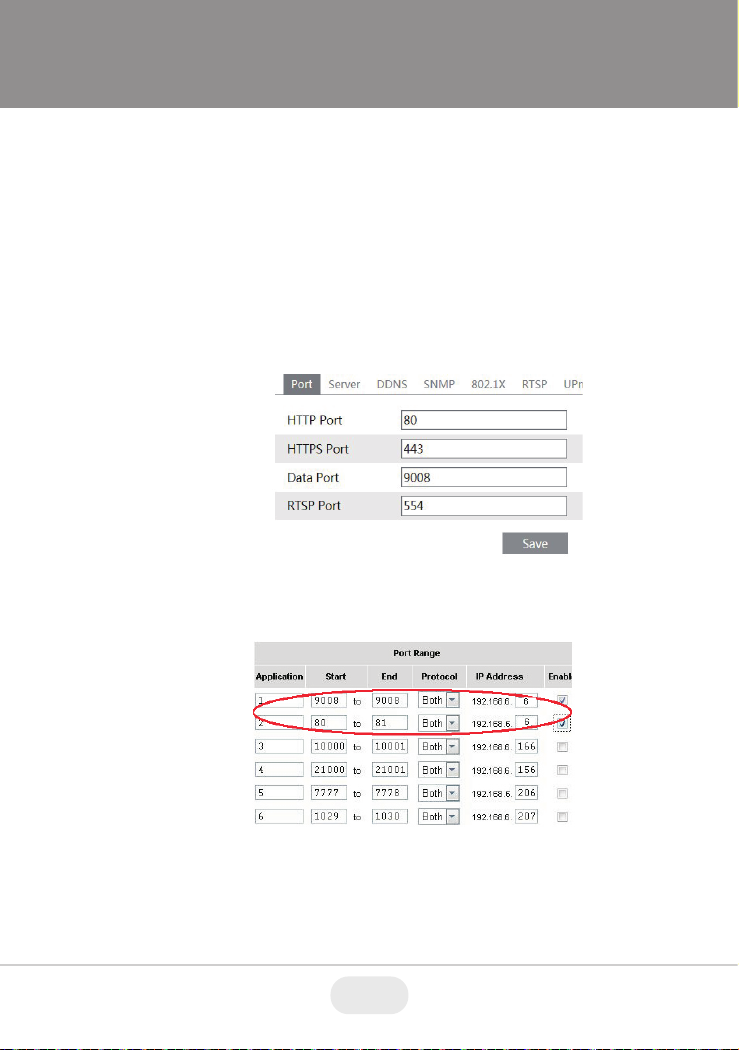

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan the

QR code on the front page of this quick guide and download

the complete manual.

10 11

DETAILED SPECIFICATIONS: VTC-TNB4LRPN

Image Sensor 1/1/8” 4.0 Megapixel Progressive Scan CMOS

Image Size 4 MegaPixel (2560 × 1520)

Electronic Shutter Manual or Auto, Manual: 1 / 1 s ~ 1 / 100000s

Resolution 4 MP (2592 × 1520) / 3 MP (2304 × 1296) / 1080P (1920 × 1080) / 720P (1280 × 720) / D1/CIF (480 × 240)

Min. Illumination 0.001 [email protected], AGC ON, 0 lux with IR

Lens 8~32mm Mtrzd Varifocal @F1.6, motorized

FOV Horizontal: 41°~15.5°, Vertical: 23°~9.5°, Diagonal: 46.5°~18°

Lens Mount Integrated

Recommended ANPR 23~99' (7-30M)

Other Features BLC, HLC, Defog

WDR 120dB True WDR

DNR XD DNR (3D-DNR / 2D-DNR)

S/N Ratio >50Db

Angle Adjustment Pan: 0°~360°, Tilt:0°~90°, Rotation: 0°~360°

IR Matrix (4)

IR Distance 325'

Video Compression Main stream: H.265+ / H.265 / H.264+ / H.264

Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

Main Stream 4MP/2K/3MP/1080P (60Hz :1 ~ 30fps; 50Hz : 1 ~ 25fps)

HFR Mode: 1080P/720P (60Hz: 1~60fps; 50Hz: 1~50fps)

Sub Stream 720P/D1/CIF ( 60Hz:1 ~ 30fps, 50Hz: 1 ~ 25fps )

Third Stream D1/CIF ( 60Hz:1 ~ 30fps, 50Hz: 1 ~ 25fps )

Bit Rate 64 Kbps ~ 8 Mbps

Bit Rate Type VBR / CBR

Audio Compression G.711A / G.711U

Image Settings ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Mirror, Image Flip,

Noise Reduction - Image Settings Adjustable through Client Software or Web Browser

ROI Each ROI to be configured separately

Network 100M RJ 45

Video Output CVBS Output (BNC × 1)

Audio 1CH Audio Input, 1CH Audio Output*

*Please research local, state and federal laws regarding the implementation of audio surveillance.
