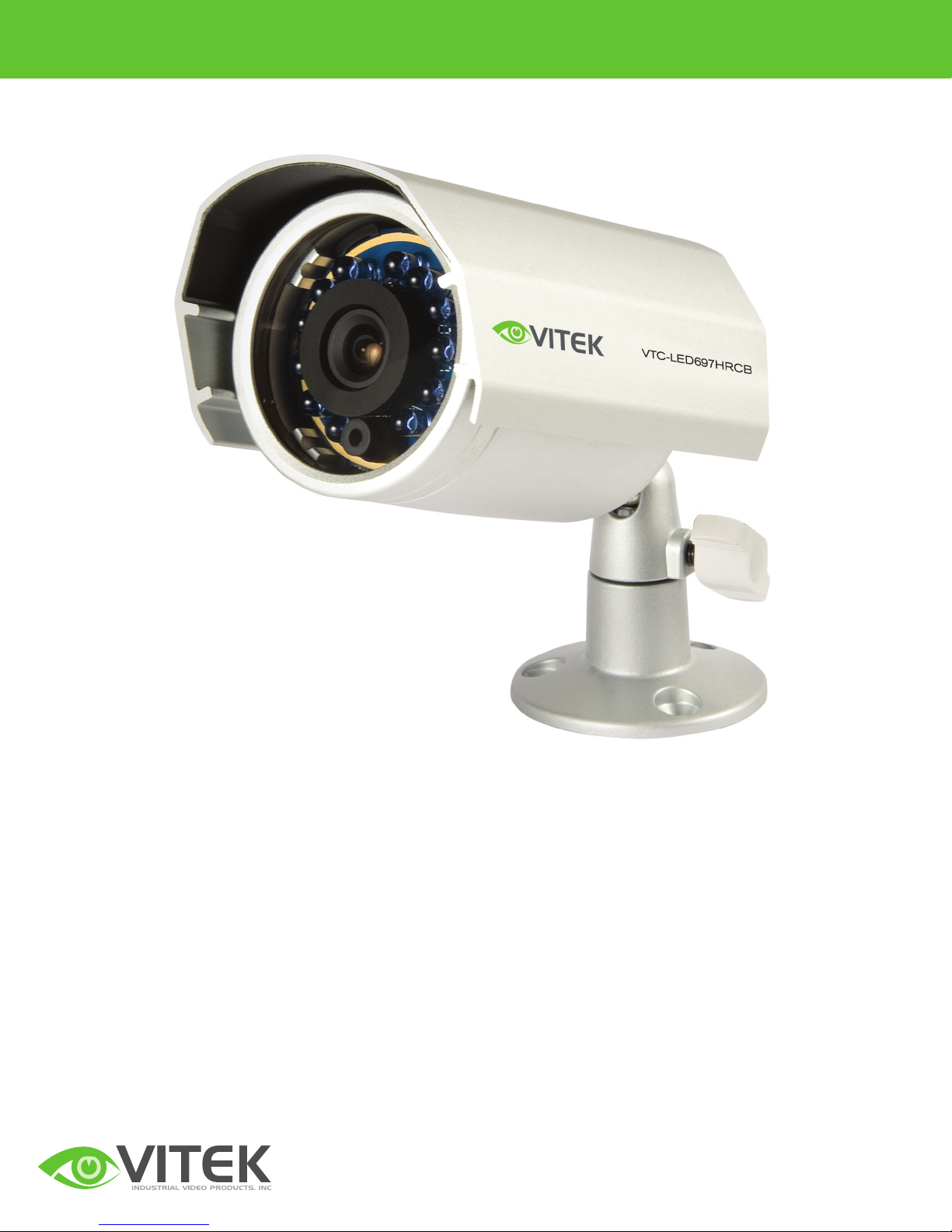

Vitek VTC-LED697HRCB User manual

BLACKYELLOWMAGENTACYAN

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

VTC-LED697HRCB 1/3" Hi-Res Color Bullet Camera

With 12 LED's & 480 TVL

The VTC-LED697HRCB employs a 1/3" High Resolution

Color CCD image device that provides extremely long life

and high reliability. 12 Infrared LED’s allow for clear

images even in total darkness up to 32 feet. It comes

complete with lens and mounting hardware ready to install

in almost any environment. 12VDC Power and compact

size make the VTC-LED667HRCB an excellent choice for

covert applications.

•1/3" High Resolution Color CCD image sensor

•480 TV Lines

•1 Lux / F2.0, 0 Lux (IR ON)

•Water Resistance: IP 67

•12 Infrared LEDs

•Effective IR Range: Over 32 Feet (10 Meters)

•Automatic IR triggers On under low illumination

/ Off under Normal Illumination

•Sun Shroud to reduce glare and dissipate heat

FEATURES

BLACKYELLOWMAGENTACYAN

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

VTC-LED697HRCB 1/3" Hi-Res Color Bullet Camera

With 12 LED's & 480 TVL

Detailed Specifications

Pick up Element

Number of Pixels

Resolution

Min. Illumination

IR LED

Effective Range

S/N Ratio

Electronic Shutter

Lens

Lens Angle

Iris Mode

AGC

White Balance

Video Output

Power Source

Current Consumption

Water Resistance

Dimensions

Weight

1/3" Color CCD image sensor

768(H)x494(V)

480 TV lines

1Lux / F2.0; 0Lux (10 meter IR ON)

12 units

Over 10 Meters

More than 48dB (AGC off)

1/60 (1/50) to 1/100,000 second

f3.6mm / F2.0; f4.0mm / F2.0; f6.0mm / F2.0; f8.0mm / F2.0 selectable

92.6 / 78 / 54 / 38.6 Degrees

AES

AUTO

ATW

1.0Vp-p composite, 75 Ohms

DC12V ± 10%

80mA (IR OFF), 260mA (IR ON)

IP57

2.48" x 2.28" x 4.06" (63 x 58 x 103.2mm)

12.17 Oz. (345g)
