Vitek VTD-HOC4F/I User manual

BLACKYELLOWMAGENTACYAN

VTD-HOC4F/I 2.0MP HD-SDI Indoor WDR

Dome Camera

•1/2.9” Progressive Scan Sony CMOS

•2.0 MegaPixel With full 1080p/720p HD-SDI

Output (SMPTE 292M)

•3.7mm Fixed Iris lens Included

•Mechanical IR Cut Filter (True Day/Night)

•16:9 Video format

•Advanced OSD Functions: WDR, 3D-DNR,

Night Watch DSS Low Light Color Technology,

ACE (Adaptive Color Enhancement), Motion

Detection, Privacy, Digital Zoom, HLM, Flip,

Mirror

•100% Pure Digital Transmission of video data

•Up to 700’ HD Transmission Range

(Depending on cable characteristics and

integrity)

•12VDC Operation

•Available in Ivory or Black

FEATURES:

With the all new On Cue Lineup, 2MP 1080P

images can be recorded using existing coax cable

with distances up to 700’ depending on cable

characteristics and integrity. 4 new camera options

cover most any application, and High Definition

Stand-Alone Digital Recorders with remote software

and mobile apps offer performance and versatility

never before available in the security marketplace.

VTD-HOC4F/I Inside Controls

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

BLACKYELLOWMAGENTACYAN

VTD-HOC4F/I

VTD-HOC4F/IW

VTD-HOC4F/IB

2.0MP HD-SDI Indoor WDR Dome Camera with 3.7mm Fixed Lens in White

2.0MP HD-SDI Indoor WDR Dome Camera with 3.7mm Fixed Lens in Black

AVAILABLE CONFIGURATIONS BREAKDOWN OF MODEL NUMBERS:

EXAMPLE: VTD-HOC4F/IW

{VTD}

VITEK Dome

{H}

{OC}

Over COAX

{4}

3.7 mm

{F}

Fixed Lens

{W}

White

VT-AP/WMT/W

Optional Indoor Wall Mount (Ivory)

VT-AP/WMT/B

Optional Indoor Wall Mount (Black)

2.0MP HD-SDI Indoor WDR

Dome Camera

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

Specifications

Sensor

Resolution

S/N

Video Output

Lens

Minimum Illumination

Day/Night

Electronic shutter speed

White Balance

Brightness

DSS (Sens-Up)

DNR

WDR

OSD Language

Digital Zoom

Privacy

Motion Detection

ACE (Adaptive Color Enhancement)

Advanced OSD Functions

Communication

HD Transmission Range

Operating Conditions

Input Voltage

Power Consumption (12VDC)

Dimensions

1/2.9” Sony CMOS (IMX122LQJ)

2.0 MegaPixel (1080p / 720p)

More than 52 dB (AGC Off)

1x HD-SDI (BNC) / 1x SD CVBS (BNC)

3.7mm Fixed

1 Lux at F1.2 / 0.1 Lux (B/W)

Mechanical IR Cut Filter (True Day/Night)

Auto / Manual (1/30sec ~ 1/30,000sec)

Auto / Auto EXT / Pushing / Manual

Adjustable (0 ~ 20 Steps)

YES

3D-DNR

YES

English

0 ~ x127

YES (32 Zones)

YES

HLM, Flip, Freeze, Sharpness, Mirror

RS-485 (PELCO-D)

Up to 700’ (Depending on cable characteristics and integrity)

14°-122°F (-10°-50°C) < 80% RH

12VDC

200mA

4.6” x 3.07” (Dia. x H)

Other Vitek Security Camera manuals

Vitek

Vitek VT-PIRC2H User manual

Vitek

Vitek VTC-TTAB42R2F User manual

Vitek

Vitek VTD-T4D6HR2MD User manual

Vitek

Vitek VTC-B301 User manual

Vitek

Vitek VTC-TNT8RMA4 User manual

Vitek

Vitek Transcendent VTC-TNT4FLN-2 User manual

Vitek

Vitek TRANSCENDENT VTD-HOCR2812-VB User manual

Vitek

Vitek Alpha VTC-IRLED24 User manual

Vitek

Vitek VTD-C510 User manual

Vitek

Vitek VTD-HOCR6E2812-V User manual

Vitek

Vitek VTD-VH49VP4 User manual

Vitek

Vitek Transcendent VTC-TNB5RMS User manual

Vitek

Vitek Transcendent VTC-TNB8RMA3 User manual

Vitek

Vitek Transcendent Series User manual

Vitek

Vitek Transcendent VT-TPTZ-B10X5N User manual

Vitek

Vitek Transcendent VTD-TND24R5F2 User manual

Vitek

Vitek VTD-AR2812-V User manual

Vitek

Vitek VTC-TNB8RMS User manual

Vitek

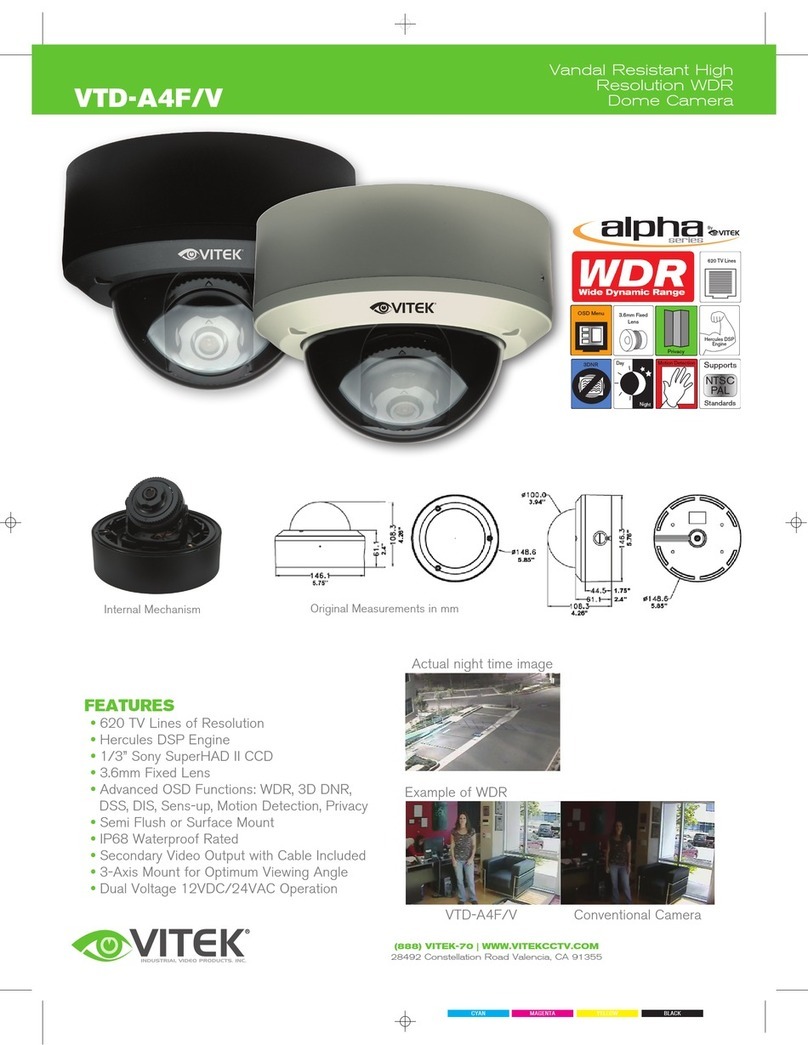

Vitek Alpha VTD-A4F/V User manual
