Vitek VTC-BHOC6R4F User manual

External OSD

Controls

for Ease of

installation

VITEK

FEATURES:

• 1/3” 2.1 MegaPixel Progressive Scan CMOS sensor w/

NVP2420 DSP

• 2.1 MegaPixel With full 1080p 3G-SDI (SMPTE 424M) @

60fps / 30fps HD-SDI (SMPTE 292M) @ 30fps Output

• 30 850nm Dynamic Intensity IR LEDs with 115’ Range

• MegaPixel IR Corrected 3.6mm Fixed Iris lens Included

• Mechanical IR Cut Filter (True Day/Night)

• XD-DNR (2D-DNR + 3D-DNR) Noise Reduction

• 16:9 Video format

• Advanced OSD Functions: Defog, Dynamic IR, WDR,

Motion Detection, Privacy mask, Mirror, BLC/HLC, D-Zoom

• 100% Pure Digital Transmission of video data

• Up to 700’ HD Transmission Range (Depending on cable

characteristics and integrity)

• IP67 Weather Resistance

• 12VDC Operation

VTC-BHOC6R4F

2.1MP 3G-SDI IP67 Vandal Resistant WDR True

Day/Night Bullet Camera with 3.6mm Lens &

30 IR LEDs

WARNINGS

The camera needs periodic inspection.

• Contact an authorized technician for inspection.

Stop using camera if there is a malfunction.

• Avoid installing camera in high heat areas, risk of fire may occur.

Do not install the camera on a surface that can not support it.

• Unless the surface is suitable, injury or other hazards may occur.

Do not disassemble the camera.

• It may result in fire, electric shock or other hazards.

Do not hold plug with wet hands.

• It could cause an electric shock.

Do not use the camera close to a gas or oil leak.

• It may result in fire or hazards.

PRECAUTIONS

ØDo not install the camera in extreme temperature conditions.

• Only use the camera under conditions where temperatures are

between -14˚F and +122˚F. Be especially careful to provide ventilation

when operating under high temperatures.

ØDo not drop the camera or subject it to physical shocks.

• It may cause malfunctions to occur.

ØNever point camera into a strong light source, such as the

sun or bright spotlight.

• It can damage the CMOS Sensor.

ØDo not expose the camera to radioactivity.

• This will damage the CMOS sensor.

NOTE

• If the camera is exposed to spotlight or object reflecting strong

light, smear or blooming may occur.

• Please check power specs before connecting power.

• 1/3” 2.0 Mega-Pixel Panasonic Progressive Scan Sensor

• Resolution: 1920 x 1080 (30P/25P, 60P/50P, 60i/50i)

• HD-SDI / SMPTE 292M (30P/25P HD-SDI), SMPTE 424M

(60P/50P 3G SDI) Video Output

• HD over Coaxial Cable

• Uncompressed HD Digital Video

• WDR

• True Day/Night by ICR

• Smart 3DNR, 2DNR / Smart IR

• RS-485 (Pelco®-D) Remote Control, Coaxial Cable Comm.

• Sens-UP: 2x ~ 30x

• Motion Detect, Mirror, Privacy Mask, De-fog, BLC/HLC, D-Zoom

FEATURES

Setup Menu (OSD)

[How to operate OSD joy stick]

OSD menu is controlled by OSD joystick in OSD Board or OSD Cable

-▲(UP), ▼(DOWN), ◀(LEFT), ▶(RIGHT),●(SET / ENTER)

[Menu Tree]

SETUP MENU (OSD)

[Menu Tree]

MENU TREE

[Menu Tree]

MENU TREE

[Menu Tree]

MENU TREE

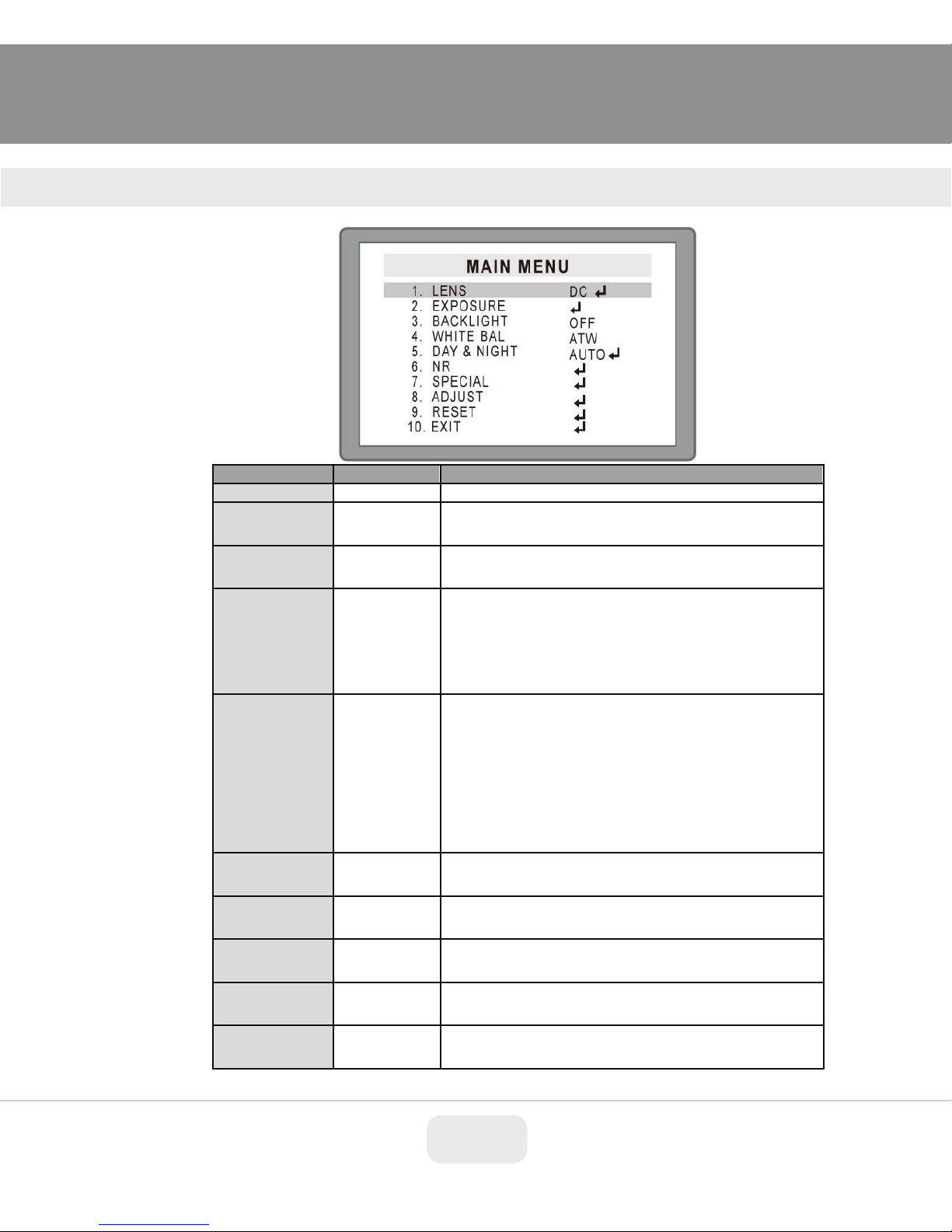

Main OSD Menu

MAIN MENU

DEFAULT

DESCRIPTION

LENS

Select Lens type according to mounted or built-in lens

EXPOSURE

Set SHUTTER, AGC, SENS-UP, BRIGHTNESS,

D-WDR &, DEFOG

BACK LIGHT

Select WDR, BLC, HSBLC or OFF

WHITE BAL ATW

* ATW(Auto Tracking White Balance) * AWC ->

SET : White Balance is fixed at the value when

*(enter) is pressed and keeps the value

* INDOOR : White Balance is fixed at about 3100K

* OUTDOOR : White Balance is fixed at about 5100K

* Manual : Adjustable value of BLUE and RED

DAY&NIGHT AUTO

* AUTO: DAY or NIGHT is set automatically by light

level coming in through lens. DELAY TIME, D -> N

and N -> D, can be set in the menu

* COLOR : Color video output * B/W : B/W video

output regardless of light level

(removes IR cut filter automatically)

* EXT : Day(Color) or Night(B/W) is decided by

external light sensor(CDS sensor)

All IR LED cameras should be set to EXT.

* Set 2DNR, 3DNR, LEVEL, SMART NR

SPECIAL

* Set CAM TITLE, D-EFFECT, MOTION, PRIVACY,

LANGUAGE,DEFECT & RS 485

ADJUST

* Set SHARPNESS, MONITOR, LSC, TV SYSTEM

(Video Out), RESOLUTION & FRAME RATE

RESET

* Push • (Enter) at FACTORY, all parameters return

to factory default.

EXIT

* Save all and Exit

MAIN OSD MENU
