Vitek Transcendent VTC-TNB2LPR User manual

VITEK

VTC-TNB2LPR

Transcendent Series

2 MegaPixel License Plate

Recognition WDR IP

Motorized Bullet Camera

OPERATION MANUAL

FEATURES:

• Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light

Producing Color Images in Very Dark & Night Scenes

• 1/2.8” 2.0 Megapixel CMOS Image Sensor

• 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240

• 7~22mm @ F1.6 Motorized Varifocal Lens

• Field of View - H: 44°~17.6°; V:25.6°~10°; D: 49.7°~20.2°

• 6 Matrix IRs with up to 325’ IR Range

• True Wide Dynamic Range (120db)

• True Mechanical Day/Night function by ICR

• XD-DNR (3D & 2D Digital Noise Reduction)

• License Plate Recognition (LPR), Abnormal Video, Scene Change

• LPR Snapshot: Overview and Cutout of Plate, White List: 10,000

• LPR Capture Speed Range: 0-44m/h (0~70km/h) [Installation Dependent]

• Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG

Compression

• MicroSD Card Slot for Local Recording (Up to 128GB)

• One Channel Audio Input + One Channel Audio Output*

• One Channel Alarm Input + One Channel Alarm Output

• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps

• ONVIF Compliant

• IP67 Weather Resistance

• Wall Mount Included and Optional Junction Box VT-TJB01 Available

• 12VDC & PoE (Power over Ethernet) Operation

• 3-Year Warranty

*Please research local, state and federal laws regarding audio surveillance.

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

Please read this manual carefully for correct use of the product.

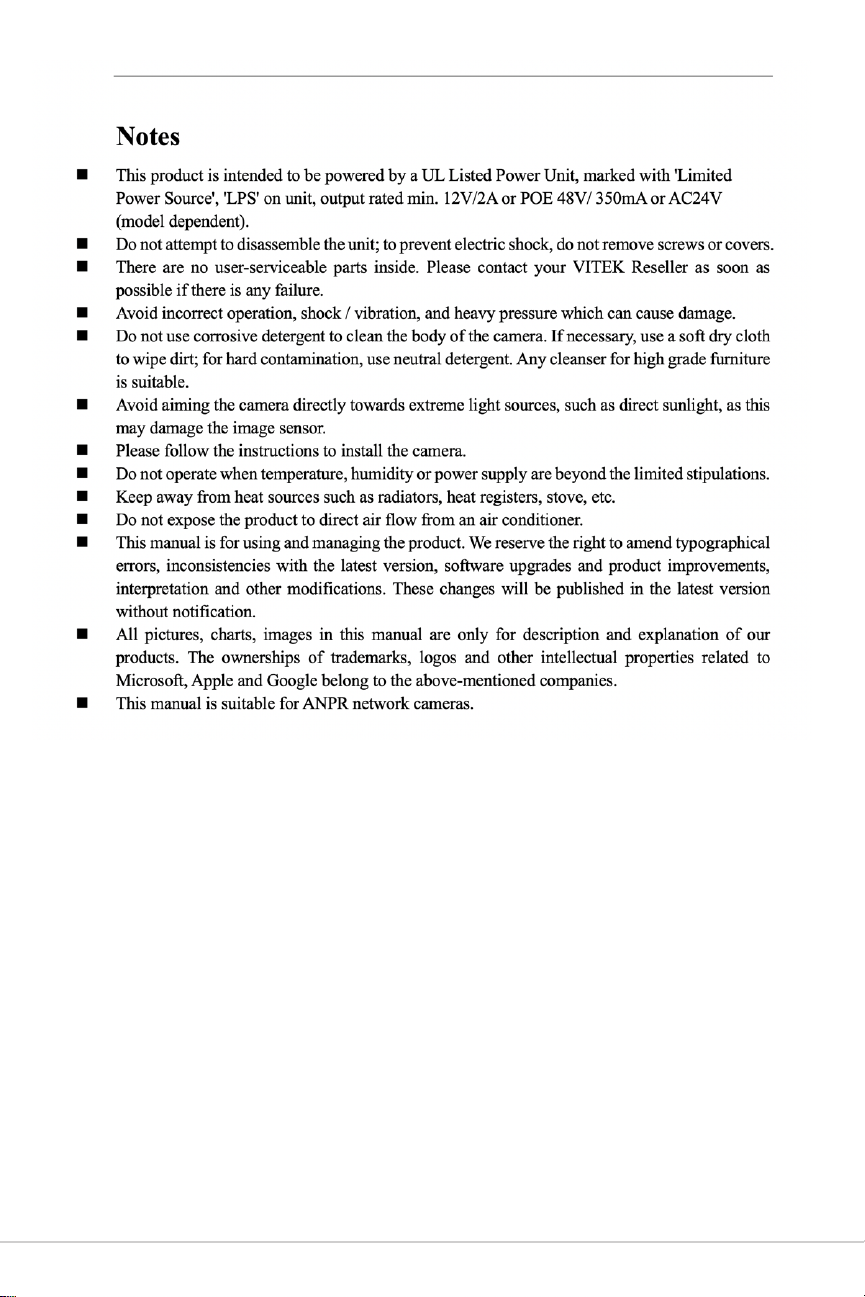

Notes

!Please use the specified power supply to connect.

!Do not attempt to disassemble the camera; in order to prevent electric

shock, do not remove screws or covers.

!There are no user-serviceable parts inside. Please contact the nearest

service center as soon as possible if there is any failure.

!Avoid incorrect operation, shock vibration, heavy loads which can cause

damage to the camera.

!Do not use corrosive detergent to clean body of the camera. If

necessary, please use soft dry cloth to wipe dirt; for hard contamination,

use neutral detergent. Any cleanser for high grade furniture is

applicable.

!Avoid aiming the camera directly towards extremely bright objects, such

as the sun, this may damage the image sensor.

!Please follow the instructions to install the camera.

!Do not operate it incase temperature; humidity and power supply are

beyond the limited stipulations.

!Keep away from heat sources such as radiators, heat registers, stove,

etc.

!Do not expose the product to the direct airflow from an air conditioner.

!We may reserve the rights to amend typographical errors,

inconsistencies with the latest version, software upgrades and product

improvements, interpretation and modification. These changes will be

published in the latest version without special notification.

!The pictures and screenshots in this manual are only used to explain

the usage of our product. The ownerships of trademarks, logos and

other intellectual properties related to Microsoft, Apple and Google

belong to the above-mentioned companies.

!This manual is suitable for IR weather-proof network camera. All

pictures and examples used in the manual are for reference only. .

1 Introduction

Main Features

l ICR auto switch, true day/night

l 3D DNR, WDR

l BLC, Defog, Anti-flicker, smart IR, corridor mode

l ROI coding

l Abnormal video signal detection (scene change, video blur detection, video color cast

detection), license plate recognition

l Supports mobile surveillance by smart phones with iOS and Android OS

Surveillance Applications

VITEK VTC-TNB2LPR

2 Network Connection

Connect IP-Cam via LAN or WAN. IE browser is used here as an example. The details are as

follows:

2.1 LAN

In LAN, there are two ways to access IP-Cam: 1. access through IP-Tool; 2. directly access

through IE browser.

2.1.1 Access through IP-Tool

Network connection:

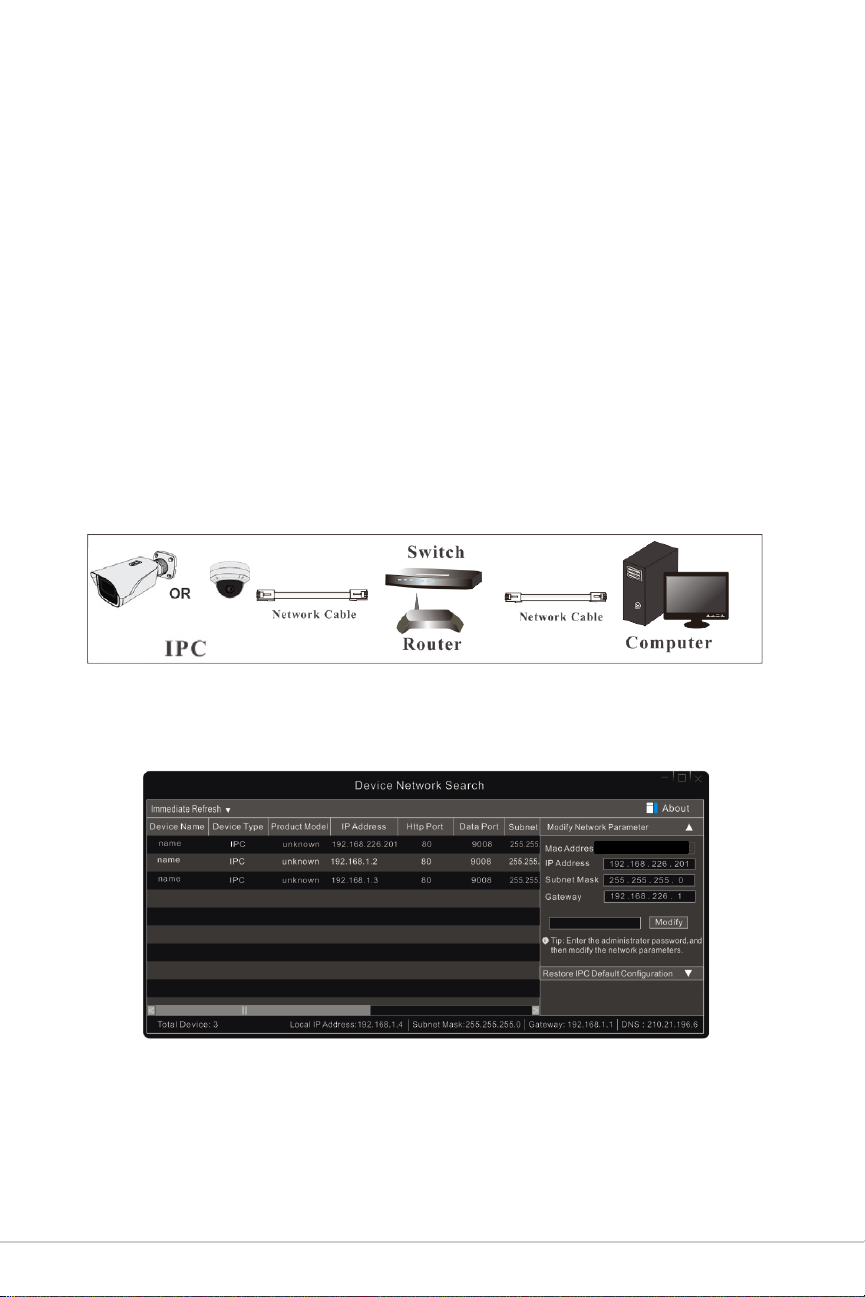

①Make sure the PC and IP-Cam are connected to the LAN and the IP-Tool is installed in the PC.

②Double click the IP-Tool icon on the desktop to run this software as shown below:

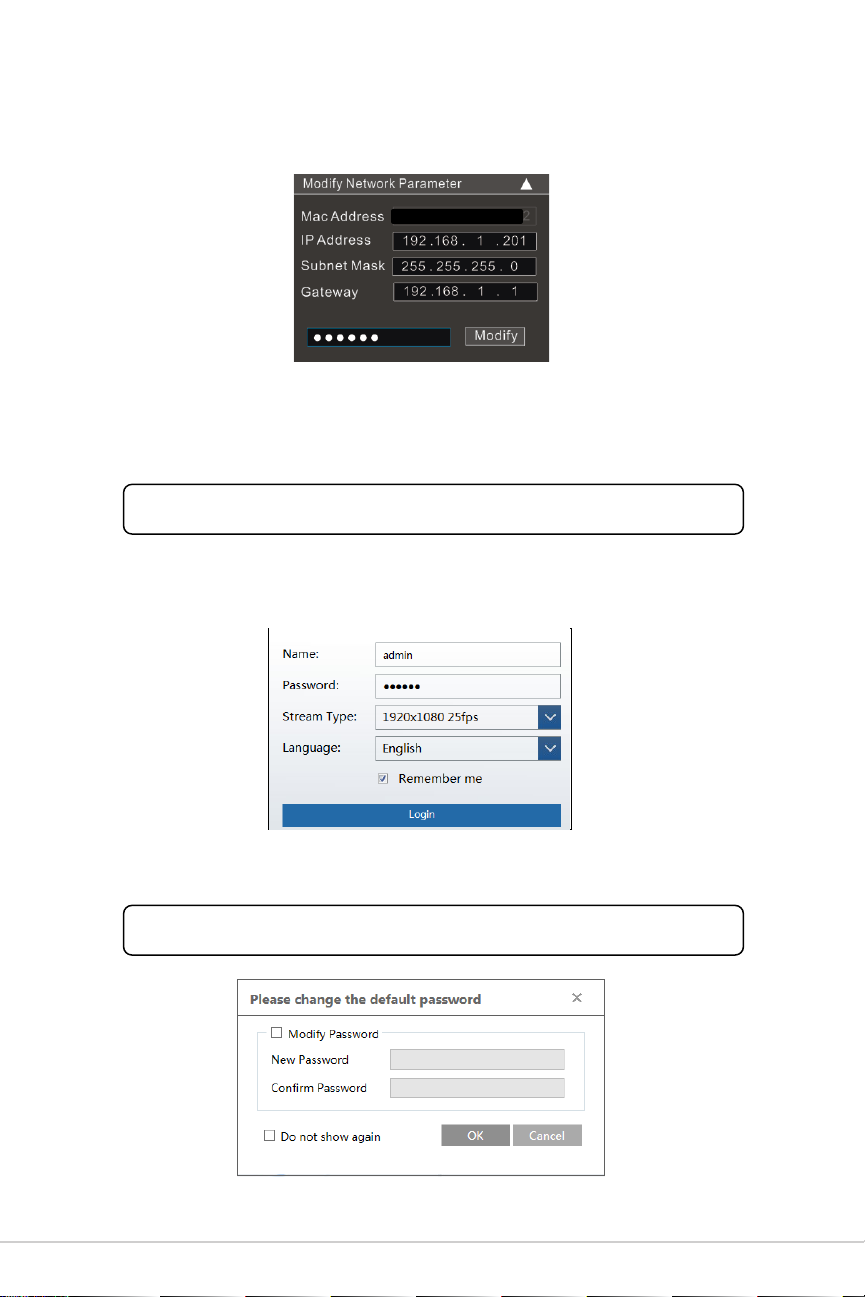

③Modify the IP address. The default IP address of this camera is 192.168.226.201. Click the

information of the camera listed in the above table to show the network information on the right

side. Modify the IP address and gateway of the camera and make sure its network address is in

the same local network segment as the computer’s. Please modify the IP address of your device

1 Introduction

Main Features

l ICR auto switch, true day/night

l 3D DNR, WDR

l BLC, Defog, Anti-flicker, smart IR, corridor mode

l ROI coding

l Abnormal video signal detection (scene change, video blur detection, video color cast

detection), license plate recognition

l Supports mobile surveillance by smart phones with iOS and Android OS

Surveillance Applications

VITEK VTC-TNB2LPR

according to the actual scenario.

For example, if the IP address of your computer is 192.168.1.4. The IP address of the camera

should therefore be changed to 192.168.1.X. After modifying, please enter the password of the

administrator and click the “Modify” button to modify the setting.

④Double click the IP address and the system will bring up the IE browser to connect the IP-

CAM. Follow directions to download, install and run the Active X control.

Enter the username and password in the login window to log in.

The default password of the administrator is “123456”.

The default username is “admin”; the default password is “123456”.

VITEK VTC-TNB2LPR

The system will display the above-mentioned textbox to ask you to change the default password.

It is strongly recommended to change the default password for account security. If “Do not show

again” is checked, the textbox will not appear next time.

2.1.2 Directly Access through IE

The default network settings are as shown below:

IP address: 192.168.226.201

Subnet Mask: 255.255.255.0

Gateway: 192.168.226.1

HTTP: 80

Data port: 9008

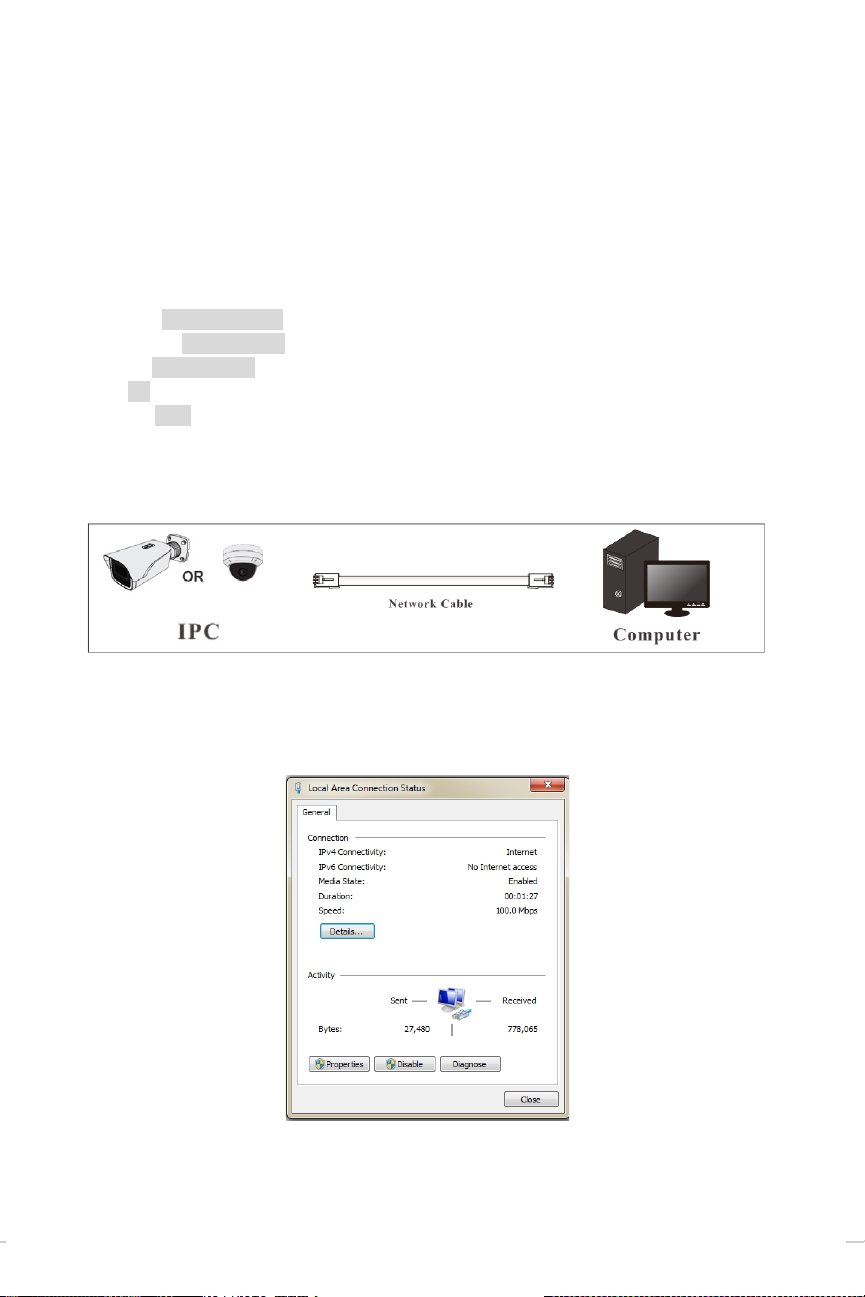

Use the above default settings when logging into the camera for the first time. Directly connect

the camera to the computer through network cable.

①Manually set the IP address of the PC. The network segment should be as the same as the

default settings of the IP camera. Open the network and share center. Click “Local Area

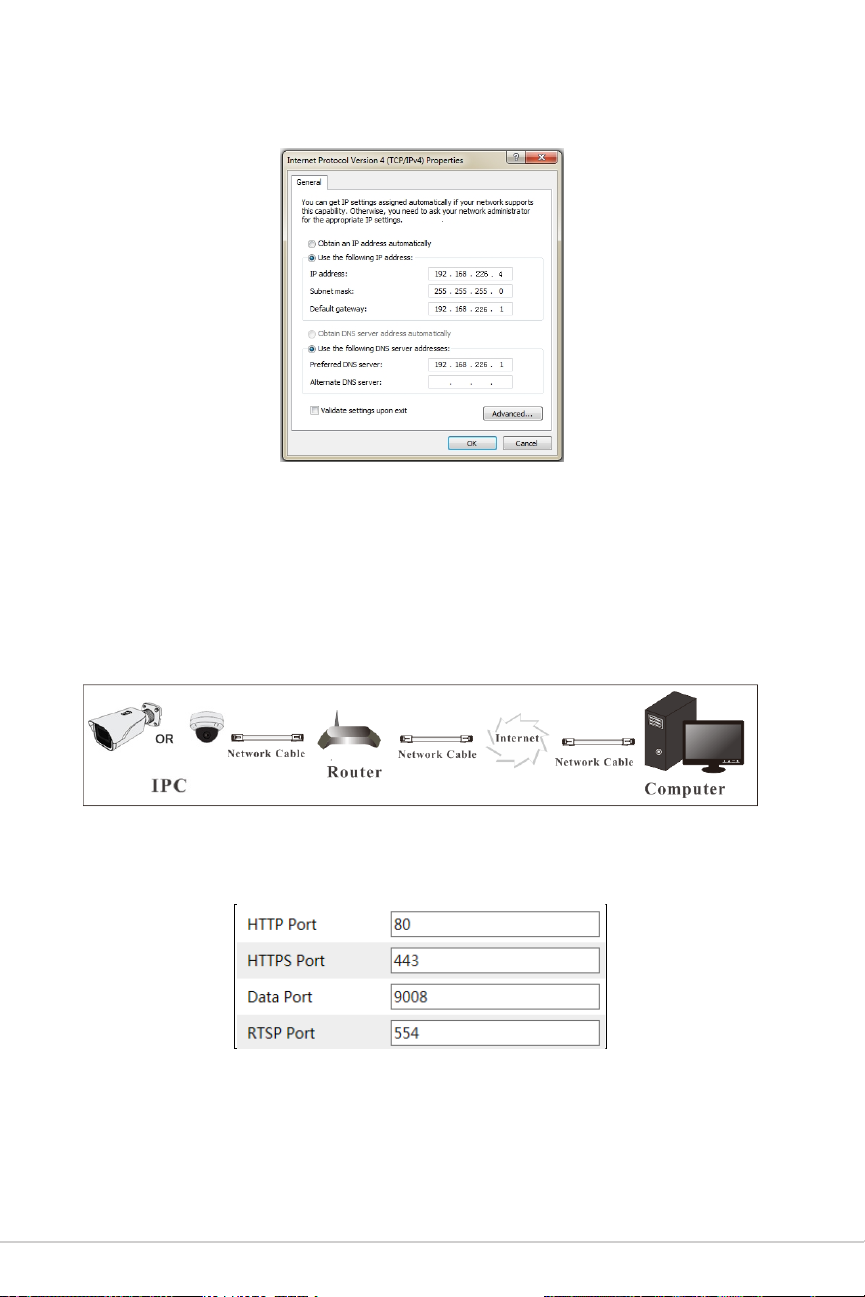

Connection” to bring up the following window:

Select “Properties” and then select “internet protocol” according to the actual scenario (for

example: IPv4). Next, click the “Properties” button to set the network of the PC.

VITEK VTC-TNB2LPR

②Open the IE browser and enter the default address of IP-CAM and confirm.

③Follow directions to download and install the Active X control.

④Enter the default username and password in the login window and then enter to view.

2.2 WA N

Ø Access through the router or virtual server

①Make sure the camera is connected to the local network and then log in the camera via LAN

and go to ConfigàNetworkàPort menu to set the port number.

Port Setup

②Go to Config àNetworkàTCP/IP menu to modify the IP address.
