Vitek VTD-C510 User manual
BLACK
VITEK
VTD-C510
High Resolution Color
Indoor Dome Camera
The VTD-C510 high resolution color dome camera is a
small, attractive camera ideal for use in commercial or
residential applications. It measures less than 5” in
diameter and comes in dual voltage 24 Volt AC/12 Volt
DC power input for easy integration with standard
cameras and power systems.
•1/3" High Resolution CCD (768 x 494)
•580 TV Lines Resolution
•DSP Controls For Superior Backlight, White Balance, And
Gain Control
•0.03 Lux Sensitivity
•Dual Voltage: 12VDC / 24VAC
•Also available in white
2
WIRING CONNECTIONS
The VTD-C510 Dome Camera should be powered by 12 Volts DC or 24 Volts AC. You
should make sure that the power supply you are using is CSA Certified Class 2 Power
Supply delivering a minimum of 2.5 Watts.
For optimum video signal, use 95% copper shielded coax cable. Twisted pair or CAT-5E
cable may also be used with optional VT-TR1M Passive Video Transceivers. Maximum cable
distance for 95% copper braid coax is approximately. 800’; For Cat-5E or twisted pair, 1500’
using VT-TR1M transceivers, and up to 4500’ with use of VT-TR16AI Active UTP hub.
BLACK
3
CAMERA SETUP
DIP SWITCH SETTINGS
Your VTD-C510 Dome Camera has been set at average default settings from the factory so
the performance should be excellent right from the start. However, certain challenging
environments may require additional set-up procedures to enhance the image.

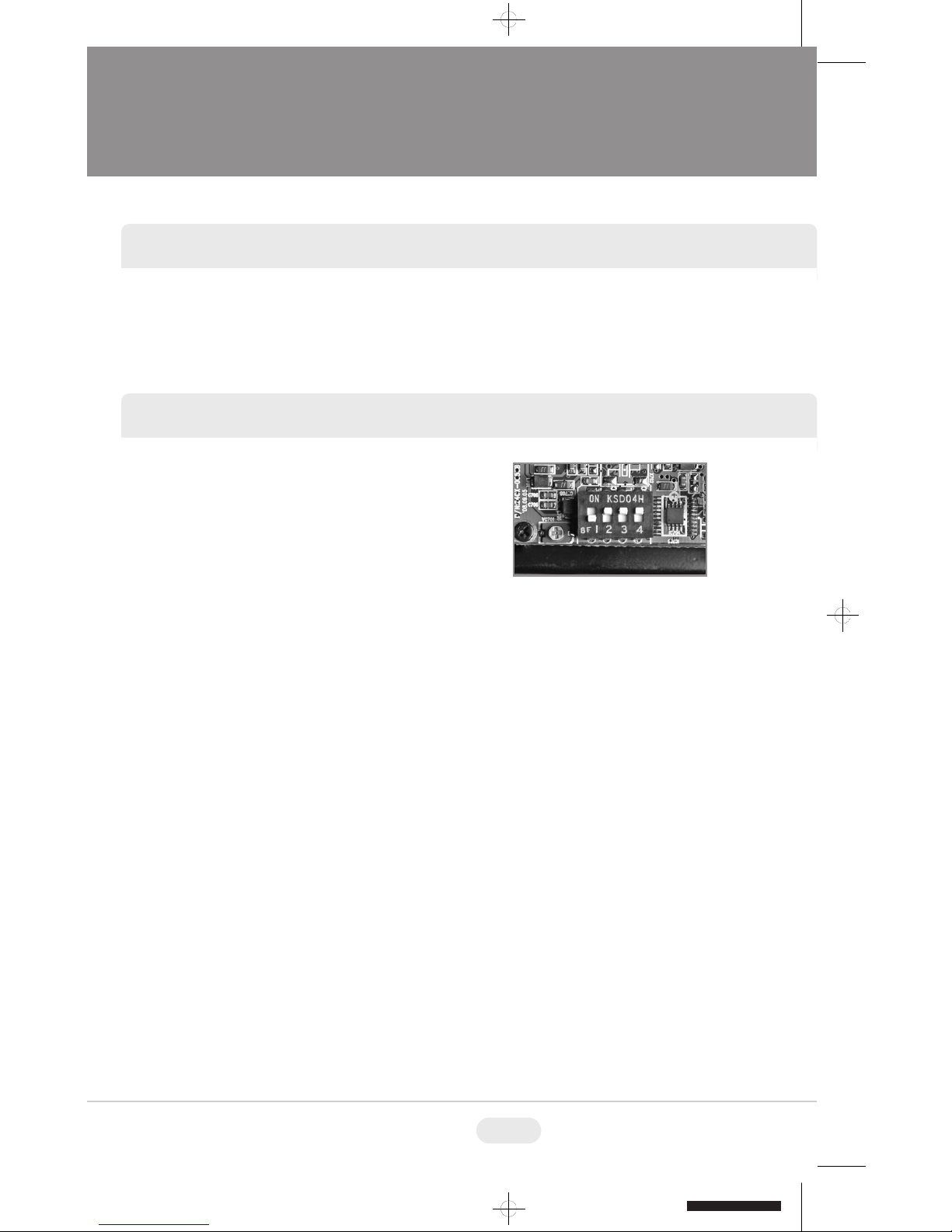

There are four dip switches on the rear board of
the camera. The following adjustments may be
made:
Dip Switch Adjustments
AE: Automatic Electronic Shutter Control
Leave this switch in the “On” position when using a fixed lens
version to enhance the camera’s ability to react to changing light.
Switch to “Off” position if your camera has an auto iris lens.
BLC: Back Light Compensation
Leave this switch in the “Off” position if your camera is being
installed outdoors or if the installation is indoors in a controlled
lighting environment.
Switch to “On” position when installing the camera indoors looking
toward windows or doors or if outdoors looking into semi-direct
sunlight. Never install camera looking into direct sunlight.
FL: Flickerless
Flickerless shutter speed for minimizing image flicker under
fluorescent lighting.
AGC: Automatic Gain Control
Used to increase the video signal in low light conditions. If used in
the wrong environment, this setting can add noise in the picture
giving a grainy appearance.
Dip Switch 1
(Default ON)
Dip Switch 2
(Default OFF)
Dip Switch 3
(Default OFF)
Dip Switch 4
(Default OFF)
4

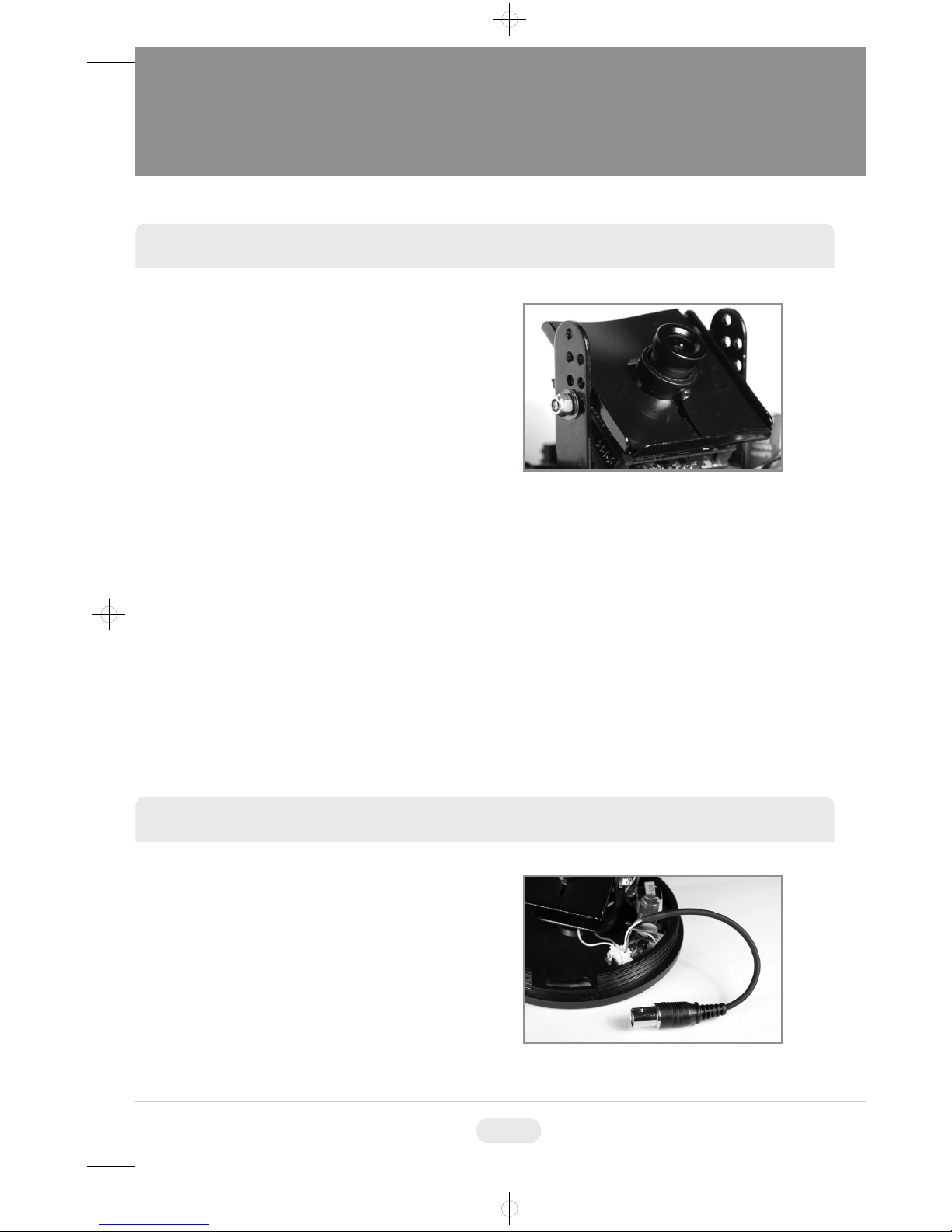

FOCUS ADJUSTMENT
The focus may be adjusted by simply screwing
or unscrewing the lens. Be sure to loosen the
set screw before attempting to adjust the focus
or damage may occur.
Be careful not to over tighten the lens
or you may damage the pick-up
sensor.
Focus Adjustment
SECONDARY VIDEO OUTPUT
The VTD-C510 is equiped with a Secondary
Video Output for ease of setup and adjustment.
A 6” cable is included with the camera.
Secondary Video Output & Cable.
BLACK
5
ROUTINE MAINTENANCE
Use mild liquid cleaners to remove dirt and grime from the dome surface.
Do not use harsh or abrasive cleaners which can scratch the polycarbonate dome and
reduce visibility for the camera.
If the camera view is obstructed by scratches, remove the front plate (bezel) and rotate the
bubble to a portion that is not scratched.
If the dome becomes damaged or scratched beyond use, contact your distributor to order a
replacement.
6
NOTES
BLACK
7
DOME SPECIFICATIONS
Image Device
Effective Pixels
Resolution
Minimum Illumination
S/N Ratio
Electronic Shutter
White Balance
Standard Lens
Video Output
Power Source
Operation Temp:
Dimensions
Weight
1/3” Color CCD Image Sensor
768 x 494
580 TV Lines
0.03 Lux at f1.2 (AGC ON)
More Than 48dB (AGC Off)
1/60 ~ 1/100,000 Sec.
Auto White Balance (AWB)
3.6mm Included (2.9 / 6.0 / 8.0 / 16mm Optional)
Composite: 1.0 Vp-p / 75 Ohm
12VDC / 24VAC
14°F~122°F / -10~50°C
4.73” x 2.96” / 120mm x 75mm (W x H)
0.66 lbs. / 10.58 oz. / 300g
8
28492 CONSTELLATION ROAD VALENCIA, CA 91355
WWW.VITEKCCTV.COM | 888-VITEK-70
LIMITED LIABILITY WARRANTY
Your new Camera is guaranteed to be free from defects in materials
and workmanship for a period of two years from the date of
purchase.
The product must have been used only for its intended purpose, and
not been subjected to damage by misuse, willful or accidental
damage, caused by excessive voltage or lightning.
The product must not have been tampered with in any way then the
guarantee will be considered null and void.
This guarantee does not affect your statutory rights.
Contact your local VITEK Reseller should servicing become
necessary.
