ViewSonic VPC12-WPO-18 User manual

VPC12-WPO-15/16/17/18

Slot in PC module

Quick Start Guide

Model No. VS19122

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding

the world’s expectations for technological evolution, innovation, and simplicity.

At ViewSonic®, we believe that our products have the potential to make a positive

impact in the world, and we are confident that the ViewSonic® product you have

chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

Package Contents

VPC12-WPO-15/16/17/18

Slot in PC module

Quick Start Guide

Model No. VS19122

1. Interface

9 12 9

1 2 3

4 5 6 67 8

Item Descripon

1POWER BUTTON

2MIC IN

3LINE OUT

4USB 2.0 / TYPE-C

5HDMI 1.4

6USB 3.0

7RJ45

8RESET

9SMA Connector (for WiFi Antenna)

10 80 Pin Con. (ops)

11 DC jack

12 Kensington Lock

2. Installaon

2-1

2-2

2-3

*Antennas must be installed

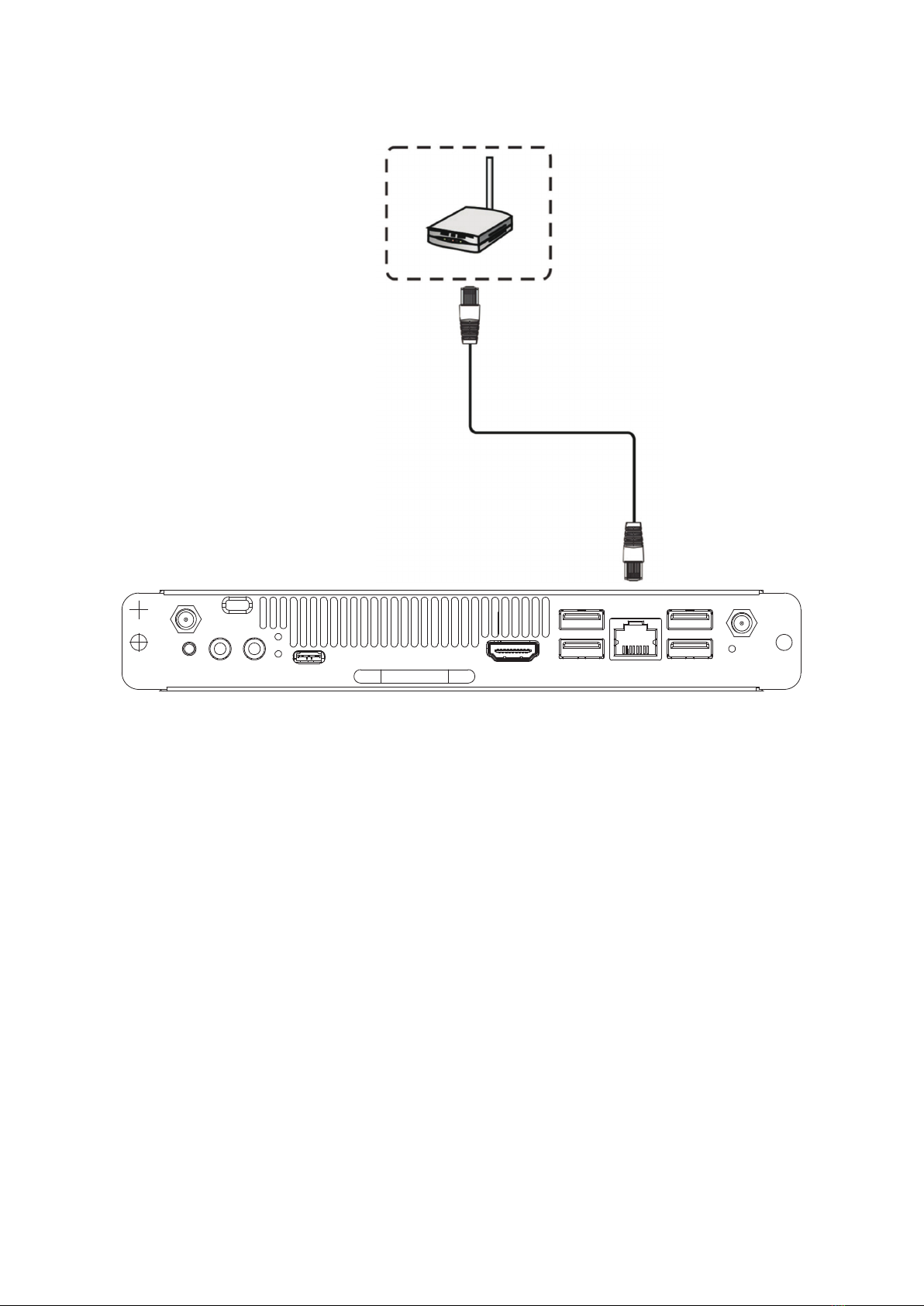

3. InternetConnecon

4. InputSelecon

To select an Input Source:

1. Press INPUT on the remote control, press the seng buon

4242

on the front

panel, or press the

4242

seng icon from the toolbar to display the Input Sengs

menu.

2. Press

4242

to select PC.

3. Press

4242

on the remote control, or touch the input source.

4. Press

4242

on the remote control, or touch a blank area outside of the menu to

exit.

5. USBConnecon

6. Specicaons

Processor Intel® Coeelake U SOC, i5-8259U (VPC12-WPO-15/16)

Intel® Coeelake U SOC, i5-8279U (VPC12-WPO-17/18)

Graphic Intel® Iris® Plus Graphics 655

RAM 2 x DDR4 SO-DIMM, 64GB (Max)

Storage 1 x NVMe M.2 2280 SATAIII SSD

IO ports 4 x USB 3.0

1 x USB 2.0 Type-C

1 x HDMI 1.4 out

1 x RJ45 Ethernet (with Realtek 8111H)

1 x Microphone/Line out

2 x External antenna Holes

1 x Power On/ O Buon

1 x Reset Buon

1 x Power LED

1 x HDD LED

1 x 80 Pin JAE OPS connector

WIFI/BT 1 x M.2 2230 (with Intel® Dual Band Wireless-AC 3165)

vPro/AMT No

BIOS AMI UEFI BIOS

Power DC in +19V @ 4.74A

65 W (Typical)

Operang

Condions

-5 °C to +45 °C

20% RH ~ 80% RH non-condensing

Storage

Condions

-20 °C to +70 °C

10% ~ 80% R.H. non-condensing

This manual suits for next models
