V-ZUG 296 User manual
Installation instructions
Heat pump dryer
One-family household
J296.113-0
25.6.08 ITH
1
These installation instructions apply to the model: 296
The appliance should be installed by qualified personnel only. Each step must be carried out and checked in full in the order
specified.
Validity
Transport
Transport the appliance in an upright position only or, if necessary, tilted on its left side (front view). Being transported any other
way can cause damage to the appliance!
Allow the appliance to stand for about 2 hours in the normaloperating position.
Front
Front Back
Front, upside down Side
Installation instructions
Heat pump dryer
One-family household
J296.113-0
25.6.08 ITH
2
AOpen the appliance door and the cover.
– The identification plate is located bottom right behind the cleaning cover.
The necessary installation accessories are located in the drum.
Installation plate (W5.0542)
incl. screw material (S) and double-sided adhesive tape
The room must be well ventilated to ensure that the room temperature does not exceed 35 °C.
If the volume of the room in which the appliance is located is at least 20 m³ when closed:
Condensation may form on thermal bridges!
The room must be aired (by opening the door to or a window in the room) between consecutive drying programmes!
If the volume of the room in which the appliance is located is less than 20 m³:
There must be air inlet and outlet openings (open window, ventilation grille or slits in the door, ventilation system) to the adjacent room
or to the outside.
ARaise the appliance slightly at the front and pull it forward, away from the installation plate.
ASecure the installation plate to the location you wish to install the appliance using 4 screws. On smooth and clean floors, you can
affix the installation plate (double-sided adhesive tape supplied).
ADampen the mounting slots on the installation plate with water.
Identification plate
Installation accessories supplied
Article Article no. Number See installation step
Condensate drain kit W5.5845 1 4. Connect condensate drain
Room conditions / ventilation
Do not obstruct the appliance’s ventilation slits to ensure that there is an ample supply of air.
The room temperature should be kept as low as possible to ensure the economic running of the appliance. Critical is a room
temperature of 35 °C and over. This prolongs the duration of the programmes.
Installation
Work steps 1–5 must be carried out in full in the order specified.
1. Positioning the installation plate
Use the installation plate to install the appliance. This plate fixes the appliance in position (for both free-standing appliances
and appliances placed in a niche).
S
Installation instructions
Heat pump dryer
One-family household
J296.113-0
25.6.08 ITH
3
Free-standing position
Positioning in a niche
ACentre the installation plate in the niche.
ARoughly adjust the rear adjuster feet.
ATo ensure smooth, fault-free operation, the appliance must be perfectly vertical. Use a
spirit level to position the appliance.
ASlide the appliance in. Finely adjust the front adjuster feet until all 4 feet are standing
firmly on the floor.
– The appliance must not wobble.
AInformation on the necessary mains voltage, type of current and fuse protection is to be obtained from the identification plate.
If a tumble dryer and a washing machine are positioned side by side, keep a distance of min. 5 mm between installation plates
and min. 3 mm to walls.
* This only applies if no plumbing fittings are to be installed behind the appliance.
Add another 20 mm if the condensed water hose leads away to the left.
2. Levelling
3. Electrical connections
Electrical connections must be carried out by trained electricians in accordance with the guidelines and standards for low volt-
age installations and the specifications of the local electricity supply companies.
A plug-in appliance may only be connected to a socket outlet with earthing contact, installed according to specifications. A
mains isolating device with 3 mm contact opening should be provided in the house wiring system. Switches, plug and socket
devices, circuit breakers and fusible cut-outs which are accessible after installation and which have all-poles switching are per-
missible as isolating devices. Effective earthing and separately installed neutral and earth conductors ensure safe and fault-
free operation. After installation, live parts and cables with basic insulation must not be accessible. Old installations should al-
ways be checked.
min. 3 597
595
50
505
min. 550*
min. 5 min. 5
min. 600*
Niche depth
min. 600
Niche width
Cut-out for lateral
connections, to the
left or right side
min. 100 × 100 mm
Niche height
min. 860 mm!
Installation instructions
Heat pump dryer
One-family household
J296.113-0
25.6.08 ITH
4

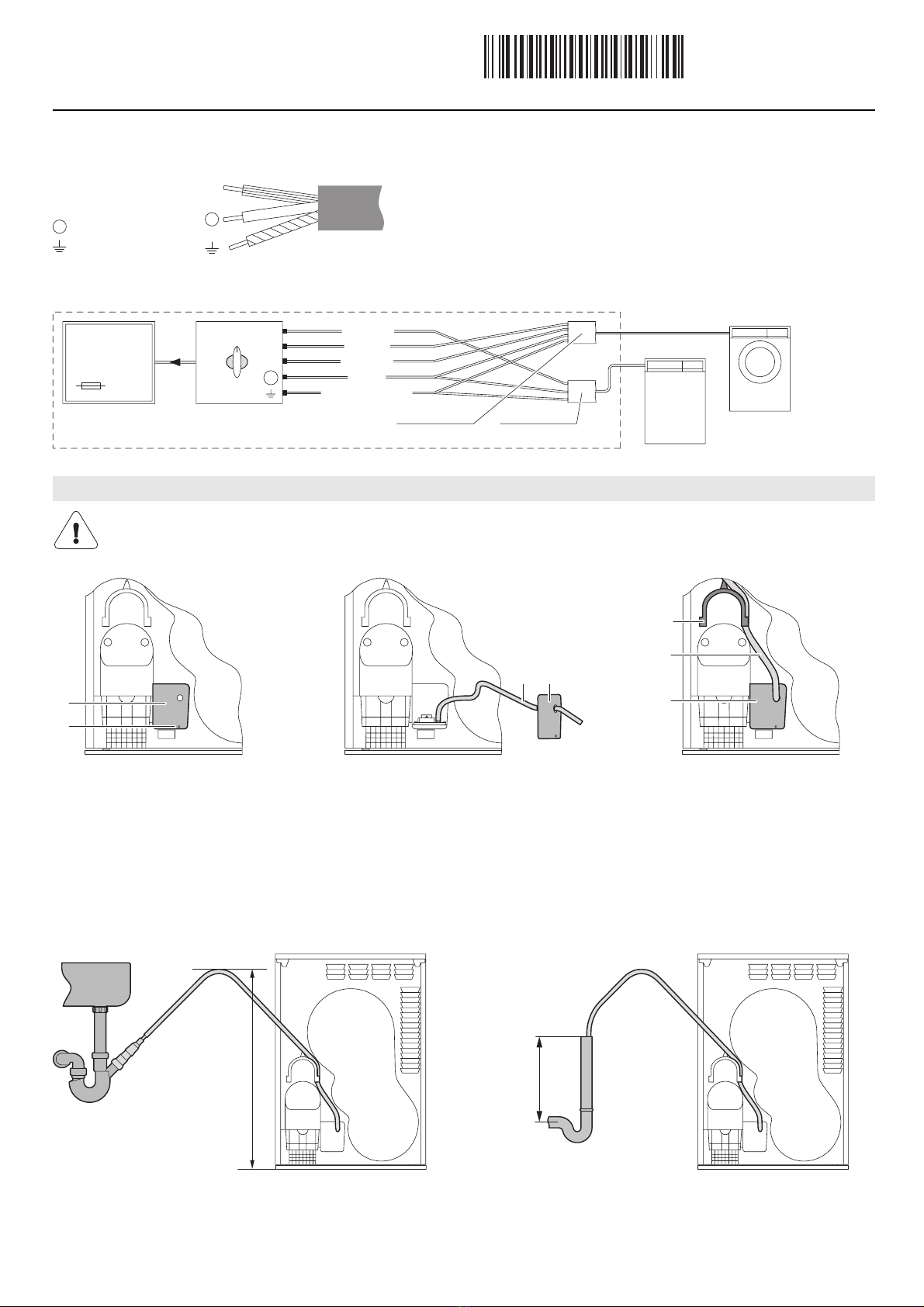

Connection cable
Combined connection tumble dryer / washing machine (models 250–258, 267)
Single connections
䡲Cannot be connected to a double drain trap.
䡲There must be a separate concealed drain trap for each appliance.
230 V~ 50 Hz, 10 A
Colour code
L1 brown
blue
yellow/green
4. Connect condensate drain
When installing the drain hose, protect it against damage and bending! For that, use a hose clip 8.086.8039.
ALoosen screw A.
ARemove cover B.
APush the supplied drain hose C(2 m)
through the hole in the cover B.
APush on to the pump connection piece
and secure with a hose clip.
AReplace cover B.
APlace hose around retainer D.
Connection to sink drain trap Drain into fixed upright outflow pipe
The max. pumping height of the pump is 1.2 m
3 × 1 mm2
N
L1
N
1
0
L1
L2
L3
N
10 A
Total connected load: max. 690 W
Washing machine
Tumble dryer
Wall switch
Mains
400 V 3N~
brown
black
brown
blue
yellow/green
4 × 1 mm
2
Mains cable
3 × 1 mm
2
Mains cable
B
A
BC
B
C
D
min. 800
min. 350
Installation instructions
Heat pump dryer
One-family household
J296.113-0
25.6.08 ITH
5
Washer-dryer combinations
䡲Can be connected to a double drain trap.
Washer-dryer-combination
Installation side by side
with combi drainage set W5.4917
The installation can be checked by means of a function test. It lasts about 3 minutes. The heat pump is not turned on. Once the function
test has been run, it can no longer be selected and the appliance enters the normal selection mode.
APlug the appliance in at the mains or turn the wall switch on.
AStart the function test with the button.
– The function test runs (the washing drum reverses and the process fan starts).
AWhile the test is running, check the stability of the appliance. If necessary, readjust the adjuster feet until the appliance stands
firmly on the floor.
with combi drainage set W5.4917 with drainage into fixed upright outflow pipe
5. Using for the first time / fine levelling
The appliance must be allowed to stand in the standard operating position for about 2 hours before using for the first time. Fail-
ure to observe this can result in damage to the appliance.
The function test cannot be interrupted by pressing the button or by disconnecting the power.
max. 700
max. 700
max. 700
