USX-MOUNT XML006-K User manual
XML006-K
INSTRUCTION MANUAL
For 42-70" TV
If you have any questions along the way, just give us a call
We’re ready to help!
All manuals and user guides at all-guides.com
all-guides.com
2
MAX:600mm/23.62"
(MIN:200mm/7.87")
MAX:400mm/15.74"
(MIN:100mm/3.94")
Before getting started, let’s check below lists to make sure it is just right for you!
2
3
4
5
Does your TV
(including accessories)
weigh MORE than
99 lbs. (45 kg)?
What is your
wall made of?
Do you have
all the tools
needed?
(NOT INCLUDE) Tape
Measure
CAUTION
Pencil Level Screw
driver
Electric
Drill
No? Perfect – you may continue.
Yes? This mount is NOT compatible.
Drywall with
wood studs? CAUTION:
CAUTION: DO NOT exceed the maximum weight
indicated. This mounting system is intended for use only
with the maximum weights indicated. Use with products
heavier than the maximum weights indicated may result
in collapse of the mount and its accessories, causing
possible injury.
Solid concrete ?
1/2 in.
(13 mm)
Socket
Wrench
Stud
Finder
7/32 in.
(5.5 mm)
Wood
Drill Bit
● This product is designed for use in wood stud, solid concrete walls - DO NOT install into drywall alone
● The wall must be capable of supporting five times the weight of the TV and mount itself
● Do not use this product for any purpose not explicitly specified by manufacturer
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Unsure?
Call Customer Service:
1-800-747-6558
3/8 in.
(10 mm)
Masonry
Drill Bit
Hammer
1
Check your TV
VESA is within
Min and Max size
No? This mount is NOT compatible.
Yes? Perfect !
All manuals and user guides at all-guides.com
TV INTERFACE 3-D
WALL PLATE
FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED SIDE VIEW - RETRACTED
TOP VIEW - EXTENDED SIDE VIEW - EXTENDED
3
429mm
[16.90in]
62mm
[2.45in]
372mm
[14.66in]
5°
15°
200mm
[7.87in]
15mm
[0.59in]
100mm
[3.94in]
400mm
[15.74in]
600mm
[23.62in]
177mm
[6.97in]
411mm
[16.17in]
304mm
[11.97in]
435mm
[17.13in]
236mm
[9.29in]
285mm
[11.22in]
Ø9mm
[Ø0.35in]
203mm
[7.99in]
697mm
[27.44in]
All manuals and user guides at all-guides.com
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact
Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.
4
Parts and Hardware for STEP 1
M4x12mm
M5x12mm
M6x12mm
M8x25mm
M4x30mm
M5x30mm
M6x35mm
M8x50mm
TV Brackets
x2
M5/M6x17mm M8x22mm
M5/M4 M6
10mm 2.5mm
Washers
Spacers
TV Screws
x4
x4
x4
x4
x4
x4
x4 x4
x4
x4 x4
x4 x8
x4
All manuals and user guides at all-guides.com
5
Parts and Hardware for STEP 2
Lag Bolt M8 Washer
Concrete Wall Anchor 4pcs
CAUTION:Do not use in drywall or wood
x4 x4
Wall Plate Unit
x1
Allen Key
x1
Extension Arm
M6x15mm Bolt
x2
M6x8mm Bolt
x8
Extension Arm
x2 x2
End Support
x2
Parts and Hardware for STEP 3
All manuals and user guides at all-guides.com
M8
M6
M5
M4
1-1 Select TV Screws
P
P
O
OO
TV back
Bracket Washer
Bracket
Long Screw
Spacer
No, go to PAGE 7 for detailed combination.
Yes, go to PAGE 7 for detailed combination.
TV back
1-2 Need Spacer?
Short Screw
Washer
6
All manuals and user guides at all-guides.com
all-guides.com
1-3 Attach the TV Brackets
Tips: If you need to combine M8(d/h) screw with 2.5mm spacer(n), you have to remove the inner circle.
Screw and washer
Spacer(s), screw(s) and washer(s)
7
No!
All manuals and user guides at all-guides.com
Centre line
8
CAUTION: Avoid potential personal injury or property damage!
● Drywall covering the wall, must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
● Minimum horizontal space between fasteners: 16 in. (406 mm)
● Stud center must be verified
1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using, a thin nail,
or an edge to edge stud finder.
2. Position the wall plate at your desired height and line up the holes with your stud center line. Level
the wallplate and mark the hole locations.
Again, find another wood stud
All manuals and user guides at all-guides.com

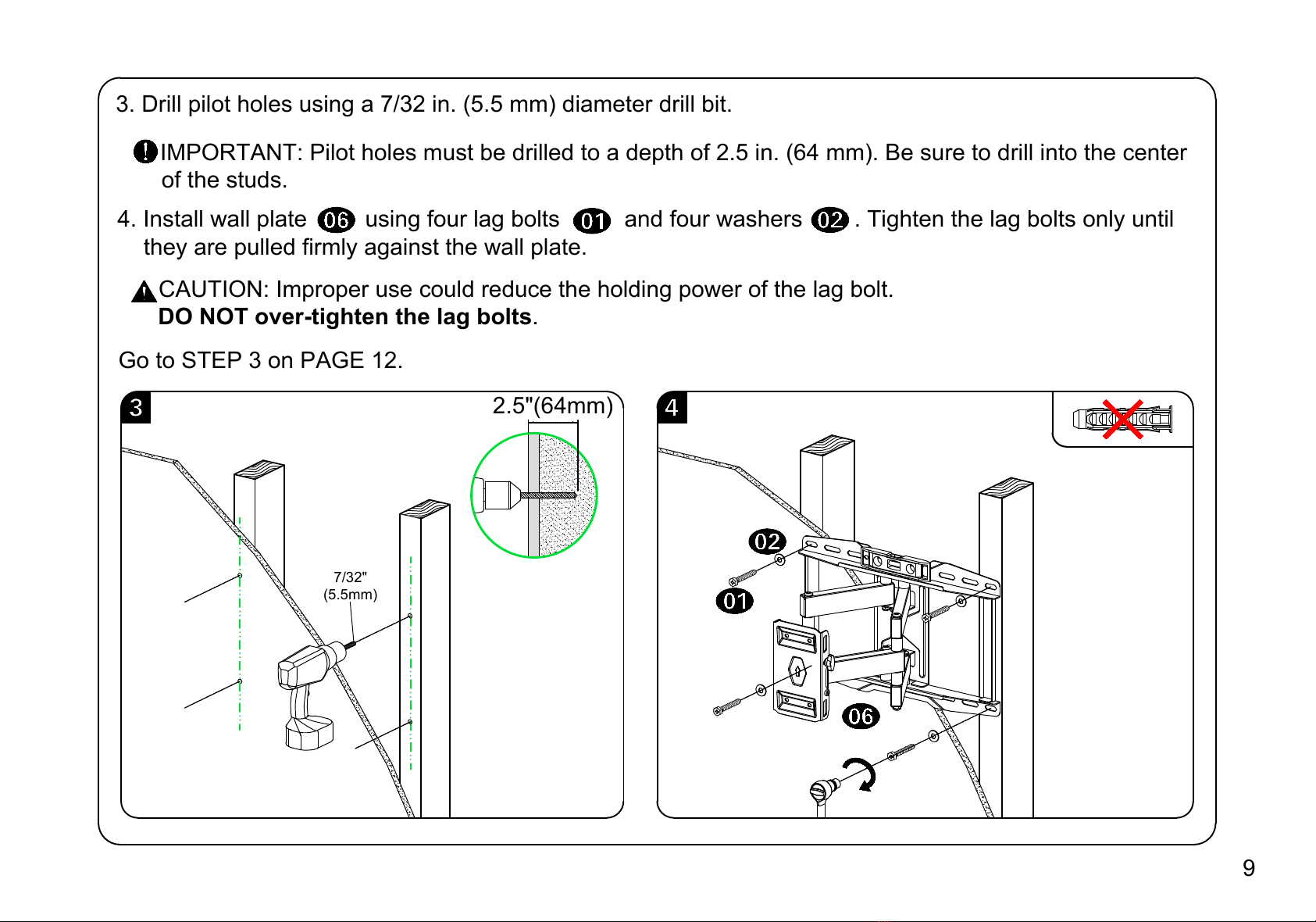

3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2.5 in. (64 mm). Be sure to drill into the center
of the studs.
4. Install wall plate using four lag bolts and four washers . Tighten the lag bolts only until
they are pulled firmly against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt.
DO NOT over-tighten the lag bolts.
Go to STEP 3 on PAGE 12.
2.5"(64mm)
7/32"
(5.5mm)
9
All manuals and user guides at all-guides.com
3/8"
(10mm) 2.5"(64mm)
10
CAUTION: Avoid potential personal injury or property damage!
● Mount the wall plate assembly directly onto the concrete surface
● Minimum solid concrete thickness: 8 in. (203 mm)
● Minimum horizontal space between fasteners: 16 in. (406 mm)
1. Position the wall plate on the wall at your desired height. Level the wall plate and mark the
hole locations.
2. Drill four pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2.5 in. (64 mm).
